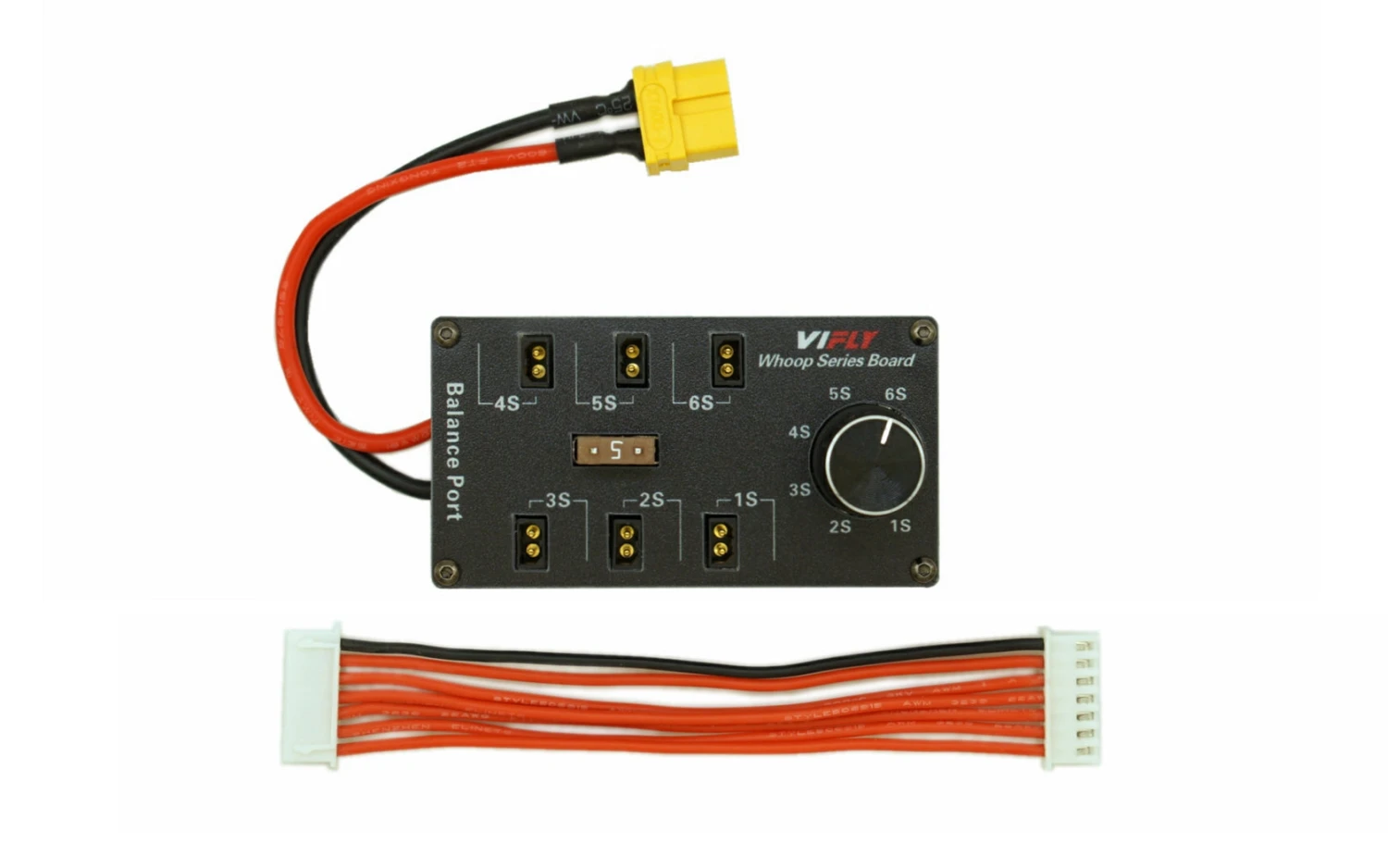

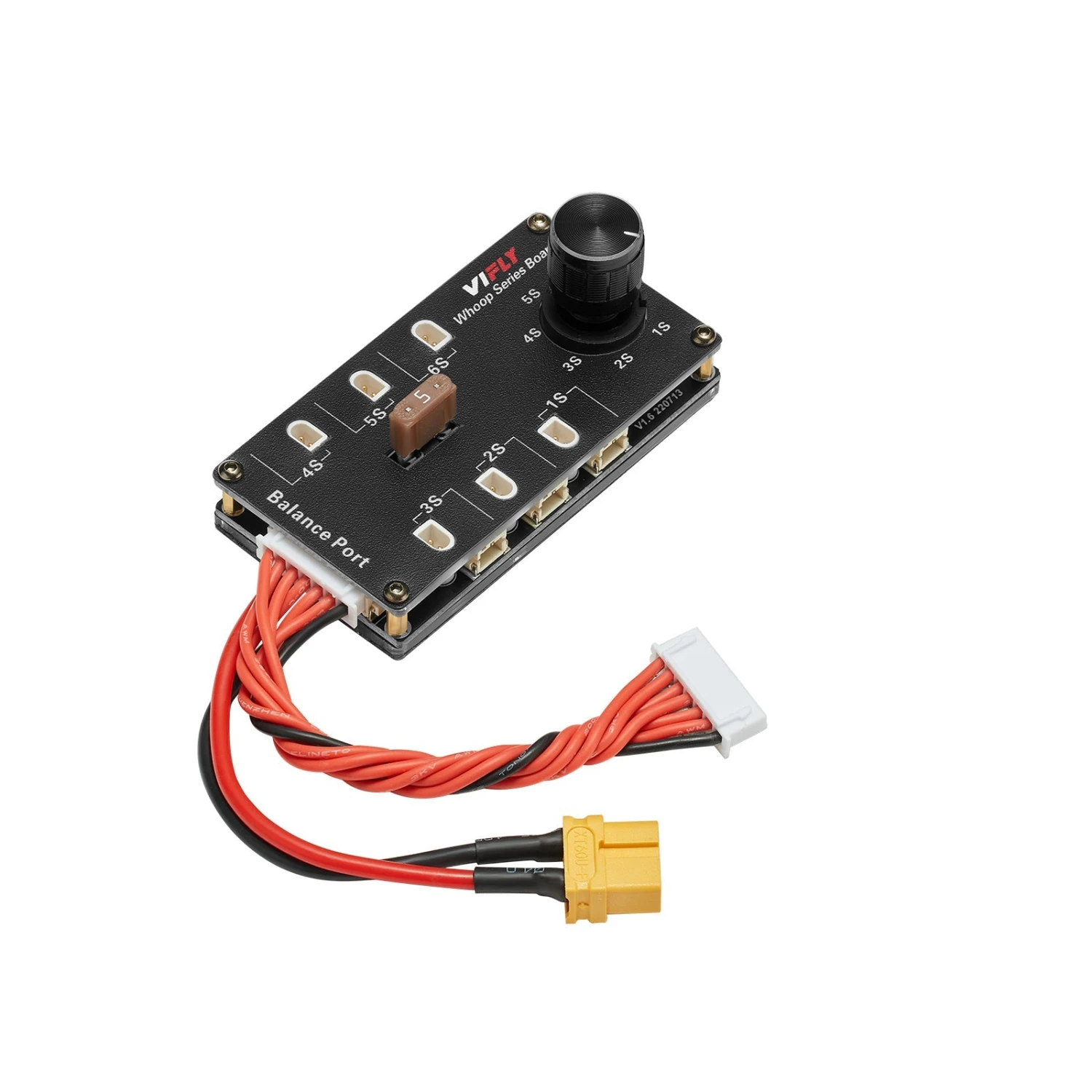

VIFLY 1S Series Charging Board, Storage Charge and Discharge 1S LiPo Batteries with Standard Charger



Features:

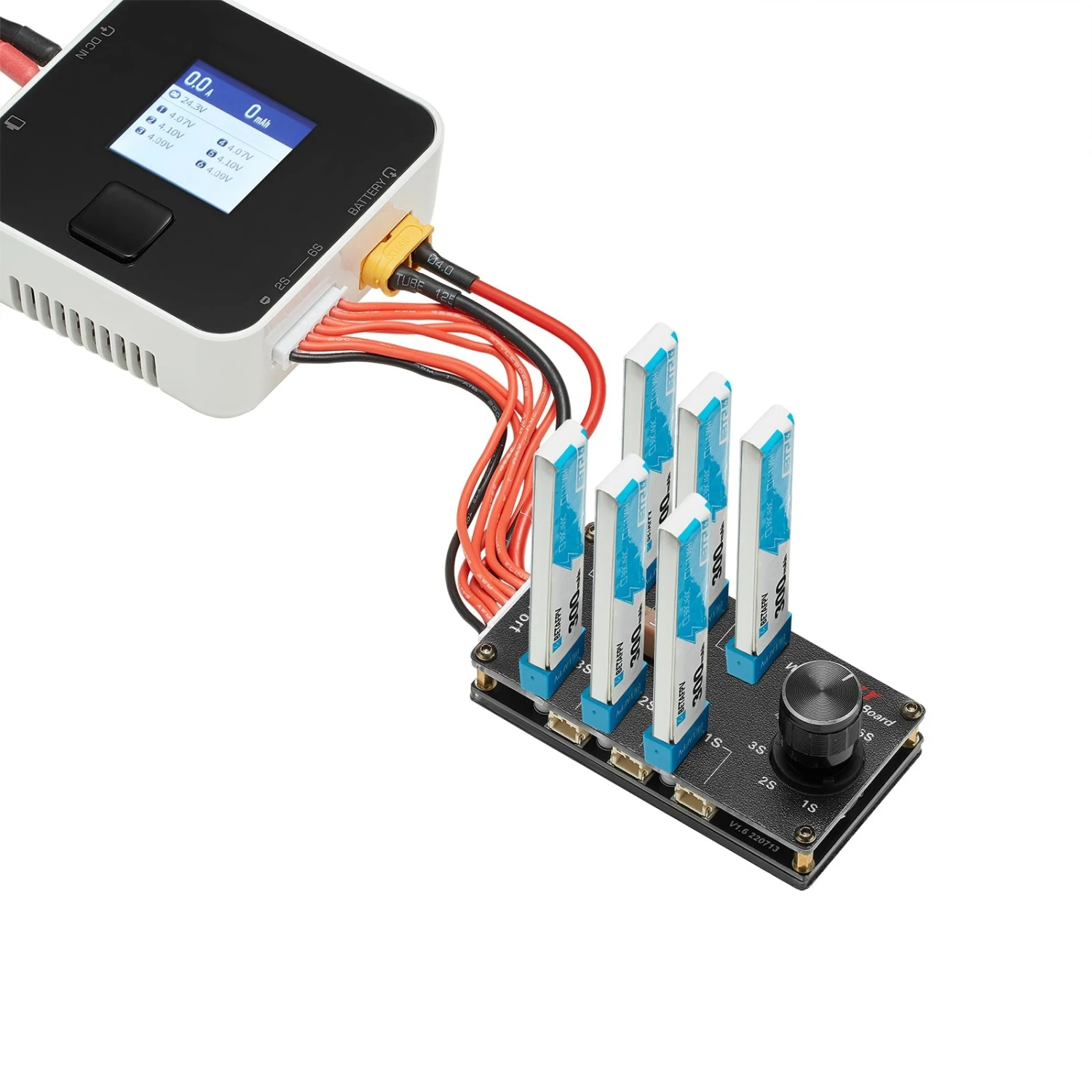

• – Storage charge 1S LiPo batteries with standard charger.

• – Charge 1-6 batteries at the same time.

• – Turn the knob for the number of batteries you are charging.

• – The added fuse makes the board even safer.

• – Pre-soldered PH2.0 and BT2.0 connectors /GNB27 connectors.



Warning:

• – It is series board not parallel board. For example, when you are charging 4pcs 300mAh lipos, set your charger to 0.3A for 1C or 0.6A for 2C. NOT 1.2A or 2.4A.
• – The specs of all batteries should be the same, ie, battery capacity, battery type, brand, etc.
• – Never leave the board unattended while charging or discharging.
• – Do not charge over 1.5amps. The fuse is 5A that not means you can charge it in 5A, the knob is rated for 1.5A so don’t charge it over 1.5A.
• – Don’t plug in both PH2.0 and BT2.0 /GNB27 connectors battery in the same port.
