TBS Tracer Sixty9 – Tracer Rx + Unify Vtx AIO

What could be better than the best Tracer receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

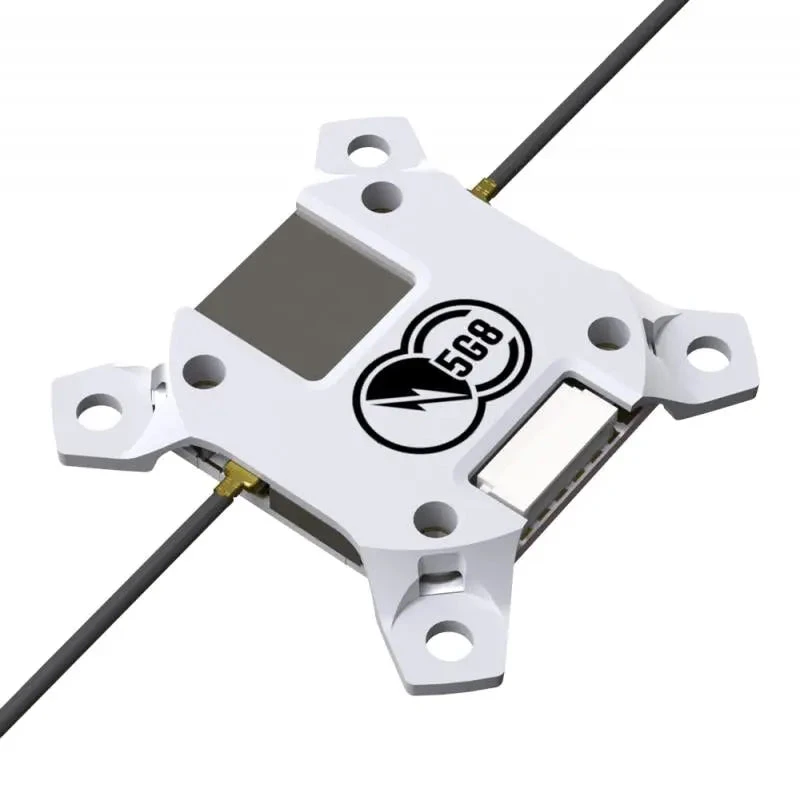

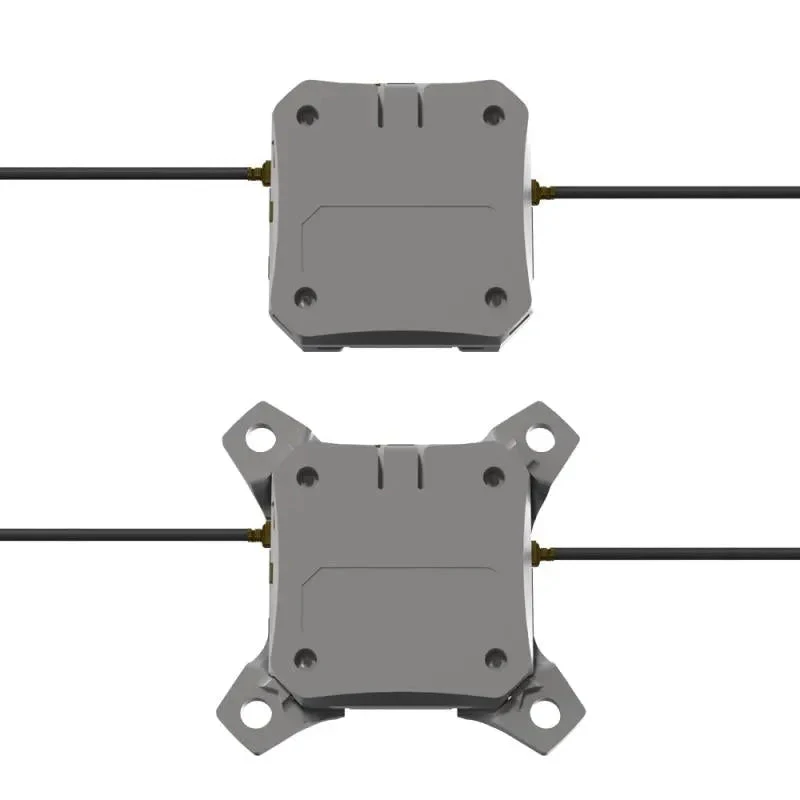

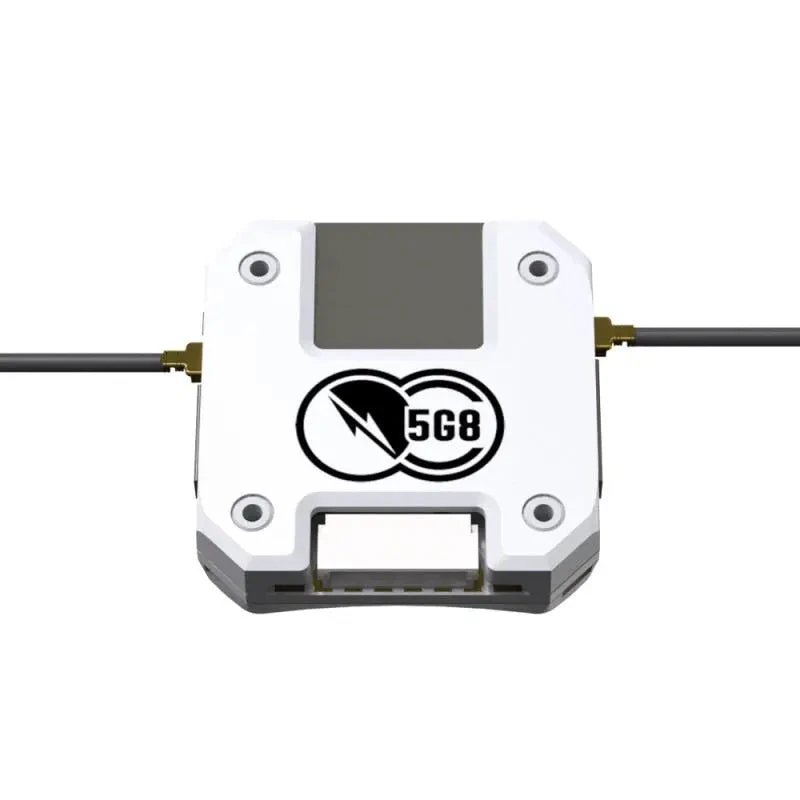

Introducing the TBS Tracer Sixty9, a VTx and receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Tracer side. Mounting holes are 20×20, but we do include adapters for your 30×30 stacks, and a plastic case for mounting the unit to your frame – without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

FEATURES:

• Integrated video transmitter control with long range and (team-)race functions
• Dedicated low-noise power supply for receiver and video transmitter
• Sleek 20×20 mounting form factor
• Plug&play connection and solder pads connectivity

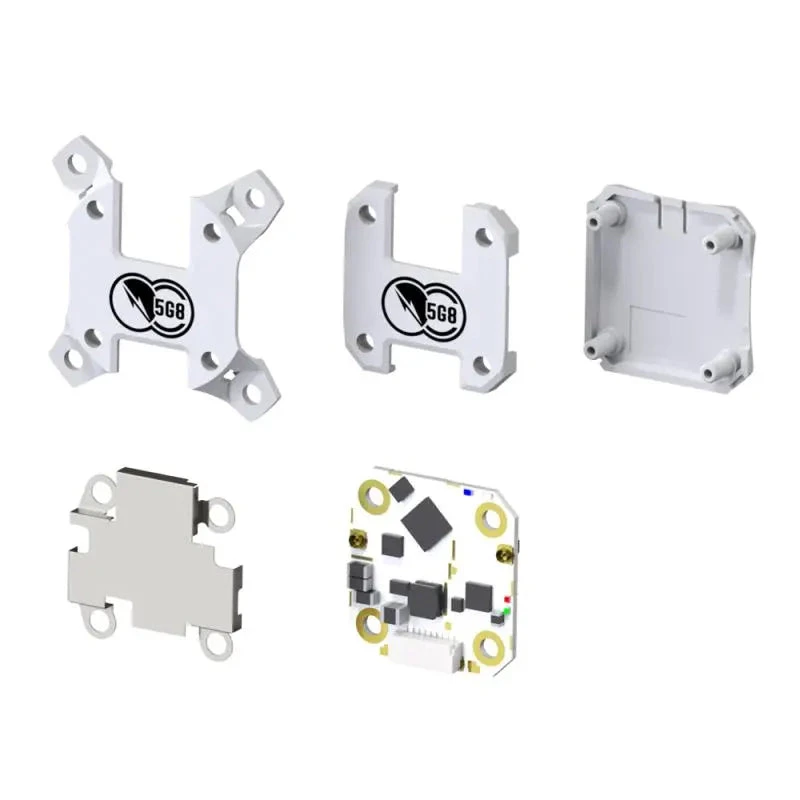

• 3 different mounting flavors, RF tin shields, and other accessories included
• High power analog adjustable video transmitter (up to 1W with perfect cooling)

SPECIFICATIONS

• Weight: 4.1g (board only)
• Antenna ports: 1x video transmitter, 1x R/C receiver
• Size: 24mm x 24mm
• Requires: Firmware V5.62 and above
• CRSF V3 ready

INCLUDES

• 1x TBS Tracer Sixty9
• 1x TBS Tracer Immortal-T antenna
• 1x u.FL to SMA mount (for VTx)
• 1x 30×30 heatsink / case
• 1x 20×20 heatsink / case
• 1x optional tin-shield (for added low-noise tolerance)
• 1x JST-SH x 9 connector

DOWNLOADS

• TBS Tracer – RED Declaration of Conformity

• TBS Tracer Manual
