TBS Tracer Micro TX Starter Set

In a race, microseconds count. Goggles down, thumbs up – are you ready for a true 250Hz radio link? End to end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, range for days.

Check out our

TBS Tracer Receivers and Antennas

.

Looking for the starter kits? Find the

Micro here

 and the

Nano here.

Check out the

TBS Mambo Radio

 and

Ethix Mambo Radio

 with integrated Tracer modules.

INTRODUCING TBS TRACER – 2.4GHZ “CROSSFIRE” RADIO SYSTEM

• 250Hz: Fastest available radio and telemetry link
• Brand new 2.4GHz technology not found in any other radio link
• 3ms end to end latency
• Crossfire engine for ultimate compatibility and functionality
• “JR” and “LITE” form factor transmitters
• Nano-sized receiver with antenna diversity
• 15mi+/25km+ range
• For drones, planes, helicopters, cars and boats

THE FASTEST RADIO LINK

In a race, microseconds count. Goggles down, thumbs up – are you ready for a two-way 250Hz radio link? End to end latency: basically zero (okay, 3ms!). Range: for days. Nothing comes close! We took the best from Crossfire and shrunk it down & sped it up.

NOT JUST FOR RACE AND “FREERANGE” PILOTS

A single operation mode satisfies all requirements. A spine-tingling 250Hz refresh rate. Plenty of penetration and range to outperform even the most serious video link. Full telemetry capability is standard, without any range degradation! Thanks to Crossfire pedigree, drone pilots, traditional R/C pilots and everyone in between can instantly tap into the familiar lineup of compatible software, devices, remotes and mounting boards.

EASE OF USE

OTA firmware updates, auto-bind, multi-bind, LUA device configuration such as flight controller PIDs, etc. and cloud connectivity: No problem! These are all features that TBS first brought into the R/C space with TBS Crossfire! All receivers arrive in binding mode and it remembers your bind across all of your radios, so the bind button is technically not needed ever.

UNDER THE HOOD

TBS Tracer runs on the Crossfire engine. Over 6 years of active development and by far the most popular R/C system for FPV enthusiasts! You instantly tap into the same reliability, features and compatibility that drone pilots see as synonymous to peace of mind. So what’s the difference? Higher update rate, lower latency, smaller antennas due to higher frequency. Crossfire users will feel right at home!

THE TBS GUARANTEE

In our over 10 years of our existence, software updates have always been free, continuous and plenty. Hardware is built for longevity and comes packed with a great range of features that are yet to be unlocked. Support has always been laser-focused on customer satisfaction. For pilots, by pilots.

It is the reason why TBS products have the largest following, and why investment into TBS Tracer will continue to pay dividends in future – just like TBS Crossfire continues to do for all hobbyists. As a thank you from us for your support, visit our website and enter the serial number of your Crossfire as Coupon Code for 25% OFF on all TBS Tracer TX & RX products!

FEATURES:

• Long range, adaptive and robust remote control system for your drone & aircraft
• Low latency, 250Hz update rate (5x faster than typical – world’s fastest) for mind-blowing accuracy
• Two-way communication link with real-time link vitals and telemetry
• OTA firwmare updates, auto-bind, multi-bind support
• TBS Cloud connectivity with telemetry output for smartphone apps
• Fully configurable by OpenTX and TBS TANGO remote using CRSF protocol
• “Unlimited” amout of people can fly at the same time
• Output power: 25mW / 100mW
• 8 or 12ch output via CRSF, SBUS, inverted SBUS or PPM
• Serial Modem capable of transmitting MAVLink or other serial protocols (up & downlink)

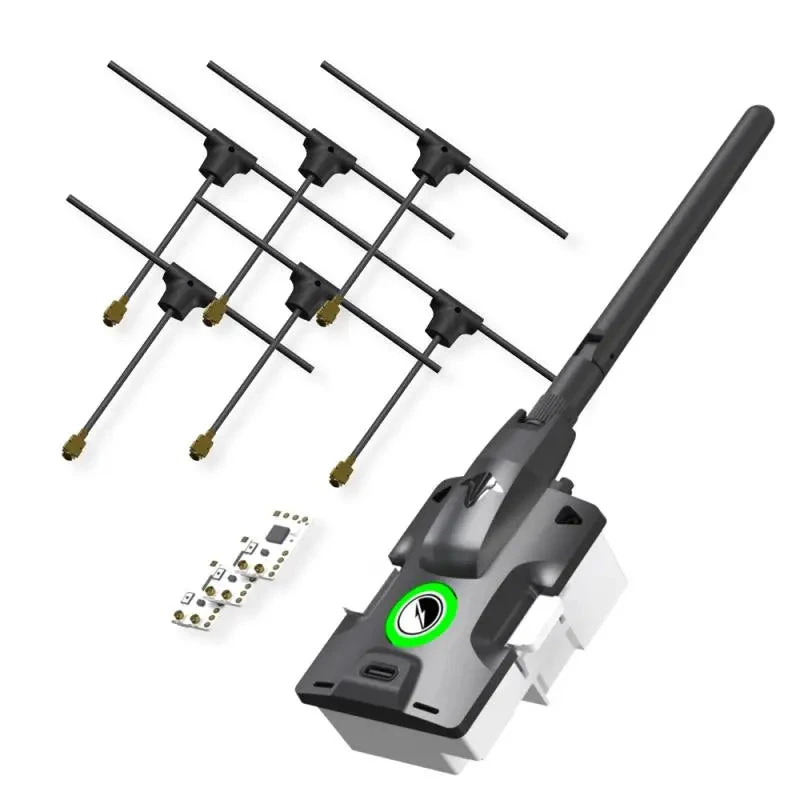

INCLUDES

• 1 x

  TBS Tracer Micro TX

• 3 x

  TBS Tracer Nano RX

• 6 x

  TBS Tracer Immortal T Antenna

DOWNLOADS

• TBS Tracer Manual

• TBS Agent X

   (for software updates)

• Latest OpenTX LUA Scripts for Crossfire

• TBS Cloud – Wifi Firmware

• OpenTX Nightly Firmware

TBS TRACER MICRO TX LITE SPECIFICATIONS:

• Latency & Refresh Rate: 3ms, 250Hz
• Output power: 100mW
• Frequency Bands: 2.4GHz ISM
• Input Voltage: 3.5 – 13V
• Connector: USB-C
• Power consumption: 1.1W (@10mW) – 2W (@100mW)
• Dimensions: 65 x 48 x 22 mm (JR module size)
• Radio Compatibility: JR module bay (e.g. TBS Tango 1, RadioMaster TX16S, Taranis X9D. OpenTX V2.1+

* output power modes may not be available due to local regulation limitations

TBS TRACER NANO RX SPECIFICATIONS:

• Antnna ports: 2x u.FL / IPEX (diversity)
• Package contents: 1x TBS Tracer Nano RX, 2x Immortal-T, silicone cables
• Protocols: 2x CRSF, SBUS, PPM, 6x PWM, SmartAudio 2.0 / 2.1 (VTx Control)
• Weight: 0.5g (receiver only)
• Size: 11mm x 18mm
