In a race, microseconds count. Goggles down, thumbs up – are you ready for a true 250Hz radio link? End to end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, range for days.

Check out our

TBS Tracer Receivers and Antennas

.

Looking for the starter kits? Find the

Micro here

 and the

Nano here.

Check out the

TBS Mambo Radio

 and

Ethix Mambo Radio

 with integrated Tracer modules.

TBS TRACER MICRO TX FEATURES:

• 250Hz: Fastest available radio and telemetry link.
• Next generation 2.4GHz technology meets robust Crossfire radio engine
• 3ms end to end latency
• “JR” and “LITE” form factor transmitters
• Nano-sized receiver with antenna diversity
• 15mi+/25km+ range
• For drones, planes, helicopters, cars and boats

TBS TRACER MICRO TX SPECIFICATIONS:

• Latency & Refresh Rate: 3ms, 250Hz
• Output power: 25mW / 100mW
• Frequency Bands: 2.4GHz ISM
• Input Voltage: 3.5 – 13V
• Connector: USB-C
• Power consumption: 1.1W (@10mW) – 2W (@100mW)
• Dimensions: 65 x 48 x 22 mm (JR module size)
• Radio Compatibility: JR module bay (e.g. TBS Tango 1, RadioMaster TX16S, Taranis X9D). OpenTX V2.1+

* output power modes may not be available due to local regulation limitations

Package Includes

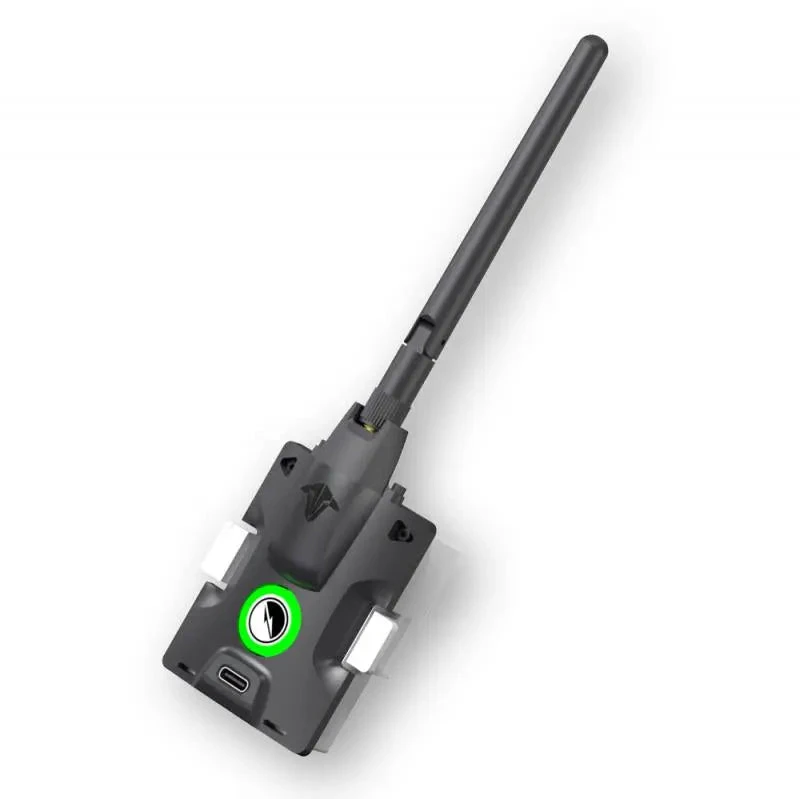

• 1x TBS Tracer Micro TX Module
• 1x Stock Antenna
