TBS Crossfire Sixty9 – Crossfire Rx + Unify Vtx AIO

What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

Introducing the TBS Crossfire Sixty9, a VTx and RC receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20×20, but we do incldue adapters for your 30×30 stacks, and a plastic case for mounting the unit to your frame, without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

Shop for

Crossfire antennas

 here.

Shop for

UFL Vtx antennas

here.

FEATURES:

• Integrated video transmitter control with long range and (team-)race functions
• Dedicated low-noise power supply for receiver and video transmitter
• Sleek 20×20 mounting form factor
• Plug&play connection and solder pads connectivity

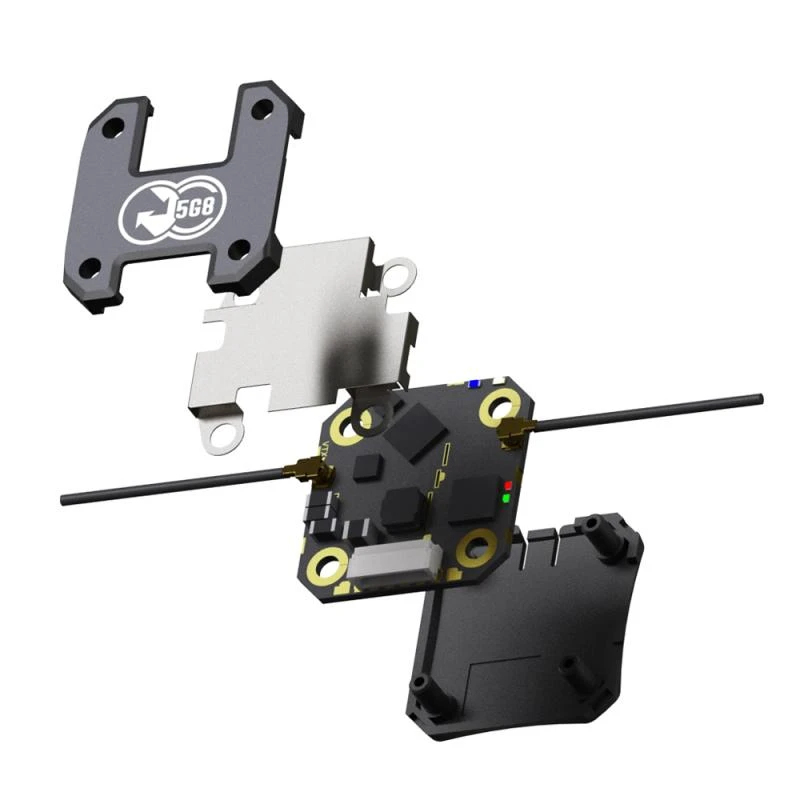

• 3 different mounting flavors, RF tin shields, and other accessories included
• High power analog adjustable video transmitter (up to 1W with perfect cooling)

SPECIFICATIONS

• Weight: 4.1g (board only)
• Antenna ports: 1x video transmitter, 1x R/C receiver
• Size: 24mm x 24mm
• Requires: Firmware V4.62 and above
• CRSF V3 ready

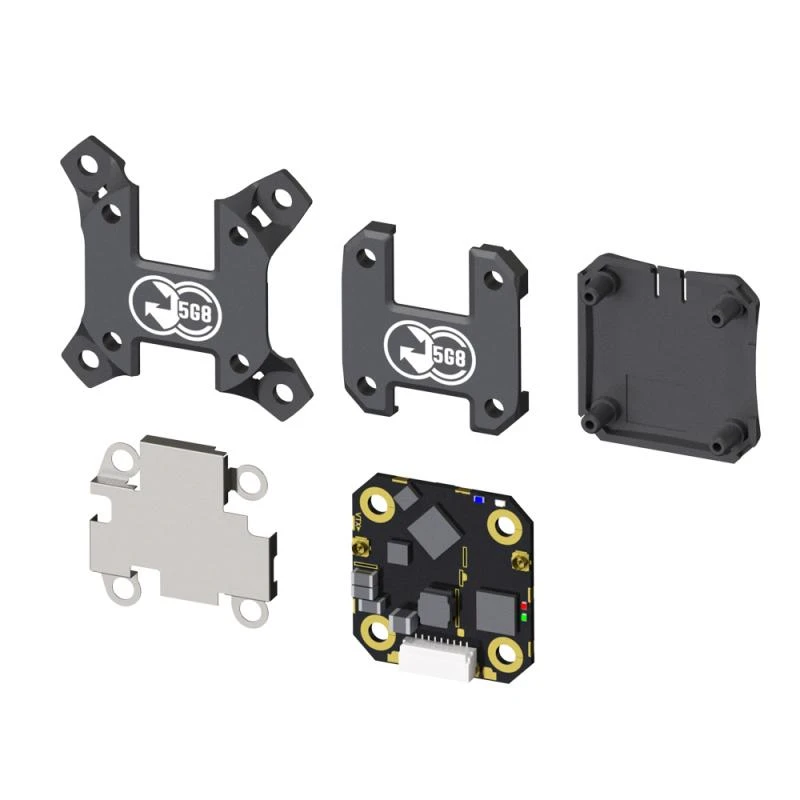

INCLUDES

• 1x TBS Crossfire Sixty9
• 1x TBS Crossfire Immortal-T antenna
• 1x u.FL to SMA mount (for VTx)

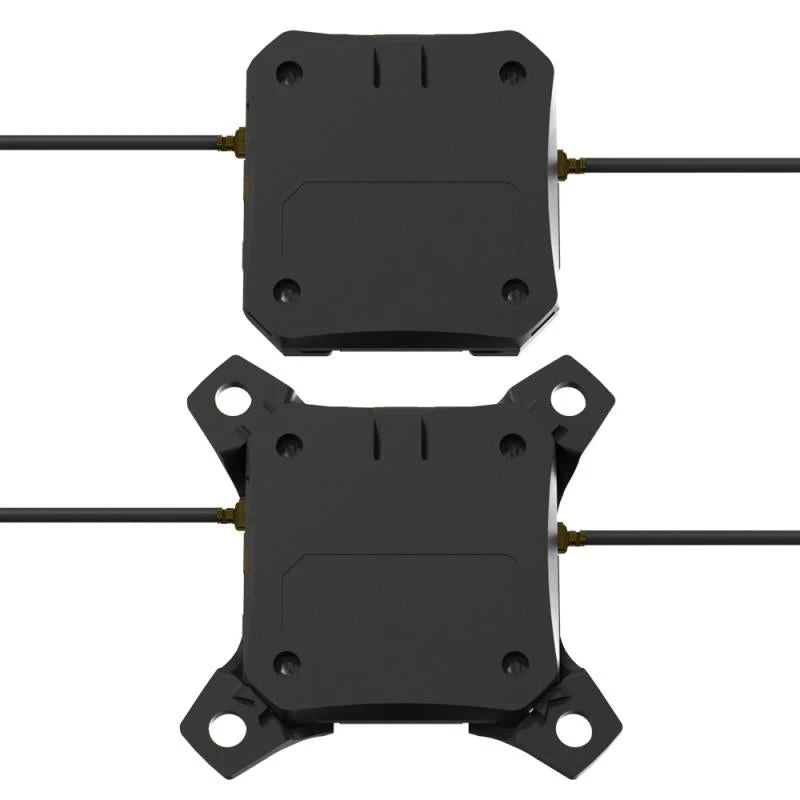

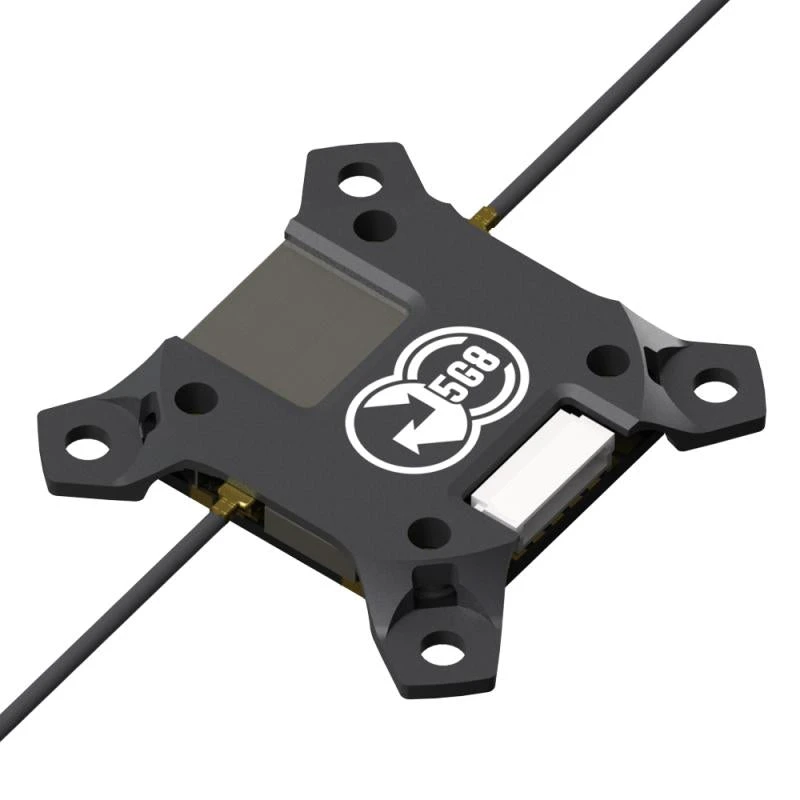

• 1x 30×30 heatsink / case

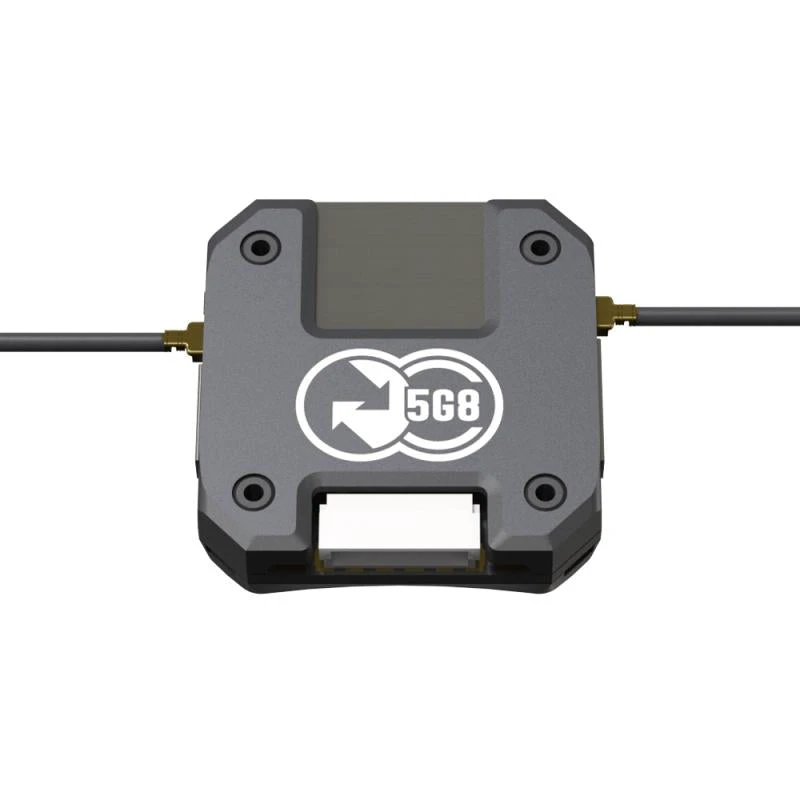

• 1x 20×20 heatsink / case
• 1x optional tin-shield (for added low-noise tolerance)
• 1x JST-SH x 9 connector

DOWNLOADS

• TBS Crossfire – RED Declaration of Conformity

• TBS Crossfire Manual
