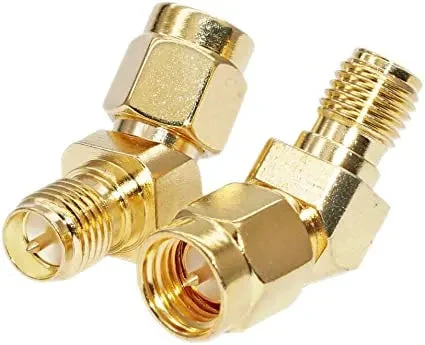

Why Use a 45 Degree SMA Connector?

This SMA 45 Degree Connector is useful for pointing antennas on both your quad and goggles upwards.

Omnidirectional antennas actually have a dead zone in the vertical axis, so it is best to keep them vertically oriented during flight and on your goggles. Using a 45 degree connector is perfect, since most quads fly forwards at an angle of 30-45 degrees.

Directional antennas on goggles work best when they are pointed straight forwards and by using a 45 degree connector, you can adjust the upwards angle of your directional antenna by rotating the connector. This way, you can add between 0 and 45 degrees of up tilt on your goggle antenna.

Increased Lifespan of your Goggles and Vtx Connector

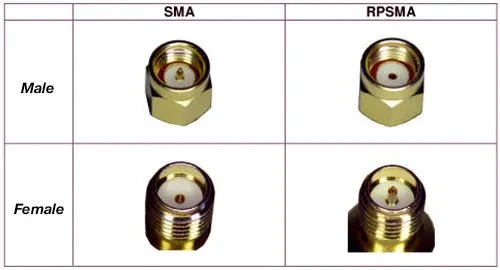

SMA and RPSMA  connectors have a limited lifespan and using an additional connector between your antenna and goggles or Vtx increase their lifespan.

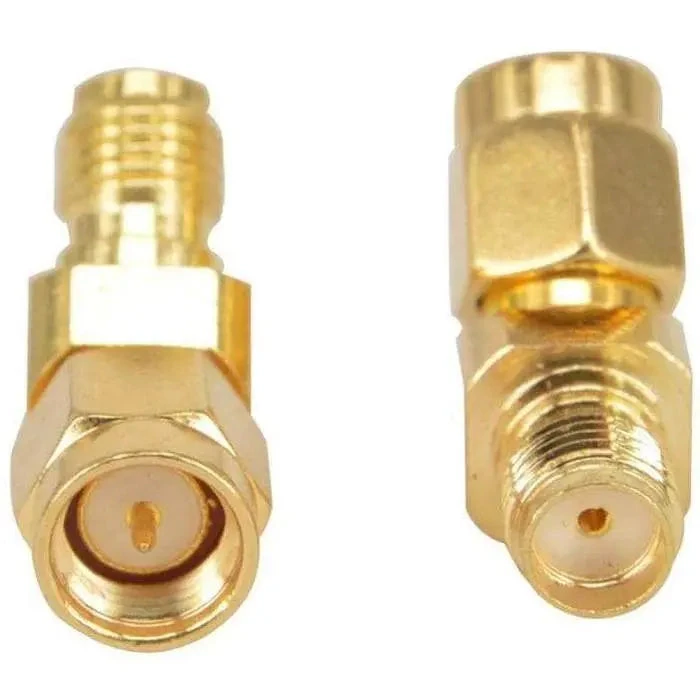

SMA Female to SMA Male

This connector is for connecting SMA to SMA. This is compatible with the ImmersionRC Rapidfire, TBS Fusion, and most other analog goggle modules.

Included

• 1x 45 Degree Connector
