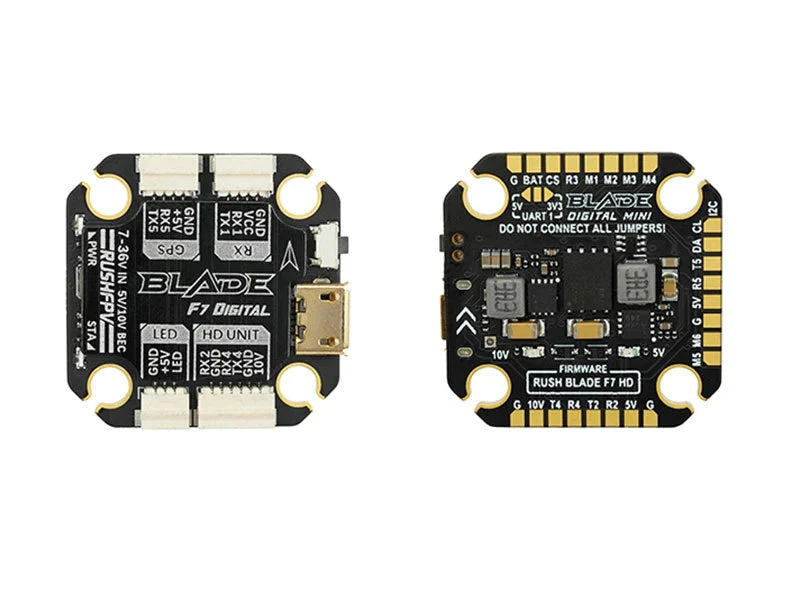

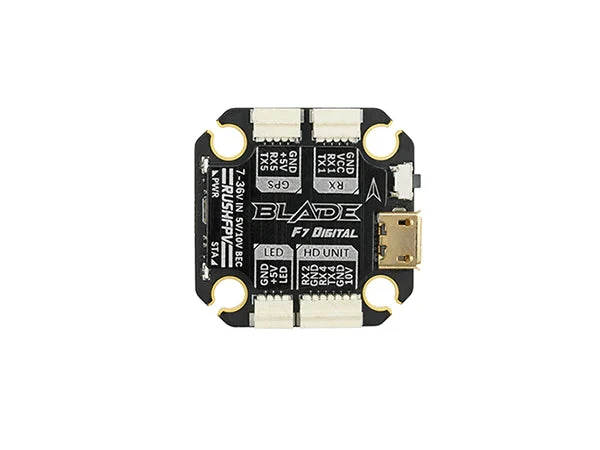

RUSHFPV RUSH BLADE F722 20×20 Flight Controller For DJI Digital FPV System

RUSH BLADE F722 Digital Mini 20×20 Flight Controller by RUSHFPV for your DJI Digital FPV System. This FC features high-performance STM32 F722 MCU, MPU6000, 16Mb Black Box memory, and barometer.

FEATURES:

• High-performance STM32 F722 MCU with speeds up to 216MHz.
• Using MPU6000 with integrated accelerometer and gyroscope, stable and reliable.
• Built-in 16Mb black box memory, Barometer, 5 UART ports, 6 PWM output ports, 2 ADC ports, 1 l2C port.
• Integrated dual 36V input synchronous rectifier power supply, and built-in power filter, up to 6S lipo battery power supply, 5V 2A /10V 1.5A output provides sufficient power, you can connect more external devices.
• Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
• Optimized for stack installation, the single-sided component placement method makes the thickness thinner, and the bottom is covered with complete copper to resist ESC Interference.
• The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.

SPECIFICATIONS:

• MCU: STM32 F722 RET6 216MHz
• GYRO: MPU6000
• Blackbox: 16Mb SPI Flash
• Input Voltage: 7-36V (3-6S)
• BEC Output: 5V/2A 10V/1.5A
• Ports: 6 x PWM, 5 x UART, 1 x I2C
• LED: Supports WS2812 LED Strip
• Mounting Holes: 20x20mm
• Dimensions: 29mm x 29mm x 6.8mm
• Weight: 5g (Without Cables)
• Firmware Target: Rush_Blade_F7_HD

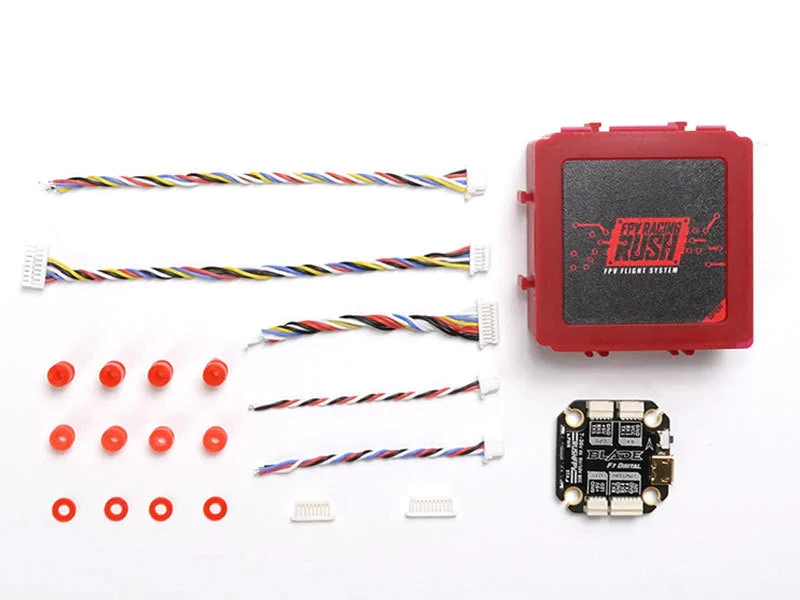

PACKAGE INCLUDES:

• 1 x RUSH BLADE F722 30×30 Flight Controller For DJI HD
• 2 x 60MM LED/RX Cable
• 1 x 60MM ESC Cable
• 1 x 110MM NAVI Cable
• 1 x 110MM Air Unit Cable
• 5 x 8MM Grommet
• 5 x 5MM Grommet
