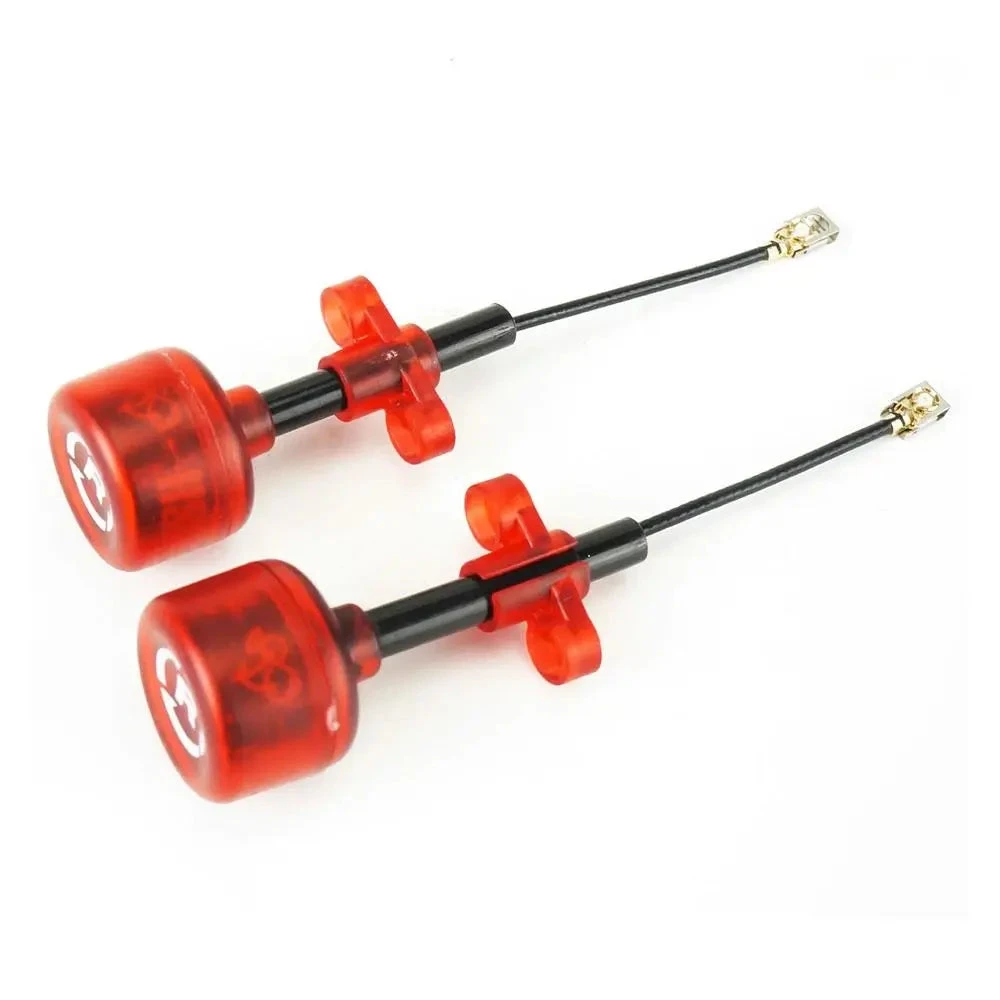

RUSHFPV Cherry Antenna UFL LHCP/RHCP

FEATURES

• Optimized for FPV racing drones
• Maximum signal coverage. 5.6-6GHz bandwidth covers all of raceband and all channels have nearly uniform transmission strength.
• Perfect circular polarization axis ratio. Effectively suppress screen flicker caused by multi-path interference.
• Small and sturdy. Optimized design obtained through massive impact tests. Flexible tube can withstand angle bends and crash impacts to avoid cable damage.
• Thin cable. Teflon skin, double shielded RG-137 coaxial cable with silver plated core. This wire is soft flexible and low signal loss.
• Between 5650 and 5950MHz, VSWR is below 1.2 meaning trasmission efficiency is up to 98% This can also help reduce VTX heat.
• Quick installation. Antenna clips are designed to the same size as standard flange SMA sockets. The length of the antenna tube can be cut to meet your needs.
• Quality Assurance. Cherry antennas are tuned for performance by the Rush FPV Professional Microwave Laboratory, and each antenna is qualified by a network analyzer before leaving the factory.

SPECIFICATIONS

• Gain: 1.2dBi
• S11 SWR: 1.4 max – 1.1 min
• Band Width: 5600-6000-MHz
• Axial Ratio: Around 1.0
• Polarization: LHCP or RHCP
• Connector: New designed UFL lock – pull the metal slot out so it releases and put antenna, slot it back for lock

INCLUDES

• 2x Rush FPV Cherry 5.8GHz U.FL Antenna
