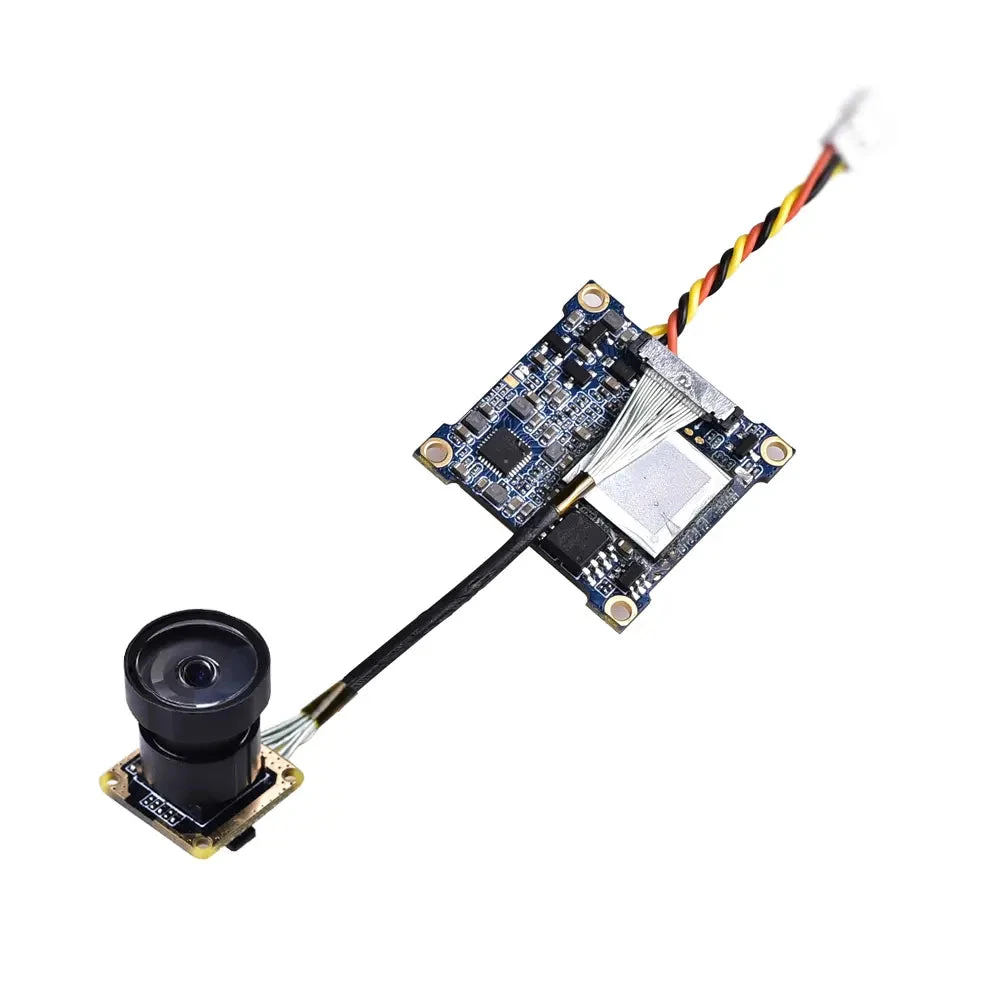

RunCam Split 3 Lite Nano FPV/HD Camera

The RunCam Split 3 Lite Whoop Camera gives you 1080p/60fps HD recording while also utilizing a sharp WDR FPV camera. Designed for whoops, the Split 3 Lite Camera has a 14x14mm format and the recording board has 25.5×25.5mm whoop mounting holes.

The Split 3 features new updates to the TV-OUT clarity, by reducing the amount of interference and ripple in the video feed. It also has a stronger flexible ribbon cable that aims to reduce the chance of being damaged.

The modular camera system supports replacement lens’ that can be manually focused.

Features

• Made to fit Whoops/toothpicks
• 1080P/60fps HD recording & WDR FPV camera
• Super WDR FPV image with low latency (40ms)
• Power-off protection for video files
• Simultaneous HD recording and FPV output
• Reduced TV-OUT interference
• Strengthened ribbon cable
• Replaceable lens
• Wide voltage range (5-20v)

Specifications

• Model: RunCam Split 3 Lite Whoop
• Field of View(FOV): Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
• Video Resolution: 1080@60fps/1080@50fps/1080@30fps/720@60fps
• Video File Format: MOV
• Image Resolution: 2 MP
• TV Mode: NTSC (720*480)/PAL (720*576) Switchable
• Interface: JST 1.25mm / UART
• Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
• Hole Distance of Installation: 20*20mm
• PCB Size: 29*29mm
• Lens Module Size: 14*14mm
• Lens Size: M8
• Power Input: DC 5-20V (Non-direct power supply from the battery. Powered directly with the battery will generate surges and burn the camera.)
• Working Current: 650mA @5V / 270mA @12V
• Weight: 7.8g
