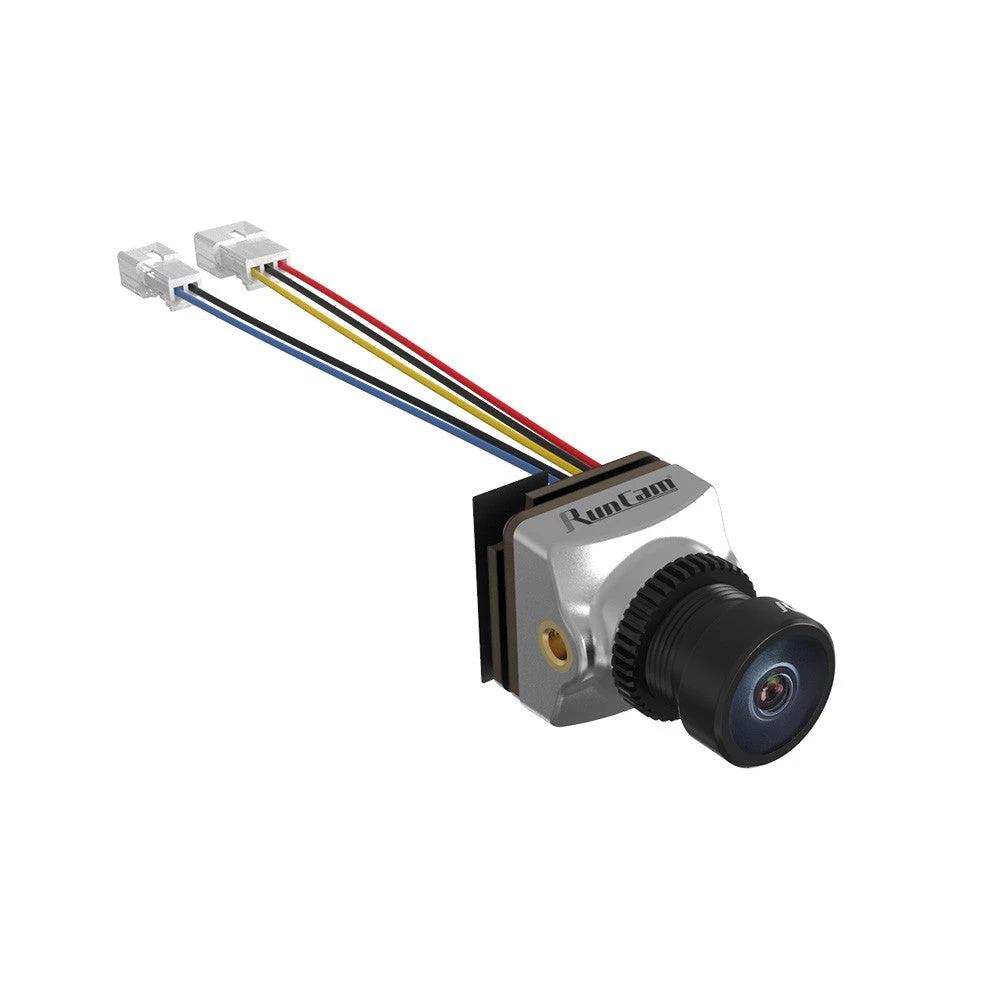

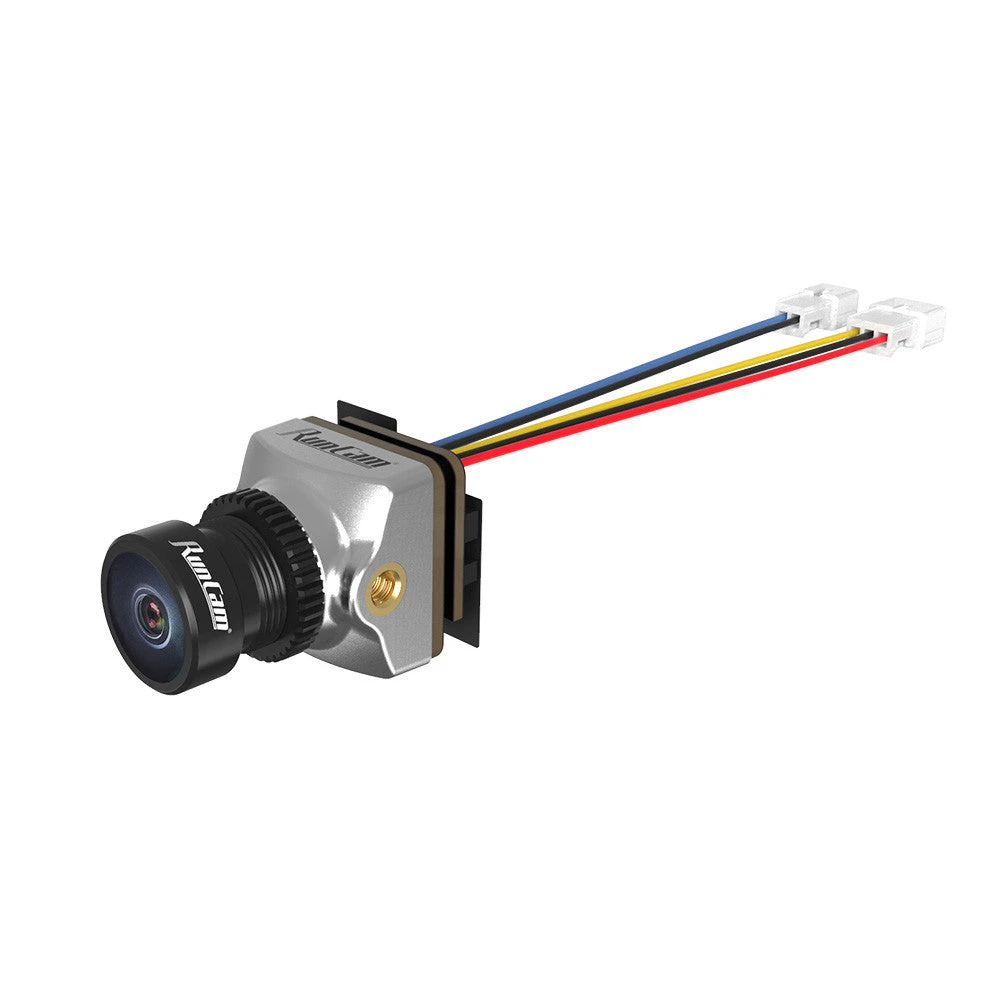

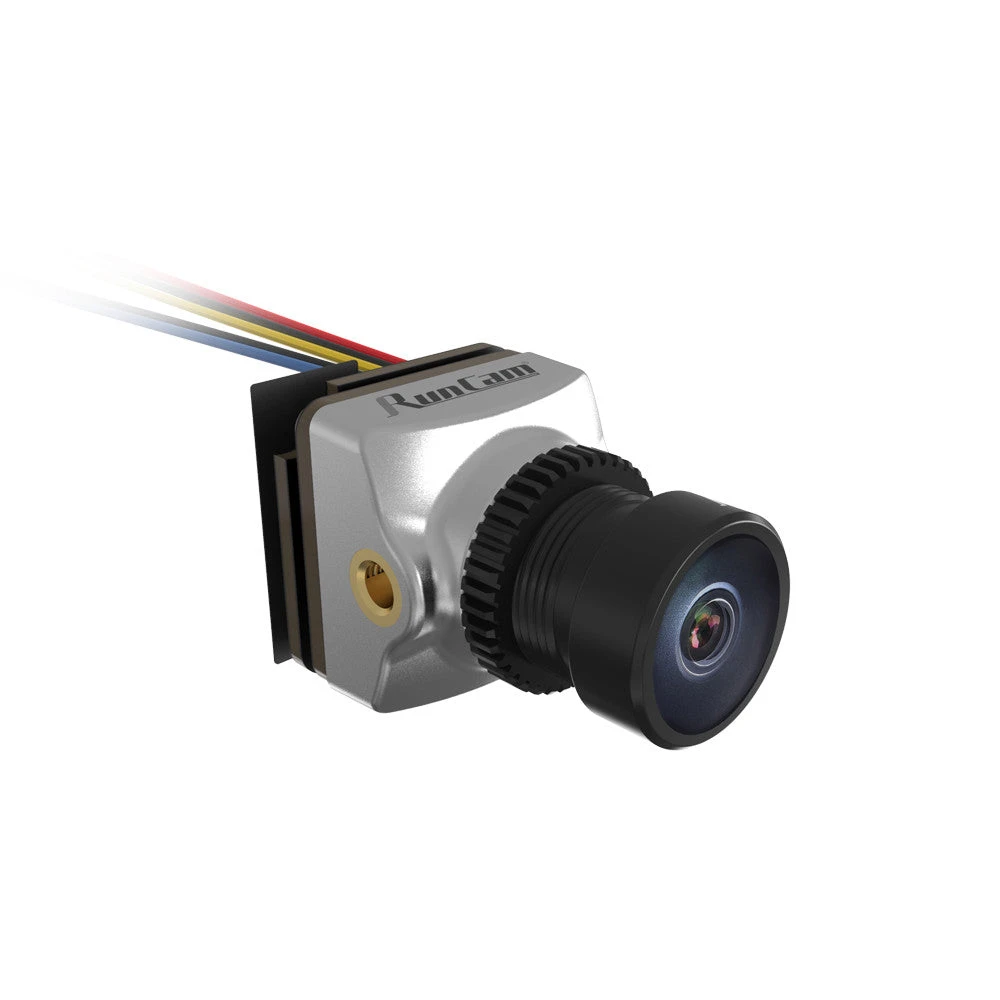

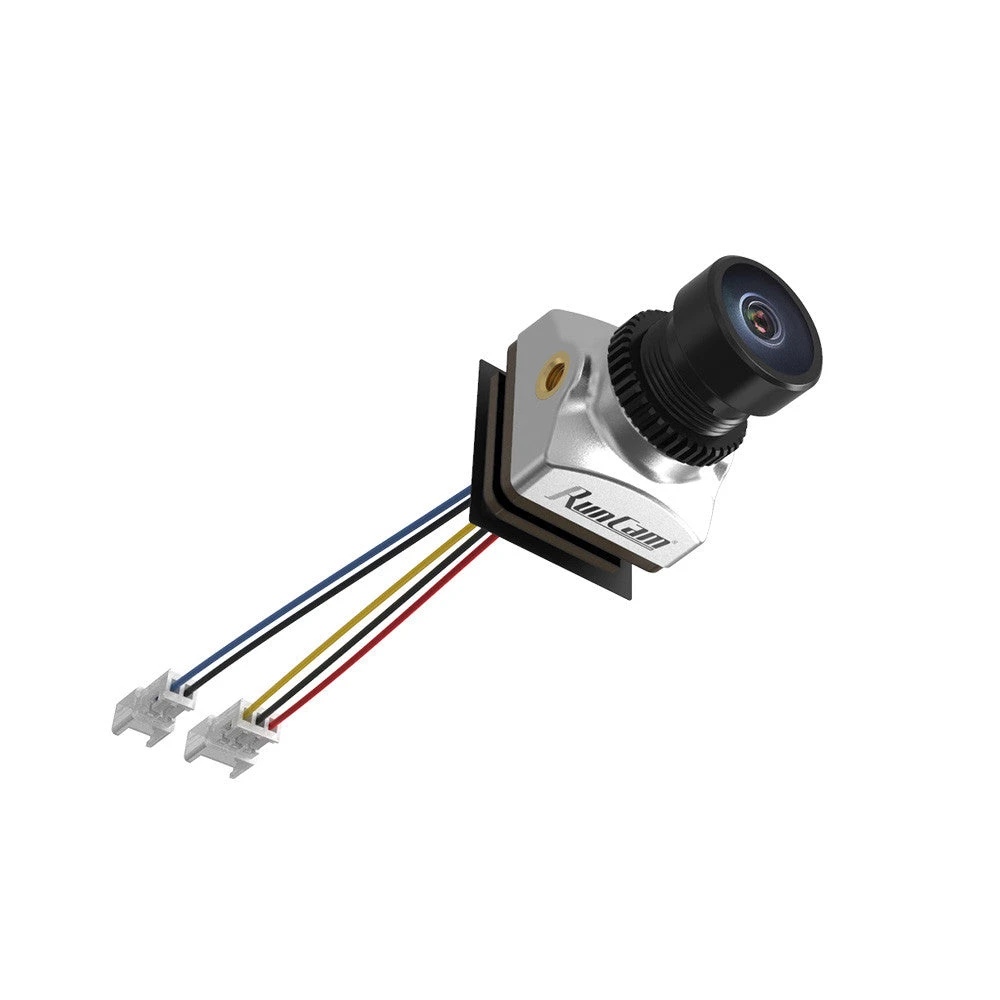

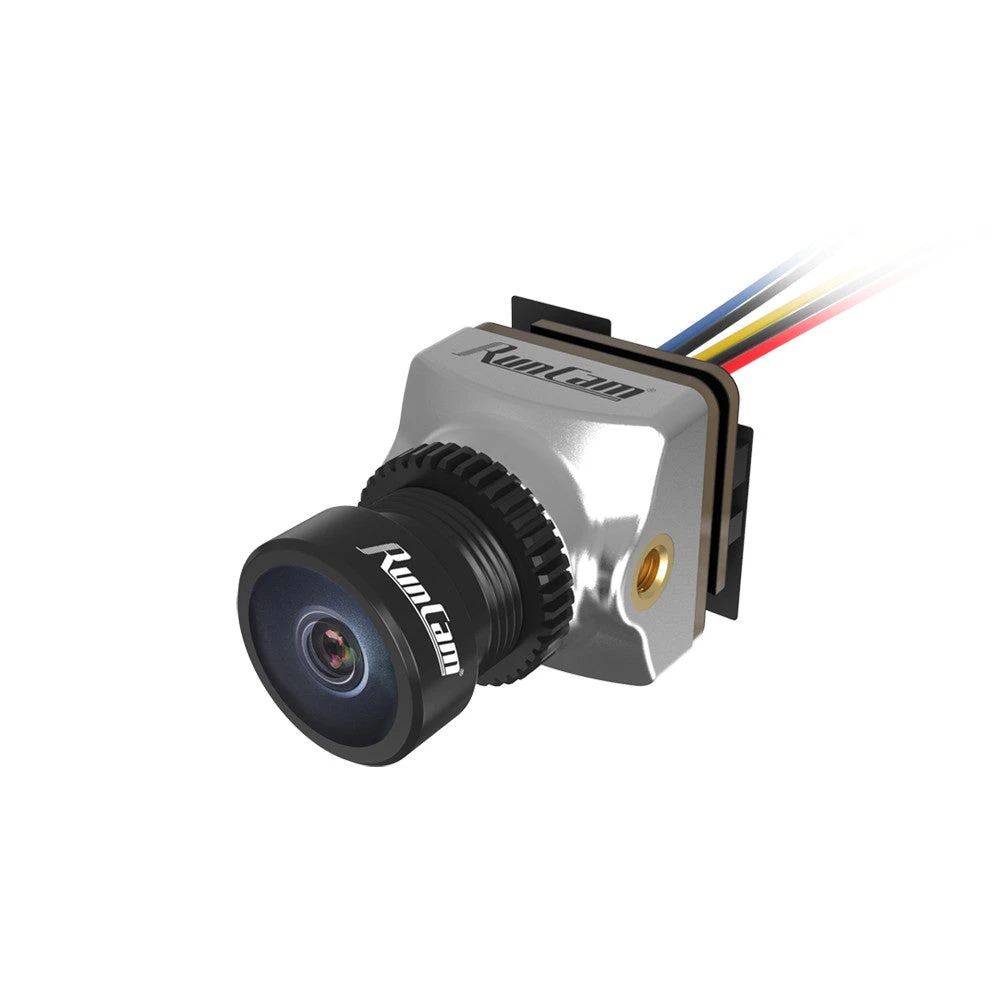

The Nano version of the Runcam Phoenix 2 has all of the same features packed into smaller format! Inside is a 1/2″ CMOS Sensor with low shimmer, a 2.1mm M8 lens with a 155 degree field of view, and aspect ratio switching.
Specifications
- Model: RunCam Phoenix 2 Nano
- Image Sensor: 1/2″ COMS Sensor
- Horizontal Resolution: 1000TVL
- Lens: 2.1mm ​(M8)​ FOV155° (4:3)
- Screen Format: 4:3 / 16:9 switchable
- Mirror/Flip: Available
- Signal System: PAL / NTSC Switchable
- S/N Ratio: >50dB (AGC OFF)
- Electronic Shutter Speed: Auto
- Auto Gain Control (AGC): Auto
- Min. Illumination: [email protected]
- WDR: Global WDR
- Day/Night: Color/BW/EXT/Auto
- Menu Control: Cable Control
- Power: DC 5-36V
- Current: 190mA@5V/80mA@12V
- Housing Material: ABS
- Net Weight: 5g
- Dimensions: 14mm*14mm*22mm
Manual Download
Includes
- 1x RunCam Phoenix 2 Nano FPV Camera
- 1x ABS BracketÂ
- 1x 5-Pin Silicone Cable Set
