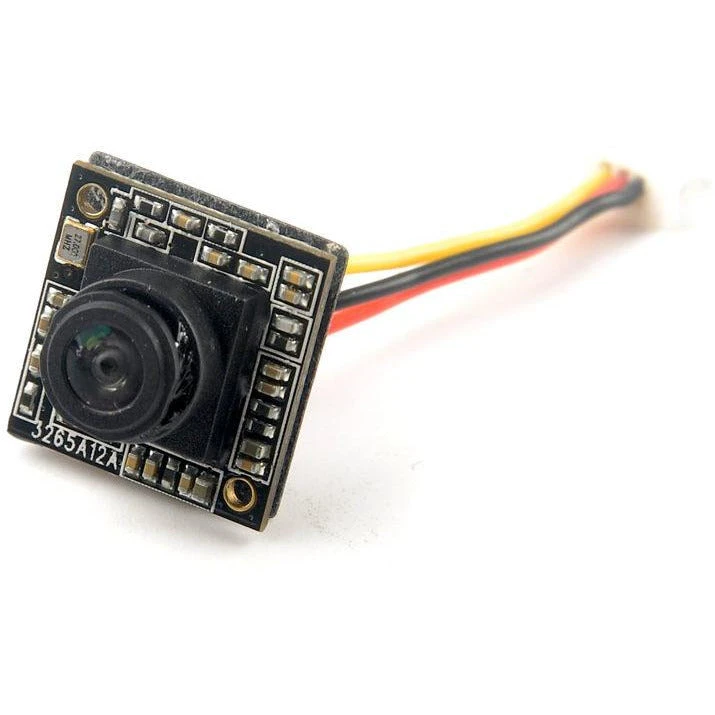

RunCam Nano 3 800TVL CMOS FPV Camera

The RunCam Nano 3 is a TINY leap in nano camera design! At less than half the weight of the Nano 2 while still using a 1/3″ sensor, the Nano 3 actually has a higher resolution! The weight saving is due to the incredibly small lens which still provides 160° field of view and distortion correction. This is THE cam for your whoop, micro, or any weight critical application where you don’t want to sacrifice image quality.

Features

• Tiny whoop’s first camera with big 1/3” image sensor. The RunCam Nano 3 has a 1/3” 800TVL high-resolution sensor which is over 30% bigger than other whoop cameras on the market. That means bigger pixel units, lower distortion and better image quality.
• Tiny yet powerful lens. The RunCam Nano 3 has a ultra-small high-resolution lens which FOV reaches to 160°. Although the lens is super tiny, it performs well on distortion correction.
• 1.1g ultra light weight. Despite with the biggest sensor on the market, this camera weighs unbelievable 1.1g (without cable) thanks to the super tiny lens.

Specifications

• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• Lens: 2.1mm(M8) FOV 160°
• Signal System: NTSC
• S/N Ratio: > 50dB
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: [email protected]
• D-WDR: Auto
• Day/Night: color
• Power: DC 3-5.5V
• Current: 110mA@5V
• Housing Material: ABS
• Net Weight: 1.1g
• Dimensions: L14mm*W14mm*H9mm
