Runcam Link Split HD For DJI HD FPV System

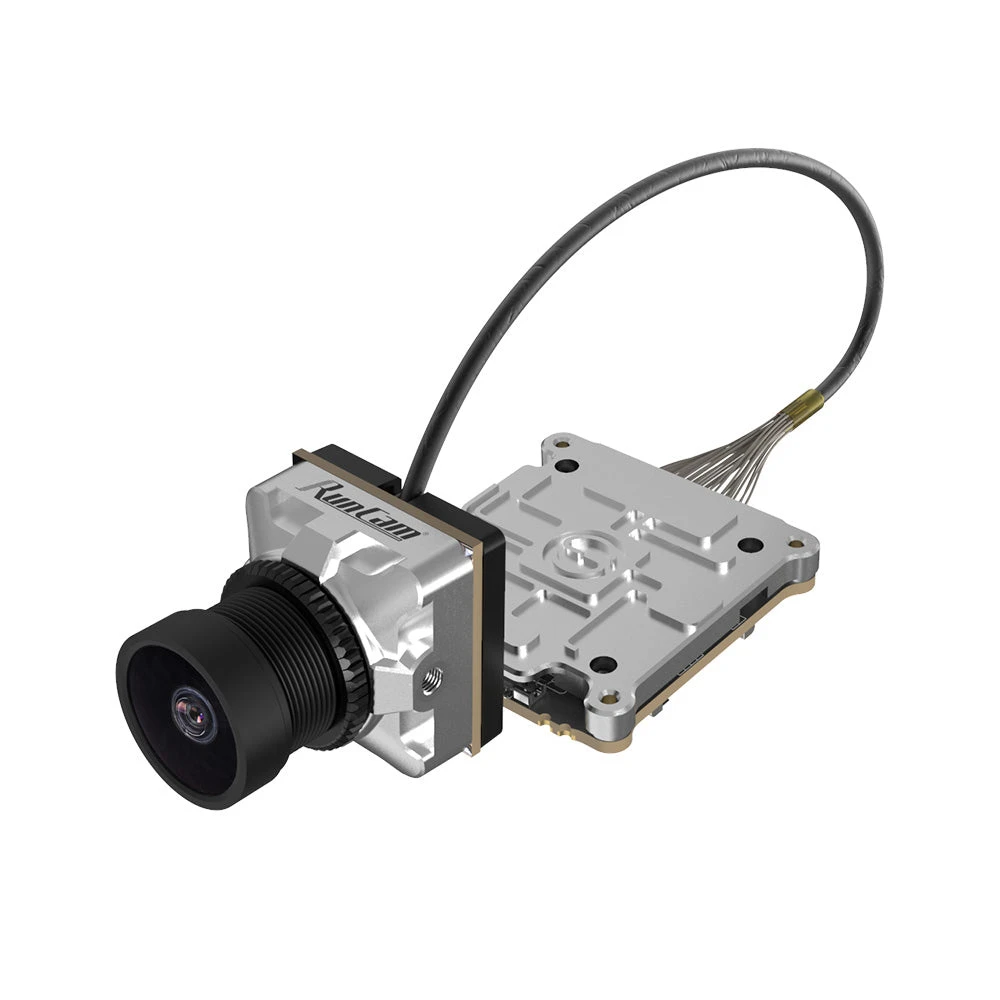

The Runcam Split HD is a high-resolution FPV camera and action camera hybrid for the DJI FPV System. This product comes with the Runcam Split camera + DVR Module along with the Runcam Link, which is the “Vista” video transmitter component.

One reason the DJI Air Unit is great is that it can record HD footage from the DJI FPV Camera with an onboard SD card. However, the DJI FPV Camera can only output a 720P image and looks grainy when viewed on larger screens.

The Runcam Split HD shoots 2.7K 60fps video and records to an SD card while also doubling as a FPV camera for the Air Unit or Caddx Vista.

Runcam Split HD Manual and Specifications

Video Recording Examples

Specifications

• FOV: 154°
• Horizontal Perspective: 124°
• GYROFLOW compatible
• Video Resolution: 2.7K 60fps (4:3 and 16:9) | 1440P 60fps (4:3) | 1080P 60fps (4:3)
• FPV Resolutions: 720P 60fps
• Image Sensor: Sony (5MP)
• Micro SD Card Support: Up to 128GB. Samsung’s U3 card is recommended. Format card as FAT32
• Mounting Hole Distance: 20x20mm and 25.5x 25.5mm
• PCB Size: 29x30mm
• Lens Module Size: 19x19mm
• Lens Specification: M12x0.5
• Power Input: 5V DC
• Working Current: 450mA at 5V (Max)
• Weight: 19.9g

Package Includes

• 1x Runcam Link Video Transmitter
• 1x Runcam Split HD Camera
• 1x Runcam Split HD Camera DVR Board
• 1x Hardware Mounting Set
• 1x Bracket
• 1x ND16 Filter
