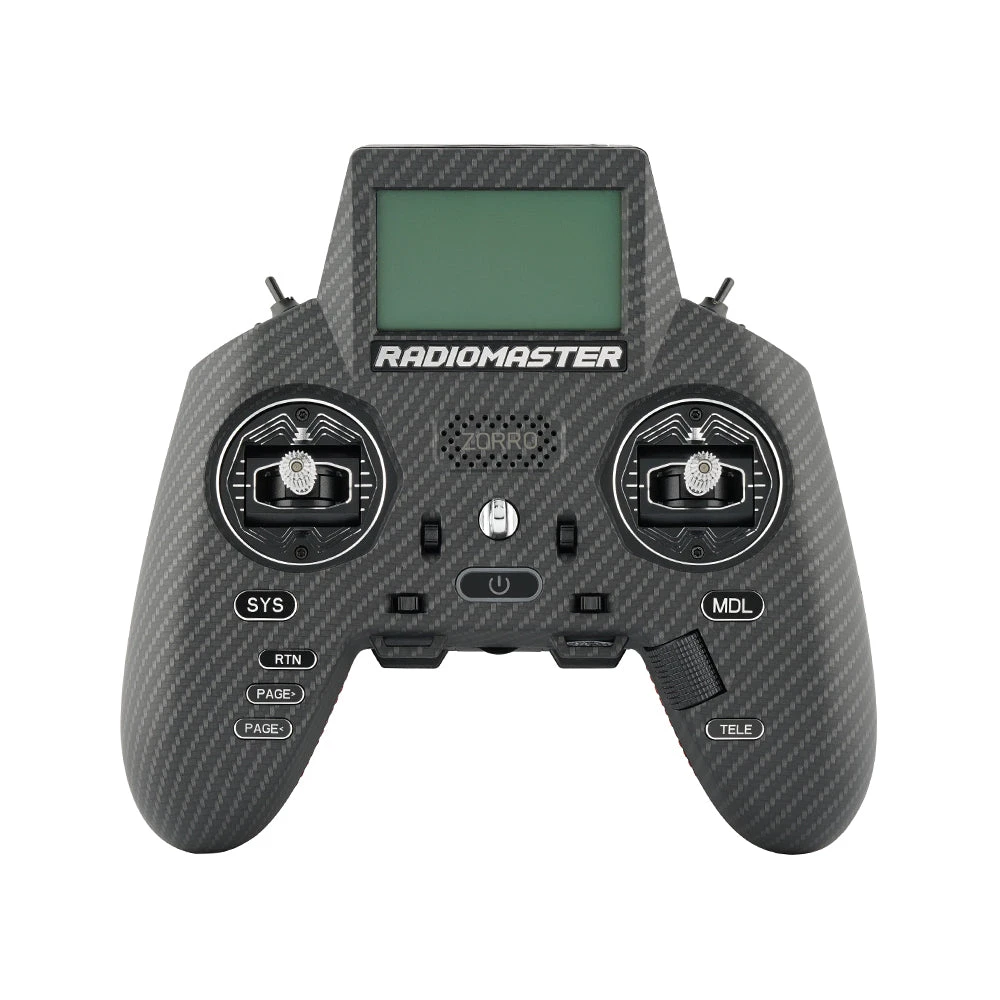

RadioMaster Zorro MAX ELRS Radio Controller

ntroducing the official RadioMaster Zorro Max radio controller!

Zorro Max is now available with much-anticipated colorful AG01 MINI gimbals, improved CNC parts, a stylish carbon fiber pattern body and upgraded leather grips. RadioMaster brings you an exquisite Zorro Max radio!

Features

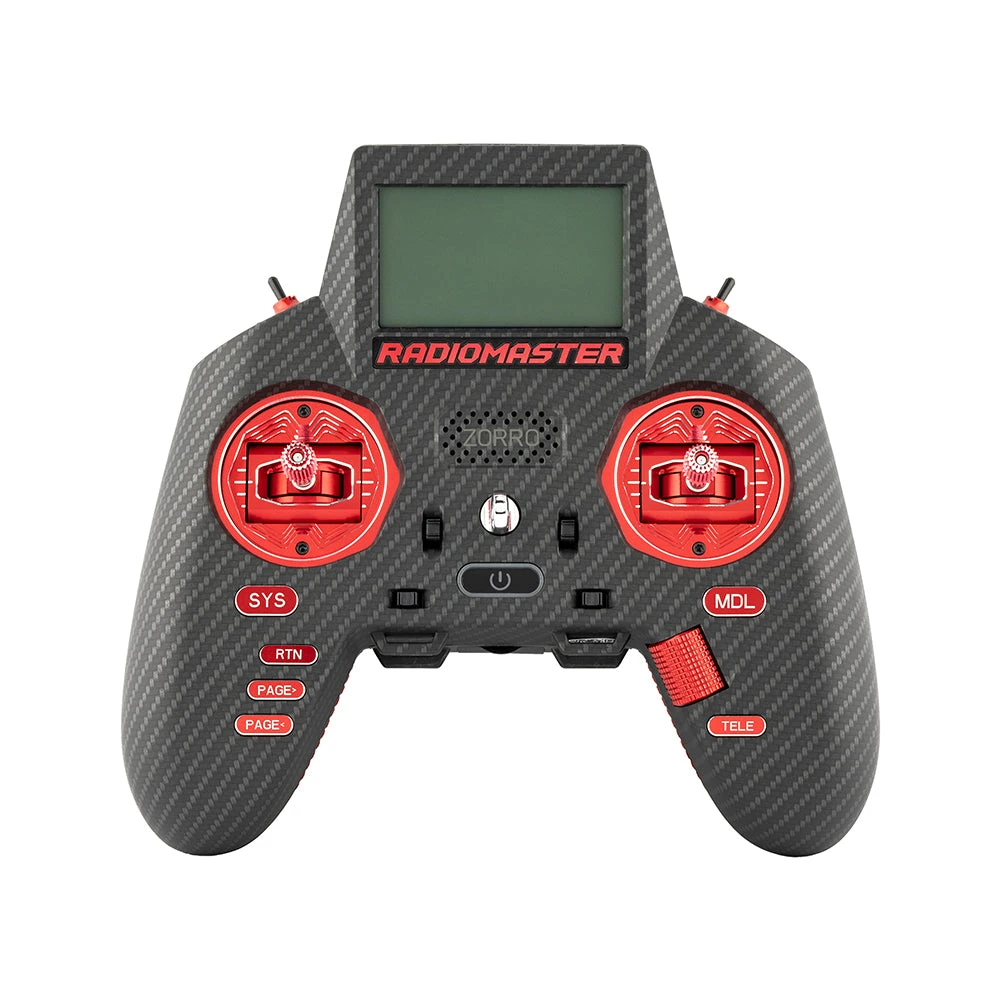

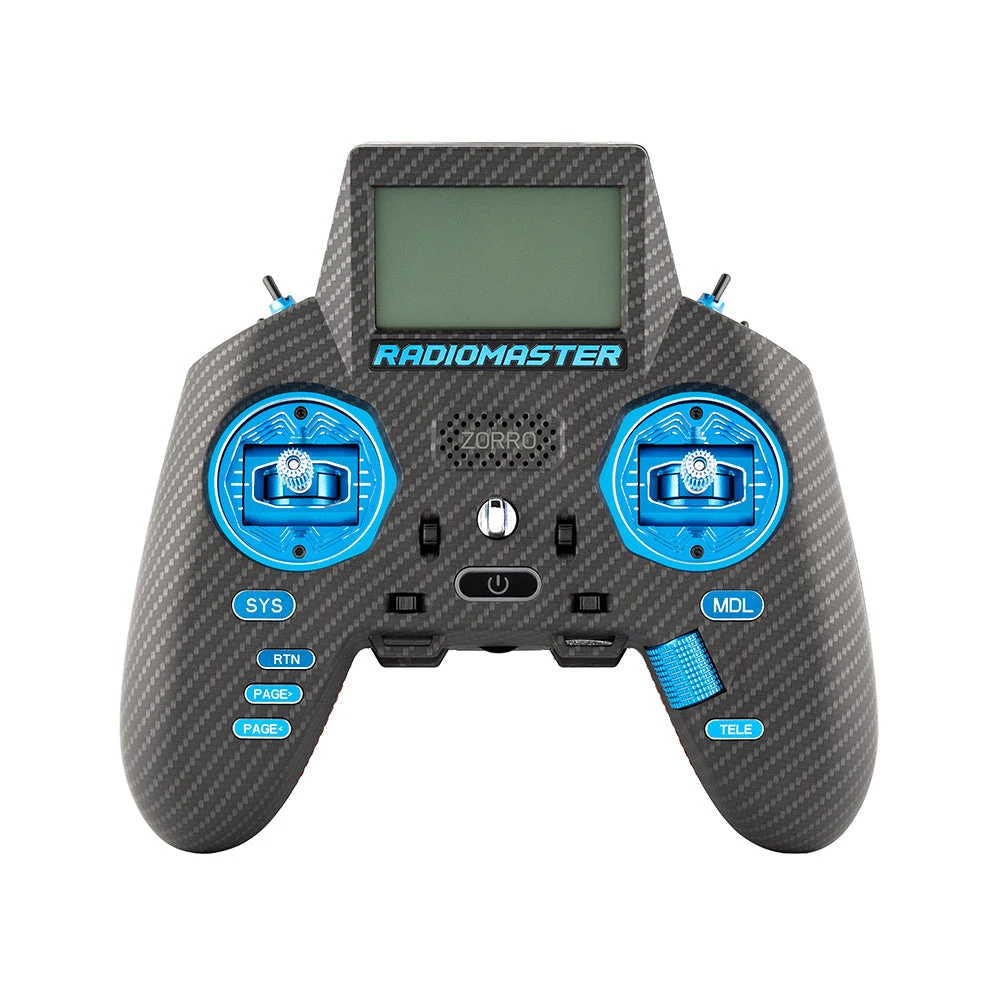

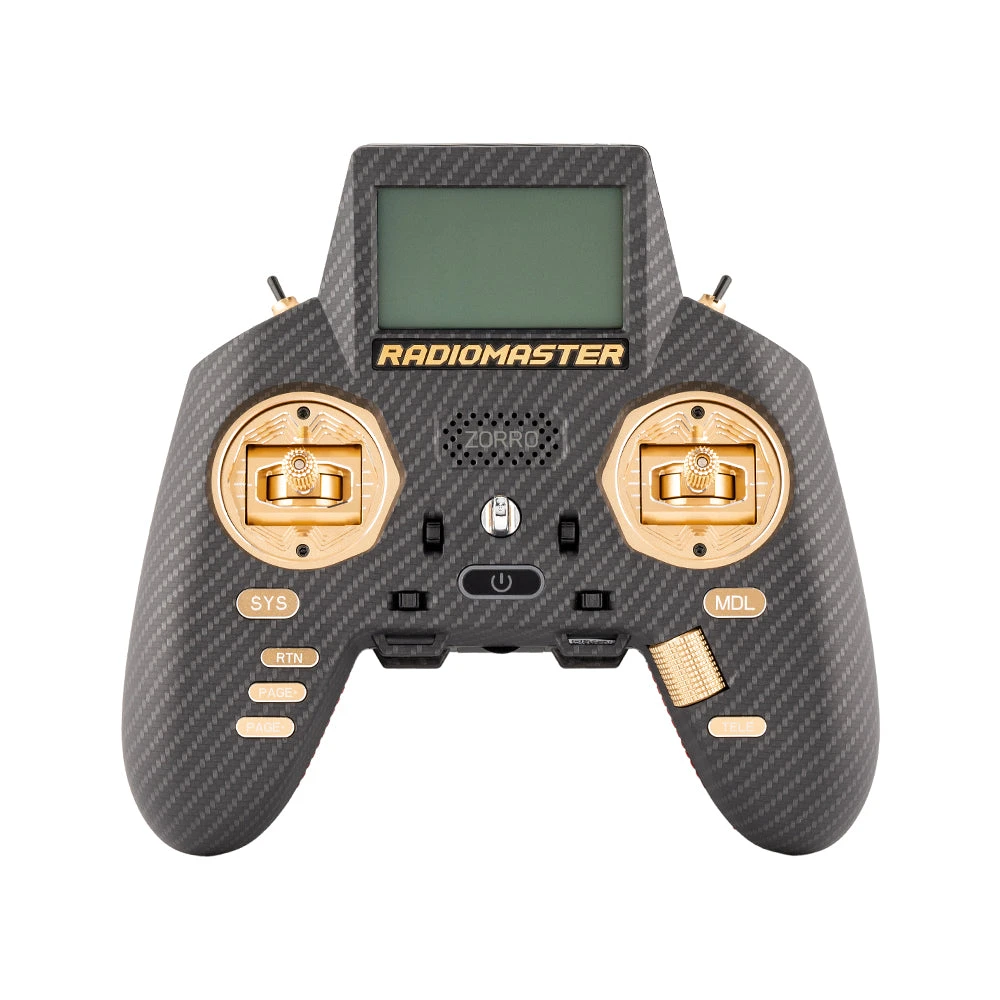

• Optional 4 colors – Red/Blue/Gold/Black
• AG01 MINI hall gimbals installed
• Carbon Fiber pattern body
• Improved CNC parts as standard
• Upgraded Black Leather Grips
• External Module Bay for use with Crossfire / EL RS and other compatible modules
• Available in 4in1 and ExpressLRS Versions
• Supports OPENTX & EDGETX
• 18350 Battery Compartments
• Oversized LCD with adjustable brightness for any environment

Specification

• Item: Zorro Max Radio
• Color: Red / Blue / Gold / Black
• Gimbals: AG01 MINI Gimbals
• Physical Dimensions: 170*159*108mm
• Weight: 350 grams
• Operating Frequency: 2.400GHz-2.480GHz
• Internal RF Options: 4-in-1 multi-protocol / ELRS
• Supported Protocols: Module dependent / ELRS
• RF Power: 4-in-1: 20dBm max. ELRS: Up to 250mw ( CE & FCC Versions will be available)
• Antenna Gain: Folding 2db
• Operational Current: [email protected]
• Operational Voltage: 6.6-8.4v DC
• Control Distance: 4-in-1:> 2km @ 20dbm / ELRS: Receiver and Power Output dependant
• Operating system: OpenTX / EdgeTX Compatible
• Control channels: Maximum 16 (Rx dependent)
• Display: 128*64 Monochrome LCD
• Battery: 2 x 18350 (Not included)
• Charging: Built in USB-C Charging
• Gimbal: Hall-effect
• Module Bay: Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
• Firmware Upgrade Method: Via USB or SD card
