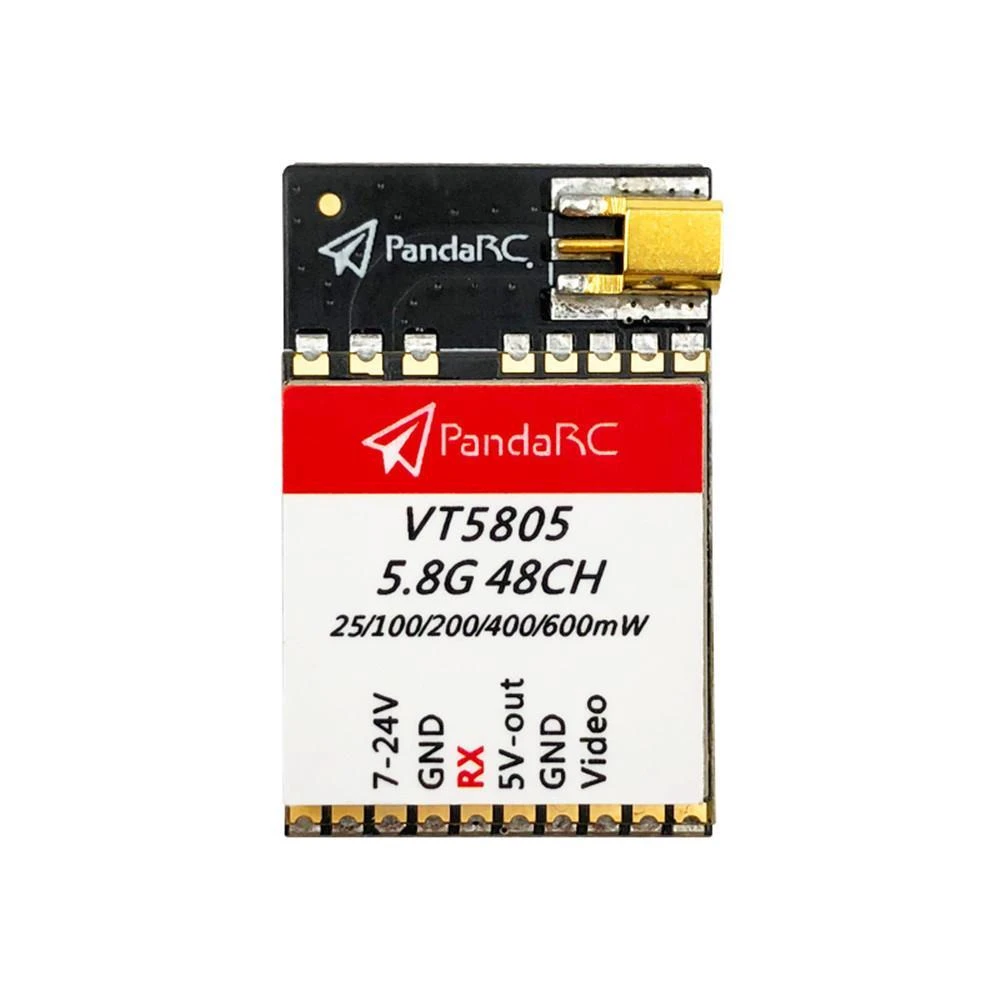

PandaRC VT5805 5.8GHz 25-600mW VTX – MMCX

PandaRC has many options available for reliable and affordable 5.8GHz VTX, featuring different sizes, connectors, and output power levels. This version features an MMCX connector and a heatsink for more stable transmission power.

Features

• Pre-installed heat sink on the back for more stable image transmission
• Transmission distance 0.5km@25mw, 1km@200mw, 2km@600mw (original antenna)
• Image transmission supports OSD decoding and tuning
• Key frequency control: short press once, change the channel number CH (CH1-CH8)
• Long press the button for 2 seconds and then press the button to change the frequency group FR (A, b, E, F, r, L)
• Button power control: long press the button for 10 seconds and then press the button to change the power level 25/100/200/400/600mw
• Power indicated by red LED

Specifications

• Input¬†voltage: 7-24V
• Output Power: 25/100/200/400/600mw switchable
• Frequency: 5.8G 48CH
• Connector: MMCX
• Weight: 8.2g
• Size: 20x31x8mm

Includes

• 1x PandaRC VT5805 5.8GHz 25-600mW VTX – MMCX
