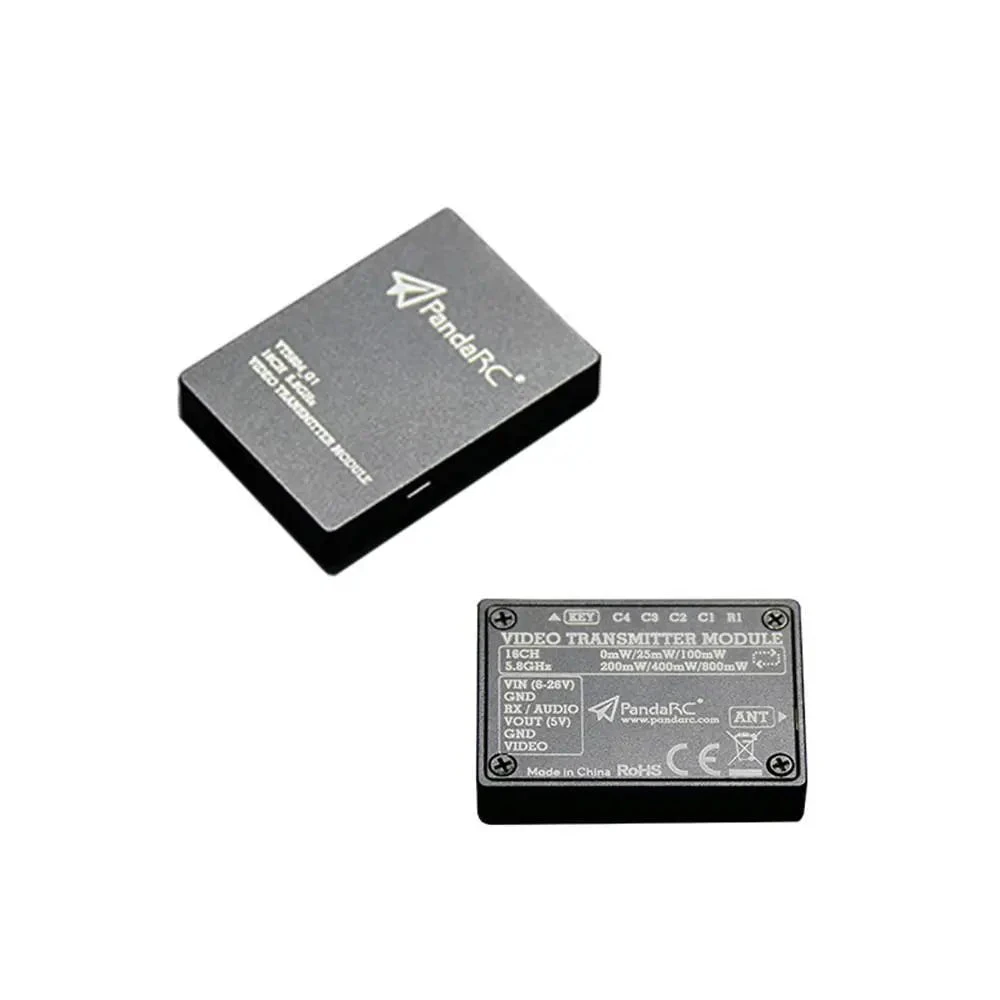

PandaRC VT5804 Q1 5.8GHz 25-800mW VTX – MMCX

PandaRC has many options available for reliable and affordable 5.8GHz VTX, featuring different sizes, connectors, and output power levels. This version features an updated MMCX connector and a fully enclosed metal housing for incredible durability.

Features

• Switchable transmitting power, including 0mW / 25mW / 100mW / 200mW / 400mW / 800mW mode.
• Frequency lock fast, boot does not interfere with companions.
• Comes with output power self-test function.
• Full format video format: NTSC / PAL.
• Wide input voltage range and low power consumption: 6V-26V
• Fully enclosed metal housing

Specifications

• Input Voltage : 6-26V
• Output Power : 28.5-29.5dBm
• Video Bandwidth: 8MHZ
• Audio carrier frequency: 6.5MHZ
• Video input level: 0.8-1.2 VP-P
• Audio input level: 0.5-2.0 VP-P
• Radio Frequency Output Impedance: 50 Ohm
• Audio input impedance: 10K Ohm
• Connector: MMCX
• Size: 34*24*5.5MM
• Weight: 9g

Includes

• 1x PandaRC VT5804 Q1 5.8GHz 25-800mW VTX – MMCX
