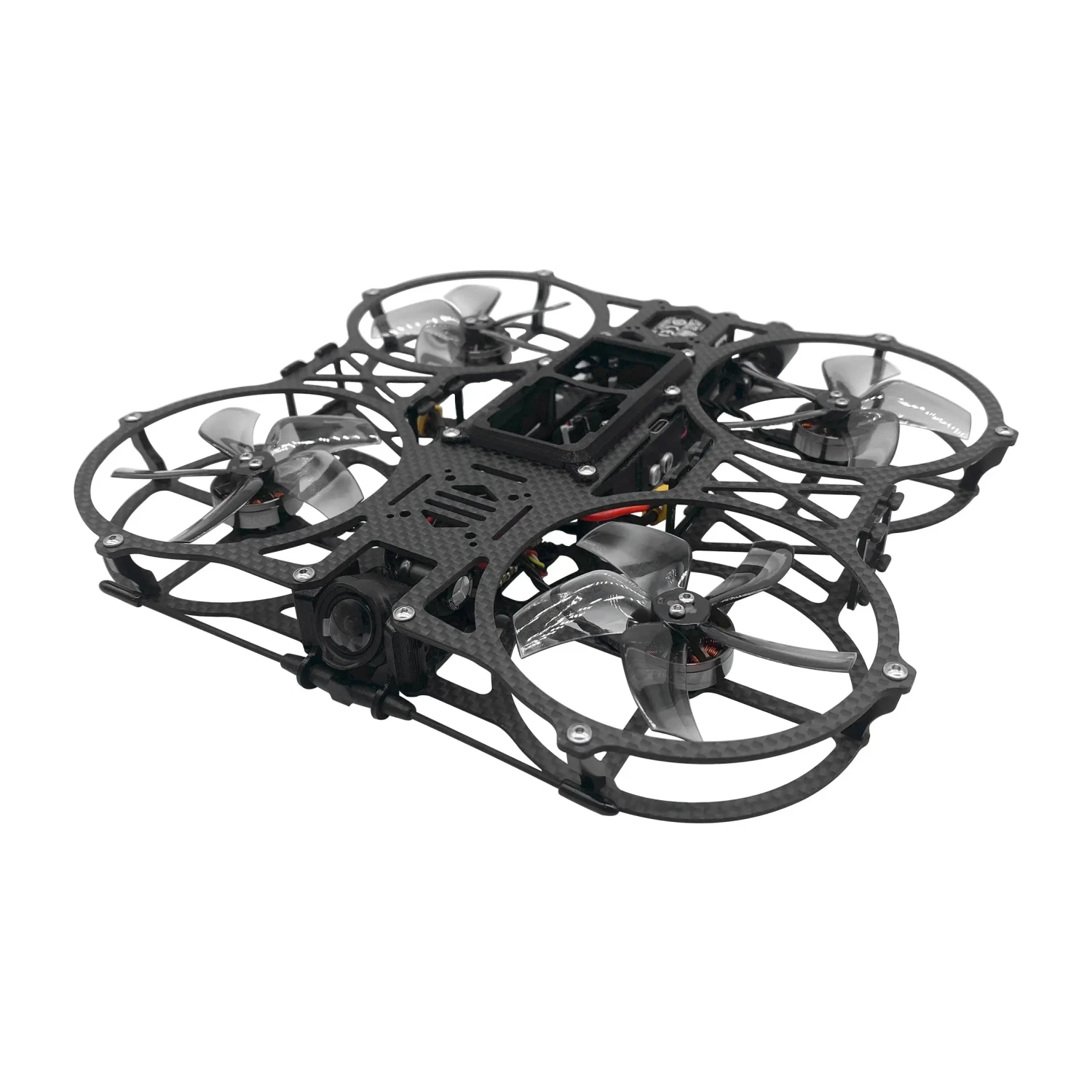

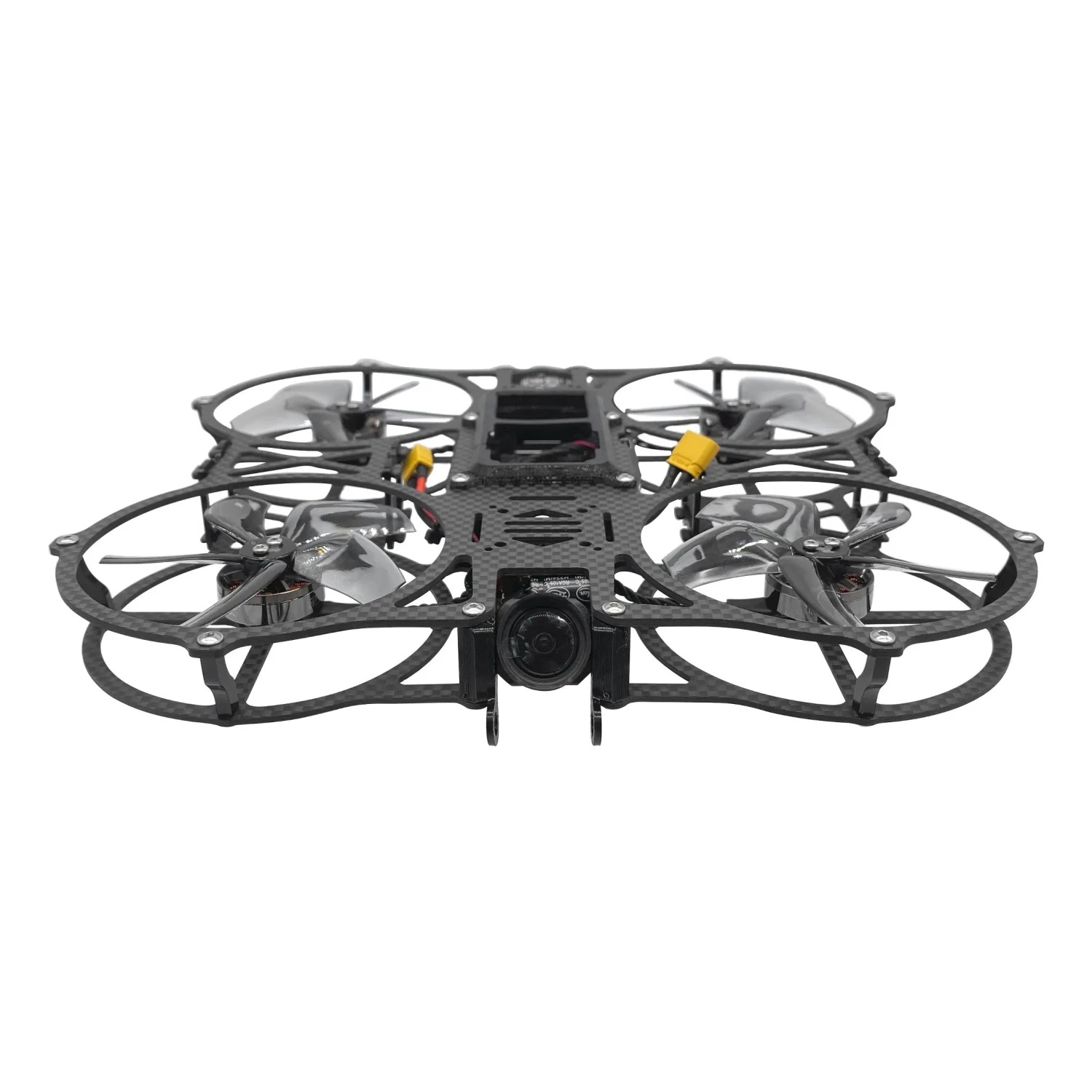

NewBeeDrone Invisi360 O3 Drone BNF

Note: The Insta360 360 Camera is not included.

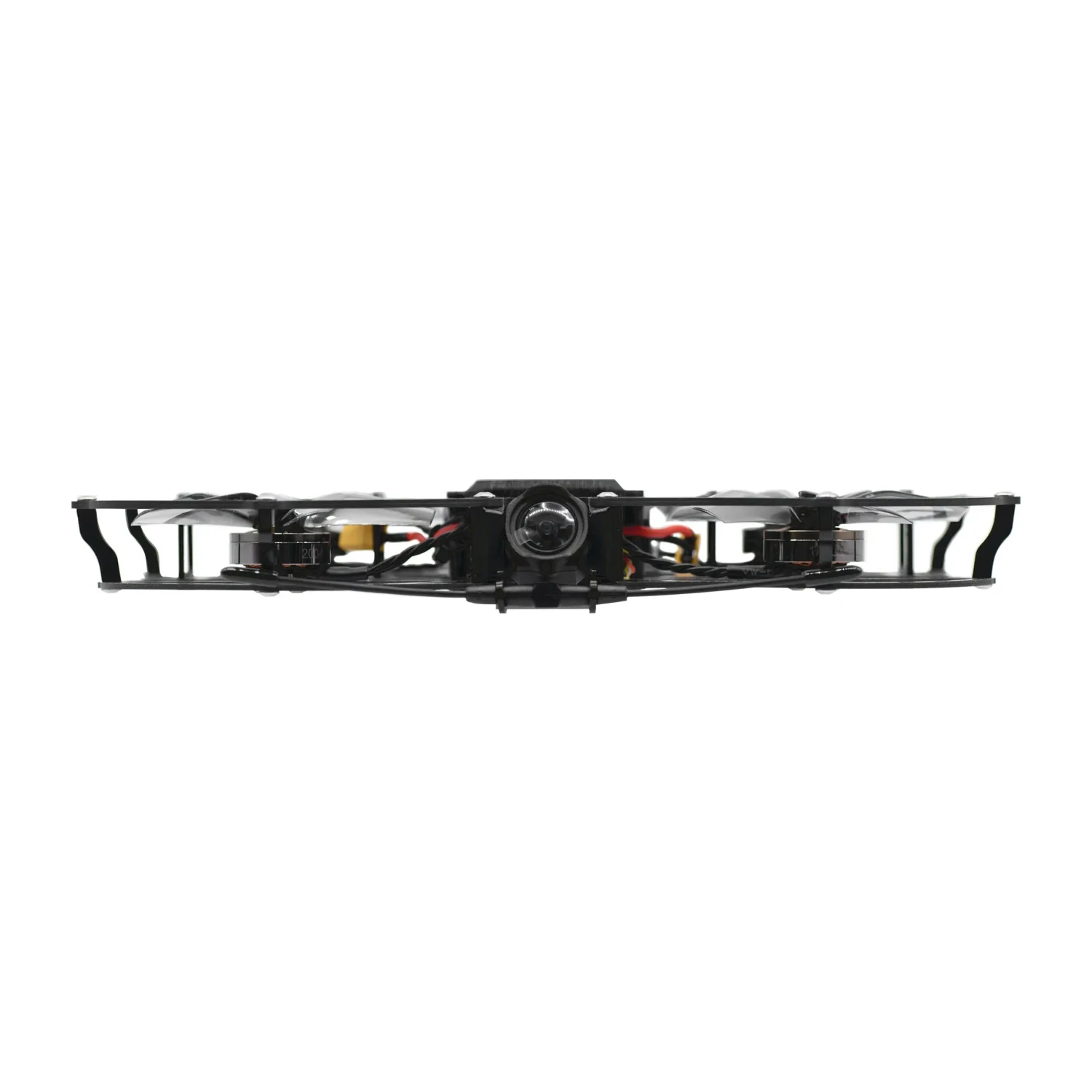

In combination with the Insta360 ONE R 360 Camera, the Invisi360 Cinewhoop Drone captures flawless 360 degree footage in a compact and portable package. The frame is only 0.85 inches thick to allow the Insta360 to stitch together images from both sensors without any blind spots.

A unique two-battery mounting configuration perfectly balances the center gravity and keeps it in line with the props unlike a top or bottom mounted battery.

As always, NewBeeDrone each Invisi360 contains high quality electronics and carbon fiber. Check out the parts list below!

What’s Inside?

NewBeeDrone GalaxyAIO 255 Flight Controller

The

NewBeeDrone Galaxy AIO 255

, the ultimate all-in-one flight controller. Powered by an STM32H743VIH6 MCU and 2xBMI270 gyros, it delivers exceptional performance and stability.

NewBeeDrone Flow 2004 2450KV Motors

We designed the

NewBeeDrone Flow 2004 Motor

to balance efficiency, power, and feel. Inside of each motor are two NSK / NMB 730ZZ Ball Bearings which are known as the best in the business for smoothness and durability. The shiny finished bell was CNC machined out of 7075 aluminum alloy and meticulously quality checked for perfection.

DJI O3 Air Unit & Camera

The

DJI O3 Air Unit

 provides the crystal clear image required to capture professional footage. 1200mW of transmitting power and a proprietary digital protocol ensure the FPV signal will penetrate through walls, trees, and long distances.

Invisi360 BNF Components

• Frame:

  NewBeeDrone Invisi360 Frame

• FC + ESC:

  NewBeeDrone Galaxy AIO 255

• Motors:

  NewBeeDrone Flow 2004 2450KV Motors

• Propellers:

  Gemfan D76 Propellers for Cinewhoops

• FPV Camera, VTX and Receiver:

  DJI O3 Air Unit

• Optional Receiver:

  TBS Crossfire Nano Rx

Recommended Battery and Spare Props

• GNB 720mAh 11.4V 3S 100C HV Battery – XT-30

  (2 required per flight)

• Gemfan D76 Ducted 76mm 5 Blade Cinewhoop Propellers

Insta360 Studio Modify File for Invisi360 Configuration:

Link

For All the 3D printed part STL file :

Link
