NewBeeDrone BDR Brushed Motor 3 Pack

The Bee Dynamic Rotor (BDR) motors are NewBeeDrone’s first Acro Series motors built for the BeeBrain Flight Controller to give you the perfect balance between aggressive flight characteristics and flight time. With the amazing response, we received from our faster than the regular 6x15mm motors, we have decided to now offer you three great options! Check out the options below to find the ones that best fit your flying style.

Not sure which ones to choose? Here is our recommendation:

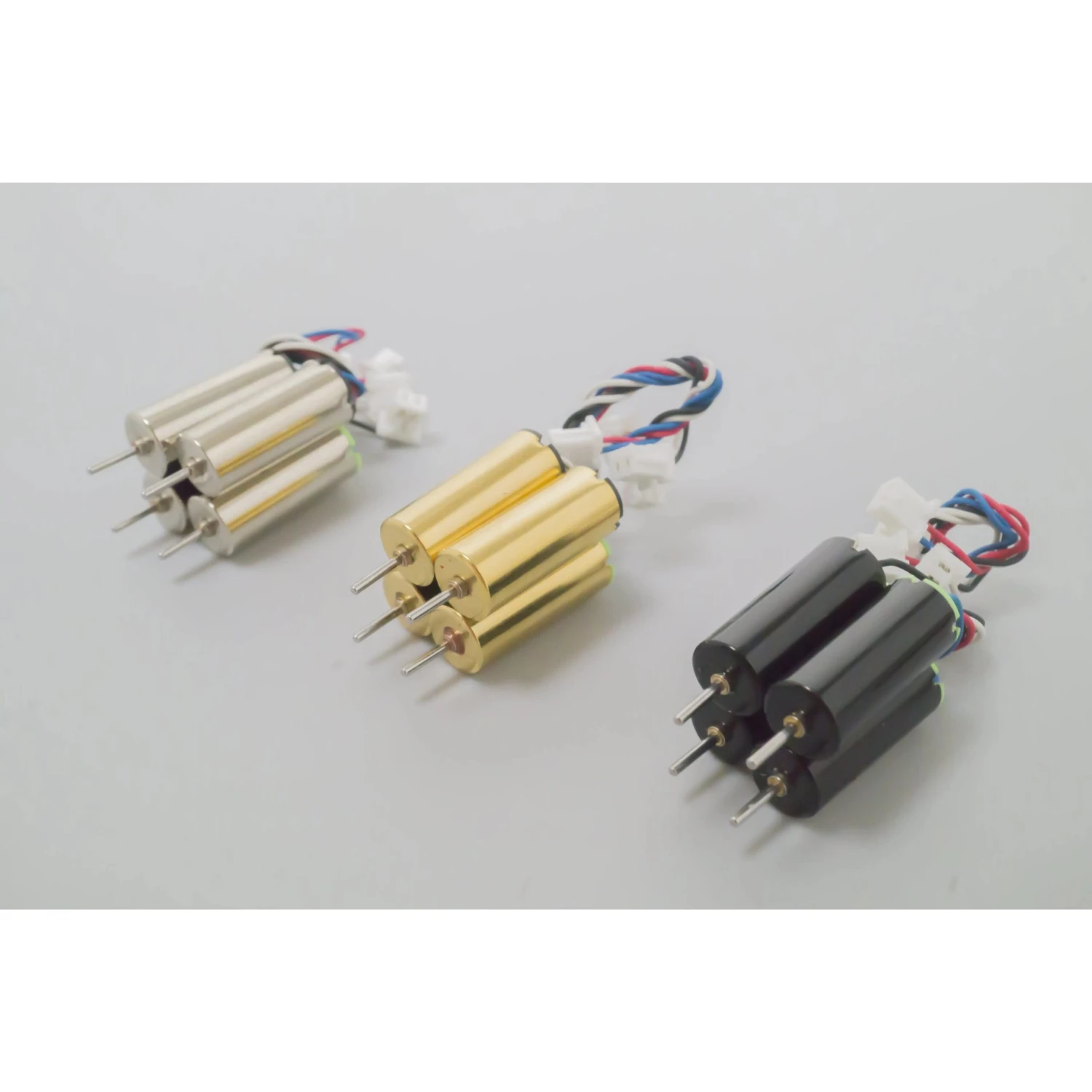

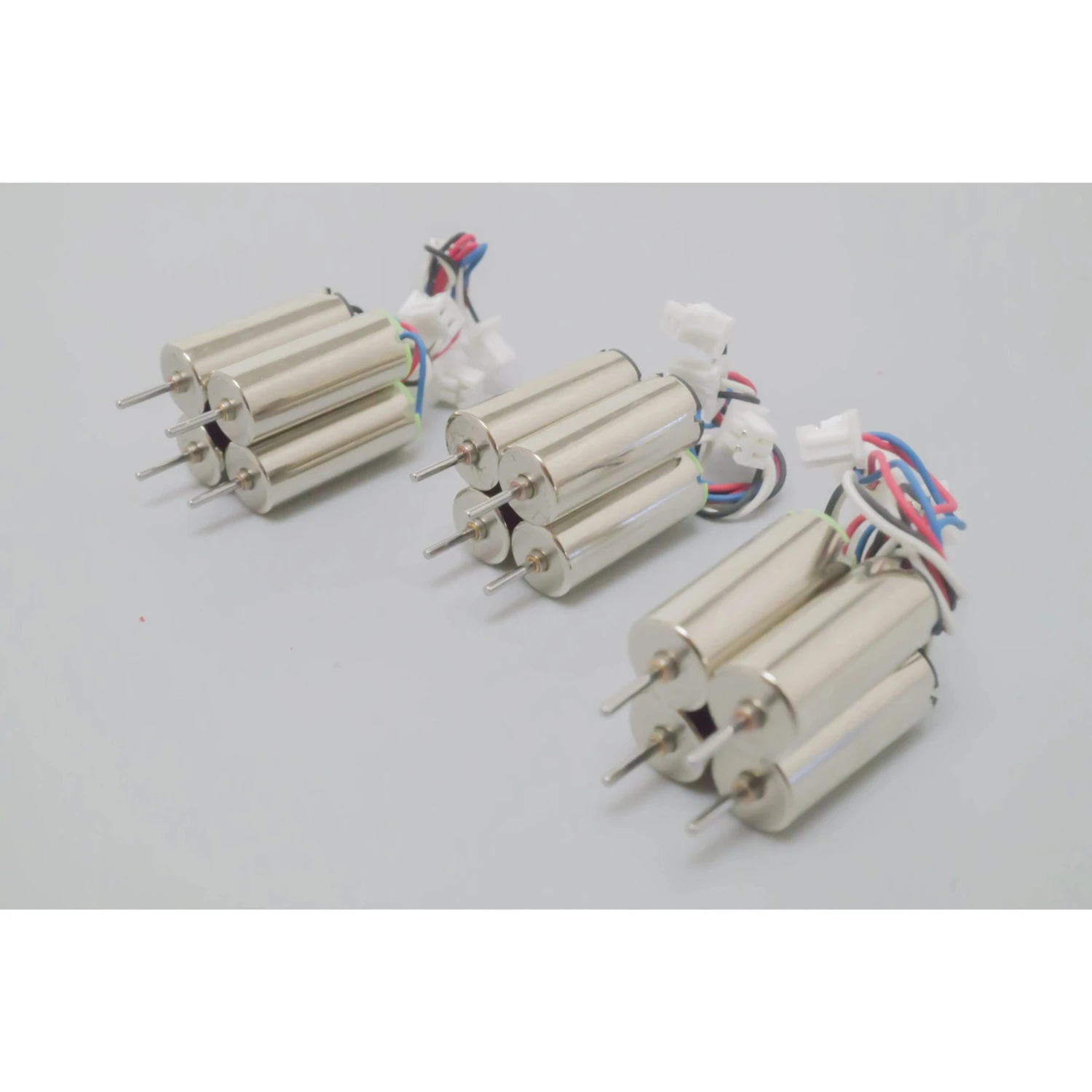

• SILVER Edition – use for indoor flying, for best control around tight spaces and through small gaps
• BLACK Edition – the middle of the pack, use for both indoor and outdoor flying

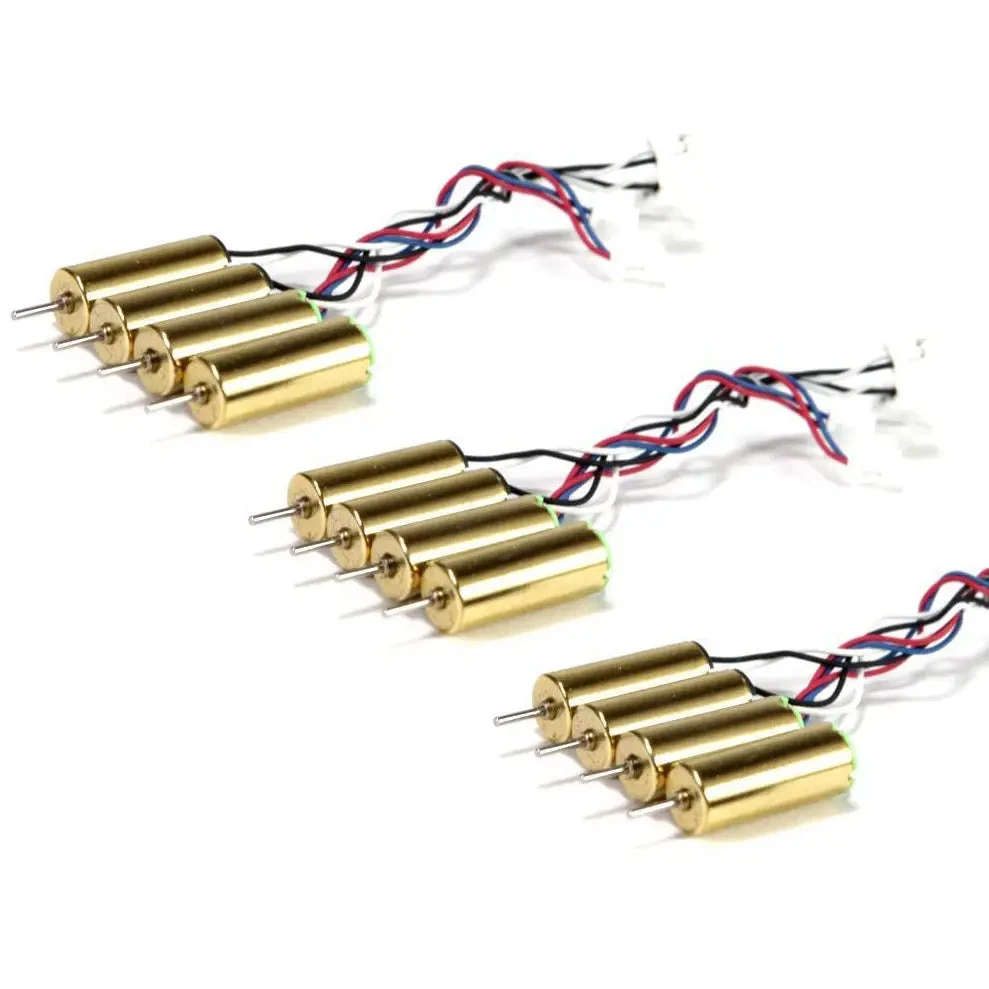

• GOLD Edition – the beasts! Used for outdoor aggressive flying! Finally, you can do Split S dives and Power Loops just like with a full sized racer! Plated with real 24k gold!

Still not sure? Then grab our Sampler pack and try them all out!

Why 3 Sets of Motors?

If you fly like us or Jesse from TinyWhoop then you will know that flying hard acro and doing building dives is very taxing on the motors, and brushed motors do wear out over time and need to be replaced. So we put together this Acro Pack and packaged 3 sets of motors at a discount to keep you flying and pulling off all the crazy stunts that the BeeBrain is capable of!

We also made these with shorter wire leads for a cleaner build on your BeeBrain enabled quad!! Black and white wires signify CCW rotation.

Pair these motors with Nitro Nectar 1S packs for maximum punch and best run-time.

Performance Data:

   SILVER Edition Motors

• KV: 14,800
• Speed: 55,000 RPM (@ 3.7V)
• Current Load: 1.0A (@ 3.7V, direct drive)
• Lifetime Rating: 5-6 hours
• No Load Current: 60 mA
• Start Torque: 14.4 g.cm
• Stall Current: 2312 mA
• Terminal Resistance: 1.6 Ohms
• Operating Voltage: 0.5 – 4.35 V

   BLACK Edition Motors

• KV: 17,400
• Speed: 64,500 RPM (@ 3.7V)
• Current Load: 1.0A (@ 3.7V, direct drive)
• Lifetime Rating: 5-6 hours
• No Load Current: 85 mA
• Start Torque: 18 g.cm
• Stall Current: 3360 mA
• Terminal Resistance: 1.1 Ohms
• Operating Voltage: 0.5 – 4.35 V

   GOLD Edition¬†Motors

• KV: 19,700
• Speed: 73,000 RPM (@ 3.7V)
• Current Load: 1.0A (@ 3.7V, direct drive)
• Lifetime Rating: 5-6 hours
• No Load Current: 150 mA
• Start Torque: 20g.cm
• Stall Current: 4100 mA
• Terminal Resistance: 0.9 Ohms
• Operating Voltage: 0.5 – 4.35 V

Dimensions:

• Can Diameter: 6mm
• Can Length: 15mm
• Shaft Diameter: 0.8mm
• Shaft Length: 5mm
• Weight: 1.85g
• Wire Length: 46mm
• Plug: Micro-JST-1.25

Package Includes:

• 3 sets of BDR motors (6 CW, 6 CCW)
