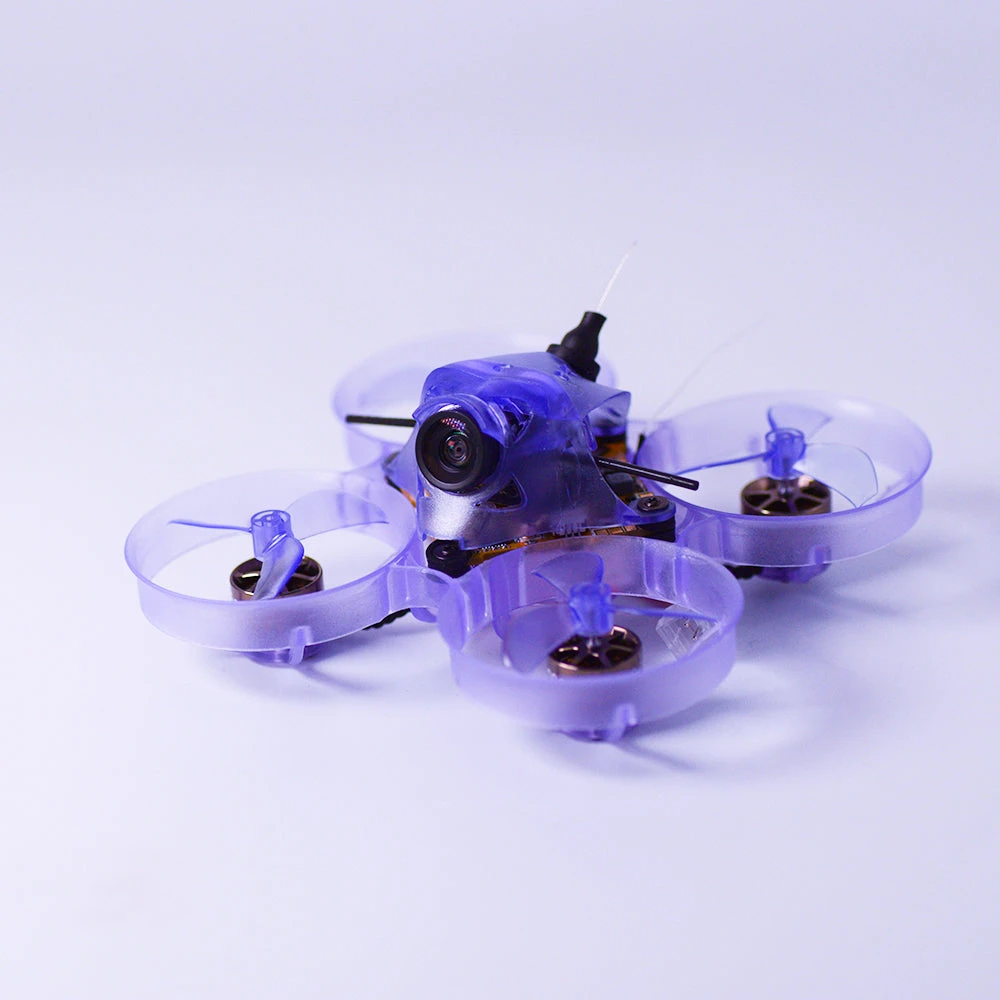

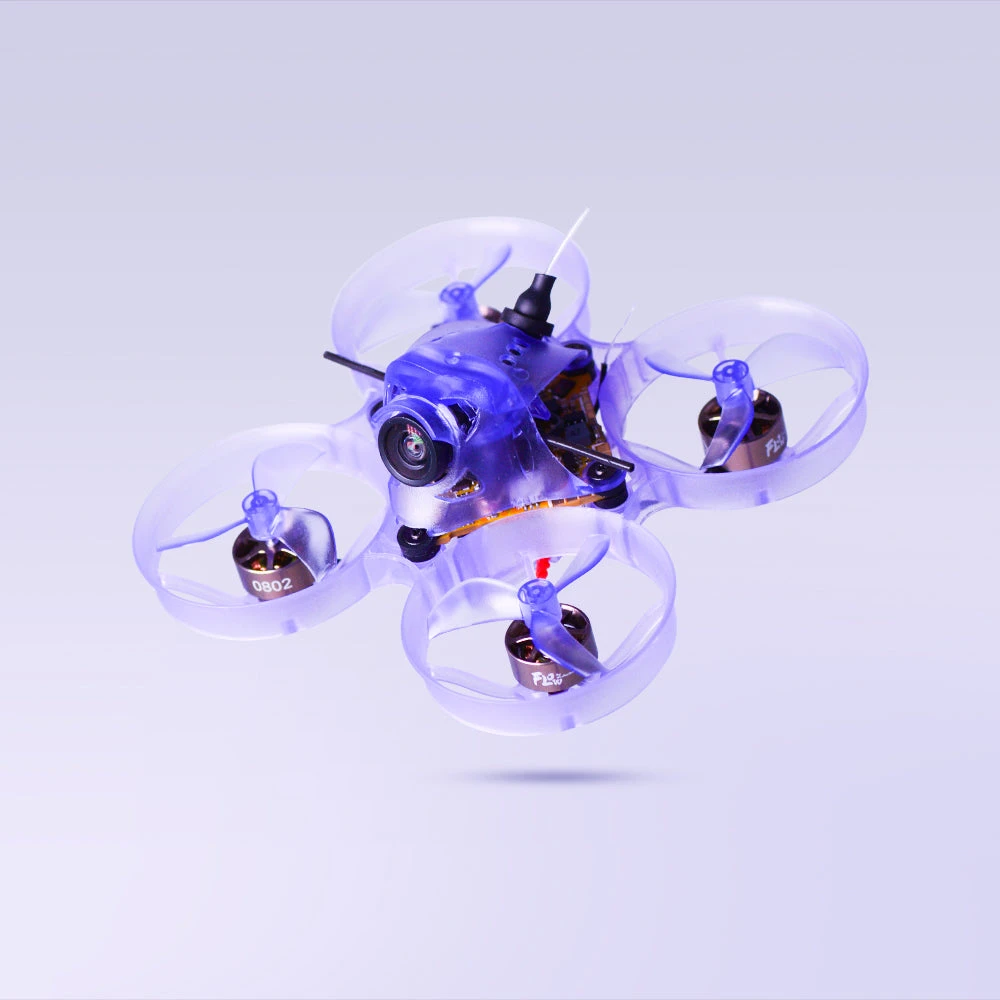

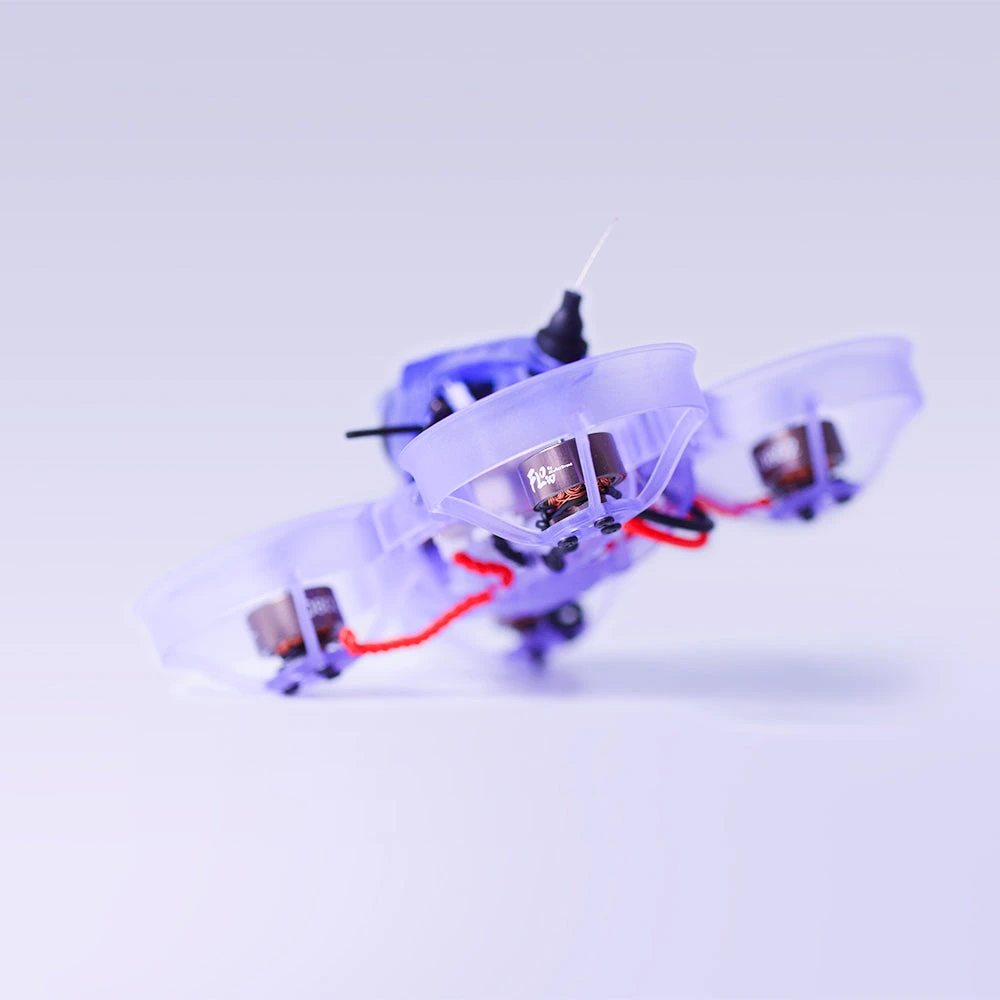

NewBeeDrone AcroBee65 BLV4 BNF ELRS2.4G 27000KV
How to Video:
Internal ELRS Rx Firmware flashing:
Review Video:






Specifications:
Flight Controller:
BeeBrain BLv4 ELRS
MCU: STM32F411
VTX: Switchable output power from 5mw- 25mw(for Racing) – SmartMAX(SmartMax up to 400mw) with
BeeTX 5.8Ghz Antenna
ESC: 12A BLHeliS Pre-Flash with Bluejay 0.16 target: S-H-40 48kHz
ESC Connector: JST-1.0 3Pin
OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
Receiver: ELRS2.4 Diversity receiver(ESP32 compatible with wifi&bluetooth firmware update)
2.4G T-Antenna
(Top) & normal 2.4G antenna(bottom)
Flight Controller Weight: 6.5g(Include antennas and battery connector)
Flight Controller Size: Outer dimensions: 29x29x7.6mm
Flight Controller Holes: 25.5×25.5mm
Battery input: 1-2S (Preset only support 1S, 2S will need throttle cap at less 50%)
Uart2: Tx&Rx for ExpressLRS2.4G Receiver
Uart1: Tx&Rx free
Power Connector:
NBD-PH2.0 connector
Motors:
Flow 0802 27000kv
(new motor start ship on April 3rd)
Frame:
Cockroach65 Brushless Frame
Clear Purple
Camera Mount:
Goober Canopy
Clear Purple
Propeller:
Azi Tri-blade 31mm 1.0
Clear Purple
Recommend Battery:
Nitro Nectar Gold 300 mAh 1S PH2.0
Nitro Nectar Gold 250 mAh 1S PH2.0
Firmware:
1. BeeBrain blv4 ELRS3.0 receiver firmware
2. BeeBrain blv4 ELRS2.0 receiver firmware
3. BeeBrain blv4 ELRS Betaflight 4.4 firmware
All firmware can be found on our
Github Page
Note: Binding process. power up the drone 3 times, on the third time you plug in power, the ELRS Receiver will get into binding mode. We are still trying to work on the ELRS firmware and make it able to just click the boot button to get into bind mode. Will get this update in the near future.
Check out the video below CiottiFPV show you how to get into bind mode. – Thanks bro for showing this. lol
