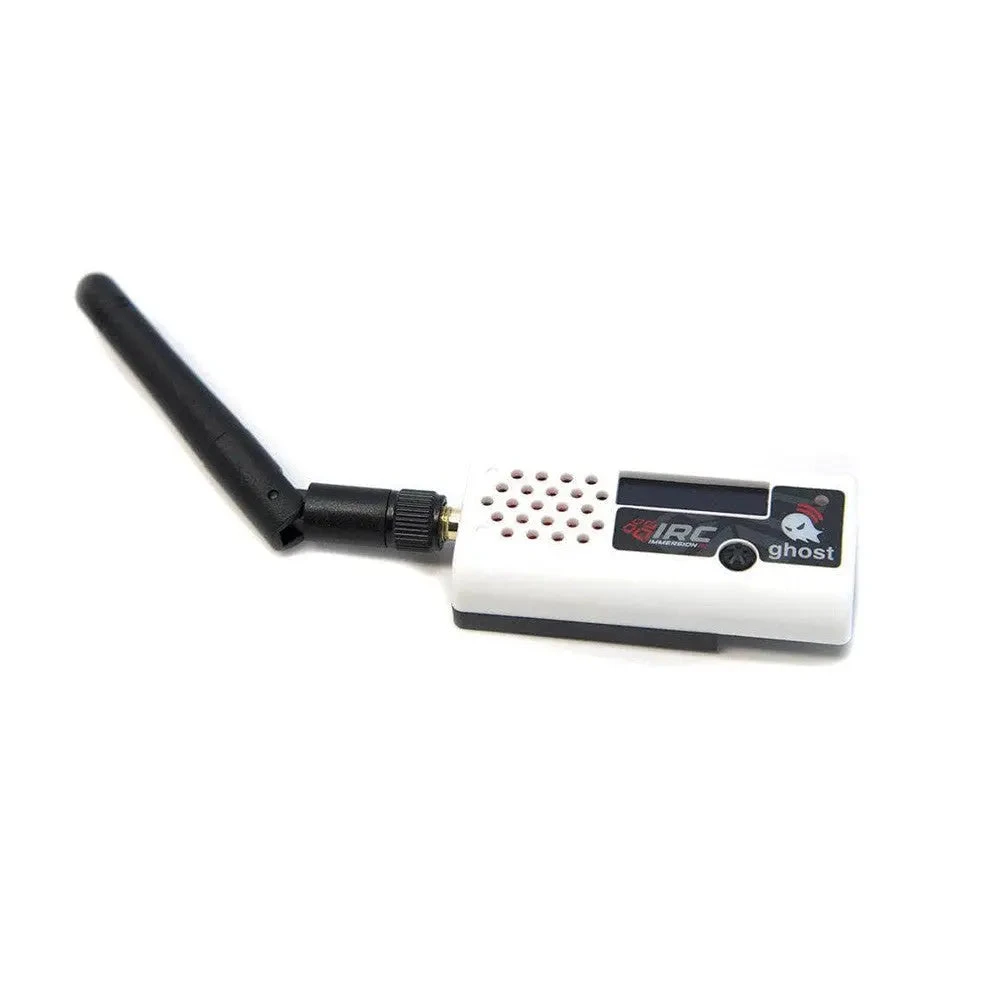

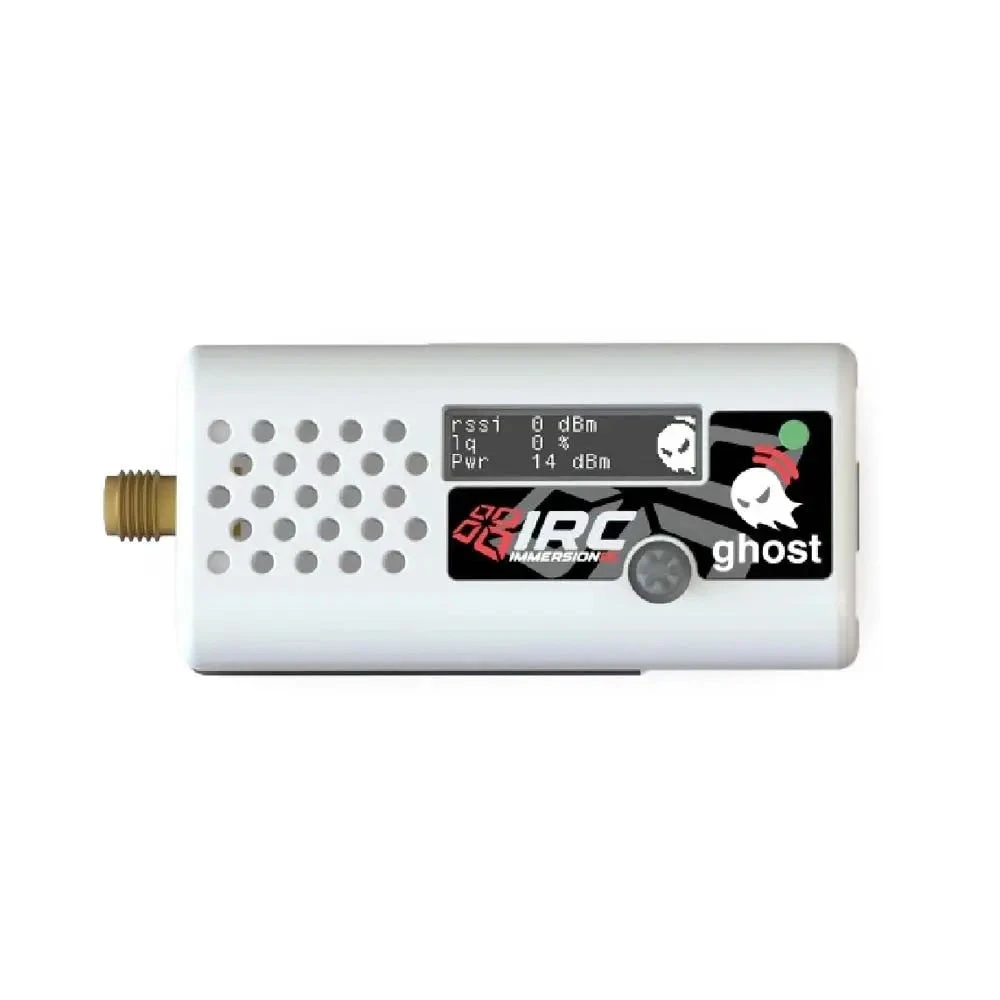

ImmersionRC XLite Module Tx Transmitter Module

The ImmersionRC Ghost Lite Next Gen 2.4GHz RC Transmitter Module is designed for both reliable control at extreme range, and extremely low latency with a best-in-class frame rate for the Race circuit.

Features

• 2.4GHz ISM Band

• Standard ‘Lite’ Module:, tested with FrSky XLite™, and FrSky X9 Lite radios

• One Of The Smallest Receivers On the Market

• Chirp Spread Spectrum, with Adaptive FHSS

• Crazy Race Performance: 250Hz,

• ~4ms End to End Latency, with OpenTx Integration

Specifications

• Item Name: IMMERSIONRC GHOST LITE TX MODULE

• Frequency Range: 2406 – 2479MHz

• Modulation: Chirp Spread Spectrum + Adaptive FHSS

• Binding: Bidirectional with confirmation and protocol negotiation

• RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come

• Uplink Tx Power: 16uW – 350mW (+/- 0.5dB) 3

• Frame Rate: 250Hz (purerace), 166Hz (race), 62Hz (normal), 15Hz (long range)

• Format: Standard ‘Lite’ Module: tested with FrSky XLite™, and FrSky X9 Lite radios

• Serial Formats: SBus, GHST, Auto-sense

• OpenTx support: 2.3.11 release, or ‘high performance’ synced version of 2.3.11

• Firmware: USB Upgradable(with OTA updates for receivers)

• Power Supply: 6V-20V, 1.75W @ 350mW, ~250mA at 7.4V

Includes

• 1 x ImmersionRC Ghost Lite Tx Module
• 1 x

  Manual
