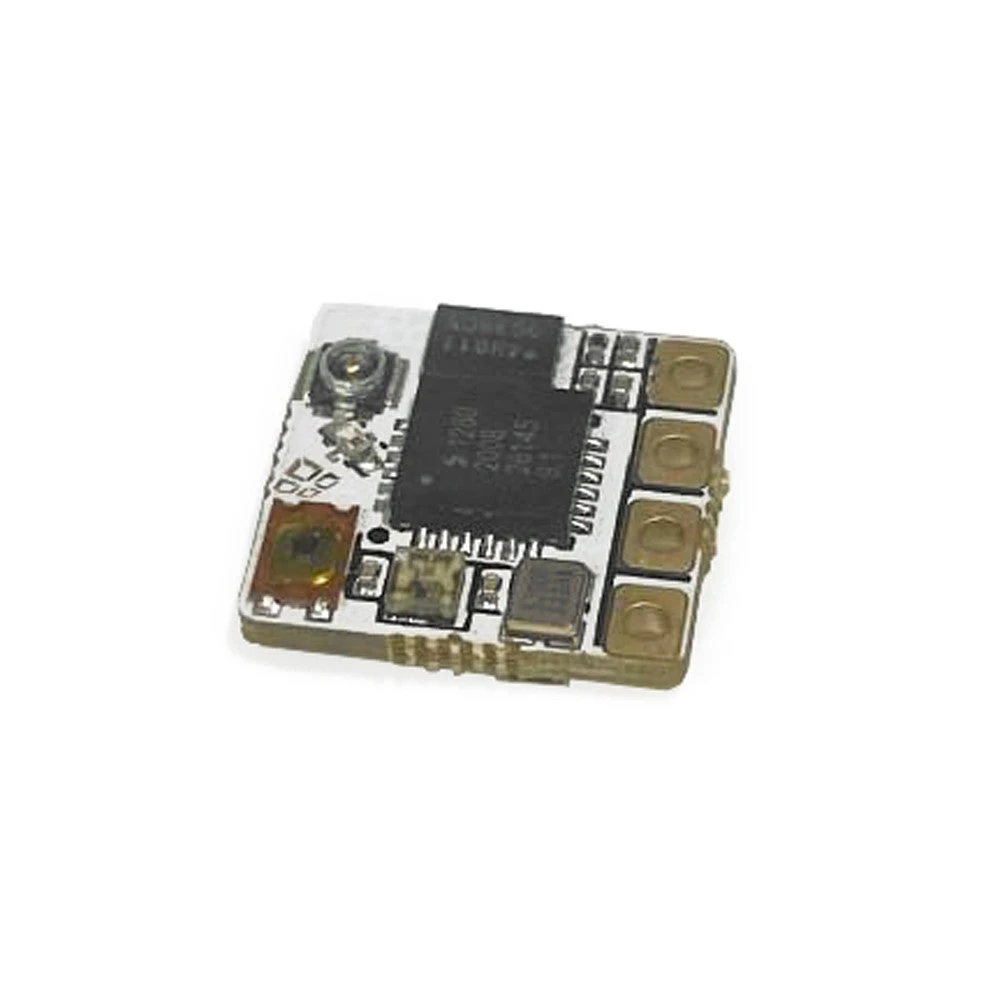

ImmersionRC Ghost Zepto Receiver

Specifications

• Frequency Range: 2406 – 2479MHz

• Modulation: Chirp Spread Spectrum + Adaptive FHSS

• Binding: Bidirectional with confirmation and protocol negotiation

• RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come

• Downlink RF Power: +13dBm

• Sensitivity: -117dBm in Long Range mode

• Serial Formats: SBus, SBus-Fast (200k), SRXL-2 (400k), GHST, SBus Inverted

• Firmware: Over-the-air (OTA) upgradable

• Power Supply: 5V recommended, as low as 3.6V tolerated, no more than 5.5V

• vTx Control: Tramp control from ‘T’ pin on Rx, regardless of the selected serial format

• Antenna Connector: Standard MHF4 (vs. Atto which uses the larger U.FL)

• Dimensions: 10.0mm x 10.0mm, 0.38g (w/o antenna)

• Rx Noise Floor Analysis: Auto on power-up, or on-demand from the T

• Dimensions: 10mm x 10mm, 0.35g (w/o antenna)

Includes

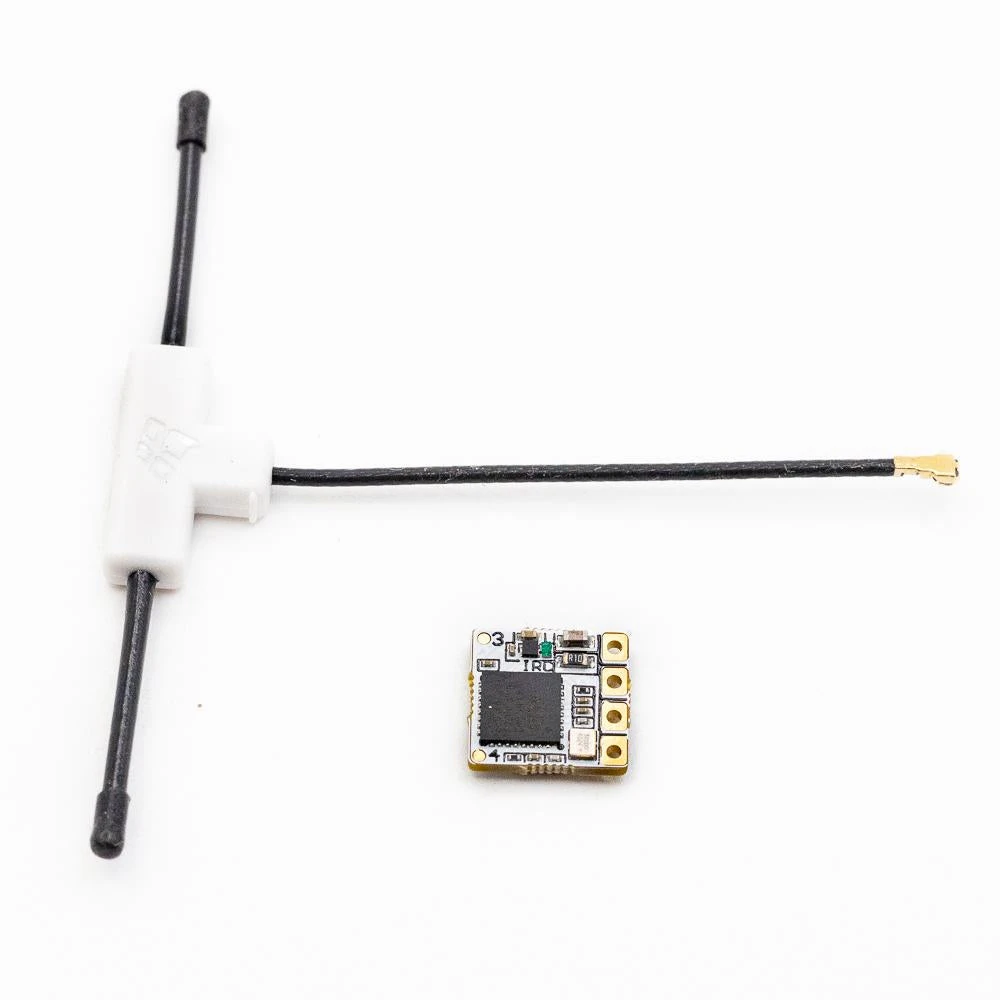

• 1 x ImmersionRC Ghost Zepto 2.4GHz Receiver

• 1 x Micro qTee Antenna w/50mm cable

• Silicone Cables

• Heat Shrink
