ImmersionRC Ghost Atto Duo Receiver

SPECIFICATIONS

Features

• 2.4GHz ISM Band
• Tiny 15 x 12mm, and 0.61g
• Two fully independent Ghost receivers
• Crazy Race Performance, 222.22Hz updates (500Hz Ready)
• ~4ms End to End Latency (2ms ready), with OpenTx Integration
• Fully supported by Betaflight with GHST driver

Specifications

• Receivers: Twin, Independent, Full Diversity
• Frame Rate: 250Hz Standard, 500Hz Ready
• Downlink RF Power: +13dBm
• Sensitivity: -117dBm in Long Range mode
• Serial Formats: SBus, SBus-Fast (200k), SRXL-2 (400k), GHST, SBus Inverted 1 2 3
• Firmware: Over-the-air (OTA) upgradable
• Power Supply: 5V recommended, as low as 3.6V tolerated, no more than 5.5V
• VTX Control: Tramp control from ‘T’ pin on Rx, regardless of the selected serial format

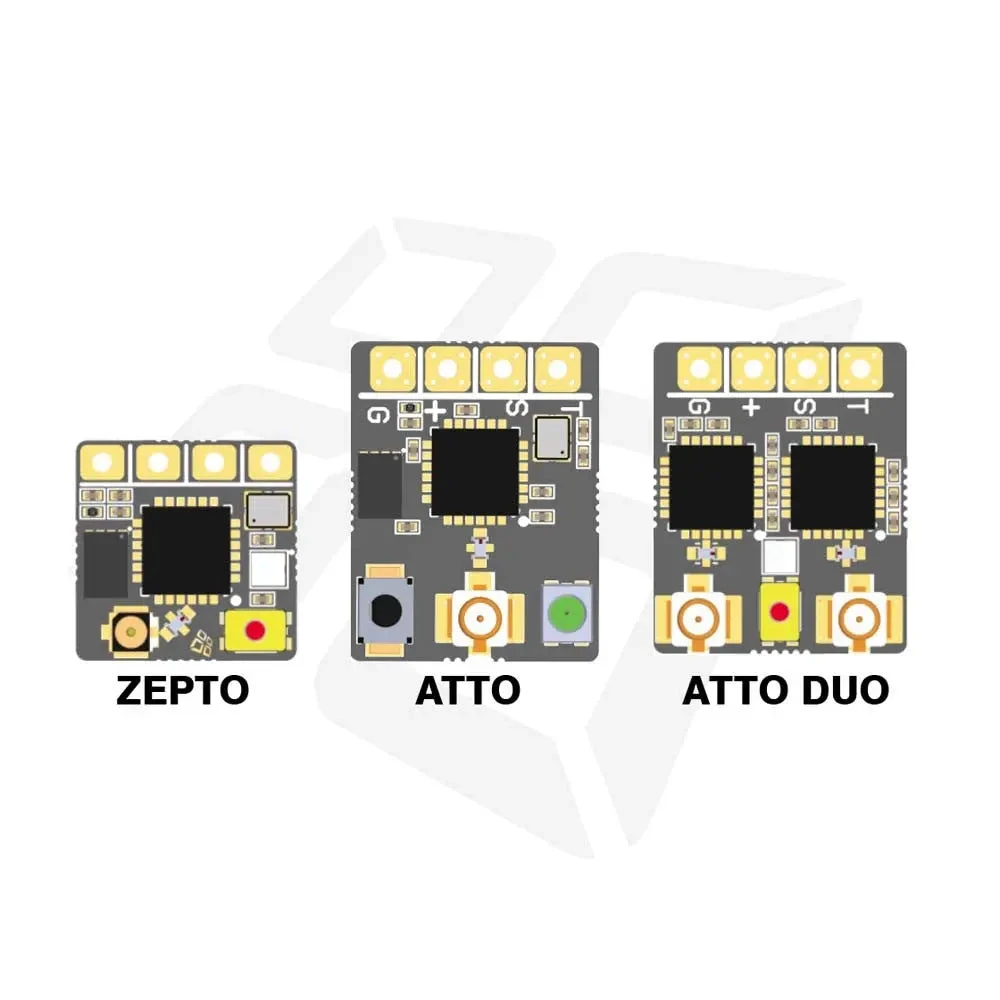

• Antenna Connectors: Standard U.FL (vs. Zepto which uses the much smaller MHF4)
• Dimensions: 14.8mm x 11.5mm, 0.6g (w/o antenna)
• Rx Noise Floor Analysis: Auto on power-up, or on-demand from the Tx

Manual

• Ghost Quick Start Guide (159.5 KB)

• Ghost Users Manual v1.6 (Firmware v1.0.2.0) (1.9 MB)

Includes

• 1 x Atto Duo Receiver
• 2 x qTee Antenna
• Silicone Cables
• Heat Shrink
