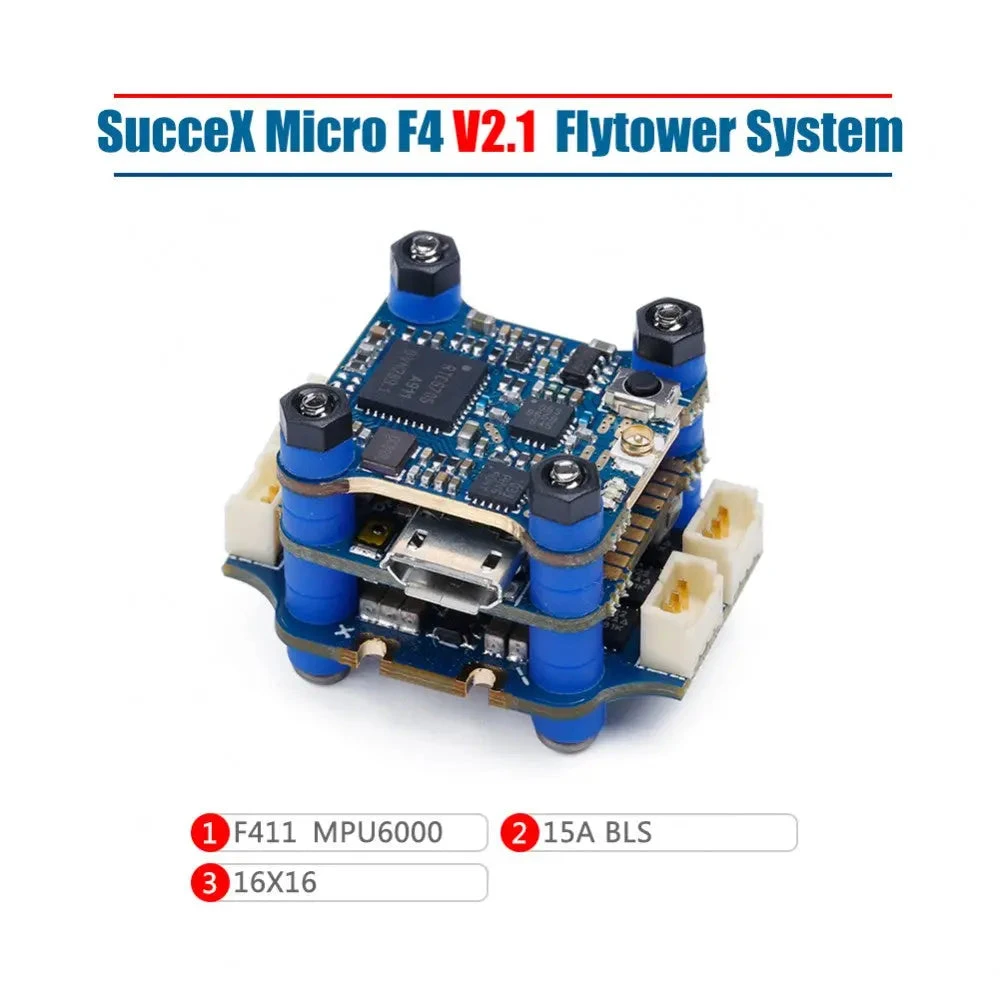

IFlight SucceX Micro F4 V2.1 15A 2-4S + VTX Flight Tower Stack System

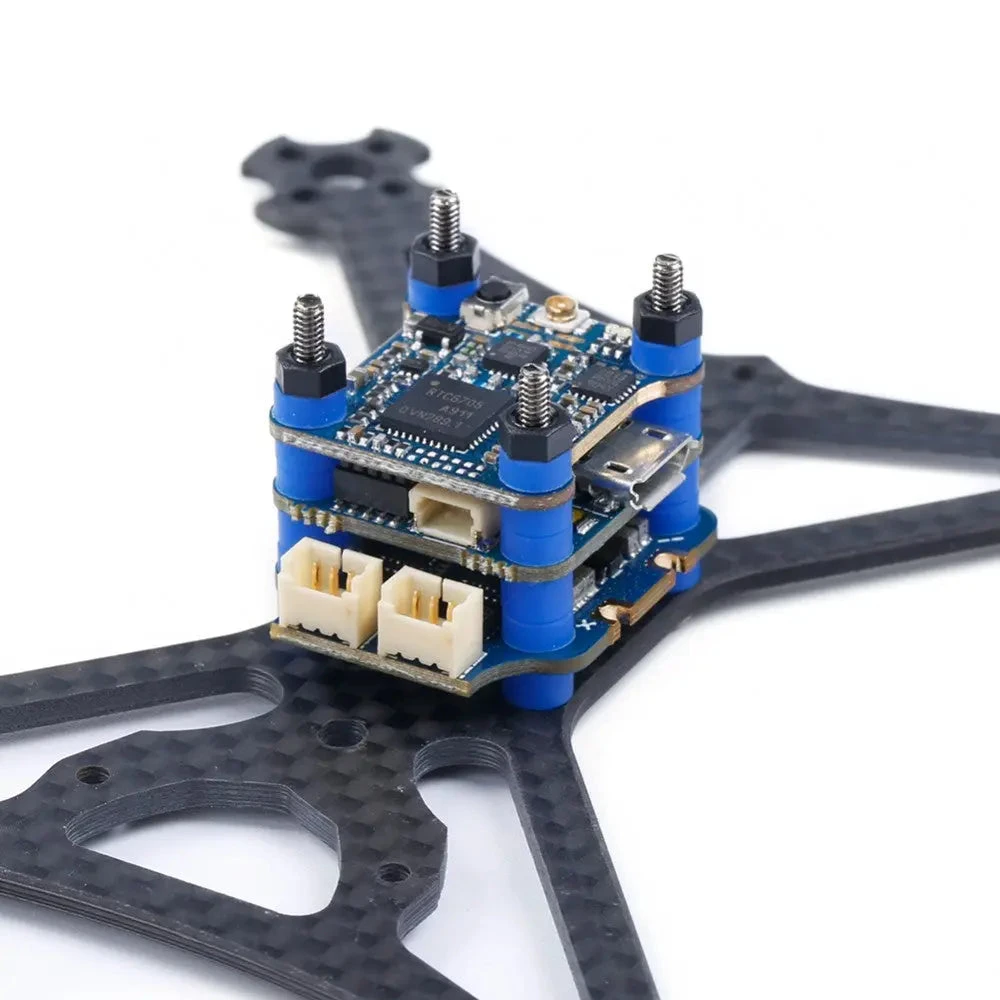

The SucceX Micro F4 Flight Tower Stack System is a complete FC + ESC + Video Transmitter stack with 16×16 mounting for micros where whoop boards are too big to fit. The FC connects to the ESC and VTX through pins, so very little soldering is necessary to build with this stack.

SucceX Micro F4 V2.1 Flight Controller

• STM32F411
• Input voltage 2-4S LIPO
• Gyro: MPU6000
• 2x UART ports
• 4x motor outputs
• Betaflight OSD :AT7456E
• Blackbox FLASH: 8MB
• BEC 5V 2.5A cont.

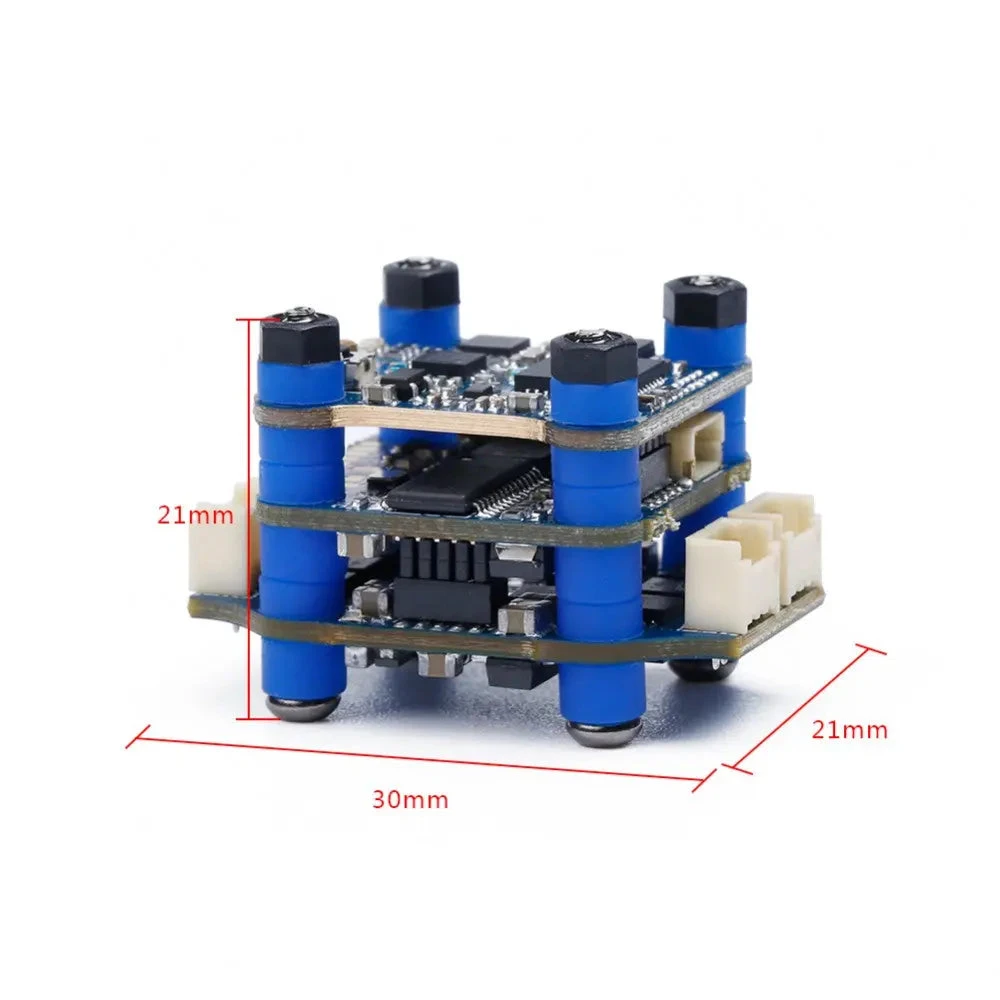

• Size: 21mm*21mm
• Mounting holes distance: 16*16mm
• Weight: 2.5g
• Firmware: IFLIGHT_F411_PRO
• NOTE: F.PORT protocol RX input support, telemetry not supported.

SucceX Micro 15A 4-in-1 ESC(w/plug)

• Firmware: G-H-30 BLS 16.7
• BLHeliSuite: https://github.com/blheli-configurator/blheli-configurator/releases
• Input voltage : 2-4S LIPO
• Continuous current: 15A
• MCU: BB21F16G
• BEC: NO
• Current sensor: yes
• ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
• Size: 30mm*22mm
• Mounting hole 16*16mm
• Weight: 3.6g

5.8G 200mW Micro VTX

• Power: PIT/25/100/200mW
• Antenna interface: IPEX (UFL)
• VTX protocol : IRC Tramp
• Size: 17mm*27mm
• Mounting holes: 16*16mm
• Weight: 1.6g

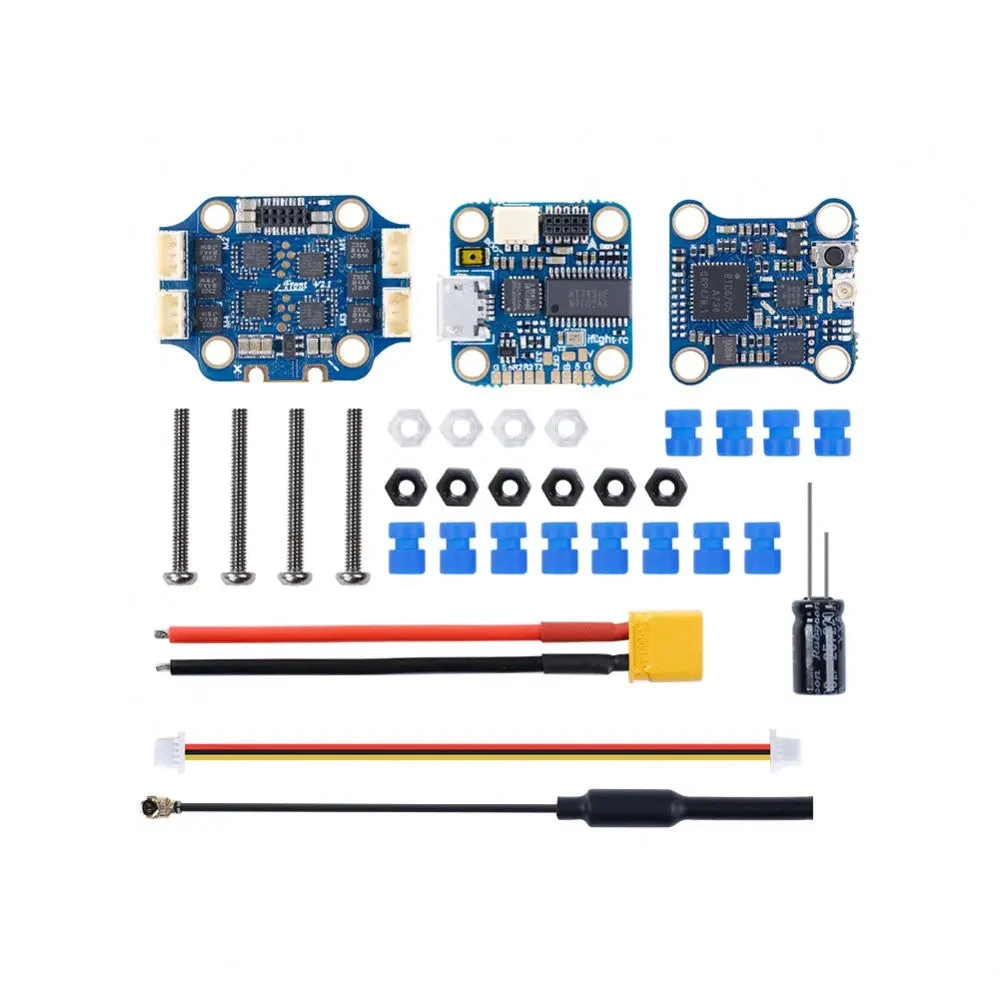

Package Included

• 1 x SucceX Micro F4 V2.1 Flight controller (M3 hole)
• 1 x SucceX Micro 15A Brushless ESC (w/plugs,M3 hole)
• 1 x PIT/25/100/200mW VTX (M3 hole)

Link to wiring Diagram
