IFlight SucceX Force 5.8GHz 600mW VTX Adjustable

Features:

– The output power is stable;

– Transmit power 4 gear switch: 25mW/100mW/400mW/600mW;

– Output 40 channels.

– Frequency lock fast, the boot does not interfere with companions;

– Built-in output power self-check function;

– Full format video format: NTSC /PAL;

– Wide input voltage range. low power consumption:

6V～36V

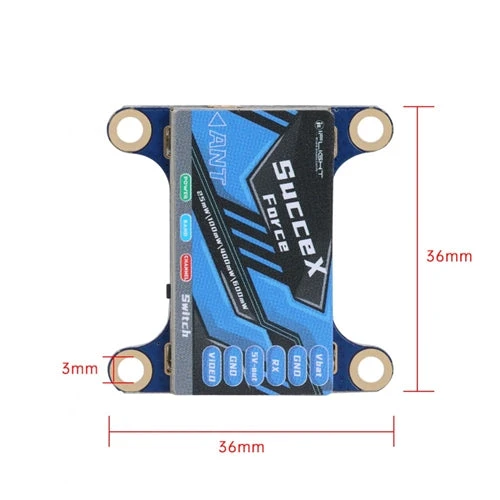

– Small size:36*36*3mm

– Mounting holes 4-M3

– Lightweight: 7.2g(excluding antenna)

Tips:

VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

Specs:

– Item: SucceX-Force 600mW adjustable VTX

– Input voltage: 6-36V

– Output voltage/ Max current: 5V±0.5V 1A

– Channel: 40

–

size:36*36*3mm

– PIT/25mW/100mW/400mW/600mW

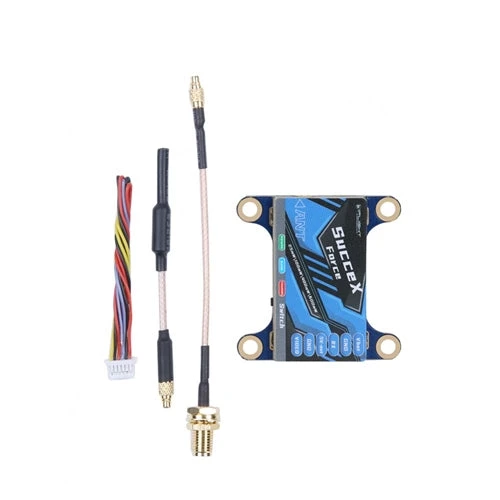

Package included:

– SucceX Force 600mW adjustable VTX x 1pc

– MMCX to SMA Female Adapter Cable 100mm x 1pc

– 5.8GHz MMCX straight antenna 65mm x 1pc

– SH1.0 6P cable 100mm x 1pc
