IFlight 2-8S Micro BEC 5V Or 12V BEC X3

The iFlight 5V/12V Step Down Micro BEC features high-efficiency synchronous rectification and the ability to step down from a wide input voltage range of 2-8S(5-36V) and provide a lower stable output voltage. It’s an incredibly compact solution for still being able to provide 3 amps at 5 volts, and 2 amps at 12 volts.

Features:

• Step-down Switch Mode
• High-efficiency Synchronous Rectification
• Wide Input voltage range
• Voltage output can be 5V or 12V* (default 5V)

*When the “ON-12” Jumper pads are shorted, the output voltage is 12V 2A. When open, the output voltage is 5V 3A. See enlarged image below.

Specifications:

• Input voltage: 2-8S(5-36V)
• BEC Output: 5V/3A, 12V/2A (default 5V/2A)
• Dimensions: 14x11x1mm
• Pin Spacing: 2.54mm
• Weight: 0.8g

Includes:

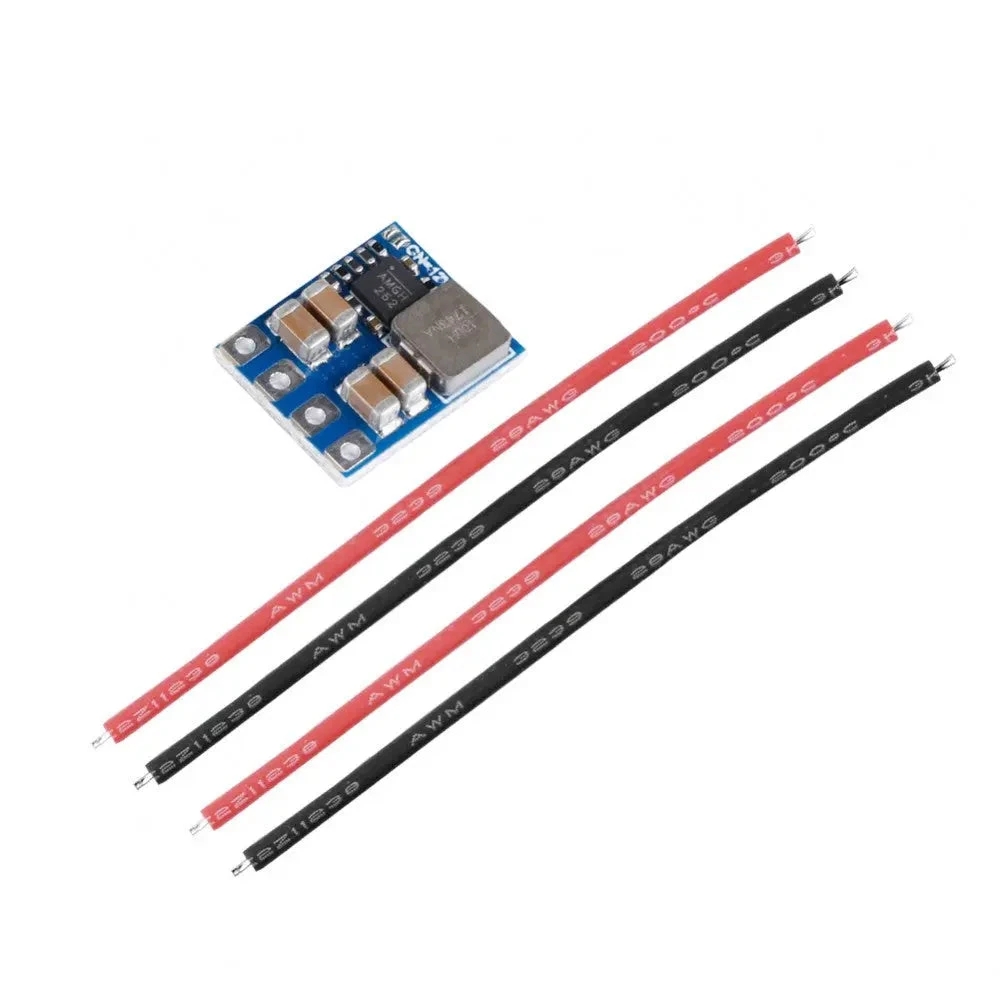

• 3x iFlight Micro 2-8S BEC – 5V/12V Output
• 1x Connecting Cables Set

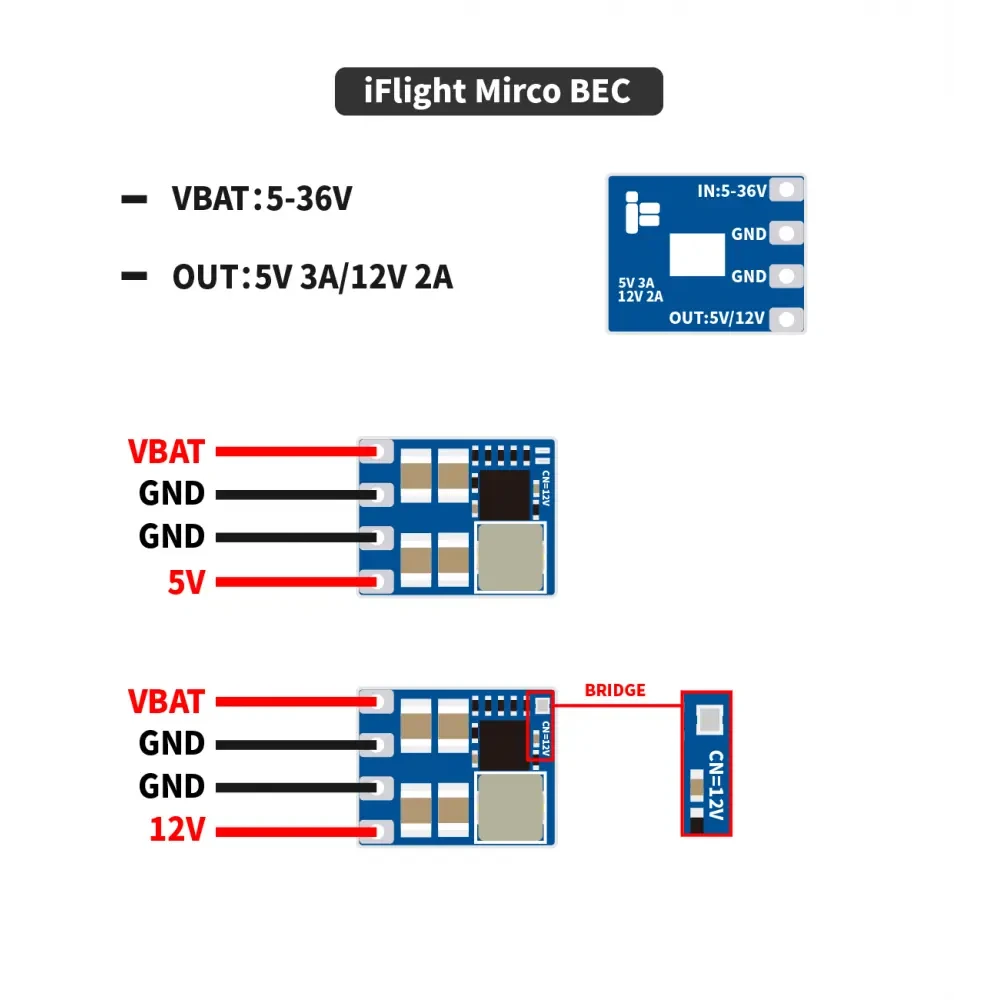

Voltage Switch Jumper:
