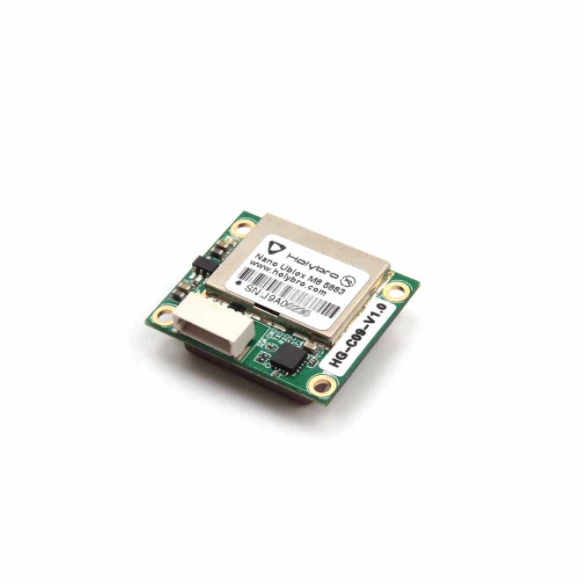

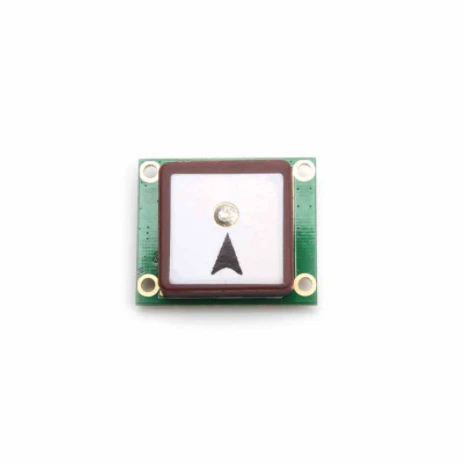

Holybro Nano Ublox M8 5883 GPS Module

Features
• UBX-M8030 high performance GPS/GNSS Chips:
• Over 2 million effective correlators
• 72 channels in Search mode
• Cold start acquisition sensitivity of -148 dBm and -167 dBm tracking sensitivity
• Up to 10 Hz navigation update rate
• Supports GPS, QZSS, GLONASS , BDS and is ready for Galileo
• Supports AGPS
• Integrated TCXO,LNA,SAW,RTC
• Compact size (φ23.88mm x19.98mmx8.80mm±0.5mm ) suitable for space-sensitive application
• Weight 7.8 grams without TPU Protective Case Shell
• Support standard NMEA 0183,UBX
• This module can be equipped with QMC5883

Performance

A1  All satellites at -130 dBm
A2  CEP, 50%, 24 hours static, -130 dBm, > 6 SVs
A3  Assuming Airborne < 4g platform

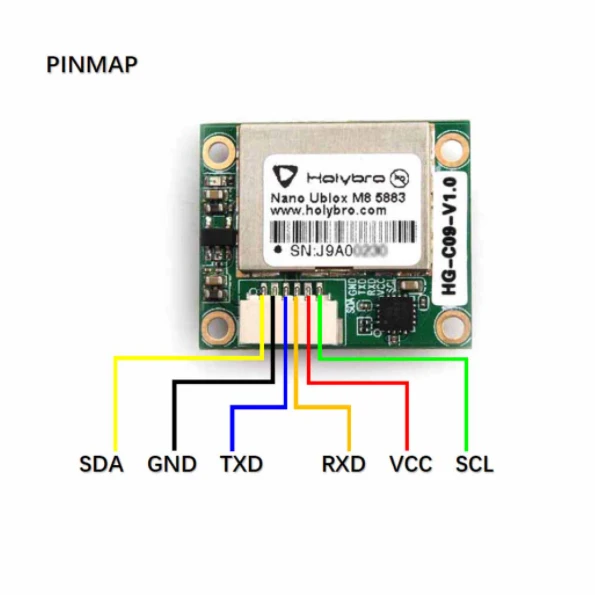

PINMAP

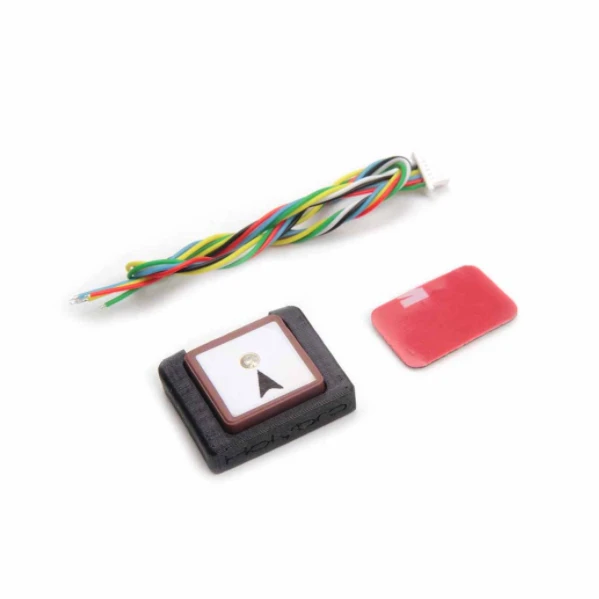

Package Included:

– Nano Ublox M8 5883 GPS Module *1
– JST 6P Cable *1
– TPU Protective Case Shell *1

Download:

Nano_Ublox_M8_5883_GPS_Datasheet
