Holybro Kopis Cinelifter X8 Frame Kit

Holybro kopis cinematic X8 is a powerful and heavy-duty model designed for professionals. With a full carbon fiber frame which provides a good shock absorption performance, Kopis Cinematic X8 offers a perfect platform with adjustable installation angle available from 0 to 25 °.  for both SLR and HD cameras such as Comodo; zcam-e2; Sony a7s3 and Panasonic S5, etc. With redundant configurations of ESC and motor supported, best performance and security are both ensured. DJI FPV air unit digital VTx system installation seat has been reserved.
Two pieces of 5mm carbon fiber arms provide reliable structural support for this powerful quad. We also have new vesion Holybro KAKUTE F7 V1.5, KAKUTE F7 HDV,KAKUTE F7 Mini V3 which are compatible with X8.

Features:

• Wheelbase: 396mm

• Arm: 16mm wide x 10mm thick ( with 5mm thick carbon fiber boards overlaid)

• Landing gear: TPU bracket combined with 10 mm carbon fiber tube

• Compatible with DJI AIR UNIT&CADDX Vista HD digital VTx

• Compatible with multiple mounting holes specs : 30.5×30.5mm & 20x20mm

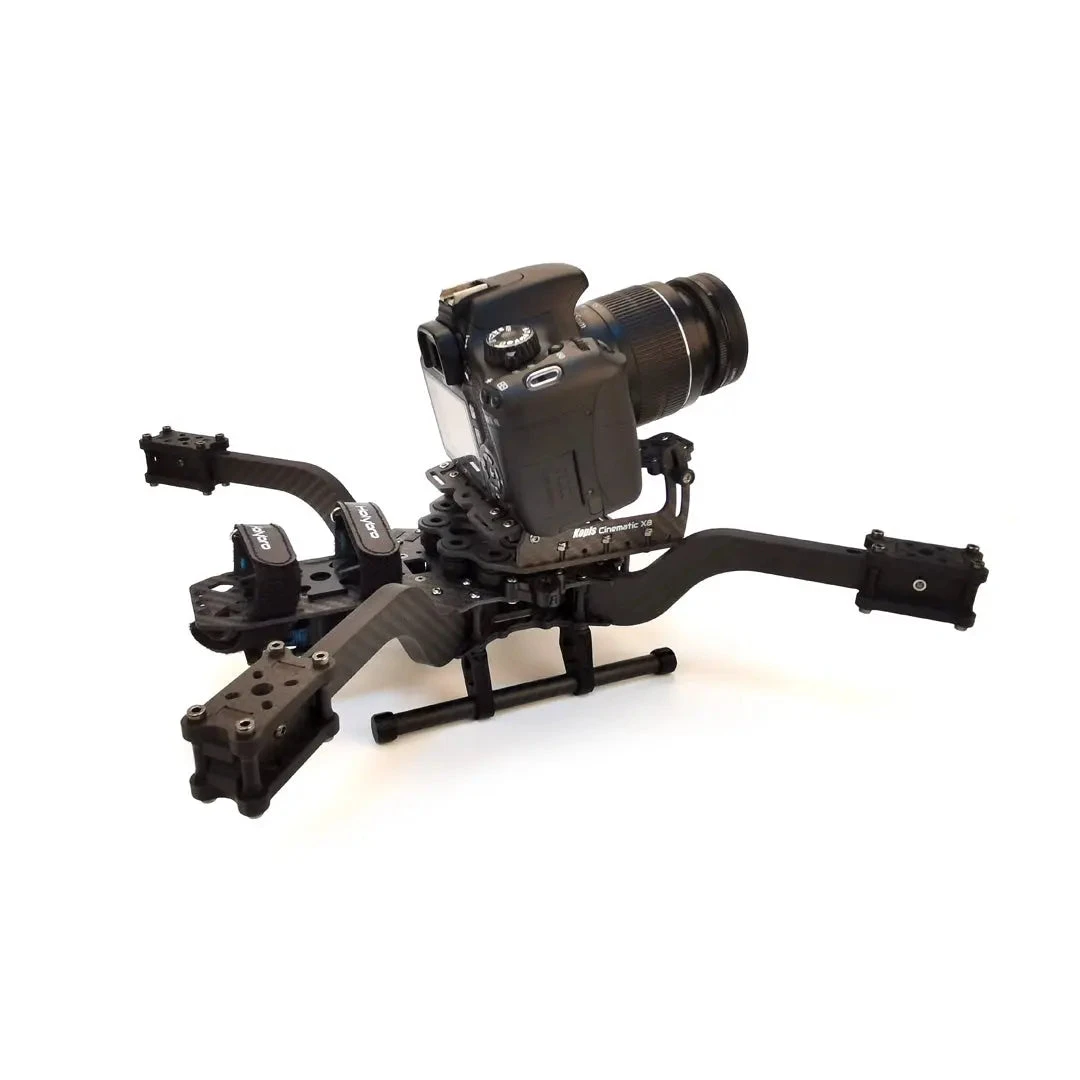

• Professional camera installation supported: Comodo, zcam-e2, Sony a7s3, Panasonic S5

• Camera platform shock absorption structrue with 10 silicone damping balls

• Spacing between top and bottom plates: 22mm

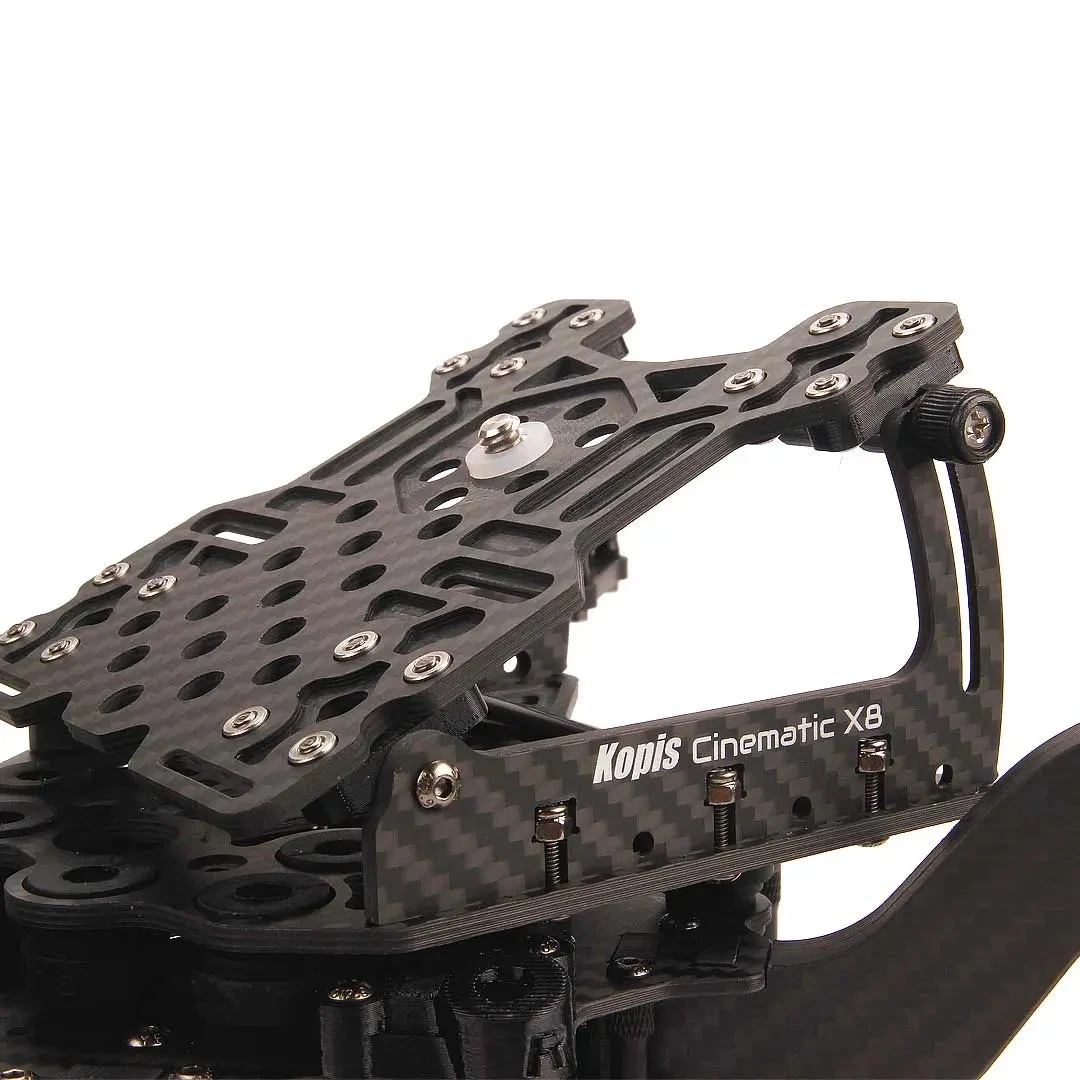

• Camera platform elevation: 0 ~ 25 ° Adjustable

• Propeller size: 7 “

• Frame weight: 640g

Recommended Components

Check out our curated cinelifter components.

• F7 Flight Controller
• 60A+ ESC
• 2806.5+ 1300-1500KV Motors
• 7″ Propellers (HQ 7040 Recommended)
• 5000mAh 6s Battery

Includes：

1x Kopis Cinematic x8 Kit

Download

Kopis_Cinematic X8_QuickStartGuide

Kopis_Cinematic_X8_Assembly_Guide

3D Print:

Kopis_Cinematic_X8_3D_Print_STL_Files.rar

Spare Parts-Kopis Cinematic X8

https://shop.holybro.com/spare-parts-kopis-cinematic-x8_p1273.html
