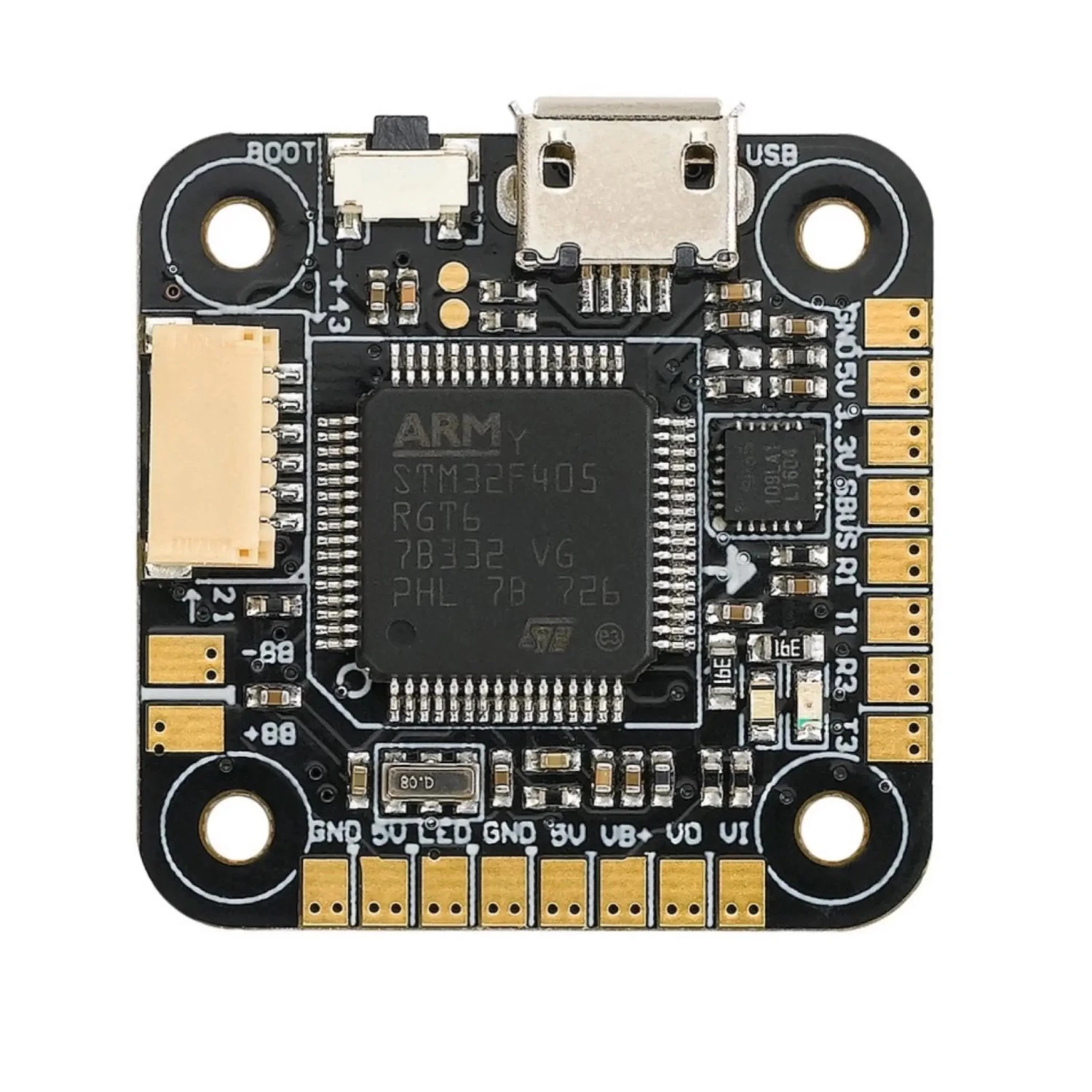

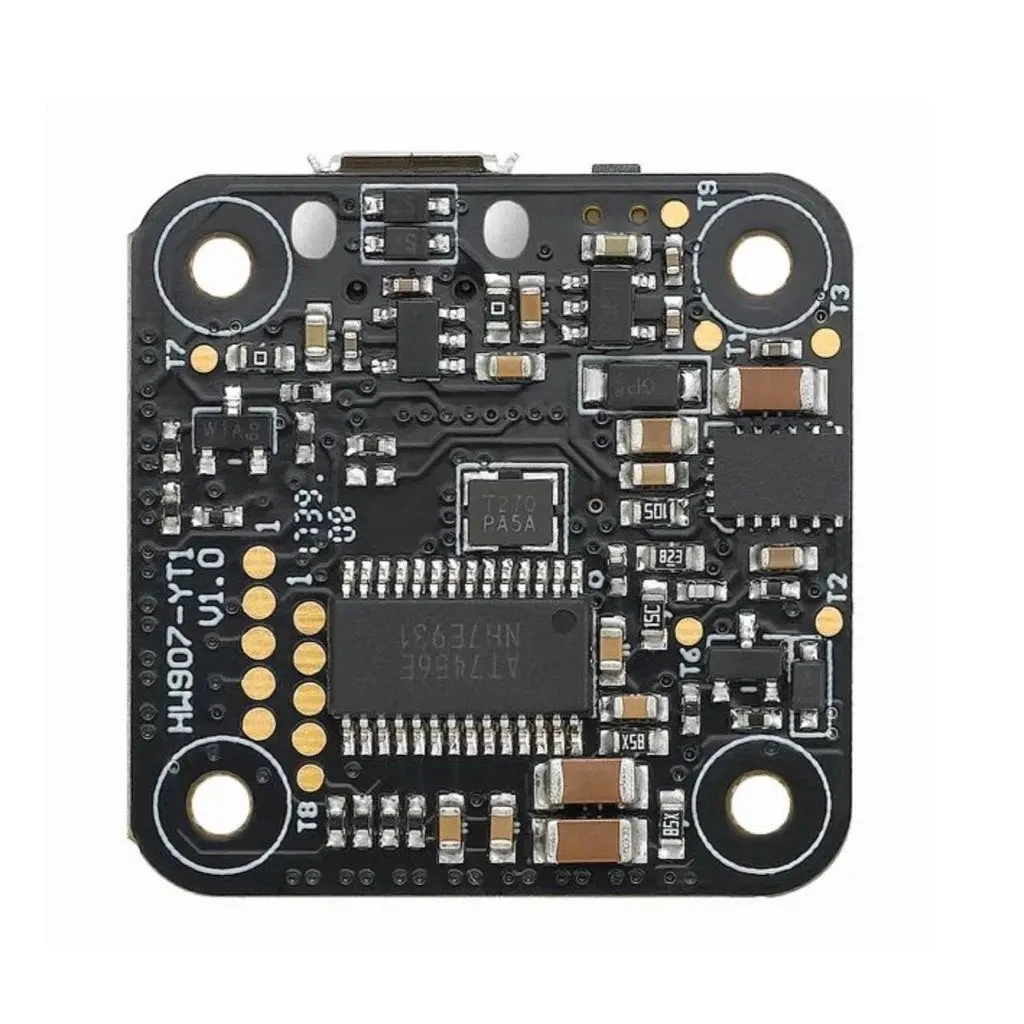

Hobbywing Xrotor F4 Nano Flight Controller
The Hobbywing Xrotor F4 Nano Flight Controller features DJI Plug and Play along with a plug to connect to a 4in1 ESC. These two features reduce the amount of soldering necessary to build a quad plus keeps the overall build cleaner!
Features
- STM32 F405 MCU allows the FC to run the PID looptime and gyro with higher frequency.
- SPI Sensor MPU6000 includes an accelerometer and a gyro.
- Onboard OSD microchip which supports the DMA mode allows users to adjust its parameters via the Betaflight software. (Note: the OSD is controlled by the F4 MCU.)
- The FC which supports Betaflight firmware & allows parameter adjustment via Betaflight software is more applicable to FPV race.
- TF-card which can record and save more flight/black box data allows users to adjust the setup of their aircraft easily.
- Compatible with various receivers like SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS, PPM and etc.
- LED strip signal output port allows users to adjust the color & flash mode of the LED strip via the FC.
- Volt/Amp monitoring port allows users to check the battery voltage ( VBAT+ port ) and current (CRT port) (extra current meter is needed).
- Buzzer output port allows users to connect external buzzer(s) to the FC for warning or informing the flight status of the aircraft.
- Micro USB port allows users to connect the FC to a PC to flash firmware and adjust parameters)
Check out the rest of our
Hobbywing flight controllers and ESCs here.
See the manual below for wiring diagrams.
![]()
Manual Download
|
Model |
Nano F4 Flight Controller F4 |
|
SKU |
31001001 |
| Application | FPVs with 130 Diagonal Wheelbase or below |
| FC Programming | supported |
|
Programming via |
Betaflight/Cleanflight-configurator |
| Compatible with (Modes) | PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200, Proshot1000 |
| Compatible with (Transmitters) |
PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL |
| OSD | Buit-in |
| Voltage Monitoring | Supported |
| Current Monitoring | Supported |
| External Buzzer | Supported |
| LED Control | Supported |
| BEC | 5V @ 1.5A |
| USB Port | MicroUSB |
| size/ weight | 27x27mm / 3.3g |
