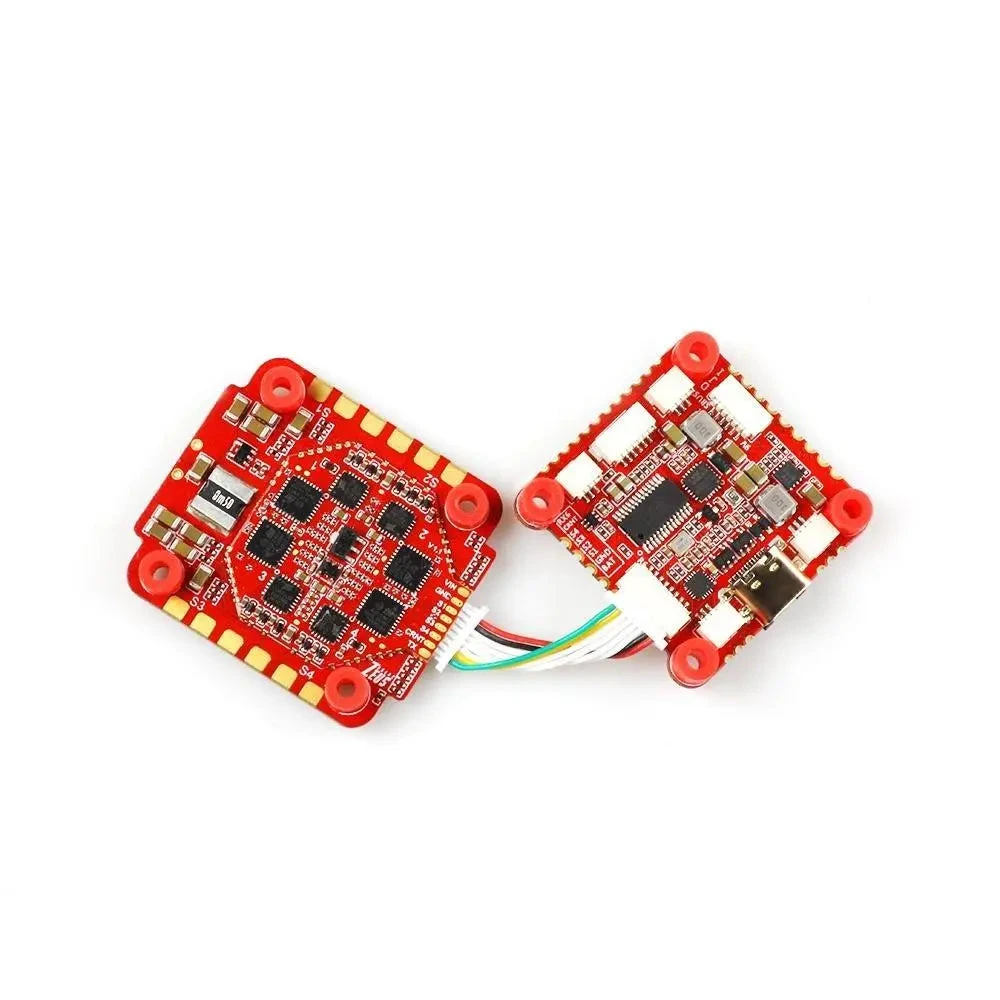

HGLRC Zeus F760 Stack 3-6s – F722 Flight Controller and 60A BL32 4in1 ESC

The HGLRC Zeus comes packing with a whopping 60A of continuous current rating!

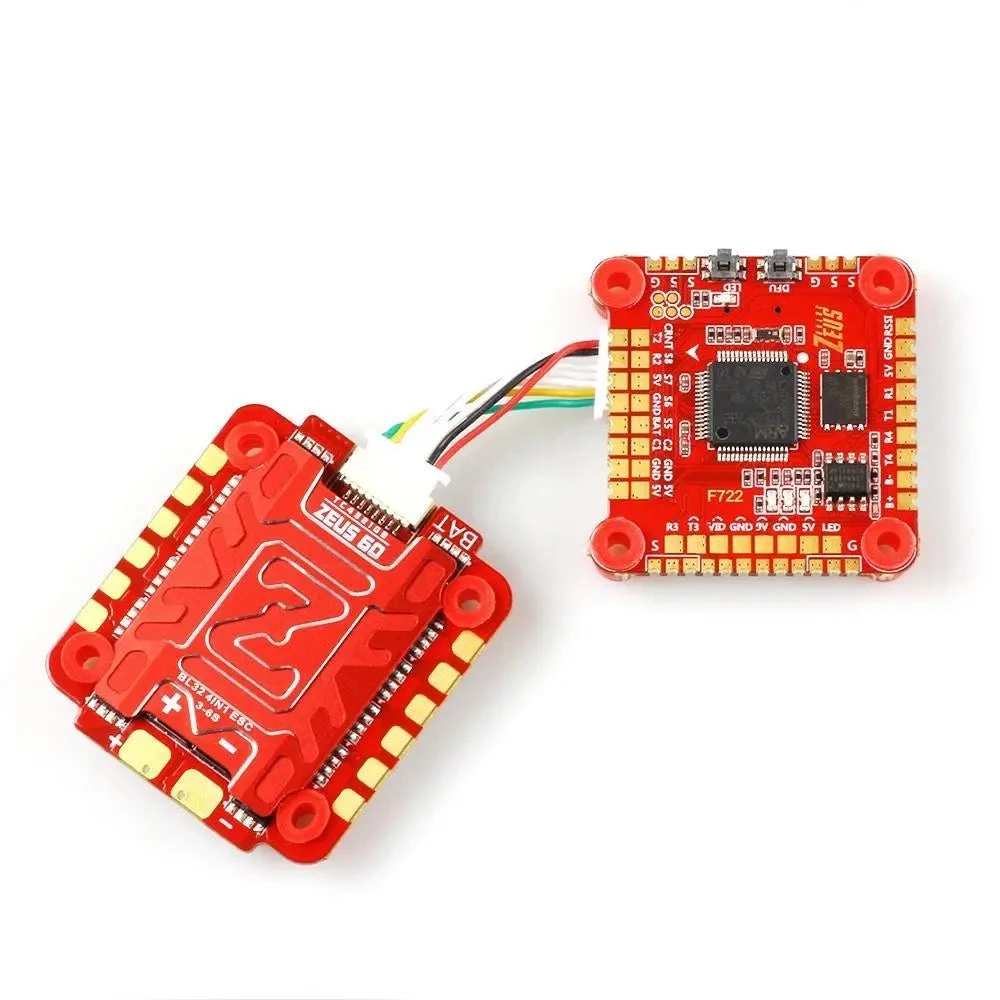

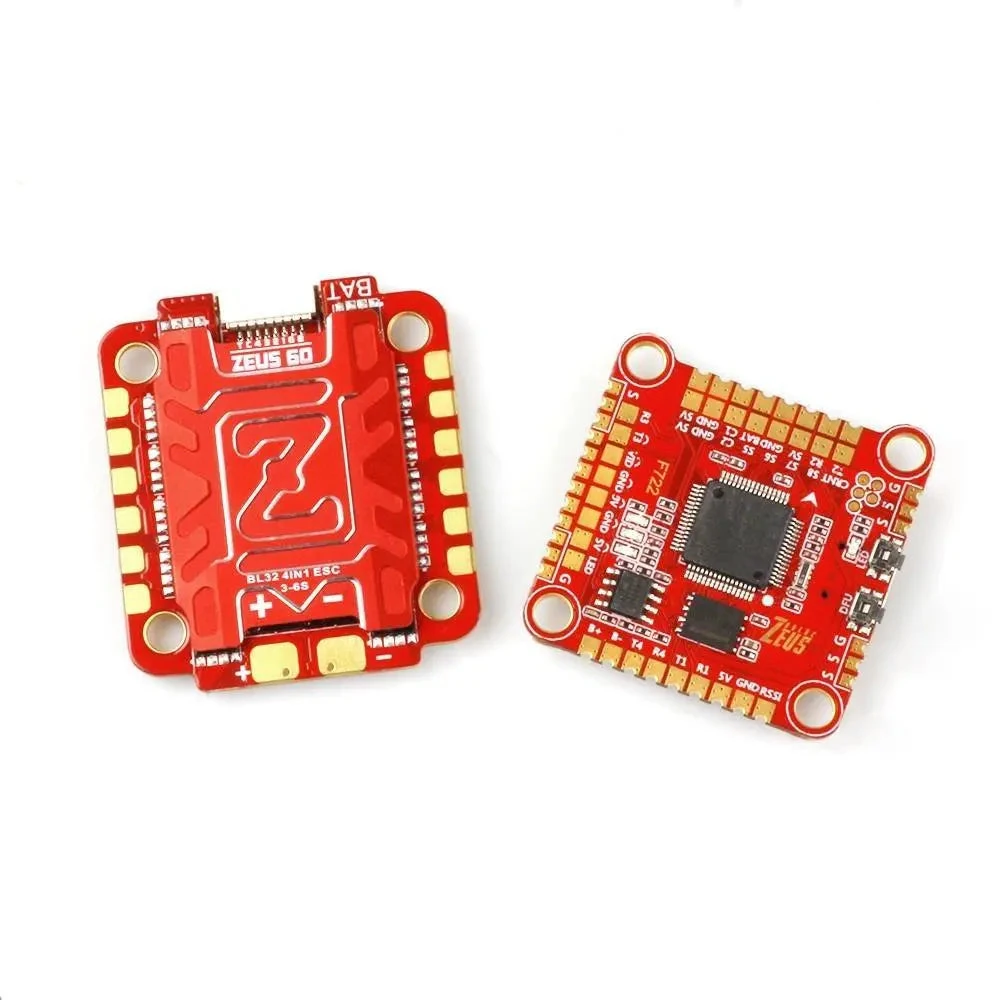

The flight controller is extremely flexible: available are 5 UARTs each with the option to solder or plug into! The solder pads are large and easy to solder to.

Here are some of the really cool plugs available – 4x LED plugs, 1x DJI plug, and 1x GPS plug.

The 4in1 ESC is built with a sleek protective heat sink to increase its durability and longevity.

Check out the banner below for more information on the features and an instructive wiring diagram!

Features and Specifications

Usage:for 100mm-450mm Frame Kit

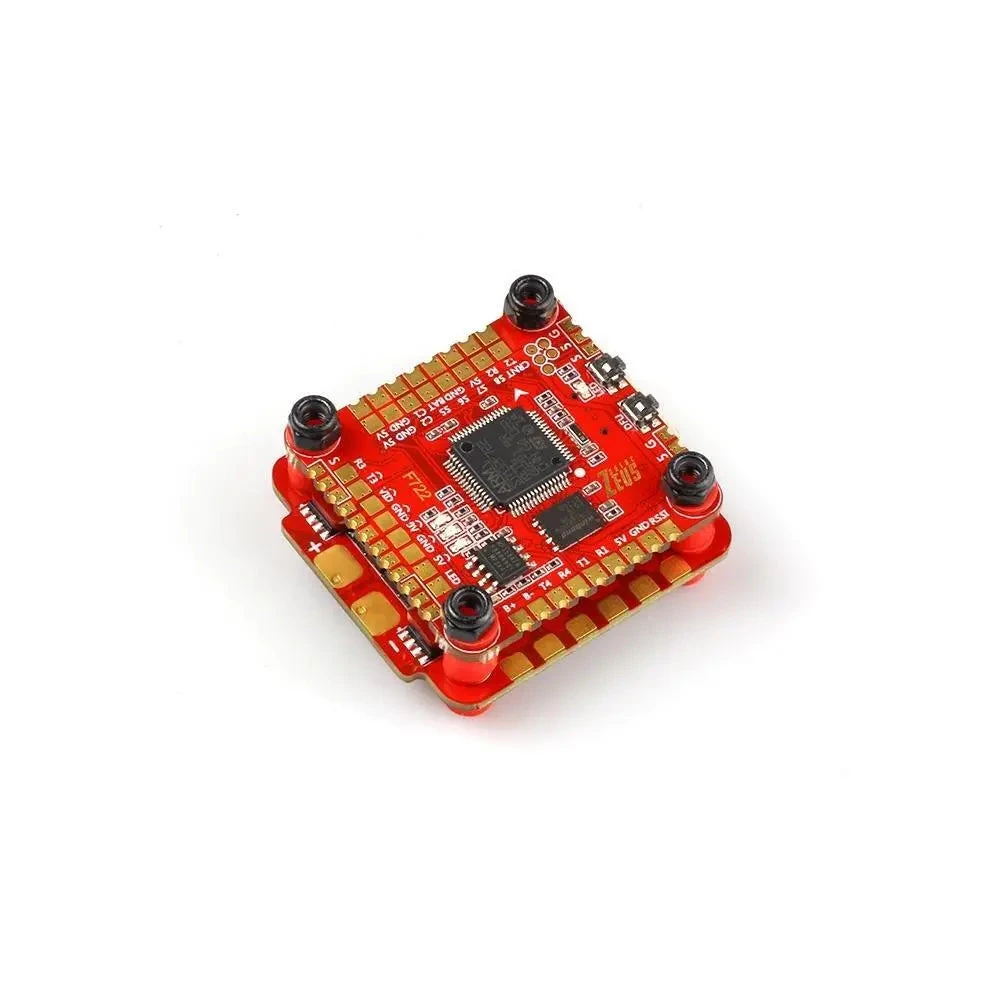

Installing Hole:30.5X30.5mm.M3

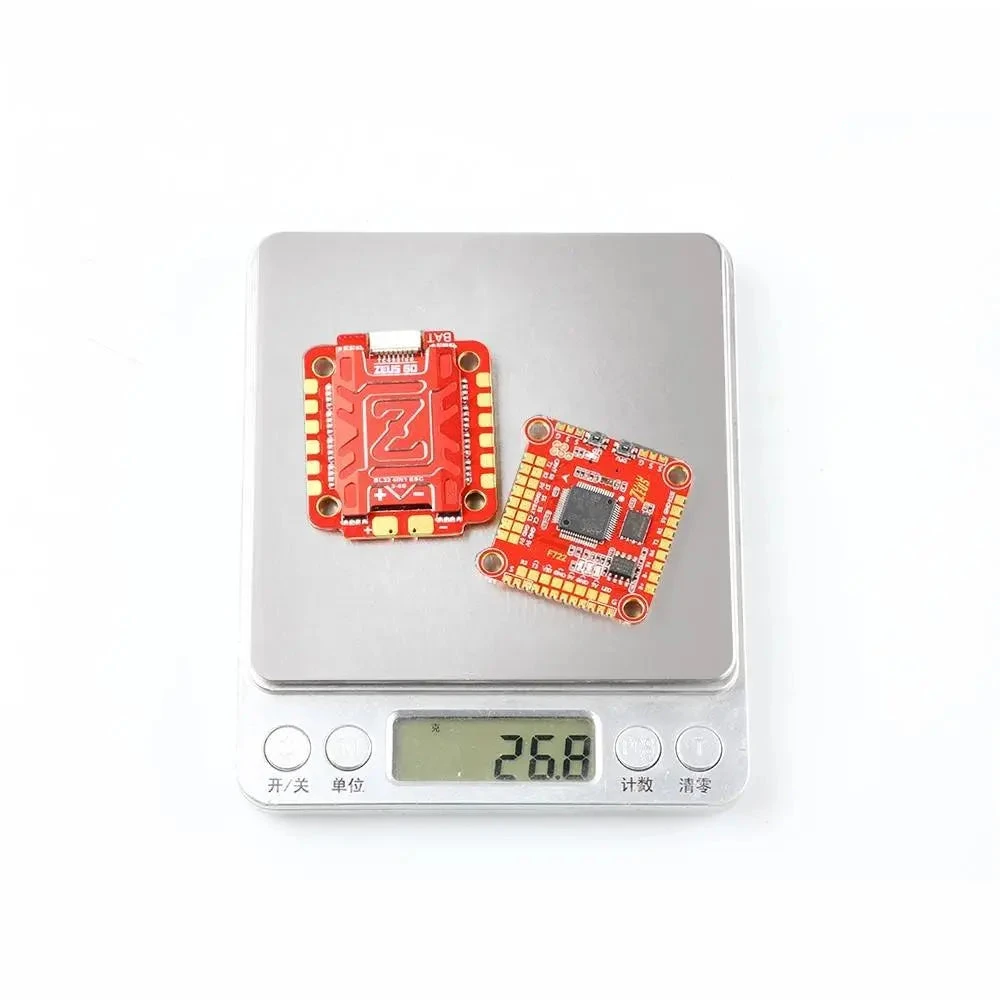

Weight:32.7g

Item Name: Zeus F760 STACK

Zeus F722 Flight Controller

MPU:MPU6000
CPU:STM32F722 RET6
Input Voltage:3-6S Lipo
BEC Output:5V/3A,9V/2A
Weight:7.6g



Zeus

 60A BL32 3-6S 4in1 ESC

CPU:STM32F051
Input Voltage:3-6S Lipo
Steady Current:60A
Peak Current:65A（10 Sec）
Weight:18g

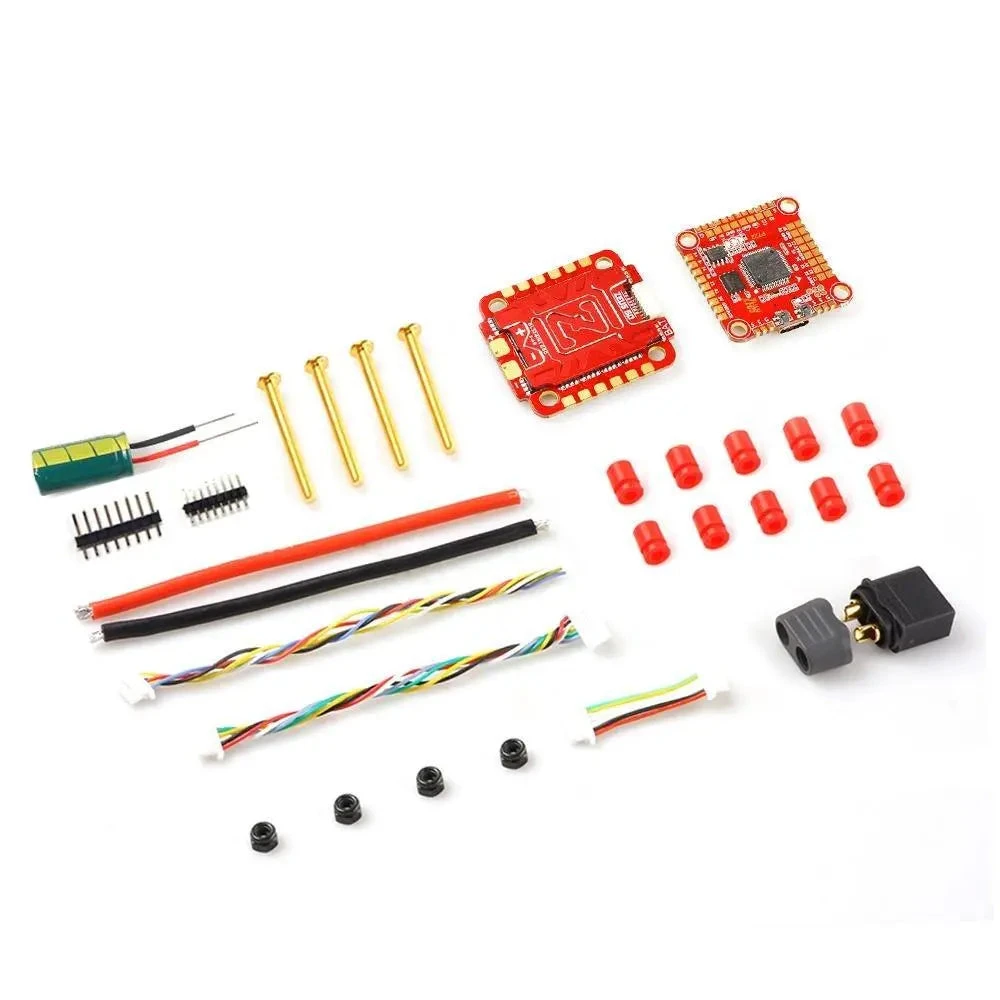

Package Included:
1x F722 Flight Controller
1x 60A BL32 3-6S 4in1 ESC

Recommended Motor: ( Not Included )
2207/2306/2408

Get plug & play ready

LEDs here

Get plug & play ready

GPS here

Download hex file for iNAV 2.5.1

here

. Or use target “HGLRCF722” on iNAV 2.5.2 and future versions.

Download hex file for emuflight

here

.

See Manual

Her

e
