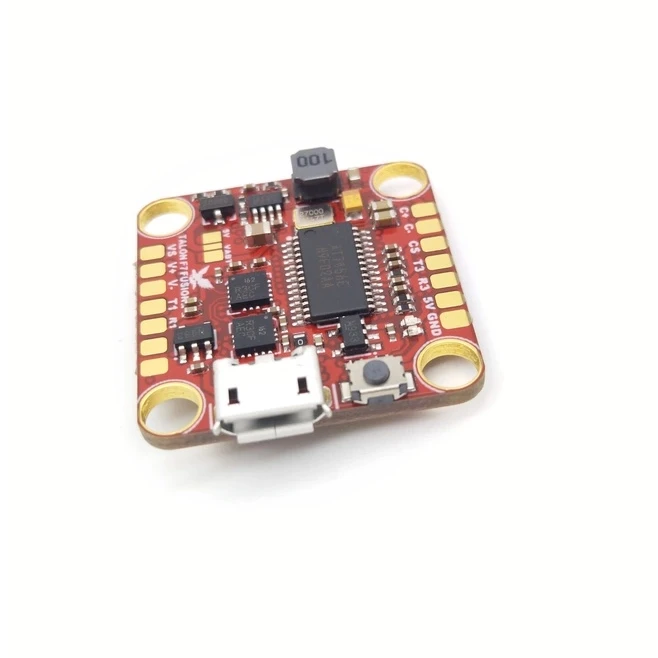

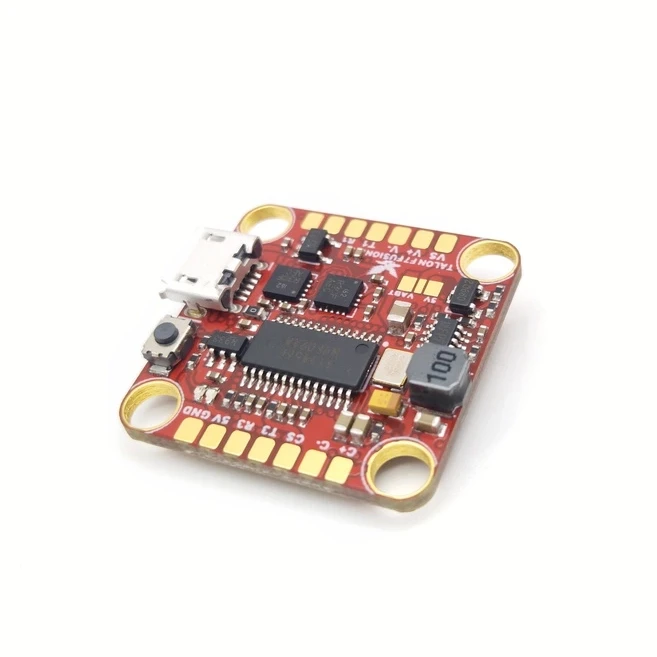

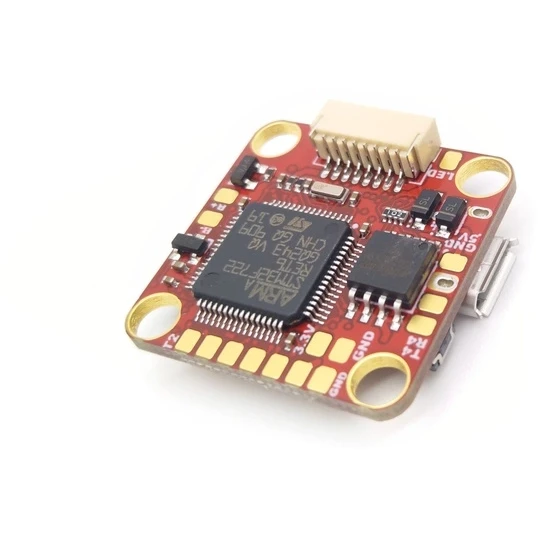

Heli-Nation Talon F7 Fusion 20X20 Flight Controller

Using a dual gyro setup in 90° phase and a F7 processor will have your quad dialed in to the max!

Specs

1. MCU: STM32F722RET6 216MHz
2. 2x ICM20602 GYROS 90 deg phase
3. Built in Betaflight OSD
4. Up to 8S (36V) direct battery power
5. Buzzer pads for external buzzer
6. Built in voltage monitoring resistor
7. 5V 2A BEC
8. Dedicated LDO for Gyro, noise free gyro power
9. Dedicated LDO for OSD, cleaner OSD signal
10. Led strip shares 5V with 5V/2A BEC
11. 6 UARTS: UART1, UART2, UART3, UART4, UART5, UART6
12. Built in camera control pin with resistor and capacitor
13. 5 Full UARTS with RX AND TX pins
14. Logical pin layout for cleanest build possible
15. 8 pin 4 IN 1 ESC plug
16. Remapable LED pad for additional motor output
17. TX3, RX3 can be used for I2C for external compass
18. 5V, VBAT selectable VTX and CAM power
19. 16M Blackbox flash chip
20. No flicker VTX pit mode switch (positive switch)
21. M4 Can be selected either led strip signal or M4 signal for RPM filtering

20 X 20 mounting hole with true 25mm board dimensions

Official Betaflight Target: TalonF7Fusion

Please use user1 for Pit Switch Mode Switch

For the Legacy Clracingf7 target you will need to do the following:

To get Motor 4 to work please use the CLI command below using Betaflight V4.0.4. A custom hex is coming soon for 4.0.4.

Resource MOTOR 6 None

Resource MOTOR 4 C08

Save

To get 5V to your VTX please go to the mode tab in Betaflight and setup a mode switch for vtx pit

Setting up Pit Mode:

Top Layout:

Bottom Layout:
