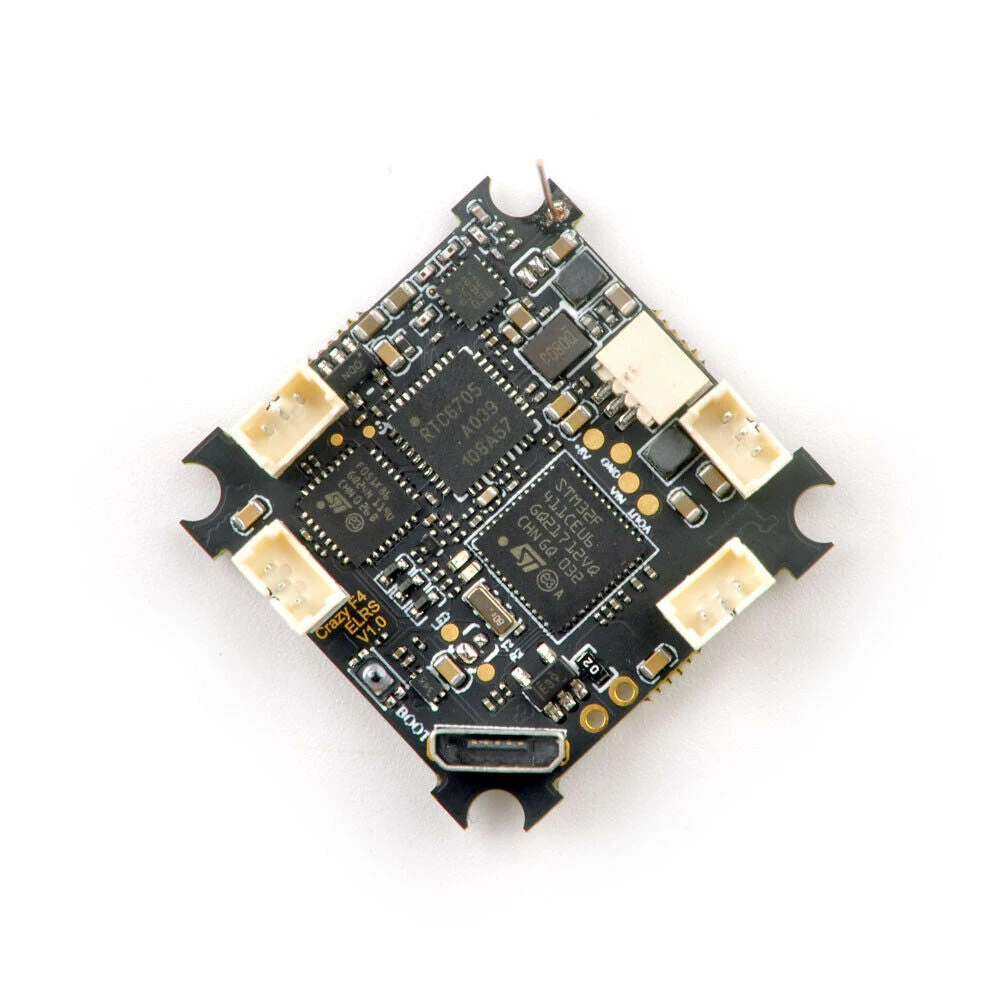

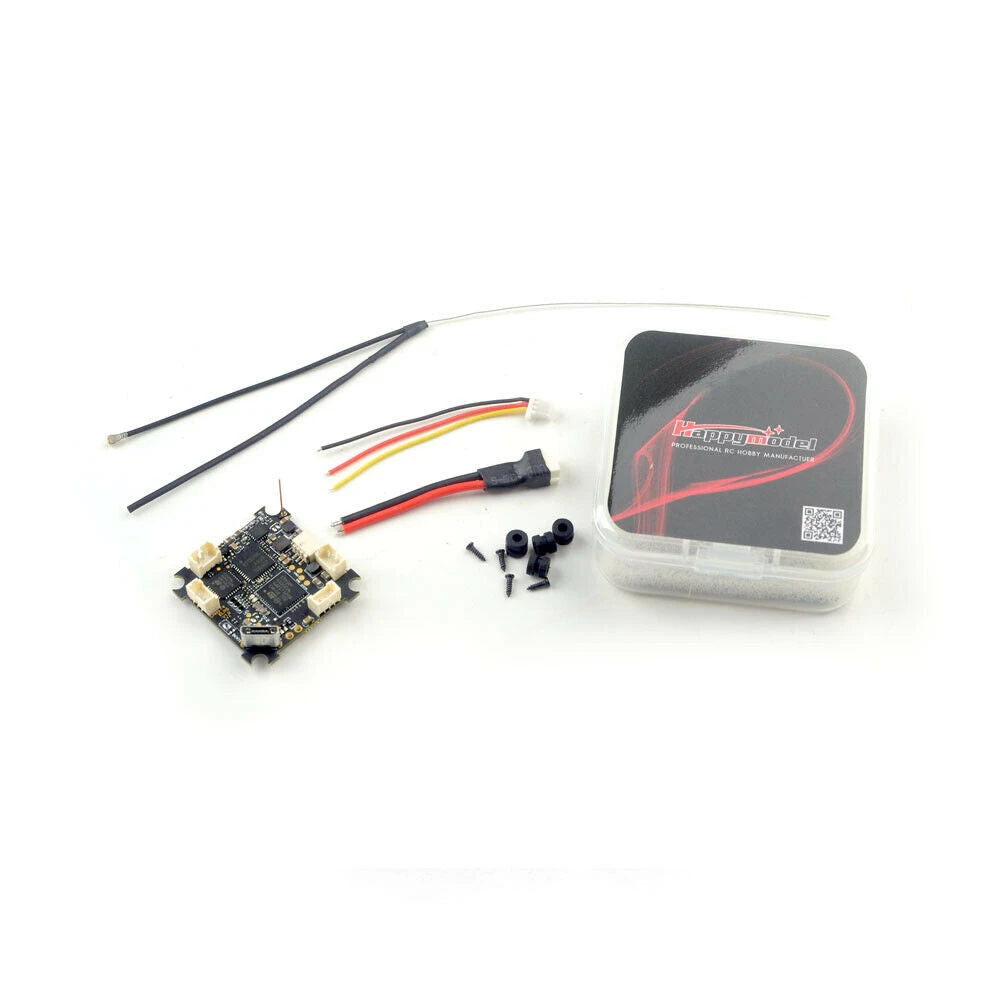

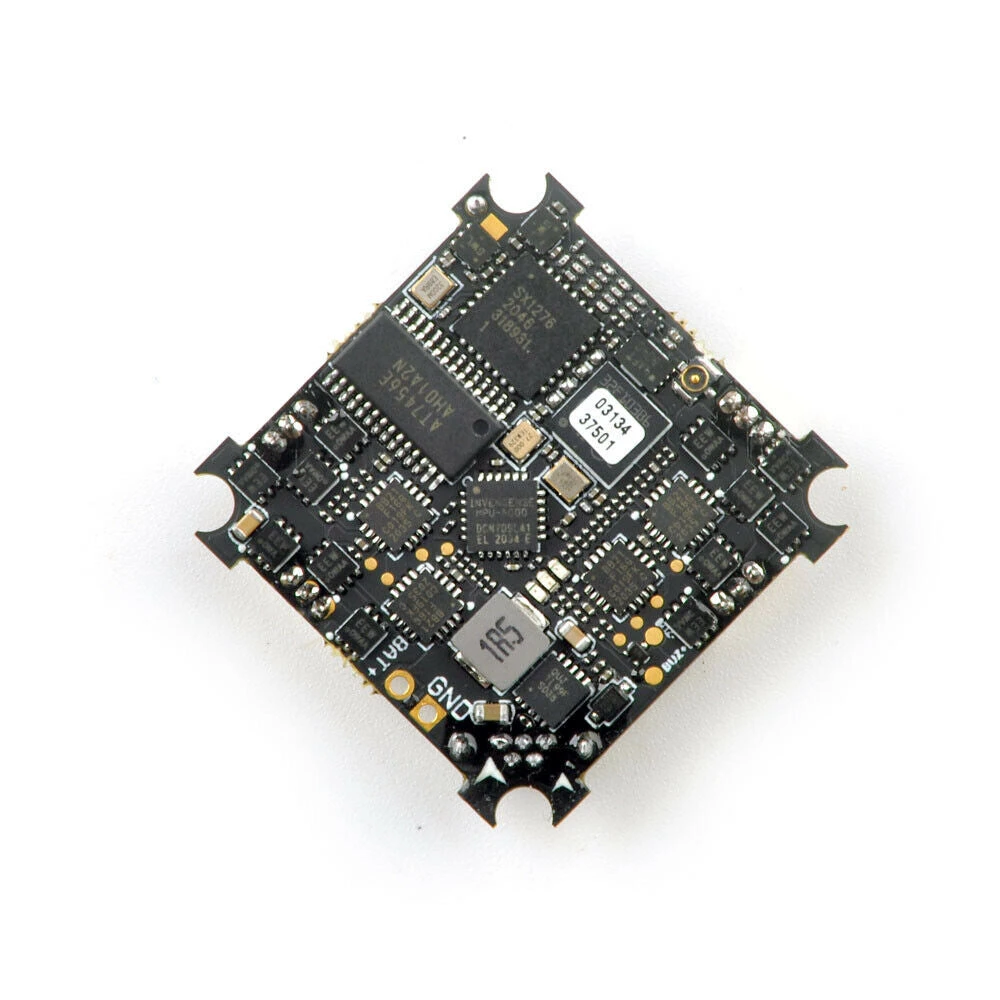

Happymodel Crazy F4 Flight Controller With ExpressLRS(ELRS) 915MHz

Happymodel Crazy F4 Flight Controller With ExpressLRS(ELRS) 915MHz - Image 2

Happymodel Crazy F4 Flight Controller With ExpressLRS(ELRS) 915MHz - Image 3

Happymodel Crazy F4 Flight Controller With ExpressLRS(ELRS) 915MHz - Image 4

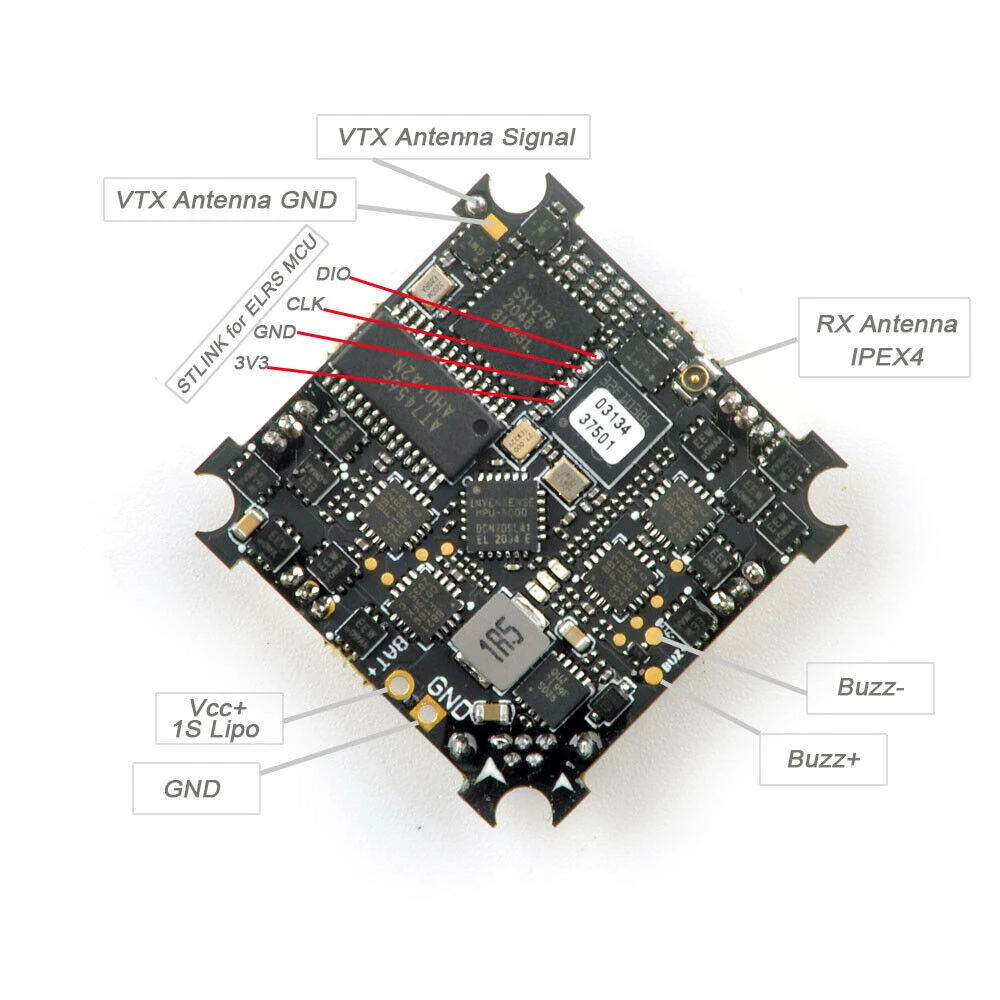

Happymodel Crazy F4 Flight Controller With ExpressLRS(ELRS) 915MHz -Drone Discount Store s l1600 b3ed60ee b8be 4de0 9b8d 496f578bd1fd

Happymodel Crazy F4 Flight Controller With ExpressLRS(ELRS) 915MHz

Original price was: $58.92.Current price is: $41.24.

SKU: BMV3Y 6561965801555 Categories: Drones, FC & ESC Tags: Drone_FCESC Amp-5A, Drone_FCESC Firmware-Betaflight, Drone_FCESC Firmware-BLHeli_S, Drone_FCESC Size-25.5x25.5

Unbeatable Quality Guaranteed
Your Security is Our Promise
Free and fast shipping worldwide
Secure Payments, Secure Shopping

Description
Reviews (0)

Description:

Brand: Happymodel
Model: CrazyF4 ELRS
Item Name: F4 Flight Controller AIO 5A ESC 5.8G VTX ELRS Receiver 5-in-1 Board

Notes: Don’t make the antenna plug get touch with the Motor solder pins, otherwise it would burnt the ESC.

Flight controller	MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Original whoop size compatible Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in Serial-based ExpressLRS 900MHz receiver(915MHz or 868MHz optional) Built-in 5V 1A BEC Flight controller firmware target: CRAZYBEEF4DX
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT600
Onboard Serial-based ELRS Receiver	Operation current: ~100Ma Rx To FC protocol: CSRF RF Frequency optional: 915mhz or 868mhz(EU) Antenna connector: IPEX4 Telemetry output Power: <17dBmFirmware target: Happymodel_RX_ES915RX Receiver protocol: CRSF Could bind with Happymodel ES915TX , Frsky R9M and DIY ELRS TX module(need to flash the same version ELRS firmware) Firmware flash via Betaflight pass-through
Onboard 5.8g VTX	Output power: 25mw~200mw switchable Frequency: 40CH Input voltage: 3.3V-5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels(include Race band)Smartaudio ready
Onboard voltage and Amperage meters settings	Voltage meter scale setting 110 Amperage meter scale setting 1175

Bind Procedure:

1. Supply power to CrazyF4 ELRS flight controller (Plug the USB), wait until the RX LED is off, immediately turn off the power (Unplug the USB), and then repeat the above steps again. When the RX is powered on for the third time, the LED light will start to double-flash, which means that the RX enters into the binding mode

2. Insert the ES915TX module or other DIY 2.4G ELRS TX to your OpenTX Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio system (Need to copy the ELRS.LUA file to the SD-Card tools first), Enter into ELRS and press [Bind], the RX LED on the Flight controller will getting to be solid if bind successfully.

3. Receiver LED status meanings:LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal established with the TX module
