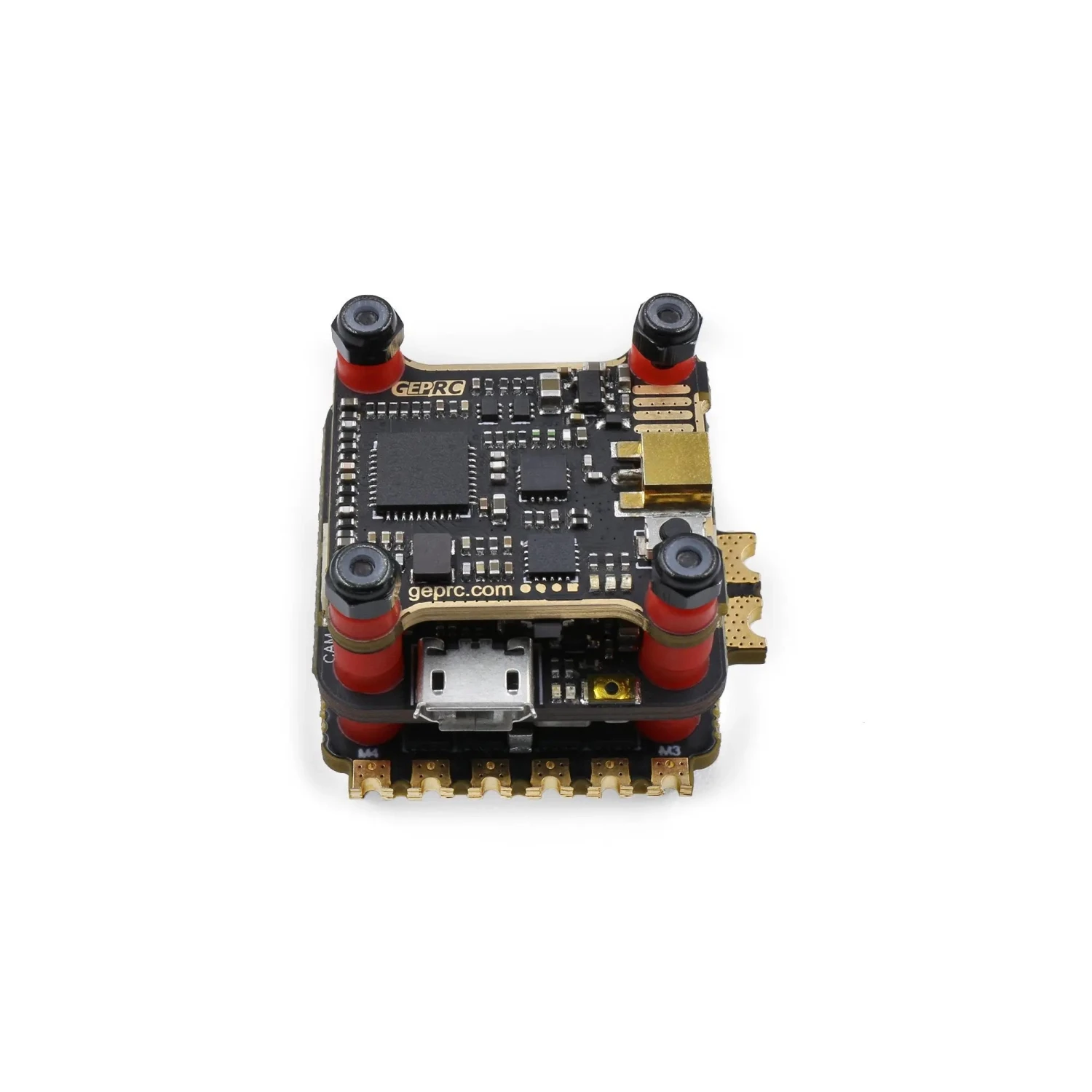

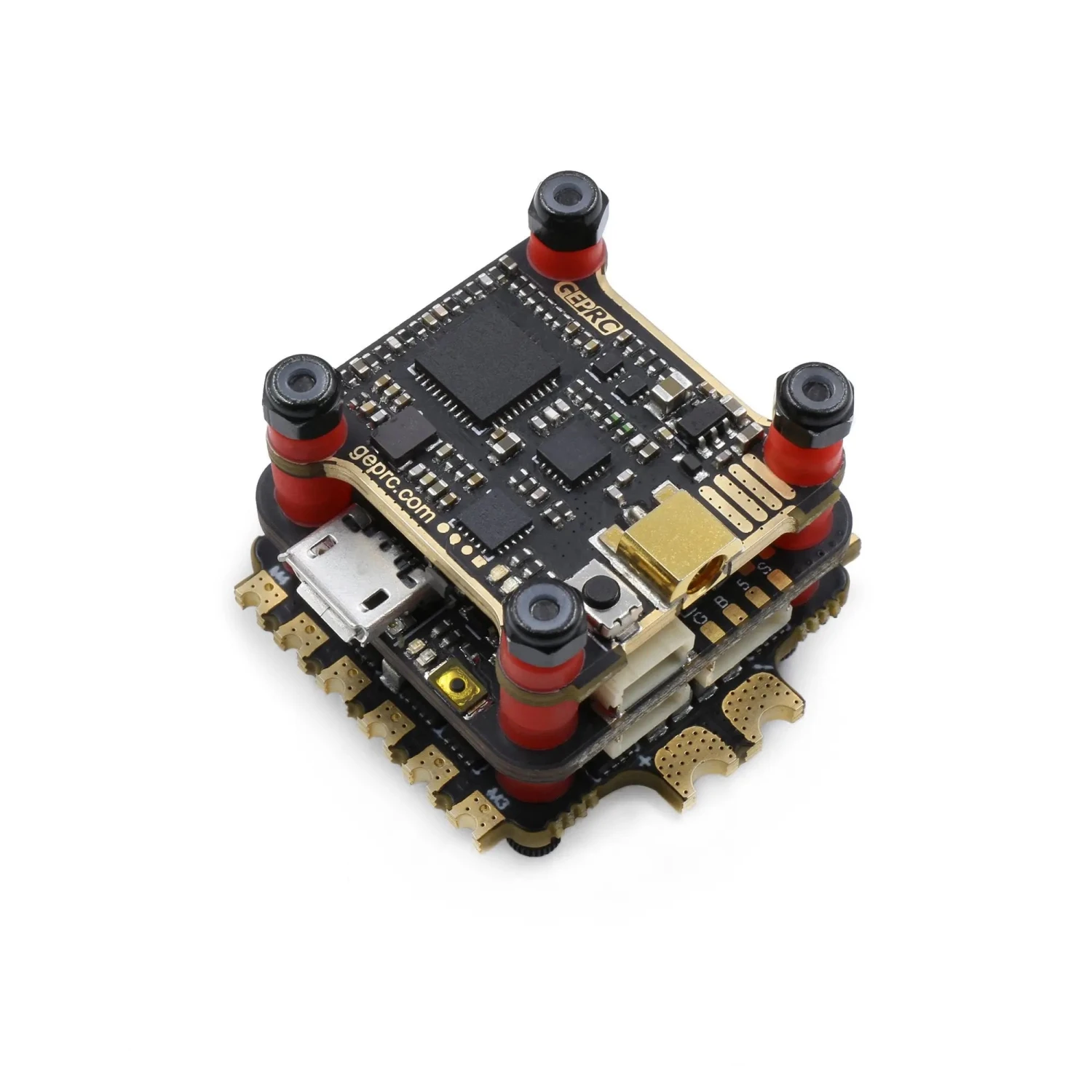

GEPRC GEP-STABLE V2 Stack F4 30A

Summary:

After four months of hard work, DUAL ICM 20689 gyroscope both work at the same time,The new F4 Mini 20X20mm Important to release.

There are three versions. We strongly recommend the F7 Dual ICM20689 version, which is a one-off improvement.

Version as follows，STABLE V2 F4 30A(BLS 30A+F4+5.8G 600mw ),STABLE V2 F4 BL32 30A (BL32 35A+F4+5.8g 600mw)，STABLE PRO F7 DUAL BL32 35A (BL32 35A+F7 DUAL ICM20689+5.8g 600mw), Pilots can choose as needed.

All three versions have a common feature that maximizes the minimalist layout structure, Highly integrated FPV required functions, perfect clean video output.

Innovative soft damping design to reduce flight control and gyroscope noise and reduce motor heat output

Click here for more info.

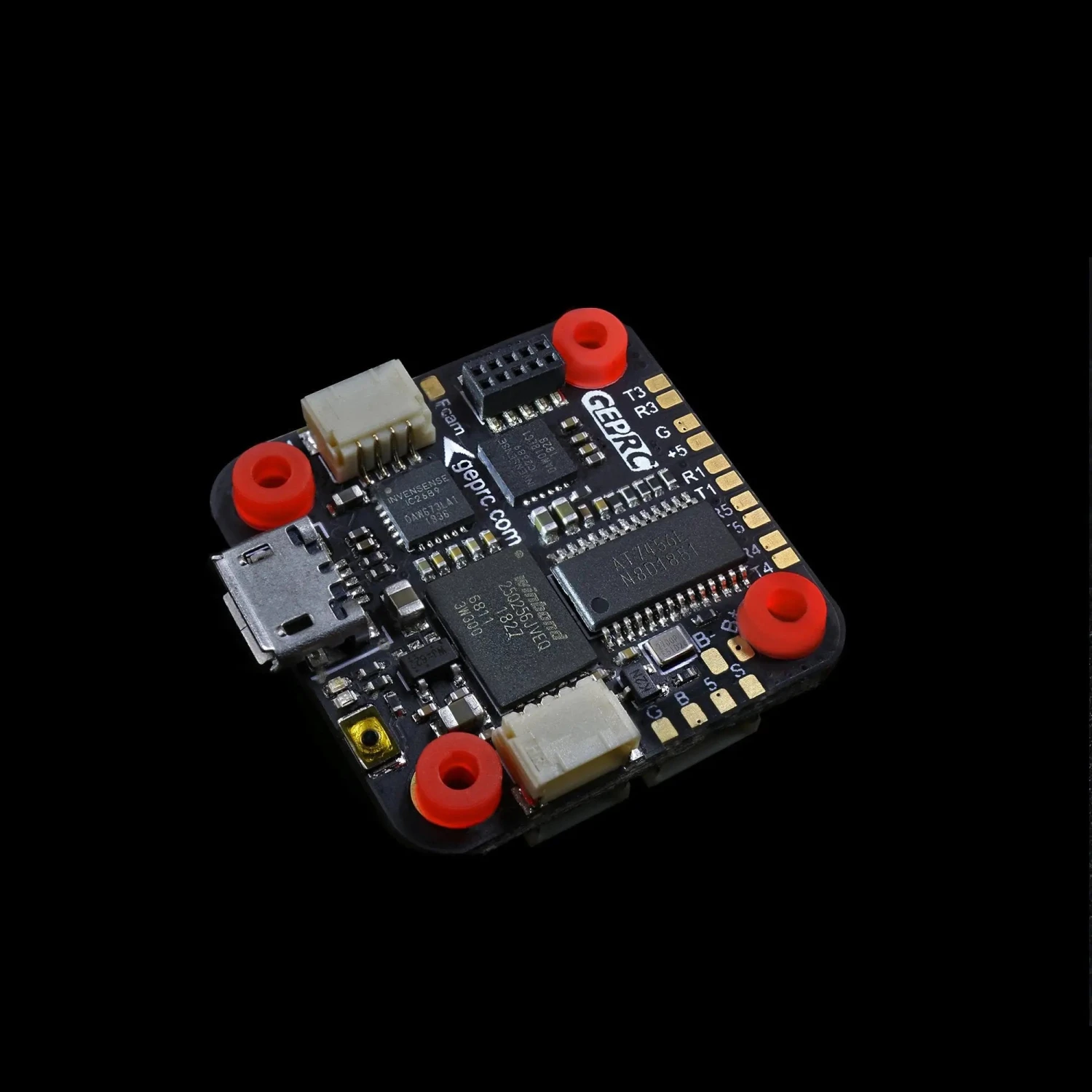

STABLE V2 F4 Flight Controller Specs：

• Model:STABLE F4 30A
• MCU: F405
• IMU: MPU6000 gyro/accelerometer (SPI)
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro:NO
• BEC Output: 5V@3A
• Integrated LC Filter
• Firmware target: OmnibusF4SD
• Size: 26x26mm board, 20mm mounting holes (M2)

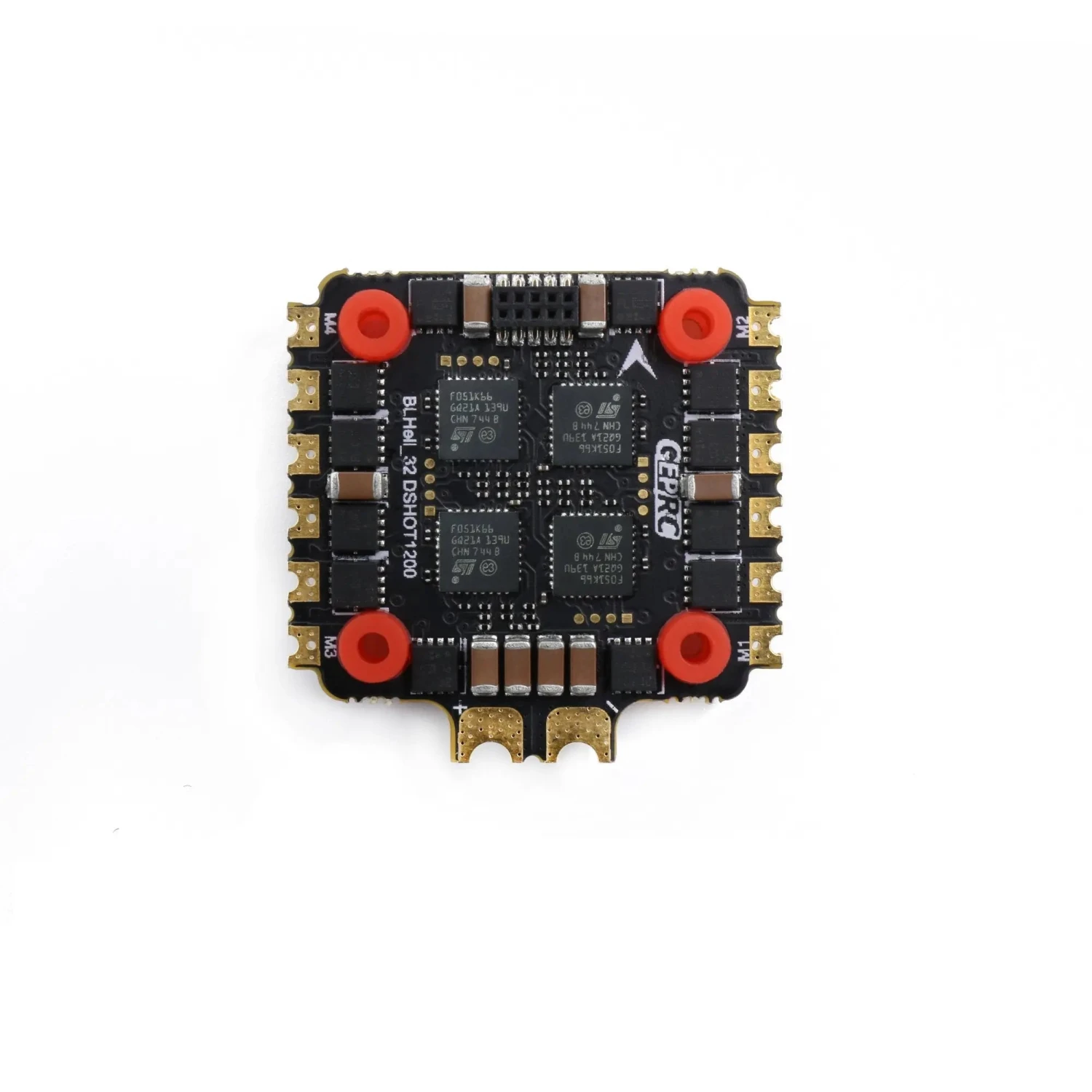

STABLE V2 F4 ESC 2-5S 4in1 Specs：

• Input:2-5s lipo
• Constant:30Amps
• Burst:35Amps
• Dimensions:31*31mm(including the power pads)
• Mounting Holes:20*20mm,M2
• Supports Dshot600,Proshot,Oneshot,Multishot
• Current meter: Yes
• Target: G_H_30

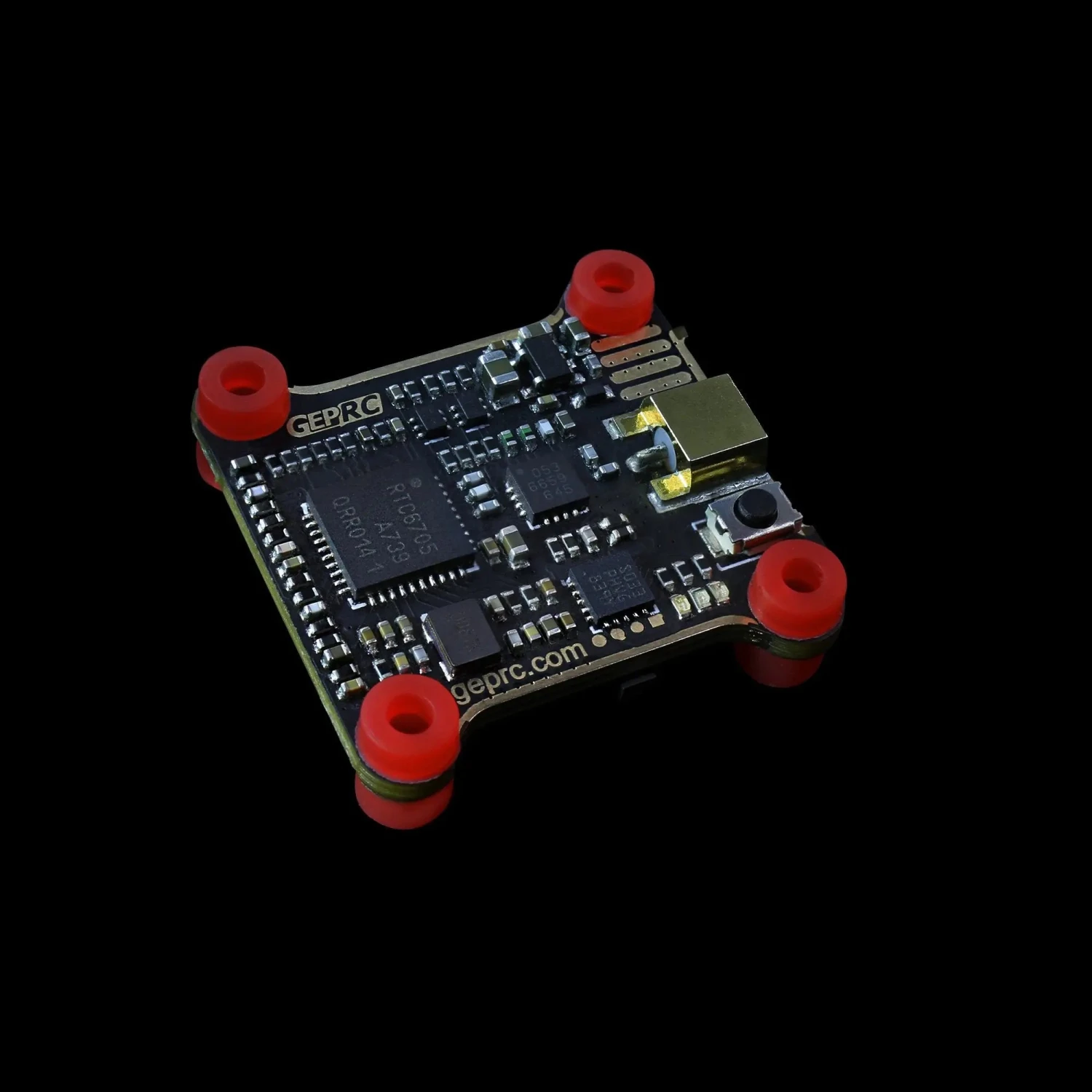

STABLE F4 5.8g 600mW VTX Specs:

• Input voltage: 5V
• Channel: 48
• Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 600mW
• Size: 24 * 26 mm
• Mounting Holes Dimension: 20mm x 20mm
• Connector type: MMCX Connector
• BEC Output：5V/1A for Camera of FC
• Weight: 2.3g
• Traditional button
• IRC Tramp protocol

Features:

• F7 Support both dual ICM20689 gyroscopes to work simultaneously, Exquisite and perfect flight experience
• Innovative soft damping design, suitable for most frame, ensures flight control and gyroscope without noise

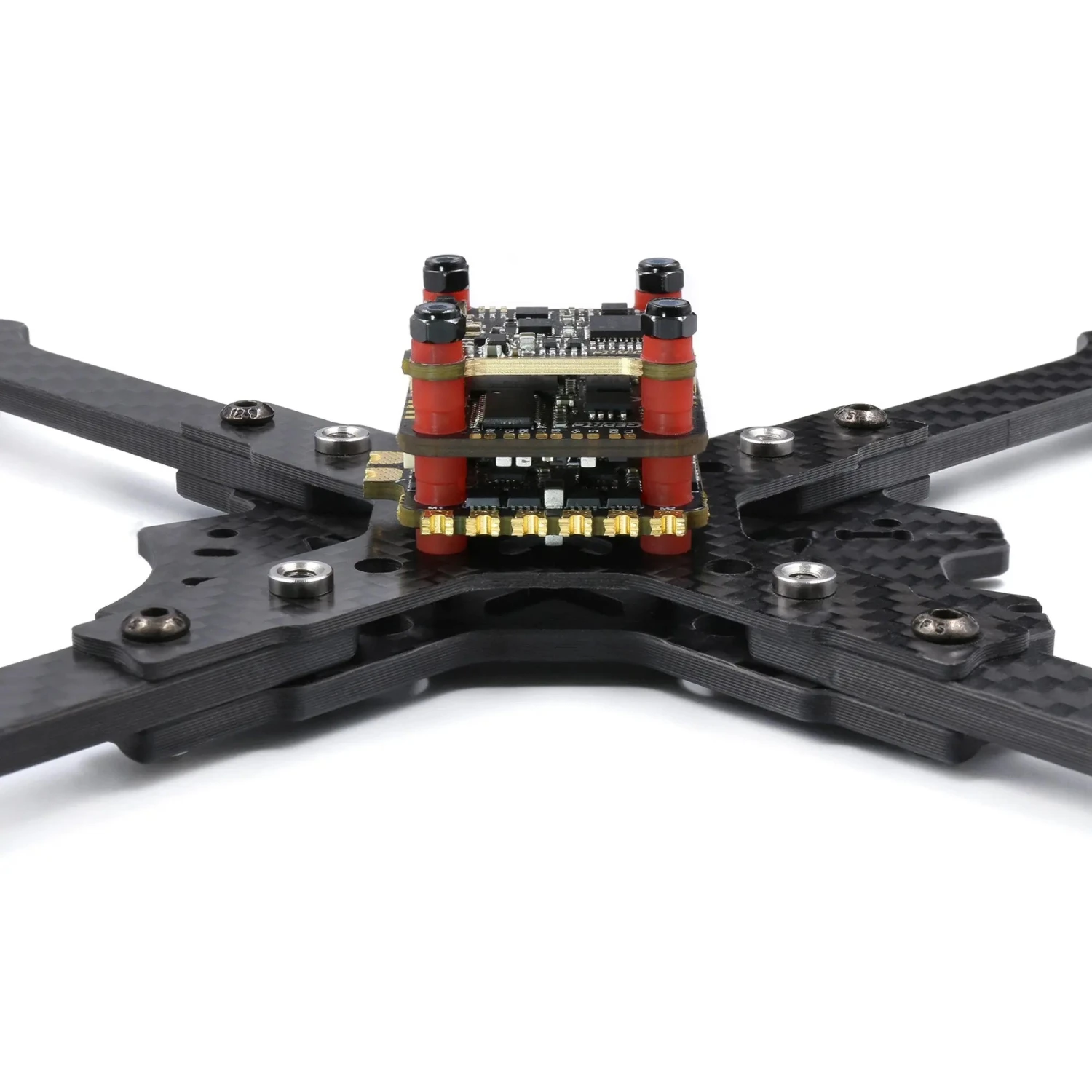

• Simple installation method, compact space
• STM32 F405 MCU or STM32F722RET6 MCU
• Newly upgraded BLheli_32 ESC, high-speed operation, 35A stable working voltage, maximum 45A (3 seconds)
• Support 2-6s battery and current meter
• Support blackbox and use 32M on-board flash storage
• 8g VTX Support IRC protocol, PIT/ 25/100/200/600mw adjustable, 48 frequency
• Mounting Holes: 20x20mm(M2)
• Size: 26x26x21mm
• Weight 16.5g (Including Wire and screws)

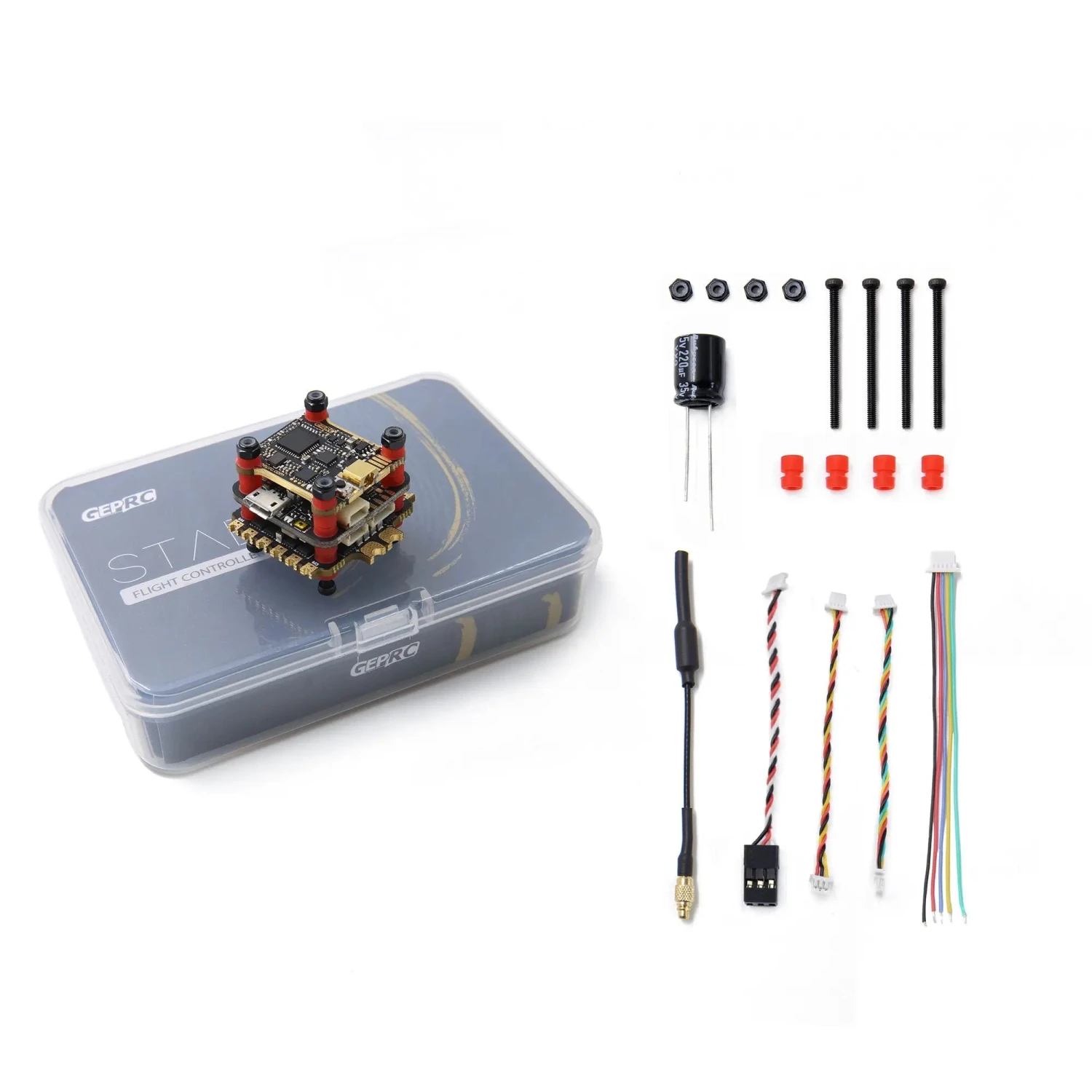

Include：

– 1 x F4 Flight Controller
– 1 x BLheli_s 30A 2-5S ESC
– 1 x 5.8g 600mW VTX
– 1 x Antenna
– 1 x Capacitance
– 5 x cable set
– 4 x M2*28mm screw
– 16 x Soft silicone
