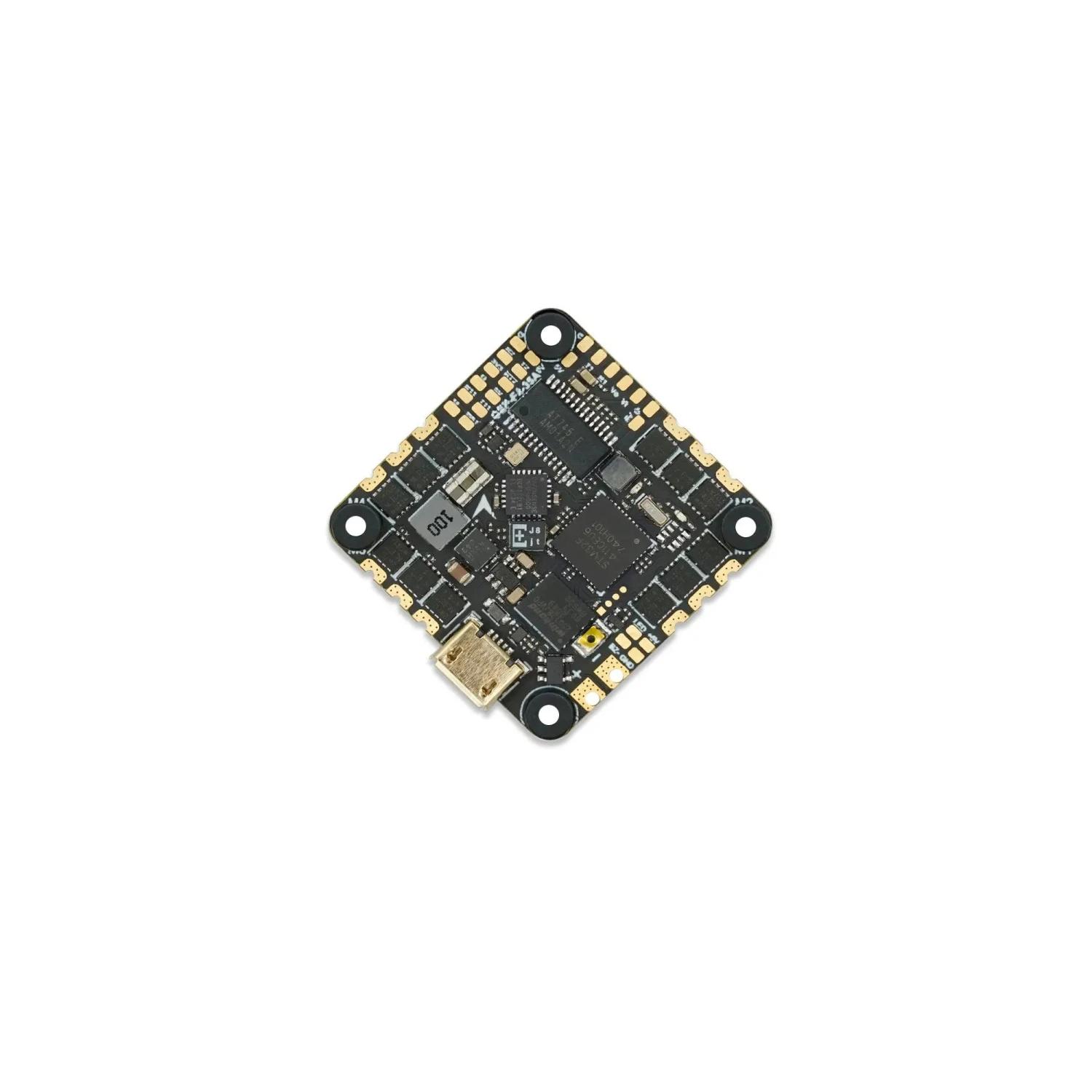

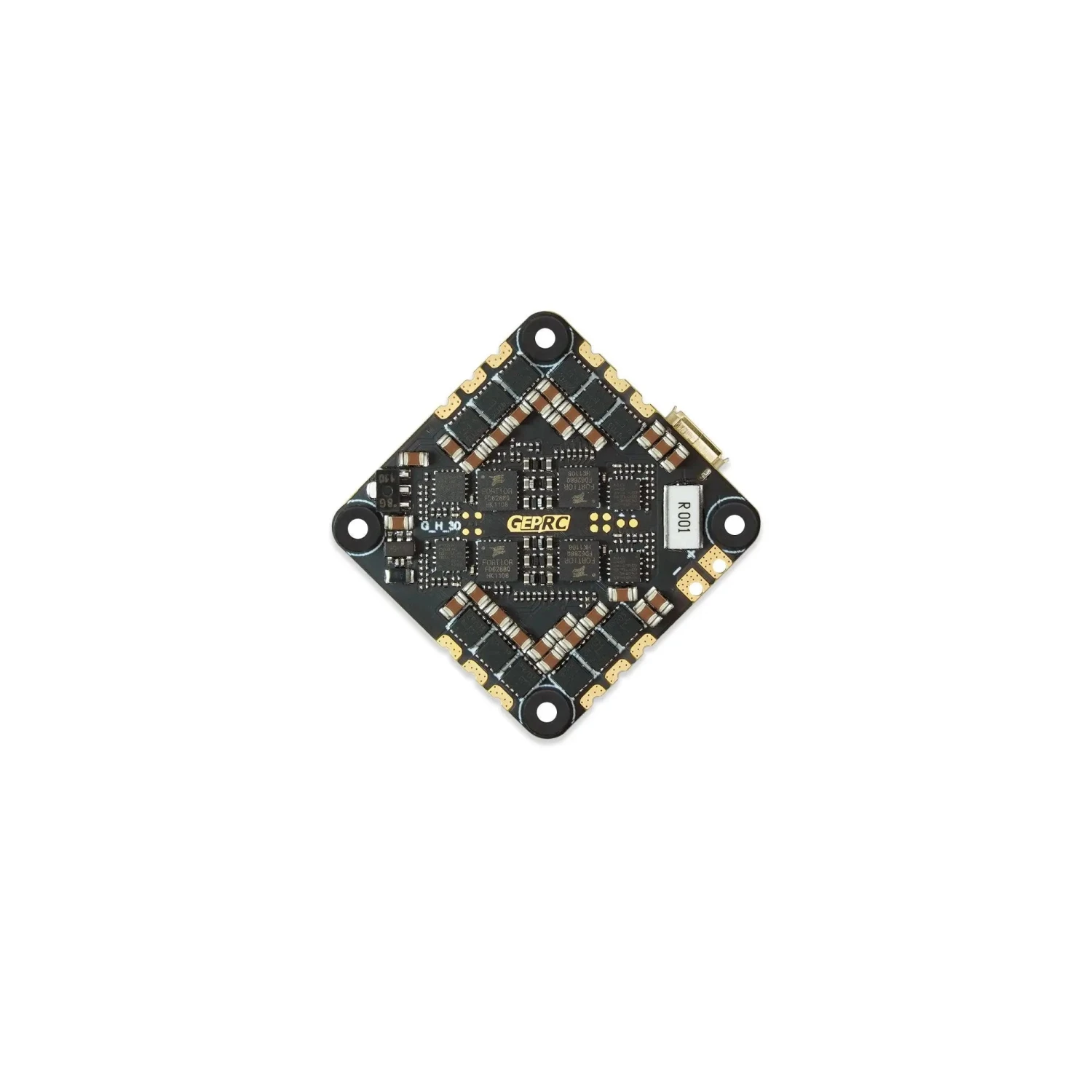

GEPRC GEP-F411-35A AIO

GSummary：

I am gald to introduce a new member of GEP FC AIO, GEP-F4-35A, it is released now.

GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst), totally supports the 2-6S lipo battery. It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. Support OSD parameter adjustment. It’s 8.8g ultra light weight, and 26.5mm * 26.5mm mounting holes, suitable for most of the frames on the market.

Specification:

• Model: GEP-F411-35A  AIO
• MCU: STM32F411
• IMU: ICM42688P gyro/accelerometer(SPI)
• Target: GEPRC_F411_AIO
• OSD: Betaflight OSD w/ AT7456Ev
• UART Ports: T1 R1 / T2 R2
• Beep: YES
• LED: YES

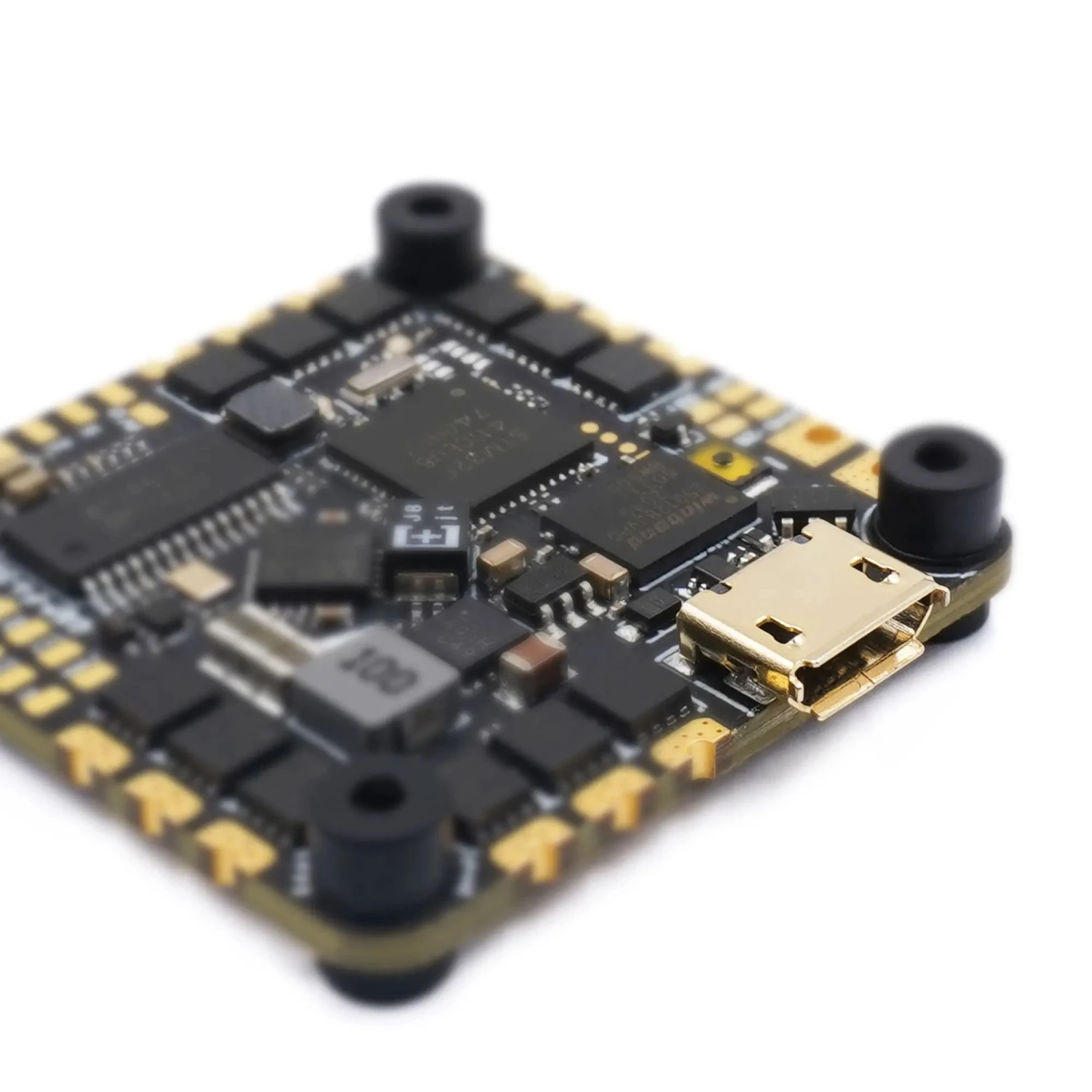

• USB Connector: micro USB
• ESC MCU: 8BB21F16G
• Intergrated LC Filter
• Continue Current: 35A
• Burst Current: 40A(10s)
• Input Voltage: 2~6S (LIPO Battery)
• ESC Protocol: Dshot300/600,Oneshot,Multishot
• Blackbox:16Mb
• ESC Target: G_H_30 BLS
• Size: 32x32mm Board
• Mount Holes: 26.5×26.5mm,M2

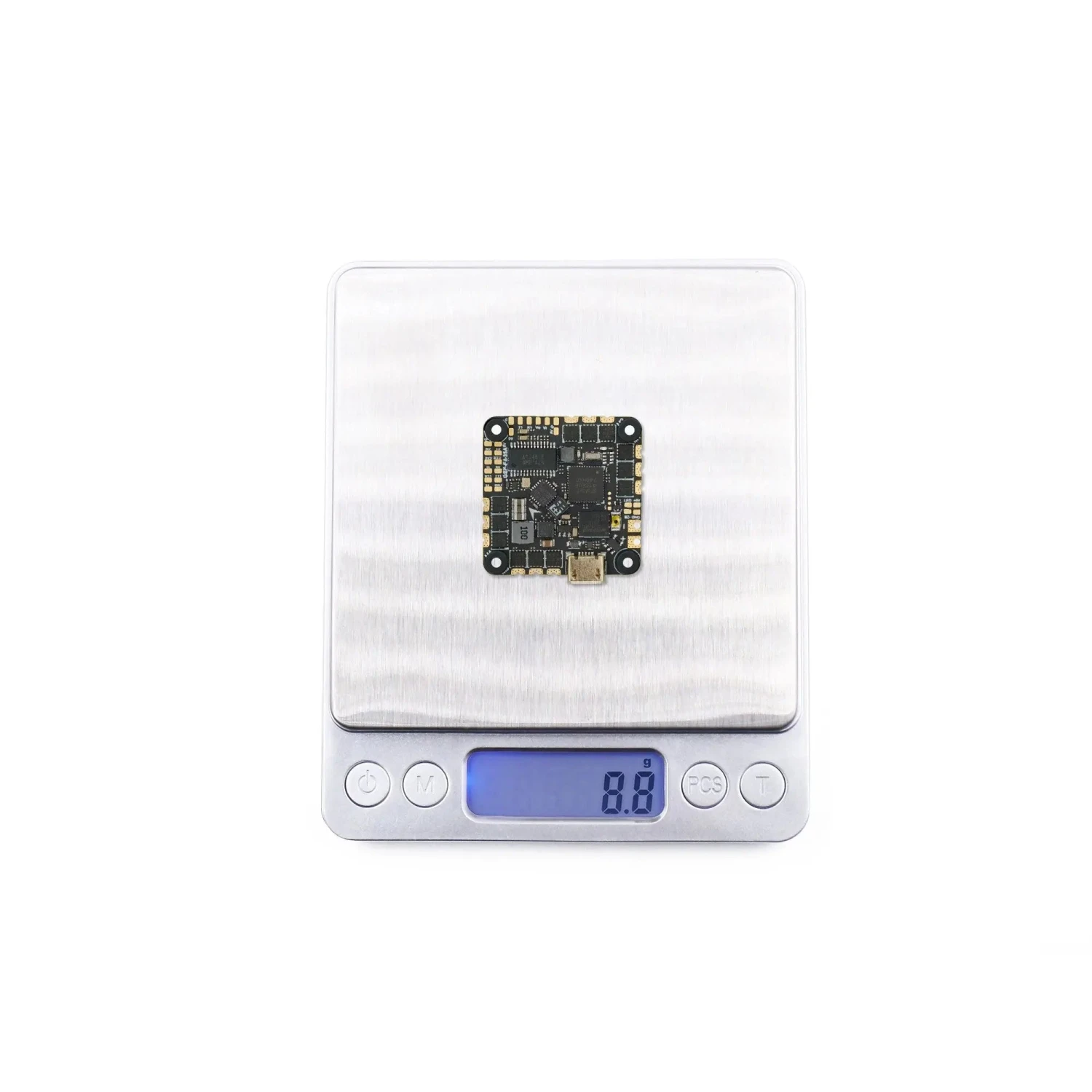

• Weight: 8.8g

Features:

• BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.
• Mainstream STM32F411 FC and runs stably.
• MPU6000 gyroscope with 8K sampling frequency.
• Rich external ports, it supports buzzer and LED light function.
• 26.5mm * 26.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.

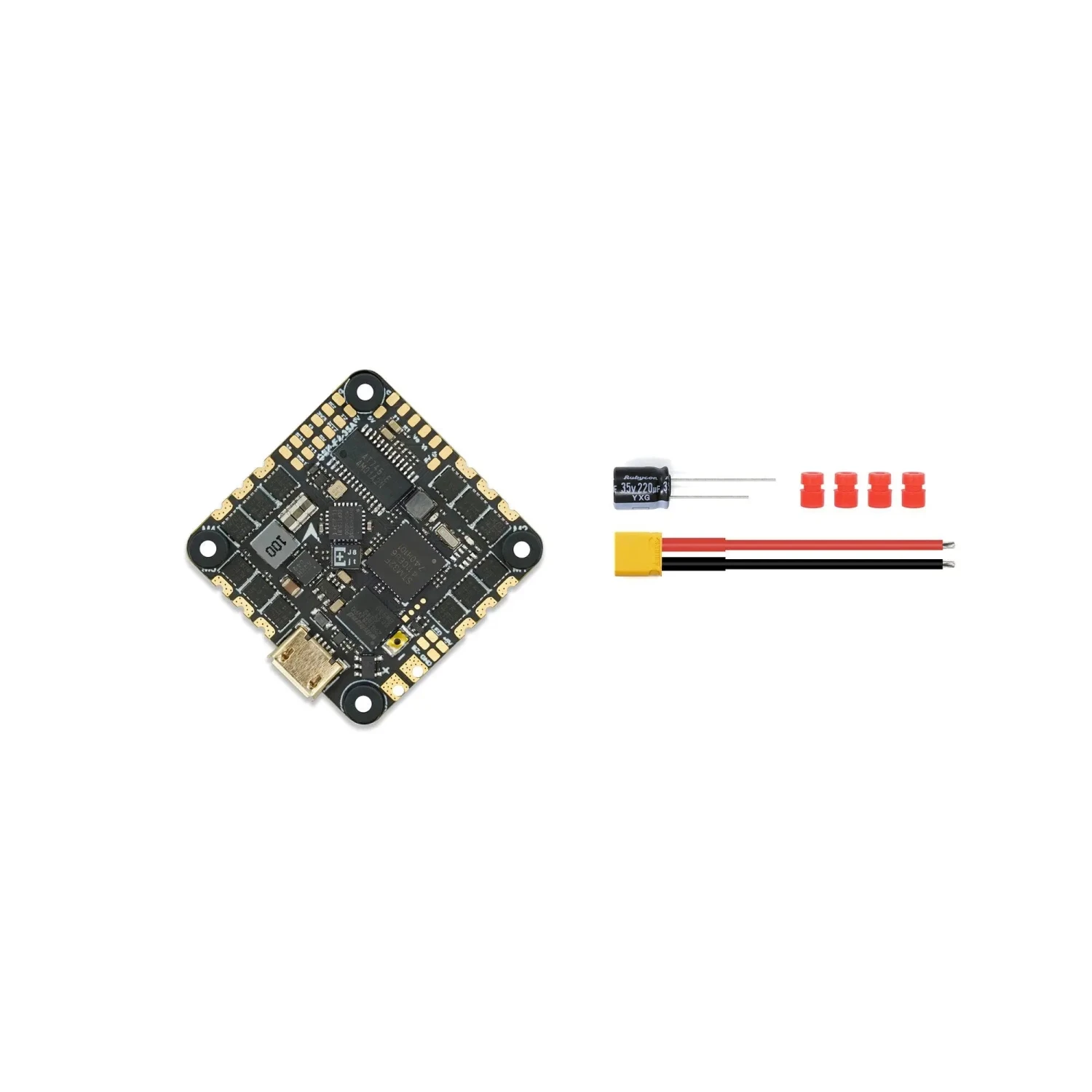

Include:

• 1 x GEP-F4-35A-AIO
• 1 x XT30-7CM-18AWG cables
• 1 x 35V220UF capacitance
• 8 x M2*6.5mm Damping rings

Manual:

• F411-35A AIO USER MANUAL
