Flywoo Goku Versatile F405 Pro Mini Stack ( F405 FC+ 40A ESC ) 8Bit 2-6S 20 X20 Plug&Play Plug O3 Air Unit

Description

GOKU Versatile  F405 PRO  FC is a versatile and powerful flight control equipped with the smallest but most powerful f405 BGA Chipsets instead of ordinary QFP (Big Size) MCUs. Perfect for any 20×20 30.5 x30.5  build . DJI Plug&Play plug and so many UARTs most people wouldn’t even use em’ all. Compatible to digital and analog FPV, onboard Barometer for possible long range flights and much more.

Highlights :

1.  8 layers double-sided PCB board ESC
2. The FC has a super bid pad, very easy to solder everything
3. IIncluding a barometer, blackbox, 6 complete hardware serial ports, I2C functionality，Dual BEC 5V 2A / 10V 2A
4. Universal USB Type C connector instead of micro USB
5. Support Betaflight INAV Autopilot

Specifications
GOKU Versatile F405 PRO FC

• MCU: STM32F405BGA
• GYRO: ICM42688P
• UARTS: 1/2/3/4/5/6
• I2C: SCL/SDA
• Barometer: BMP280
• BEC: 5V 2A / 10V 2A
• Blackbox: 16M
• Input Voltage: 2-6S
• Firmware: FLYWOOF405PRO

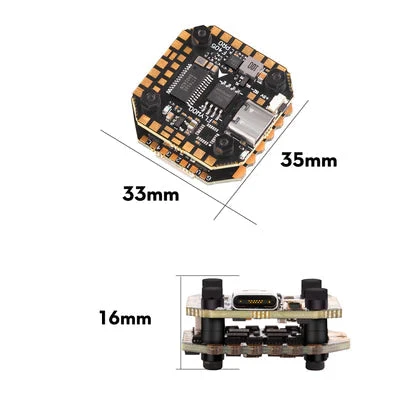

• Mounting: 20x20mm M3 / 30x30mm M4
• ESC Soft: Dshot300/600
• ESC Telemetry: Yes
• LED Controller: BF LED
• F.Port: Yes
• RSSI: Yes
• Buzz: Yes
• Input: 2~6S Lipo (8.4~25.2V)
• TVS Protection: Yes

GOKU 406S 8bit 40A ESC

• Con. Current: 40A
• Burst Current: 45A
• Input Voltage: 2-6S
• Support DShot300/600
• Current Sensor: YES
• BEC Output: NO
• Size: 42×42×4mm
• Mounting Hole: 20x20mm ( M3)

Q&A :
1、 Betaflight Firmware target: FLYWOOF405PRO
2、INAV Firmware target: FLYWOOF405NANO
