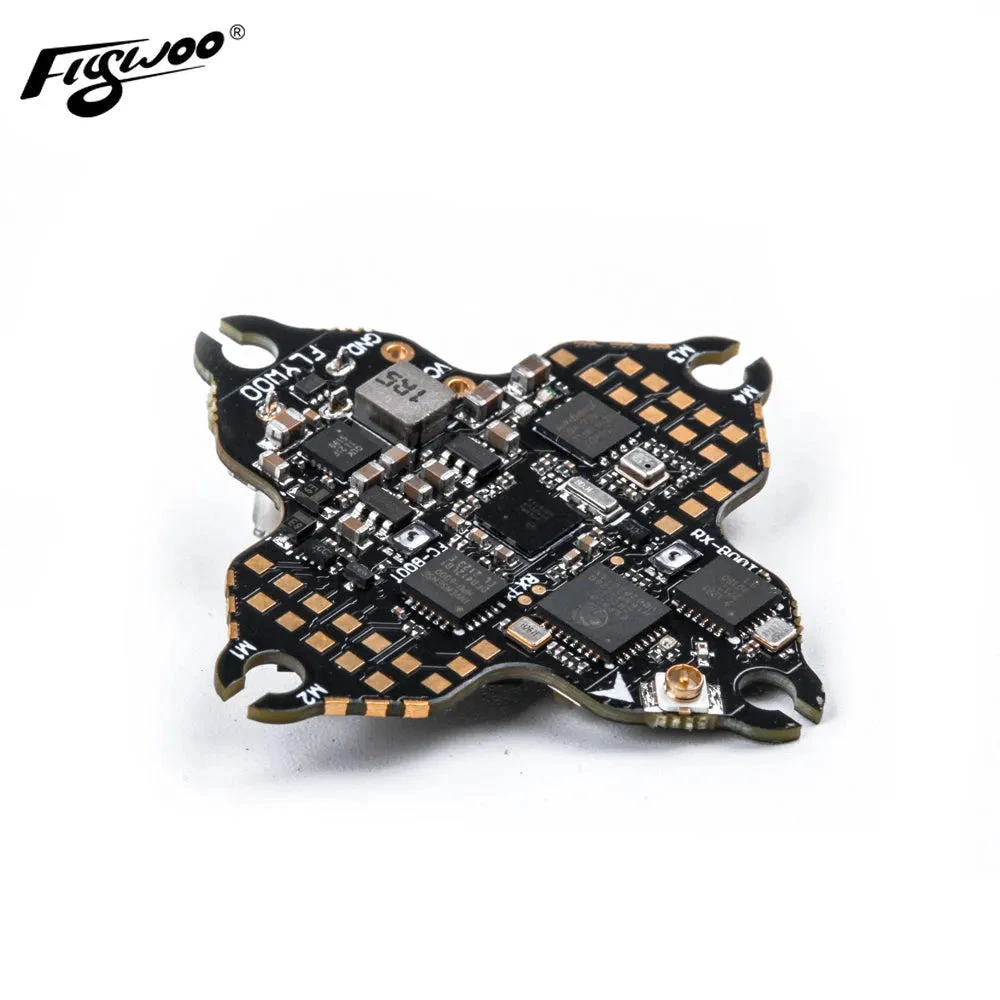

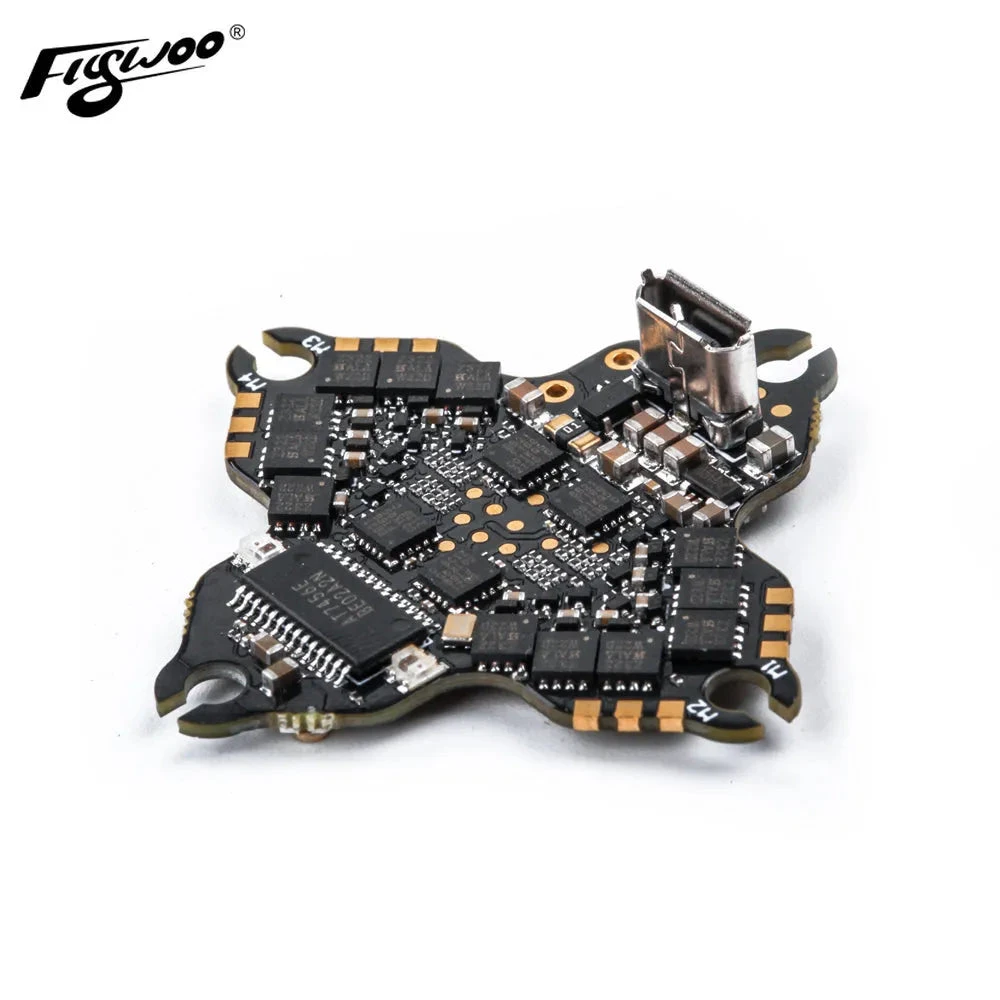

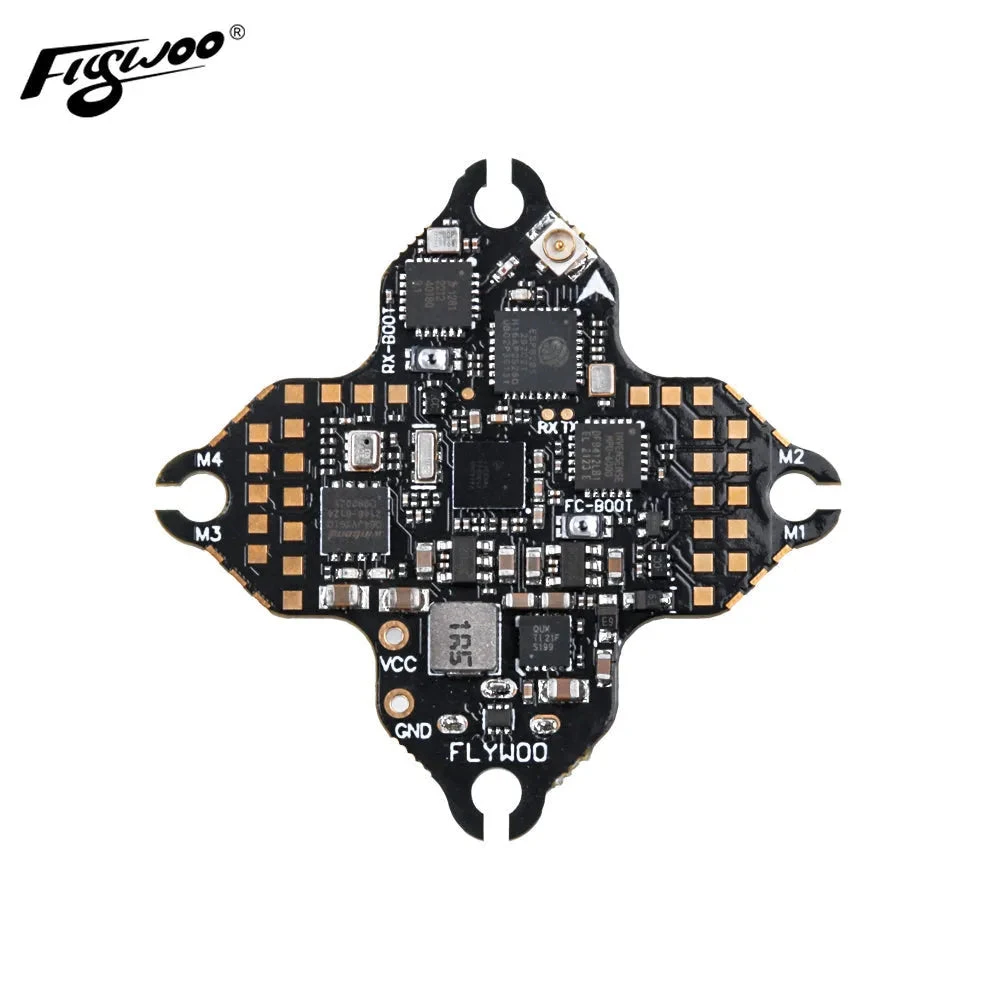

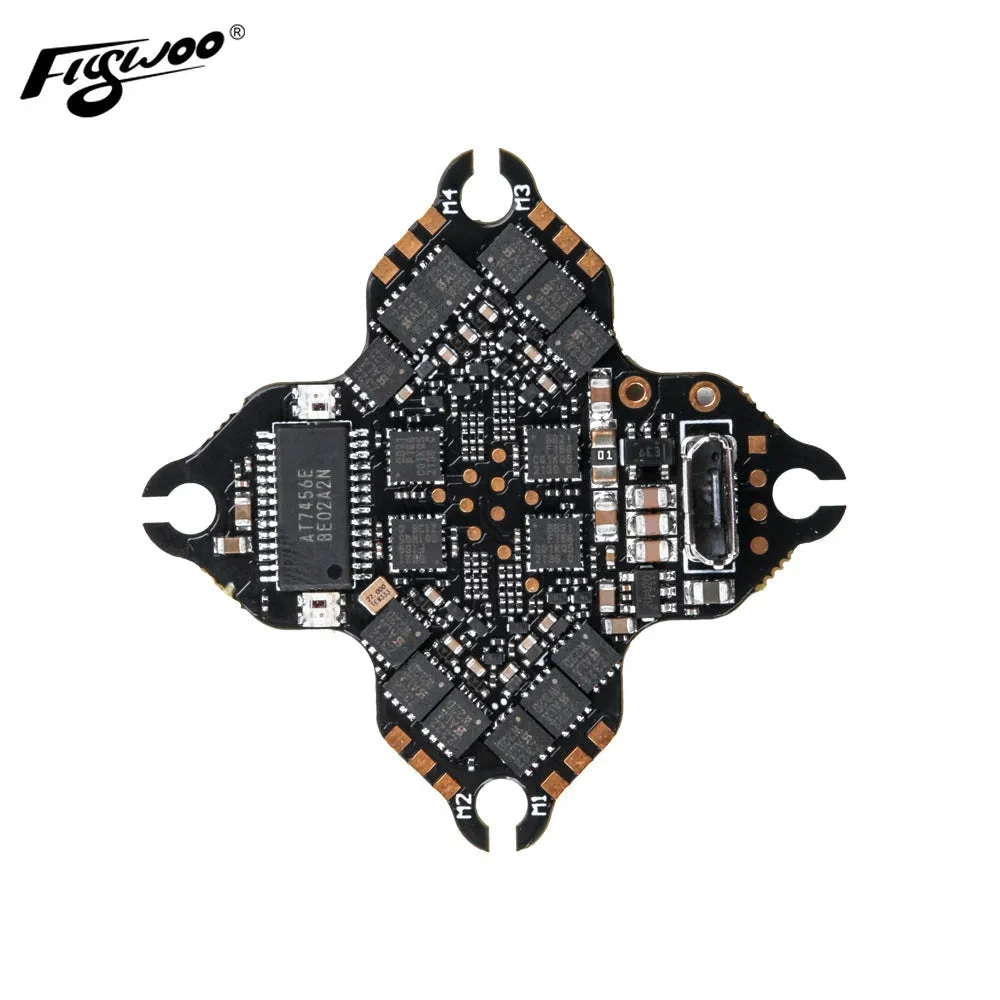

Flywoo GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (MPU6000)

The GOKU Versatile F405 2S 12A AIO is another versatile and highly integrated circuit board in the GOKU Versatile series!
Built-in build-in ELRS 2.4g RX ，2S  12A ESC， OSD  , 6 serial ports， I2C functionality  and 2XWS2812 LEDs .   Reasonable layout makes it easier for you to build . You only need to choose the motor, frame, camera, propeller ， everything else all packed into a compact whoop board.

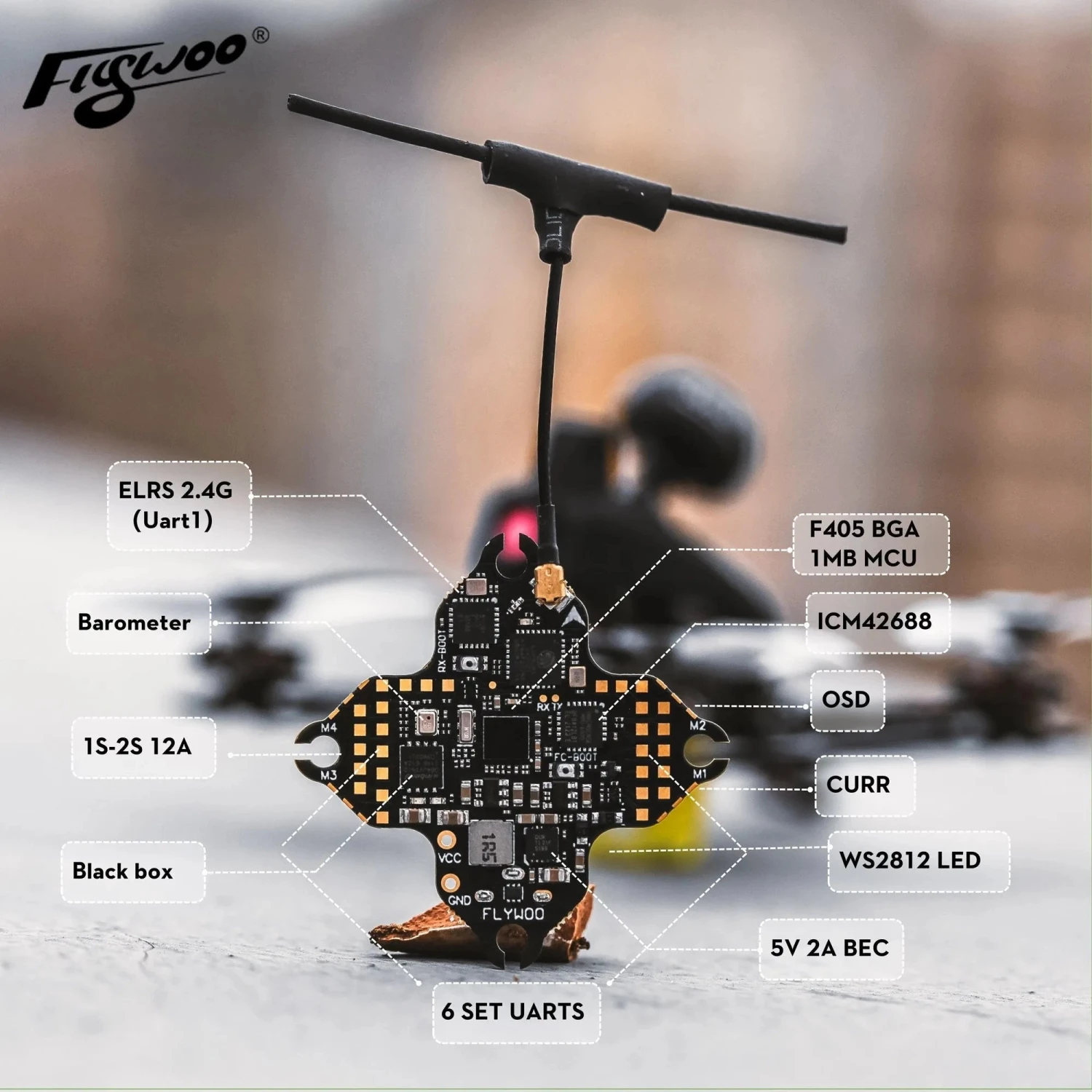

Highlights :

1. build-in ELRS 2.4g RX (Full UART1) , 2S 12A ESC, OSD
2. Opened 6 serial ports and 12C functionality
3. Black box Barometer CURR
4. Configured with the powerful F405 BGA MCU
5. Built-in 2XWS2812 LEDs
6.  Reasonable layout , easy to build
7. Can work with different RX at the same time
8. MPU6000ICM42688 Gyroscope

Specifications
Flight Controller

• SIZE: 30*30mm
• Weight: 4.1g
• Hole: 25.5*25.5-3mm
• MCU: STM32F405
• UARTS: 1,2,3,4,5,6
• MOTOR: M1-M4 OUTPUT I2C: SCL/SDA
• GYRO: ICM42688 MPU6000
• Barometer: BMP280
• LED:2*WS2812
• Flash: 8M
• BEC: 5V 2A
• Firmware: FLYWOOF405S_AIO

Onboard 4in1 ESC

• Built-in 1S/2S 12A BL_S 4in1 ESC
• Support Oneshot125, Oneshot42, Multishot,
• Dshot150, Dshot300, Dshot600
• Input Voltage: 1-2S Lipo
• Firmware: BLHELI_S
• Firmware: Z_H_30_REV16.7

ELRS2.4G RX: (optional)

• ESP8285 MCU
• SX1280IMLTRT RF Module
• Frequency Range: 2400 MHz to 2500 MHz
• Maximum receive refresh rate: 500Hz
• Minimum receiver refresh rate: 25Hz Seiral:
• UART 1
• Firmware: Flywoo EL24P 2400 RX
• Version: 2.X.X

Diagram

1、 GOKU Versatile F405 1-2S 12A AIO Wiring Diagram  :







Notice:

When using 1S battery, please set:
FC Motor ldle=12; ESC Startup Power =1
