Features:

• Latest STM32G4 Processor

  • 170Mhz + Math accelerator

  • MPU6000

• Supply voltage 6-27V (2S-6S Lipo)

• 2x dedicated onboard BEC (max. 600mA each)

  • 5V BEC for RX

  • 5V/16V BEC for VTX (switchable and real Pit*)

• 2x 8 pin connector for solder free ESC connection

  • Connector 1: ESC signal 1-4, telemetry, VCC, GND

  • Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND

• 1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems

  • real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3

• 2x 6 pin connectors for serials

  • RX1, TX1, 3.3V, VCC, 5V, GND

  • RX3, VCS/TX3, RGB LED, VCC, 5V, GND

• 1x 4 pin connector for receiver

  • Signal, TLM, 5V, GND

• 5 UART serials

  • UART 1 free

  • UART 2 used for Receiver

  • UART 3 free

  • UART 4 used for onboard OSD, can be set free

  • UART 5 used for ESCs / TLM / Onewire

• 4 ESC solder pads (Signal/GND) in each corner

• Buzzer pads

• 4 tiny RGB LEDs (selectable color)

• Supported ESC protocols

  • PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire

• FETtec KISS firmware

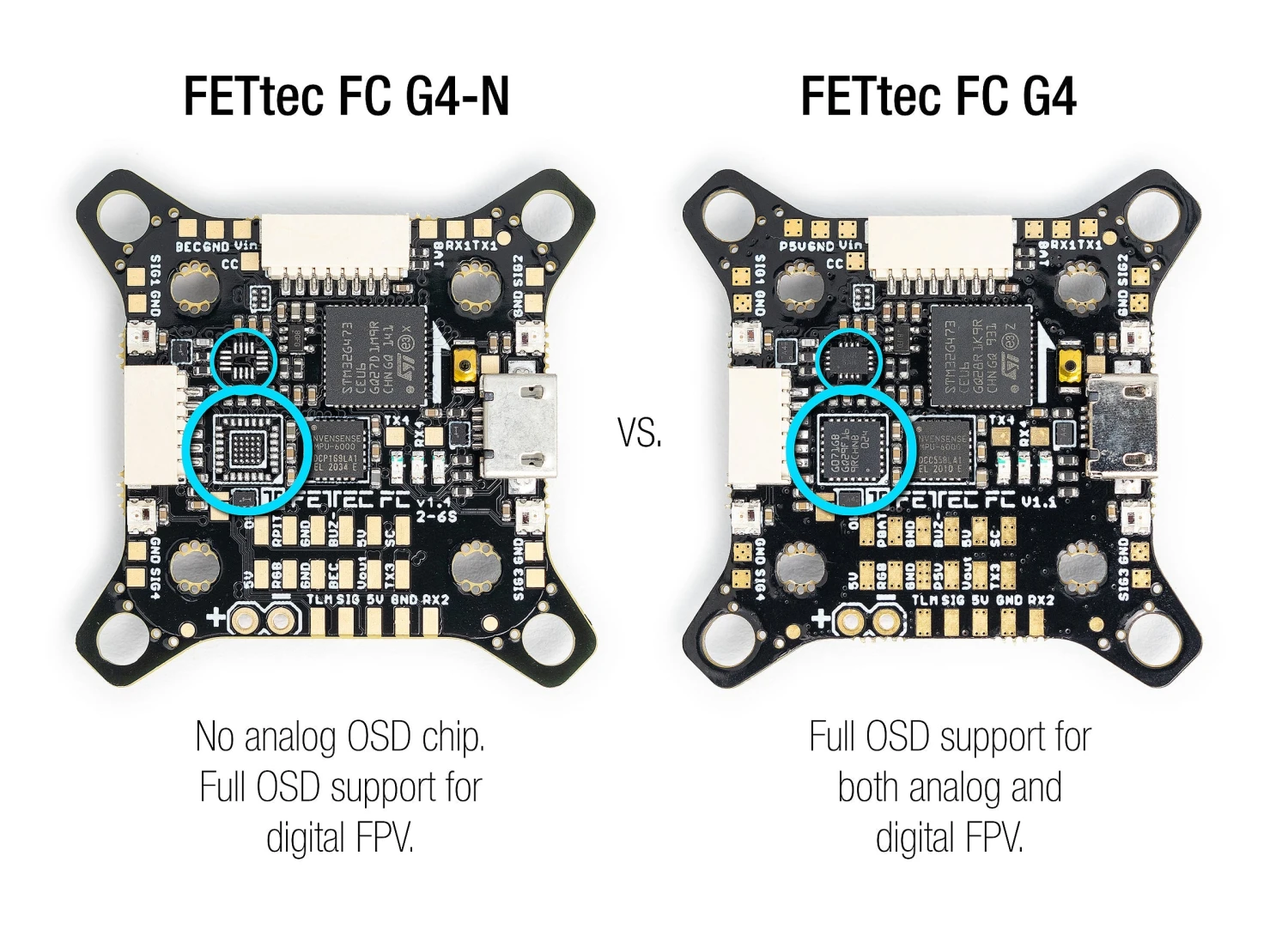

• Onboard OSD

  • Graphic OSD (STM32)

  • Full KISS Tuning

• Filter (PIDs, Rates, Settings)
• LED control (RGB LED, Racewire)
• VTX
• Live data graphs (Voltage, motor rpm, current, motor temp, gyro values, link quality)
• KISS GPS support + live map
• Custom graphic pilot logo
• Stick overlay
• Custom layout
• can be deactivated for usage of digital systems

• Connector type: JST-SH-1mm

*real Pit-Mode: A power supply pin which is remotely switchable

Dimensions:

• Maximum outside dimensions: 37,2 x 37,2mm, without outside tips 30 x 30mm

• Mounting hole arrangement:

  • 20 x 20mm with M2 mounting hole (expandable to M3)

  • 30 x 30mm with M3 mounting hole

  • 30 x 30mm mounting hole tips are removable to reduce overall FC size

• Overall height: 7,9mm

• Weight: 5,37g

Firmware:

• KISS Firmware
• FETtec OSD Firmware

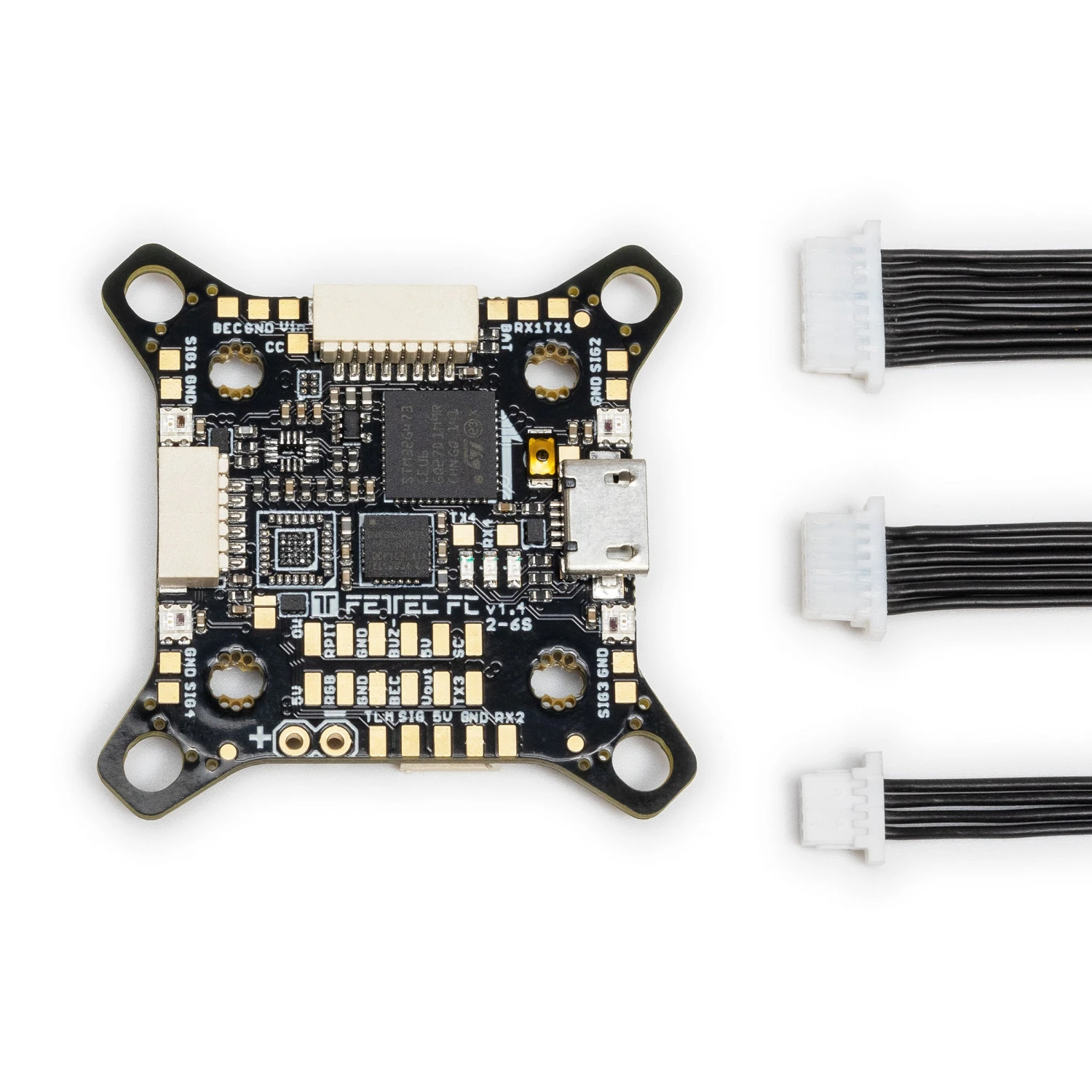

Scope of delivery:

• 1x FETtec FC G4
• 1x 8 pin cable (open on one side)
• 1x 6 pin cable (open on one side)
