Diatone Mamba TOKA 2004 1700KV/2900KV Racing Motor Green
Original price was: $16.99.$11.89Current price is: $11.89.
- Unbeatable Quality Guaranteed
- Your Security is Our Promise
- Free and fast shipping worldwide
- Secure Payments, Secure Shopping
Specification:
Mamba Toka 2004 1700KV Racing Motor
Overall Dimension:Φ26.2×15.3mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3.5inch~5inch
Bearing：7*3*3
Shaft Diameter:3.0mm
Lead Wire Size：24AWG×150mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：20mm
Stator Height:4mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 17.52A
ldle Current：10V/0.3~0.8A
Maximum Power: 418.1W
Internal Resistance：210Ω

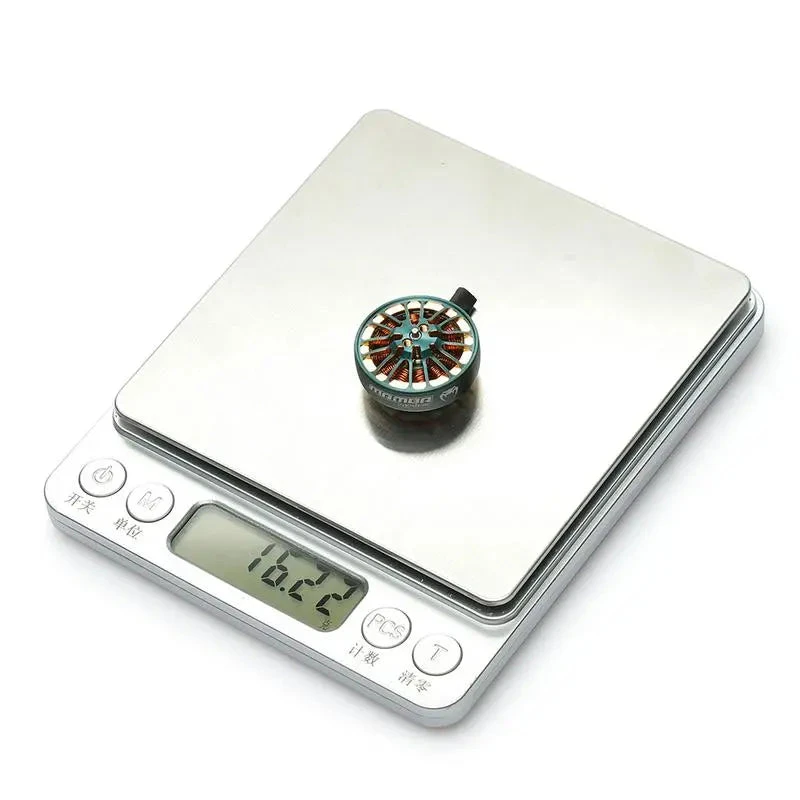

Weight: 16.3g
Mamba Toka 2004 2900KV Racing Motor
Overall Dimension:Φ26.2×15.3mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3.5inch~5inch
Bearing：7*3*3
Shaft Diameter:3.0mm
Lead Wire Size：24AWG×150mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：20mm
Stator Height:4mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 31.63
ldle Current：10V/0.9~1.5A
Maximum Power: 418.1W
Internal Resistance：90Ω
| Style | 1700KV, 2900KV |
|---|
