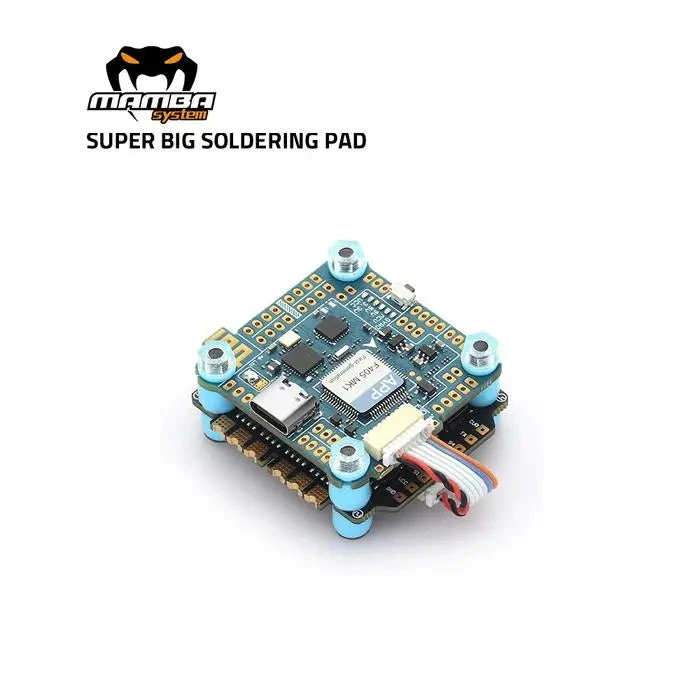

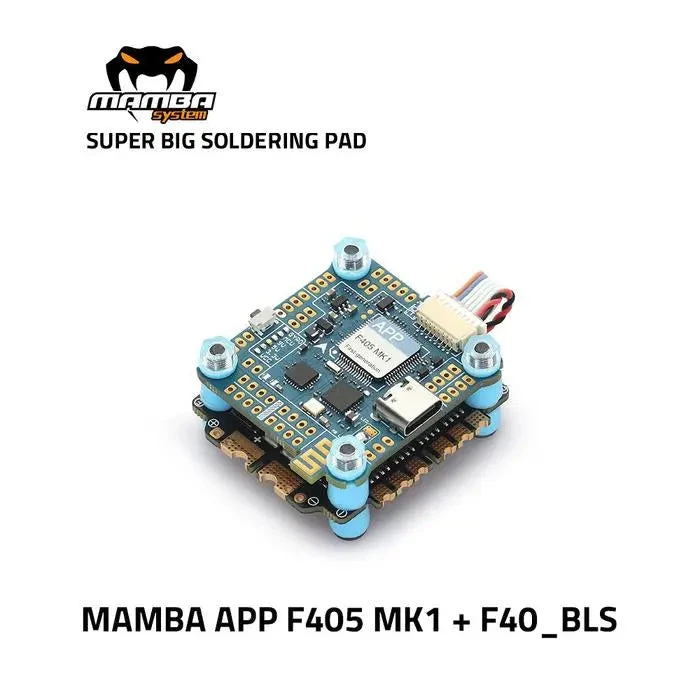

Diatone MAMBA Stack App F405 MK1 + F40_BLS Dshot600 40A ESC

Diatone MAMBA APP F405 MK1 FC Specifications:

• MAMBA APP（WIFI）F405 MK1 Flight Controller 30.5*30.5mm/M3
• MCU: 168MHz STM32F405RGT6
• GYRO: MPU6000
• Barometer: No
• OSD: Yes
• Blackbox: 16M Flash Memory
• Uarts: 6Set
• ESC Soft: Dshot300/600/1200
• ESC Telemetry:Yes
• Power Led: Yes
• F.Port: Yes
• RSSI: YES
• LED Controller:BF LED/MB LED（ 4 Set 2812 LED）
• Buzz: Yes
• WIFI: SpeedyBee APP
• Input: 3~6S Lipo (12.6~25V)
• TVS Protection: Yes
• BEC:3.3V 0.5A& 5V 3A & 9V 3A
• MOUNTING: 30.5mm/M3

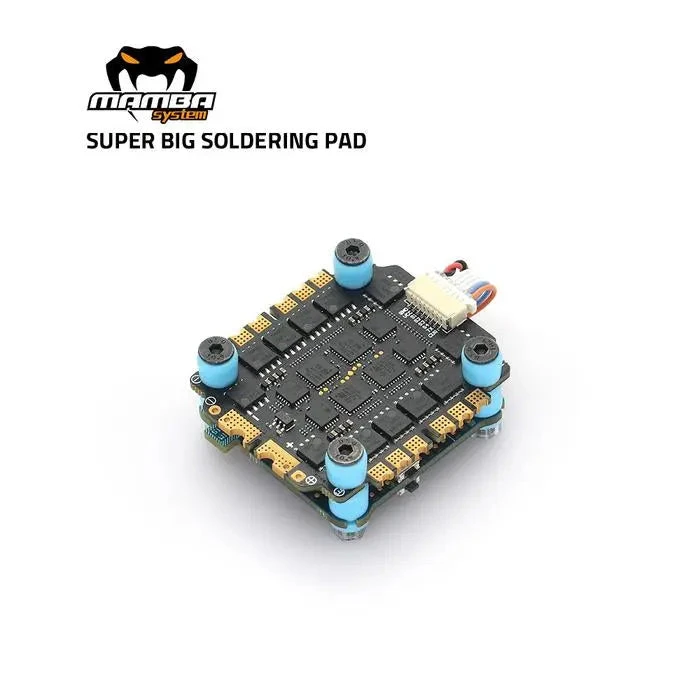

Diatone MAMBA F40_BLS Dshot600 4in1 ESC 40A 6S Specifications:

• INPUT VOLTAGE: 2~5S Lipo (8.4V~25.2V)
• CONTINUE CURRENT: 40A×4
• BURST CURRENT: 45A (10S)
• BEC: No
• Target：BLHeli_S CH40
• SOFT: Dshot300/600
• TVS Protection: Yes
• MOUNTING: 20mm, M2/M3

Supply :  Rubycon High Frequency 470uF/35V

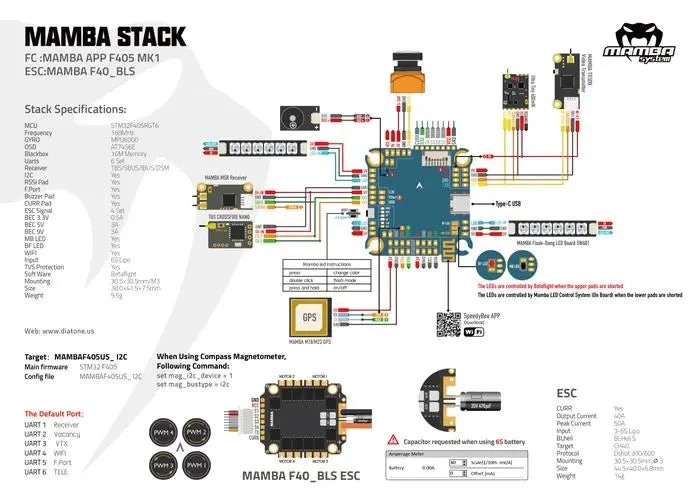

Diagram Link From Help Centre Link

Includes:

• 1x

  Diatone MAMBA APP F405 MK1 FC

• 1x

  Diatone MAMBA F40_BLS Dshot600 4in1 ESC 40A 6S

• 1x Hardware Pack
