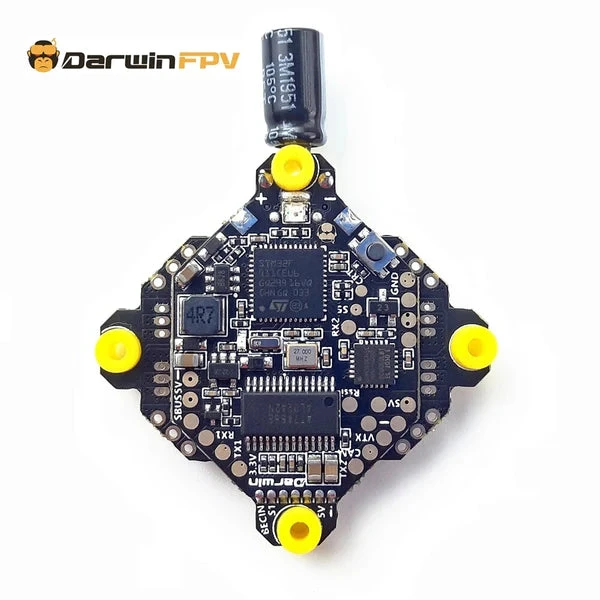

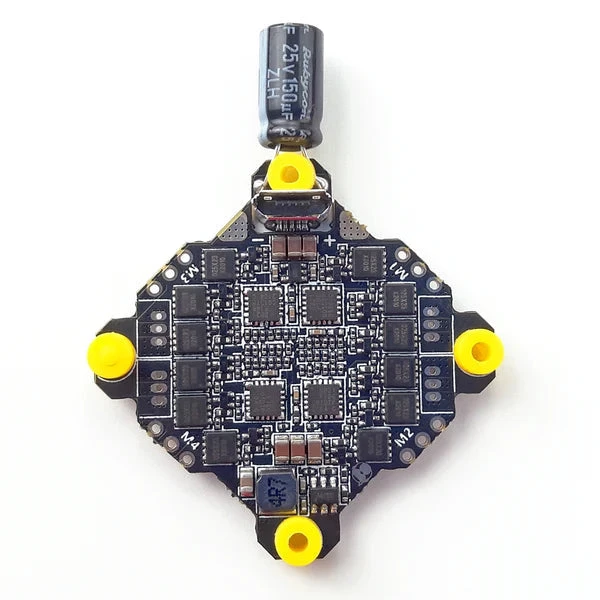

DarwinFPV 15A 1-3S F411 AIO great for Ultralight and Whoop builds! Capacitor Pre-soldered for convenience!

ESC Specifications

• Input voltage: 3.7 ~ 13V DCIN(1 ~ 3 6slipo)
• Constant current: 15A
• Peak current: 17A
• BEC Output: No
• Gyro: MPU6050
• Mcu: 48mhz efm8bb21f16g protocol: dshot/oneshot/multishot blheli_s
• firmware target: SH-50
• Telemetery: No
• Current Sensor: No

FC Specifications

• Mcu Specifications : 100mhz stm32f411ceu6
• Imu: MPU6500 (spi)  or ICM20689
• Baro: No
• Blackbox: No
• OSD:AT7456E
• 2xuarts (1,2)
• Built in drive for sbus input (UART1-RX) 1xsoftserial supported (s5)
• 3.7 ~ 13V DCIN(1 ~ 3 6slipo)
• Bec: 5v 2nd cont.(max 2.5a )
• LDO3.3V:Max 200mA
• Battery voltage sensor: 1:10 (scale110)
• BetaFlight target: MATEKF411

Package Includes:

• 1 x DarwinFPV 15A 1-3s Ultralight/Whoop AIO
