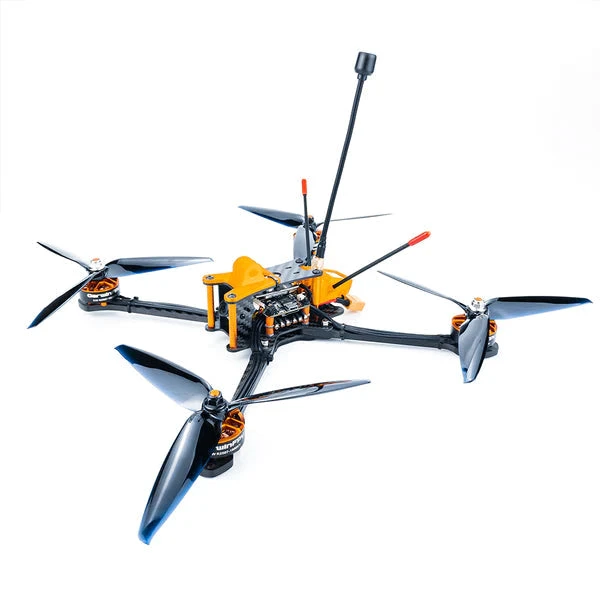

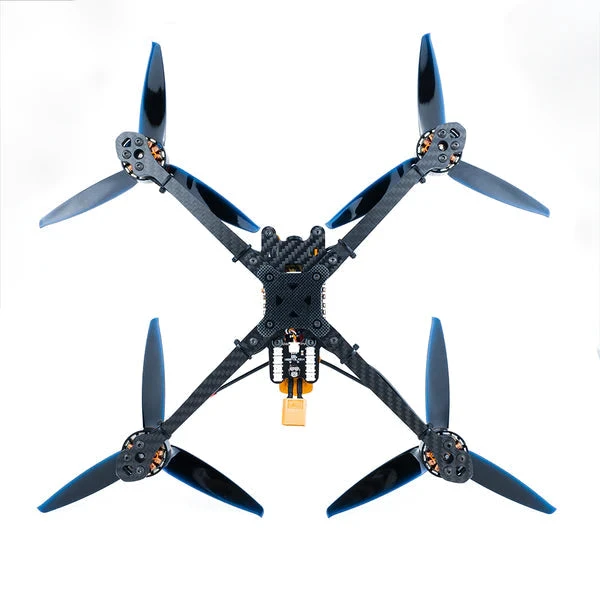

DarwinFPV 129 7″ Long Range BNF

Darwin129 7” Long Range PNP is a 7” quadcopter for long rang. After many attempts and experiments,

we have  upgrated Darwin129.  For example, GPS is changed to M80, the speed of searching is faster

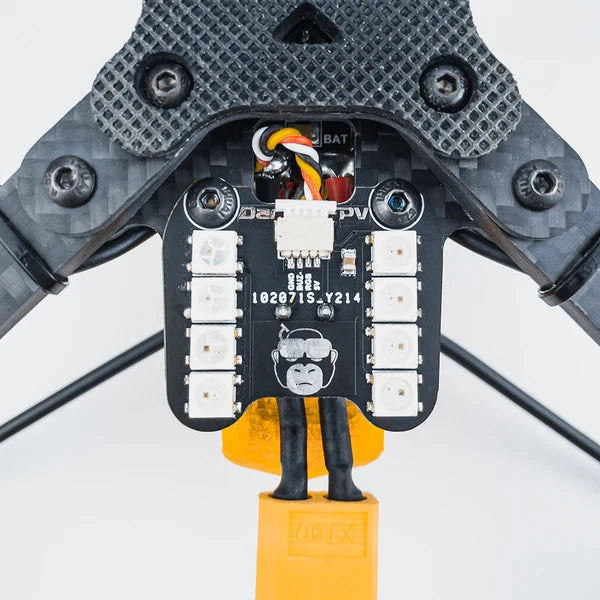

and the accuracy is higher, the tail buzzer and 8 high-brightness RGB lights make it is more easier to locate the drone and so on.

• The motor cable has been changed to silicone cable with sufficient and it won’t melt during soldering.
• Add battery pad to prevent effectively the battery from slipping off.
• The VTX antenna is specially designed for long-rang flight, so the transmission distance is much longer.
• The flight controller supports bluetooth function and can be connect to the mobile phone APP quickly. Make drone tuning much more convenient.
• VTX transmission power is increased to 800mW, the transmission distance is more longer.

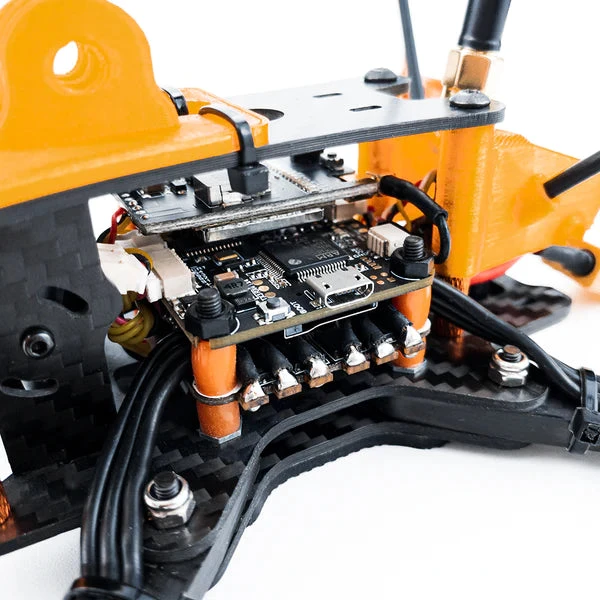

• The flight controller is installed with silicone dampers, it will reduce effectively the flight controller vibration.

 Specification

• Item name: Darwin129 7” Long Range PNP
• Wheelbase: 280mm
• Motor: 2507 1800KV 3-5S Brushless Motor
• Flight Controller: F4 flight controller
• VTX: 5.8G 40CH 800mW VTX TX805
• Gemfan Flash 7040-3
  Flash Durable 3 Blade
  7040-Clear 2L2R

Camera upgraded to 1500TVL Darwin B19
Comes without battery, charger, receiver or remote controller

2507  1800KV 3-5S Brushless Motor

Motor KV:1800KV

Idle Current (Io/10V):0.89A

Lipo Cell:3-5S

Weight:39g

Max Continuous Current:42A

Max Continuous Power:840W

Max thrust:1488g(4S/7″)

Configu-ration:12N/14P

Motor Resistance (RM):0.0586 Ω

Stator Diameter:25mm

Stator Thickness:7mm

Motor Diameter:30.8mm

Motor Body Length:20mm

Overall Shaft Length:35mm

Prop adapter shaft:M5

Bolt holes spacing:16mm

Bolt thread:M3

Propeller:7”

4In1 50A Blheli_S ESC

Continuous current: 50A

Peak current: 60A (10S)

Lithium battery section number: 3-5S

BEC: 5V2A

ESC weight: 10.8g

Firmware: BL_S

Maximum support throttle signal: DSHOT600

Mounting hole: M3 30.5 * 30.5mm

F4 Flight Controller

Lithium battery section number: 3-5S

BEC: 10V 1A, 4.5V, 3.3V

IMU: MPU6500 (SPI)

MCU: STM32F405

OSD: AT7456E

Firmware: MATEKF405

Weight: 7.2g

Mounting hole: M3 30.5 * 30.5mm

Support barometer, black box

Bluetooth

5.8G40CH 800mw VTX TX805

Item name: FPV Transmitter VTX

Frequency: 5.8G Channels: 40CH

Input voltage: 7V~24V

5V camera supply: 120mA(MAX)—-25mW@12V 5V

camera supply: 200mA(MAX)—-200mW@12V 5V

camera supply: 300mA(MAX)—-600mW@12V 5V

camera supply: 350mA(MAX)—-800mW@12V Extra

features: Smart audio

Power supply: 5V output for Camera

Output power: 25mW/200mW/600mW/800mW

switchable Antenna connector: MMCX

Cable connector: Solder pads

Dimensions: 36mm*22mm*5mm,30.5 stackable hole

Weight: 8g(excluding antenna)

Darwin M80 GPS

Name: GPS+GLONASS

Power Supply：5V

Botelv: 115200dps

Receiver Sensitivity：Tracking -167dBm Capture -160dBm

Package

• 1x Darwin129 7” Long Range PNP
