CADDX Nebula Micro Camera

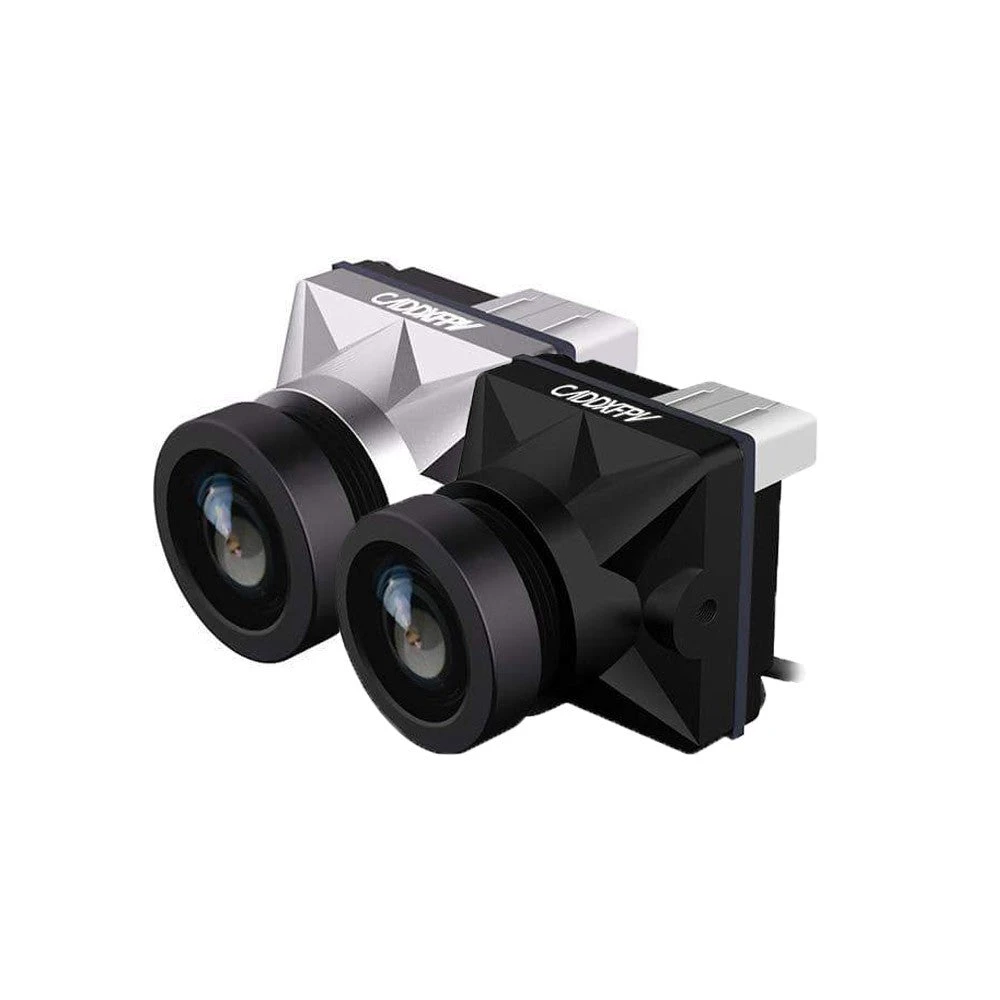

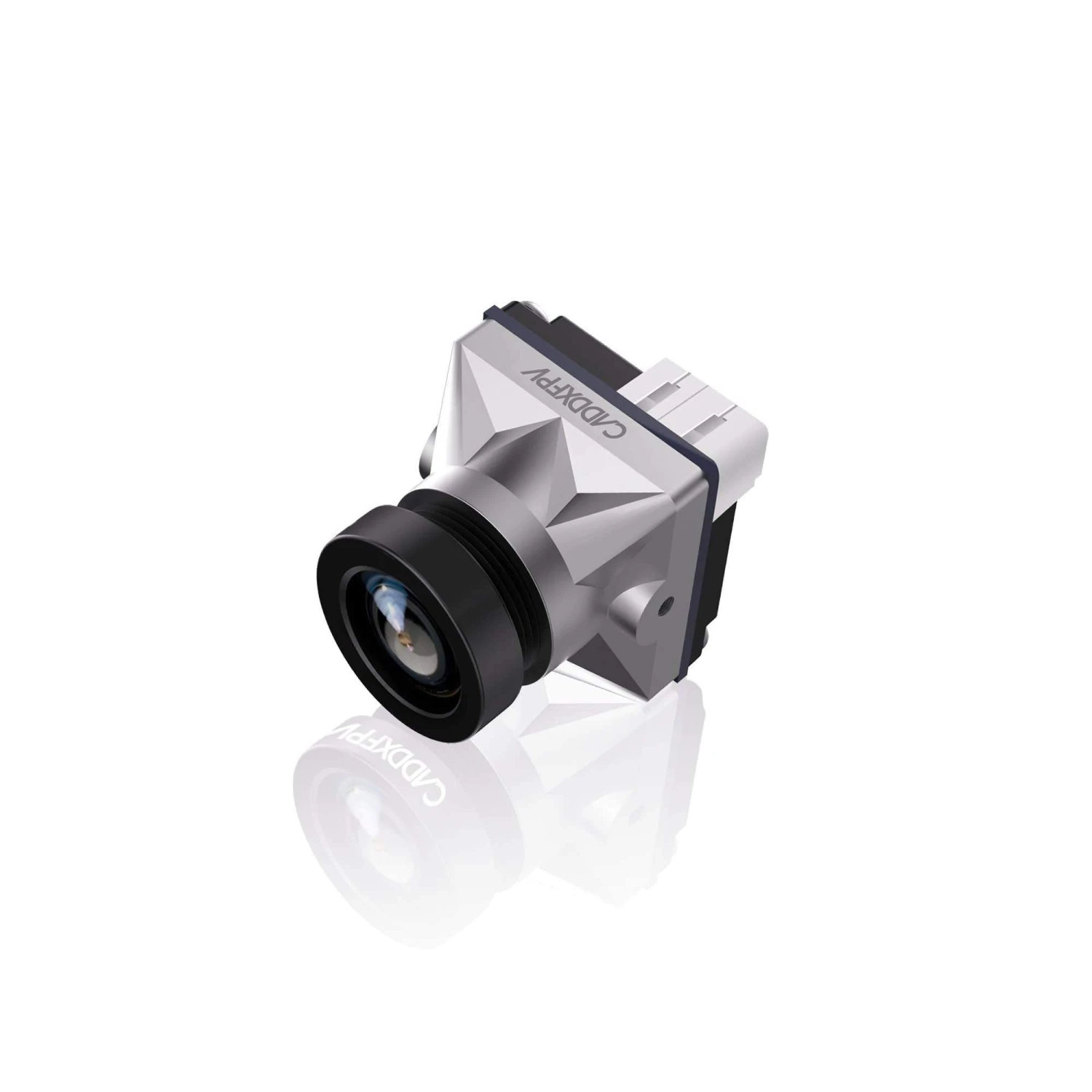

The Caddx Nebula Micro Digital FPV Camera is here! This micro-size camera measures 19x19mm and only weighs 5.8g, which is less than the DJI Digital FPV Camera and is especially design for racing. It features a WDR 1000 TVL image quality, 1/3″ CMOS sensor, NTSC/PAL(Switchable), 720/60fps resolution, full metal casing, Analog & Digital, 4ms low latency, and many other cool features! Comes in two colors: silver and black.

The Caddx Micro is compatible with the Caddx Vista and the DJI Air Unit.

Features

• Only weights 5.8g
• 4ms ultra-low latency
• 720p/60fps resolution
• Full metal casing, more light and durable

Specifications

Without Coaxial cable

• Model: Nebula Micro
• Image Sensor: 1/3inch CMOS sensor
• Lens: 2.1 mm, f/2.1
• FOV: FOV: 150°(D); 122°(H); 93°(V)
• Operating temperatures: -20-60°C
• Wide Power Input: DC 5-36V
• Dimensions : 19*19*20mm
• Weight: 5.8g (N.W.)
• Mirror/Flip: Available
• Shutter: Rolling shutter
• OSD: Support

Analog Specifications

• Resolution : 1000TVL
• TV System: NTSC & PAL (switchable )
• Image: 16:9 & 4:3 (switchable)
• Latency: 4ms
• WDR: Super WDR

Digital Specifications

• Resolution : 720p/60fps
• Latency: >32ms
• Image: 16:9
