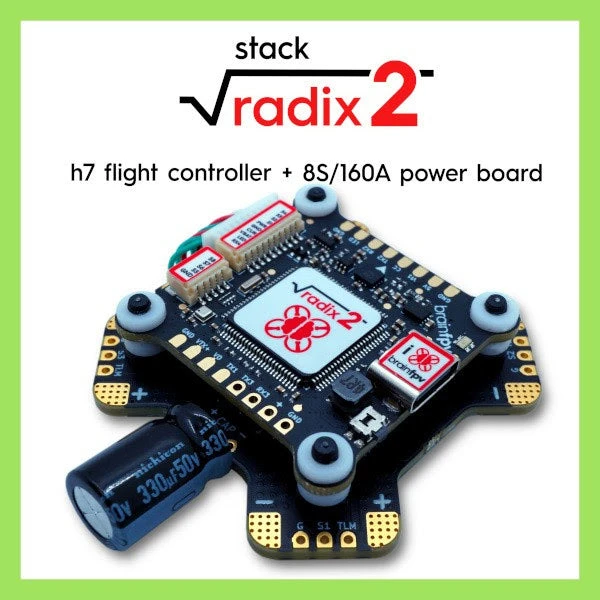

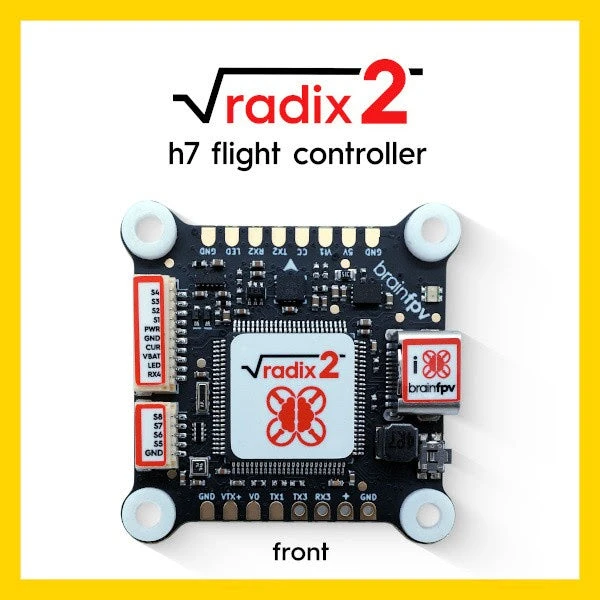

RADIX 2 is a new pimped out and vastly improved version of the legendary RADIX. From a blazing fast H7 processor running at 480 MHz, an improved graphical OSD, to 8 motor outputs, driverless flashing, and more.

RADIX 2 FC Compared to the RADIX:

• New Processor: STM32 H7 processor running at 480 MHz with 1 MB RAM
• New Gyro: New Bosch Sensortec BMI270 gyro / accelerometer delivering superior flight performance
• New Baro: Latest generation Bosch Sensortec BMP388 barometer accurate altitude readings
• Better OSD: Improved full graphical on-screen-display (OSD) with gray levels and transparency
• Dual camera input: Camera can be switched using a switch on the RC transmitter
• VTX pit switch: to turn on/off the video transmitter. Voltage for VTX can be 5 V or the battery voltage. Switch has an integrated high-speed resettable fuse to prevent damage due to accidental shorts
• 32 MByte built-in flash memory: 30 MByte available for logging and settings storage
• Driverless flashing with the BrainFPV USB mass storage bootloader. Simply copy the firmware file to the flight controller when connected to your computer. No more messing with DFU drivers
• RGB status LED with customizable color
• 8 motor outputs: all supporting bi-directional DSHOT for RPM filtering. All outputs are available on connectors for easy connection of one or two 4-in-1 motor controllers (ESC’s).
• 6 serial ports (UARTs): all with integrated inverters for S-BUS and other inverted protocols
• I2C port for external sensors
• RGB LED output
• Buzzer output
• Camera control output for configuring analog cameras
• Analog RSSI input
• 5 V regulator with 1.5 A output and up to 8S (35 V) input voltage
• USB Type-C connector
• Size: 37 x 37 mm (30.5 mm hole spacing)
• Weight: 7g
