BDI DJI Digidapter V2 Plug & Play Analog Adapter For The DJI Digital FPV System

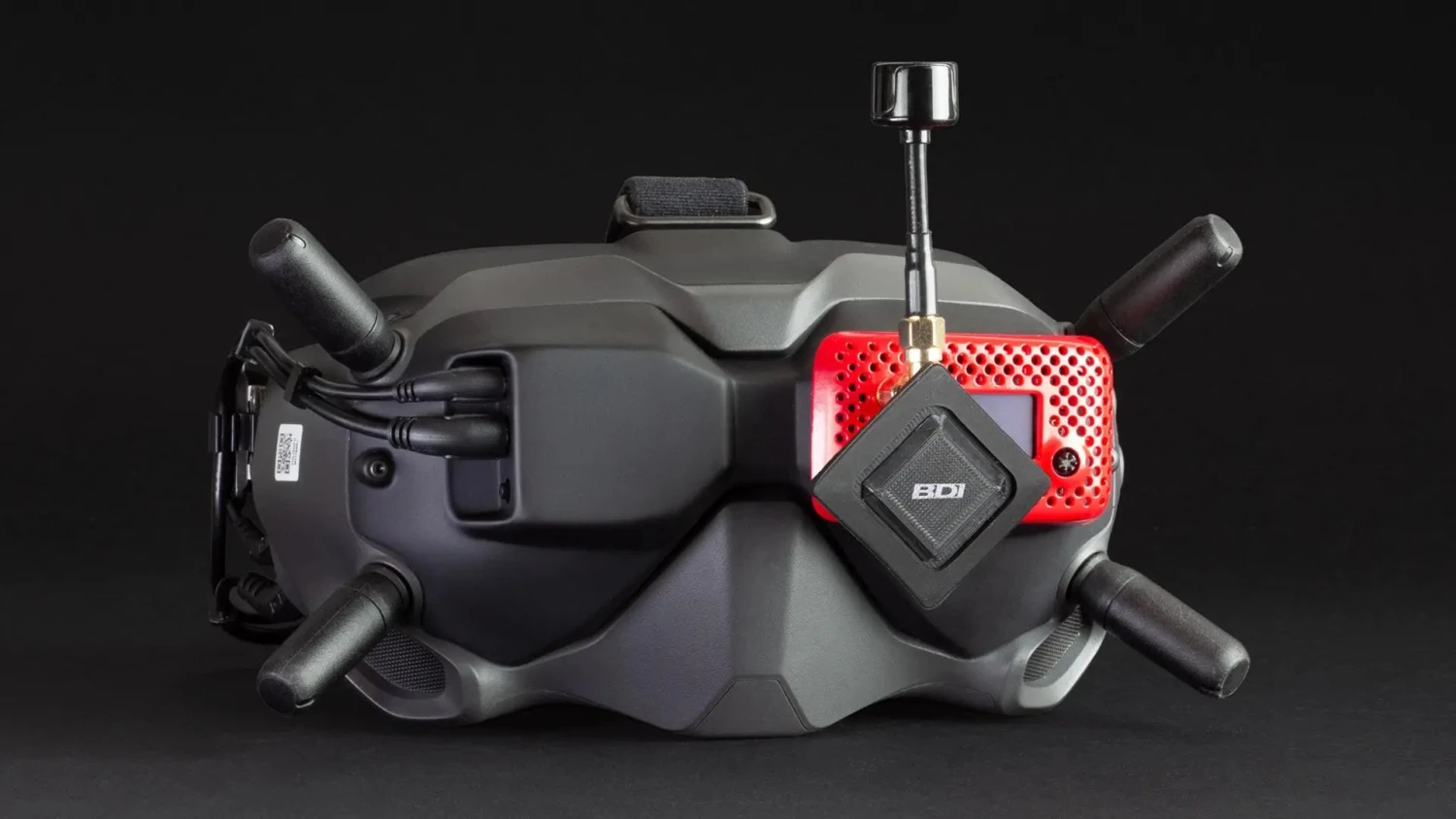

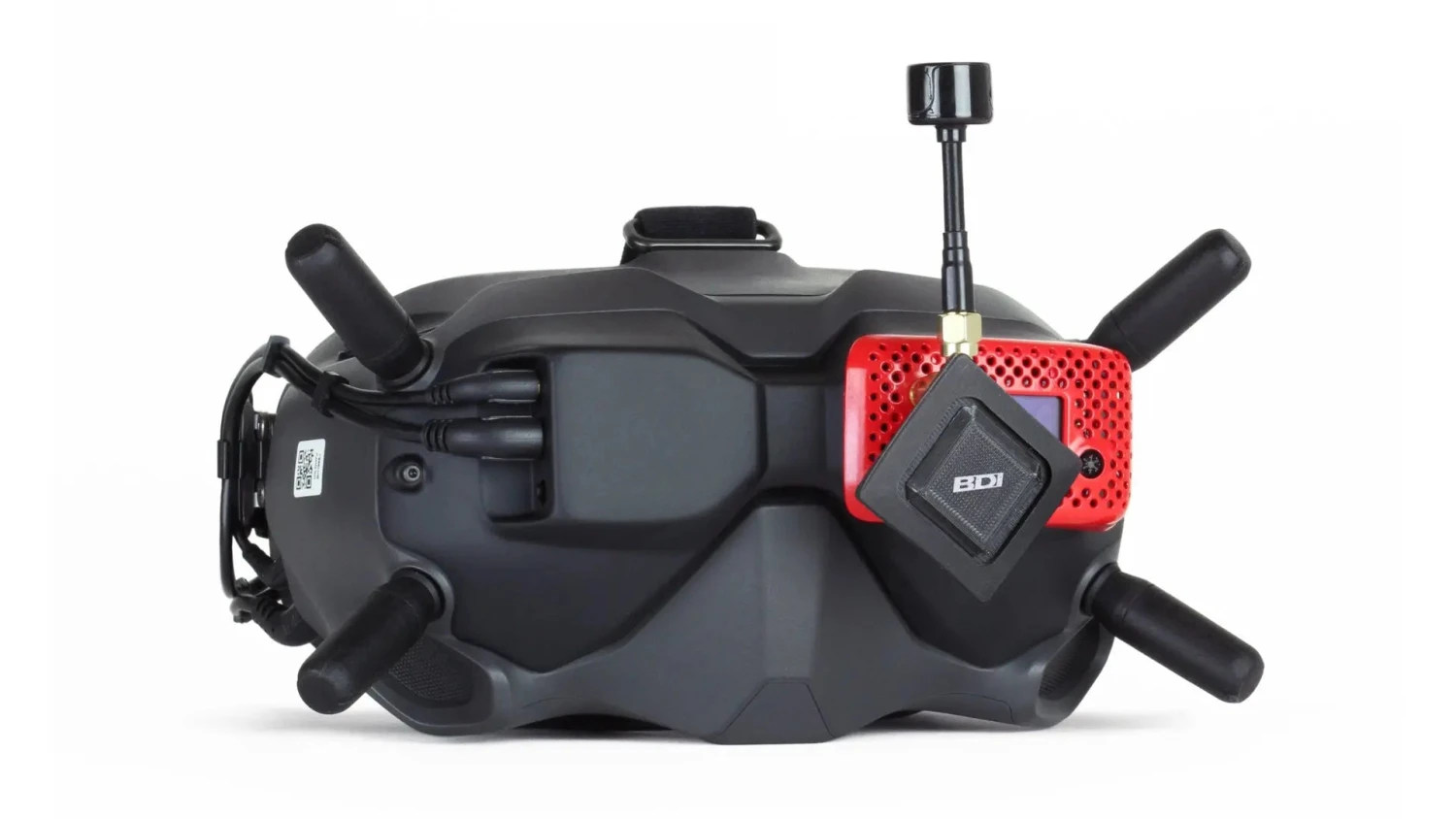

The BDI DJI Digidapter V2 is an analog module adapter for the DJI Goggles V1 & V2. This kit integrates any analog module into the DJI Goggle faceplate. Compatible modules include the TBS Fusion, Foxxer Wildfire, Rapid Fire, True D-X, Eachine Pro58, and more.

New Features

• You ask, BDI actually listens! The Digidapter now includes an on/standby switch for your analog module.
• Updated wiring kit (

  also sold separately

  for V1 users) that is specifically molded and lengthed for the DJI goggles to keep the look clean, reduce snagging, and prevent accidental misplugs.

• 6s LiPo input, up from 4s.

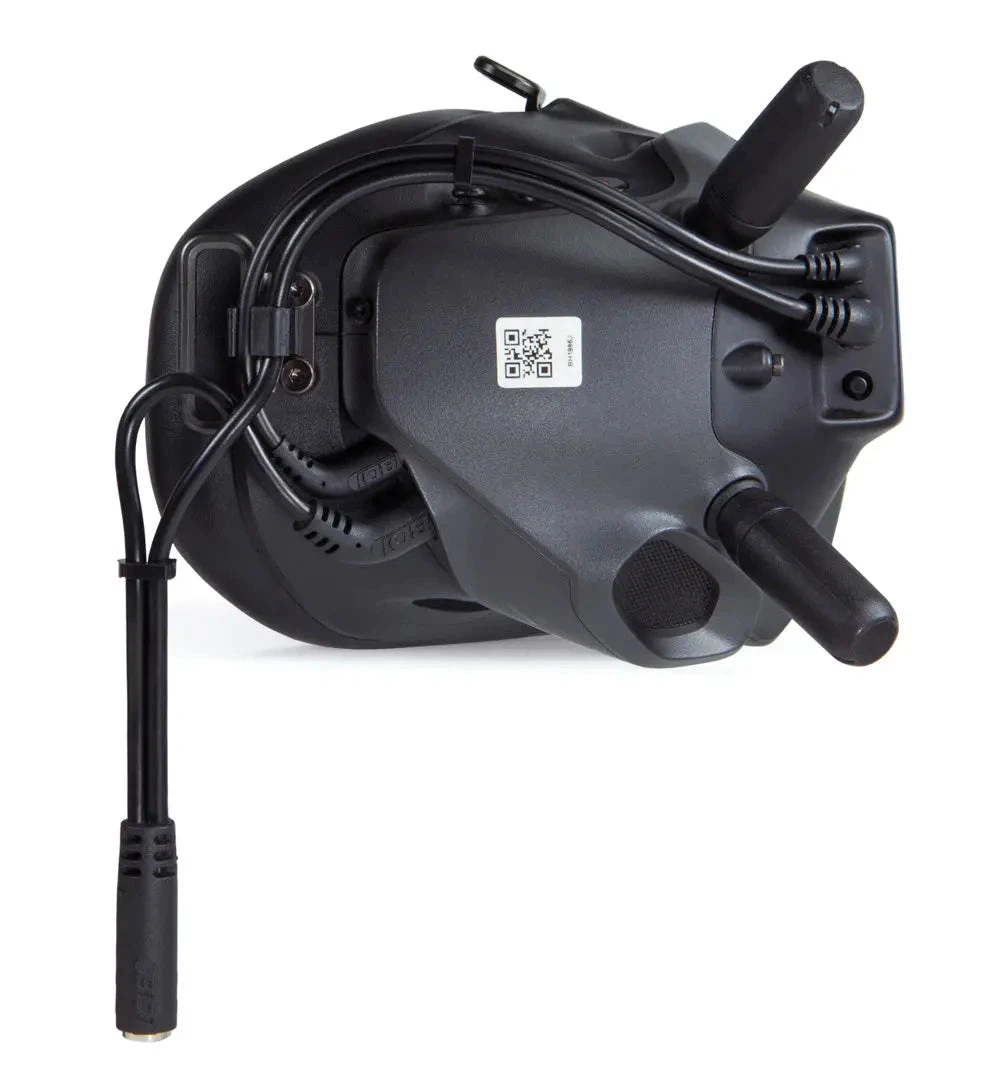

The new cabling design sits flush with the Digidapter V2 and a screwless cable management clip ensures your cables stay in place, with a strain relief loop to ensure your goggles never come unplugged.

Ports

• 5.5mm x 2.1mm DC In 7.4v-26v (2s-6s)
• 4 pole 3.5mm video/audio out
• 9 pin RF module receiver header

Button
Short delay tactile power button for analog module

Cables

• 5.5mm x 2.1mm male to dual 5.5mm x 2.1mm female DC jack splitter
• 4 pole gold plated 3.5mm male to 3.5mm male video cable
• Dual 4 Pole 3.5mm male to 3 Pole 3.5mm female splitter video/audio cable

Accessories
Screwless strain relief clip and cable management clips

Maximum Input Voltage
26.1 Volts DC

Minimum Input Voltage
7 Volts DC

Nominal Output Voltage
5 Volts DC

Maximum Module Supply Current
1.0 Amp

Rated Continuous Power
5 Watts

Material/Colour
Matte black, Injection moulded, Acrylonitrile butadiene styrene (ABS)

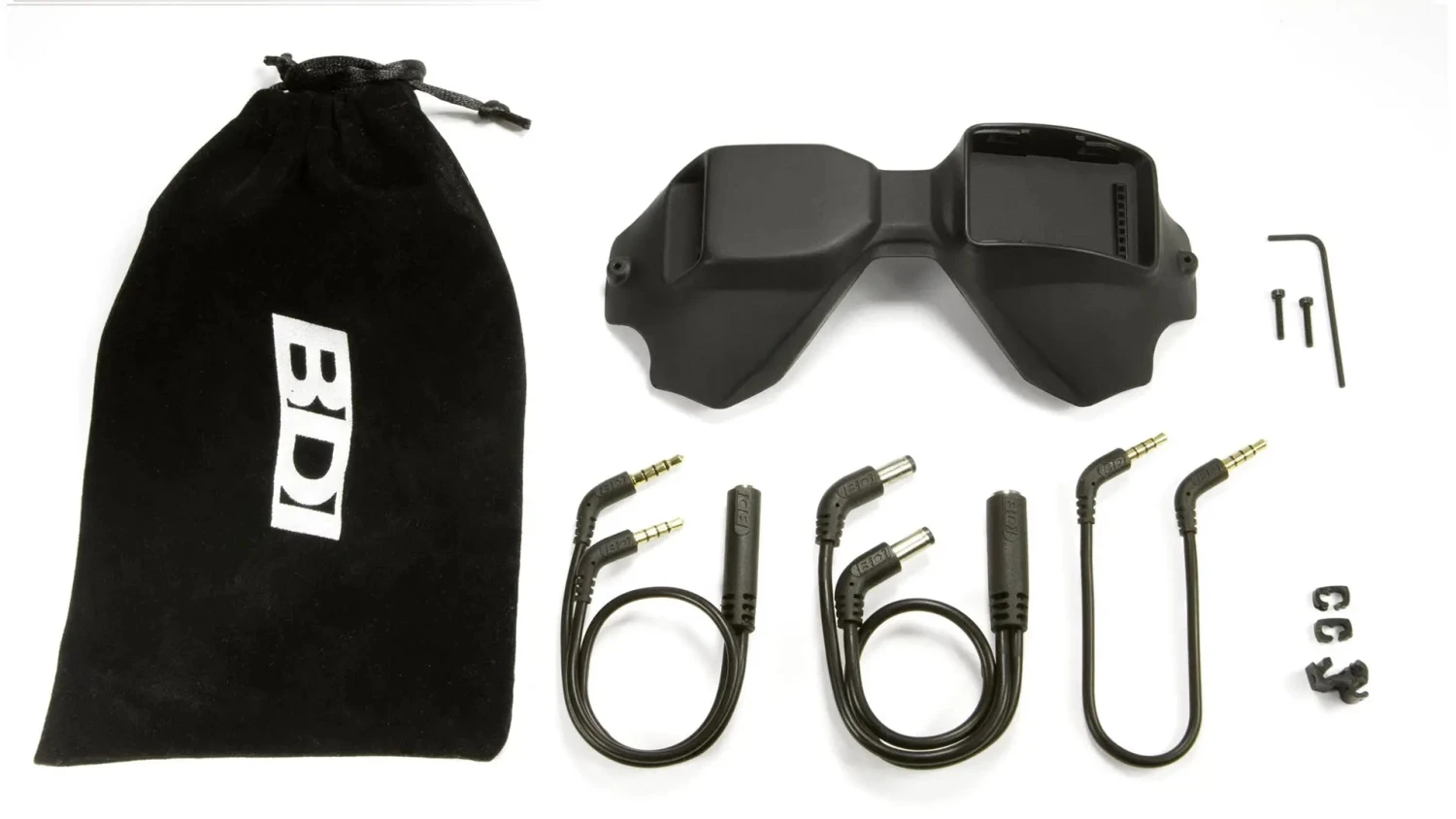

What’s in the box

• 1 x DigidapterV2 faceplate
• 1 x Analog video cable
• 1 x Analog video/audio splitter for audio out
• 1 x Dual DC/DC male to single DC female split cable
• 1 x Allen key
• 2 x 12mm cap head bolts
• 1 x Cable strain relief clip
• 2 x Cable clips
