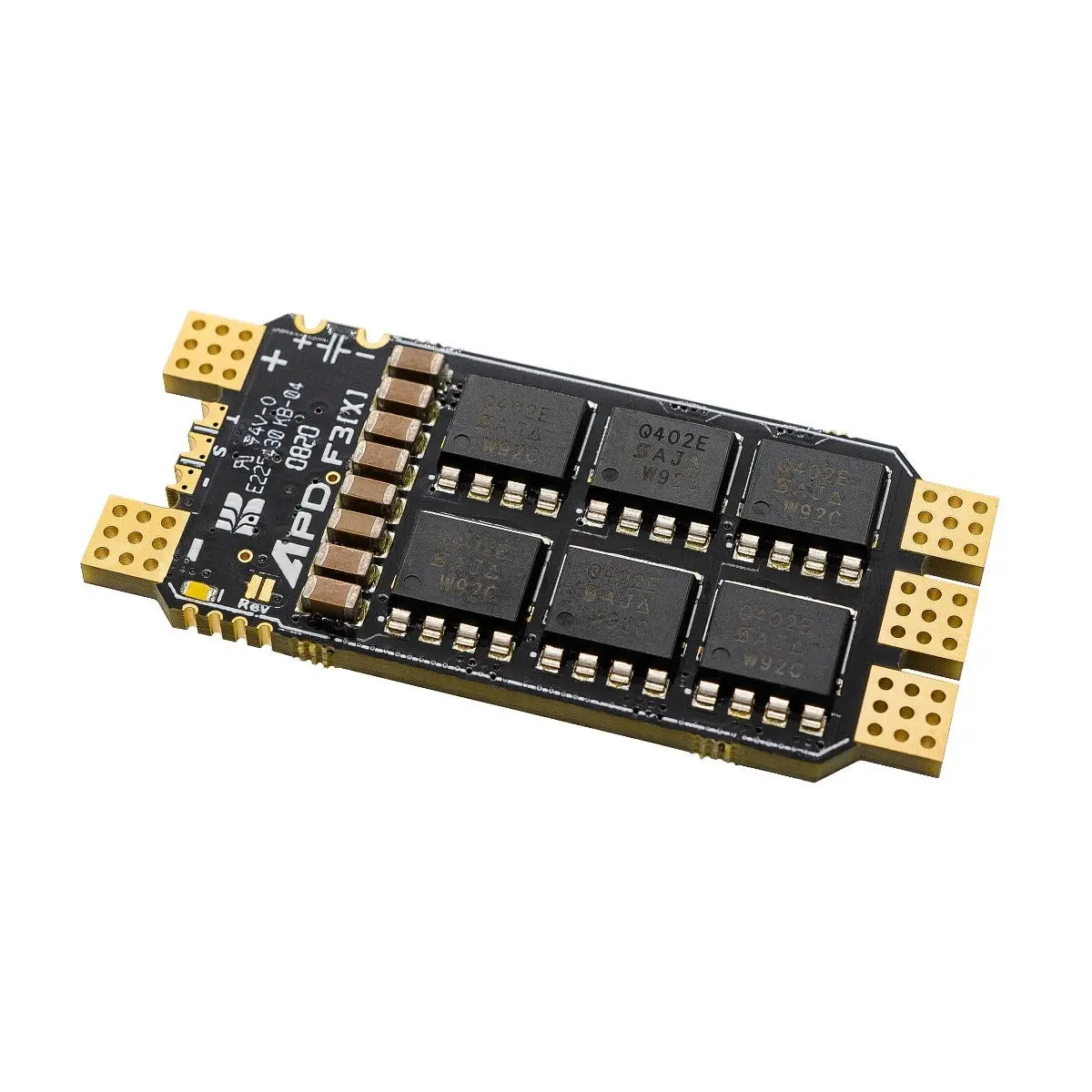

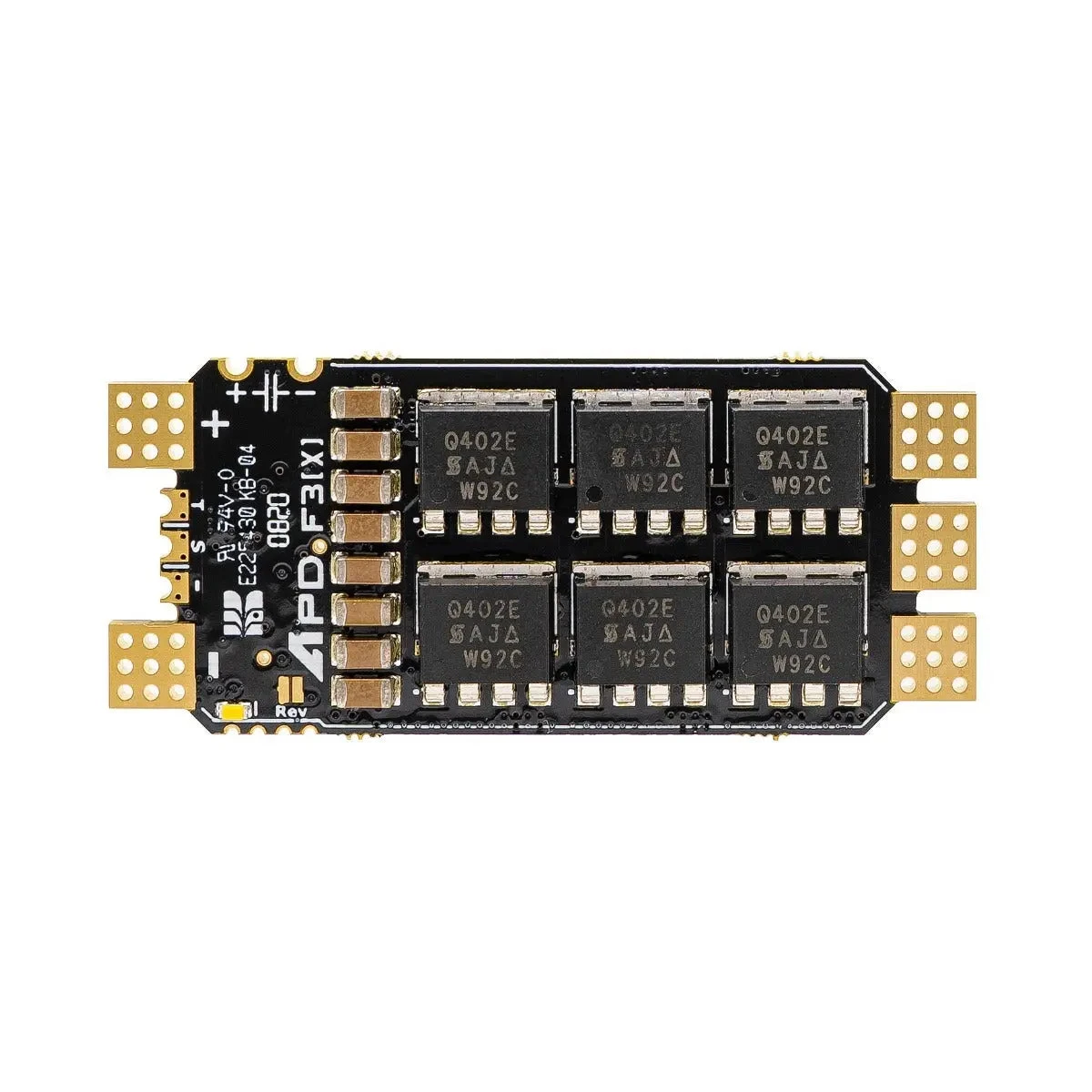

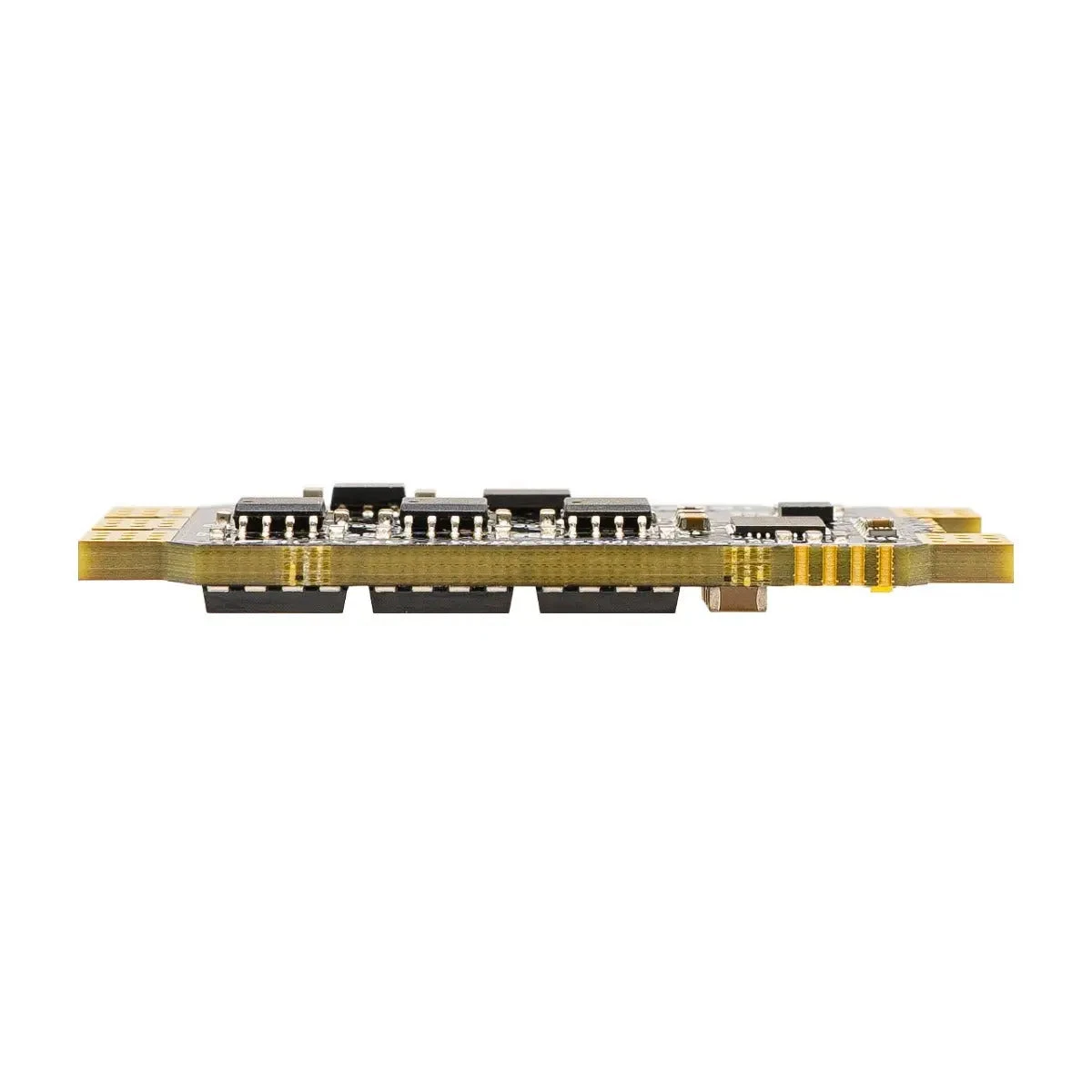

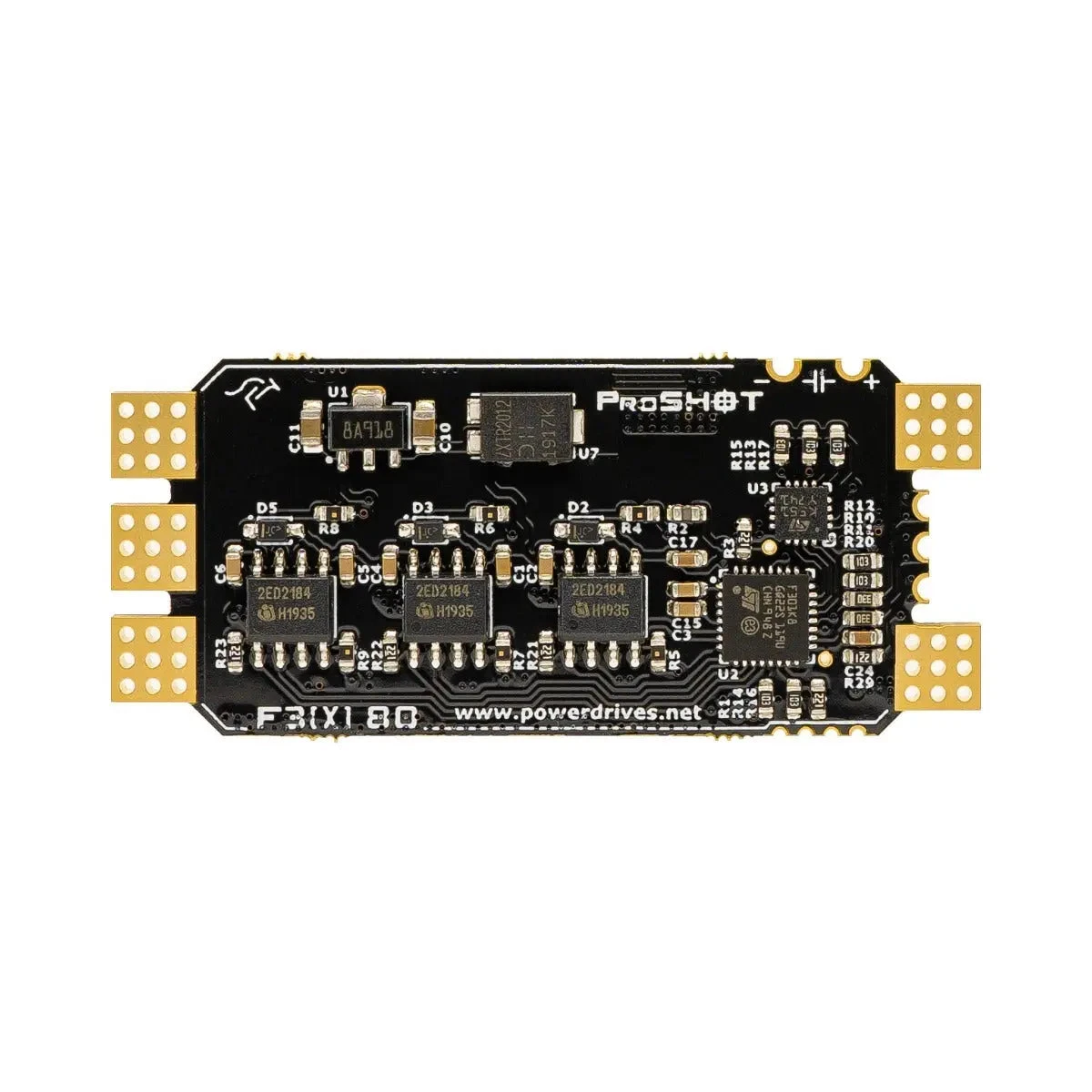

APD 80F3 8S 34V 80A 32Bit ESC

The F3 processor ensures no input commands are missed, even at the highest input update rates. Its bleeding-edge features include ‘PWM-frequency dithering, and Active Phase-current Demagnetisation to ensure the smoothest control at high power, whilst maintaining maximum efficiency.

Compatible with the latest Protocols including ProShot up to 1MBs/S.

With peak power ratings up to 4.7kW, these ESCs will have no trouble powering your craft. Ideal for macro-scale aircraft with propeller sizes up to 11″. Input capacitor included.



Features:

– Designed and manufactured in Australia using only the highest quality components, ensuring no sacrifice in reliability.
– Plug and play firmware
– Up to 8S capable
– Up to 80 A Continuous* current
– 140 A Burst current
– True 10bit resolution
– Virtually no setup time, with simple motor reverse solder tab
– Auto-detect ProShot or Dshot any frequency range
– ProShot1000  capable (1Mbs/s)
– Dshot300 to Dshot1200 capable (0.3-1.2Mbs/s)
– Up to 750,000 eRPM
– Auto PWM-freq
– Auto Timing Advance
– HBM (Hectic Boost Mode) ensures this will deliver maximum thrust, outperforming any other ESC
– Telemetry output
– Intelligent current sensing
– LED indication
– Digital commands over Proshot (including anti-turtle mode)
– Digital commands over Dshot
– 8-Layer PCB to ensure minimal track resistance

* Continuous current ratings are at a 100% throttle duty cycle. Continuous rating is defined as max sustained current at 100% throttle for 60 seconds with 33 m/s airflow.

Documentation and Datasheets can be found at:

docs.powerdrives.net

Additional Information:

Weight: 20g
Dimensions: 20x22x12mm

CAD Model:

Click here
