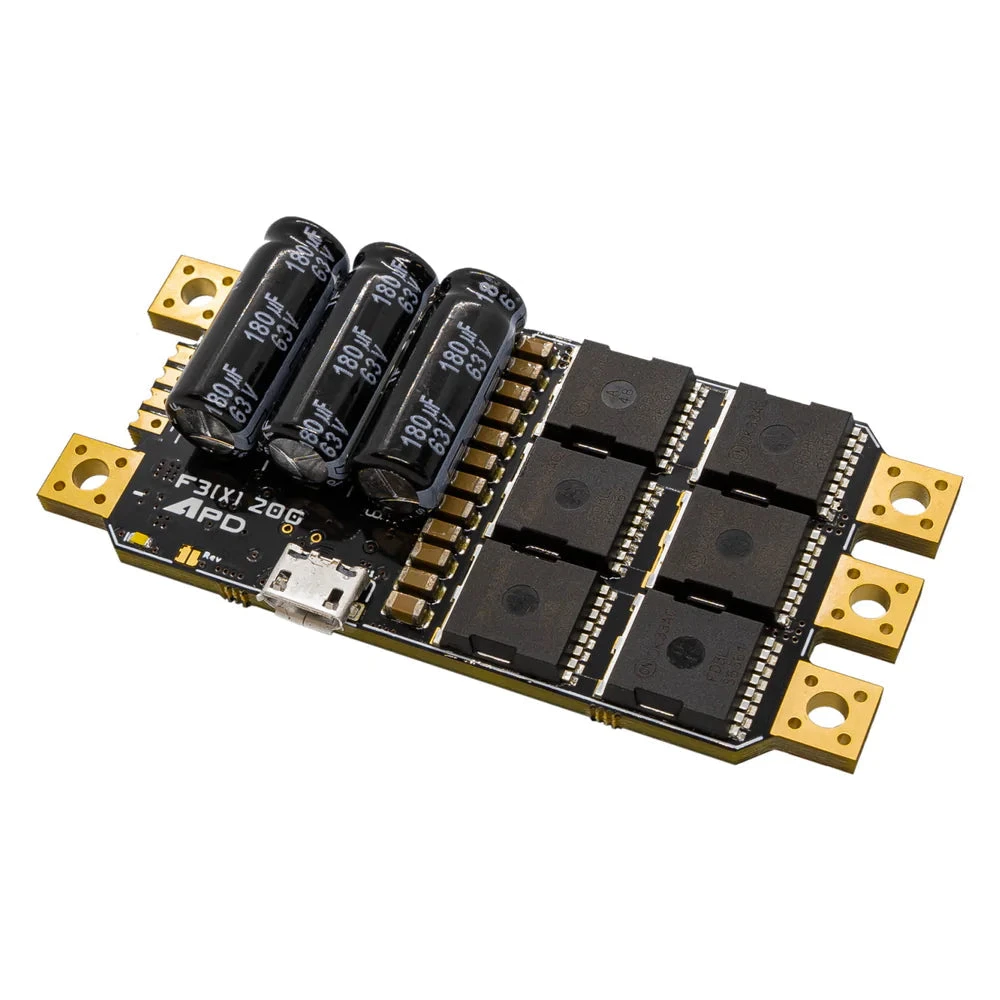

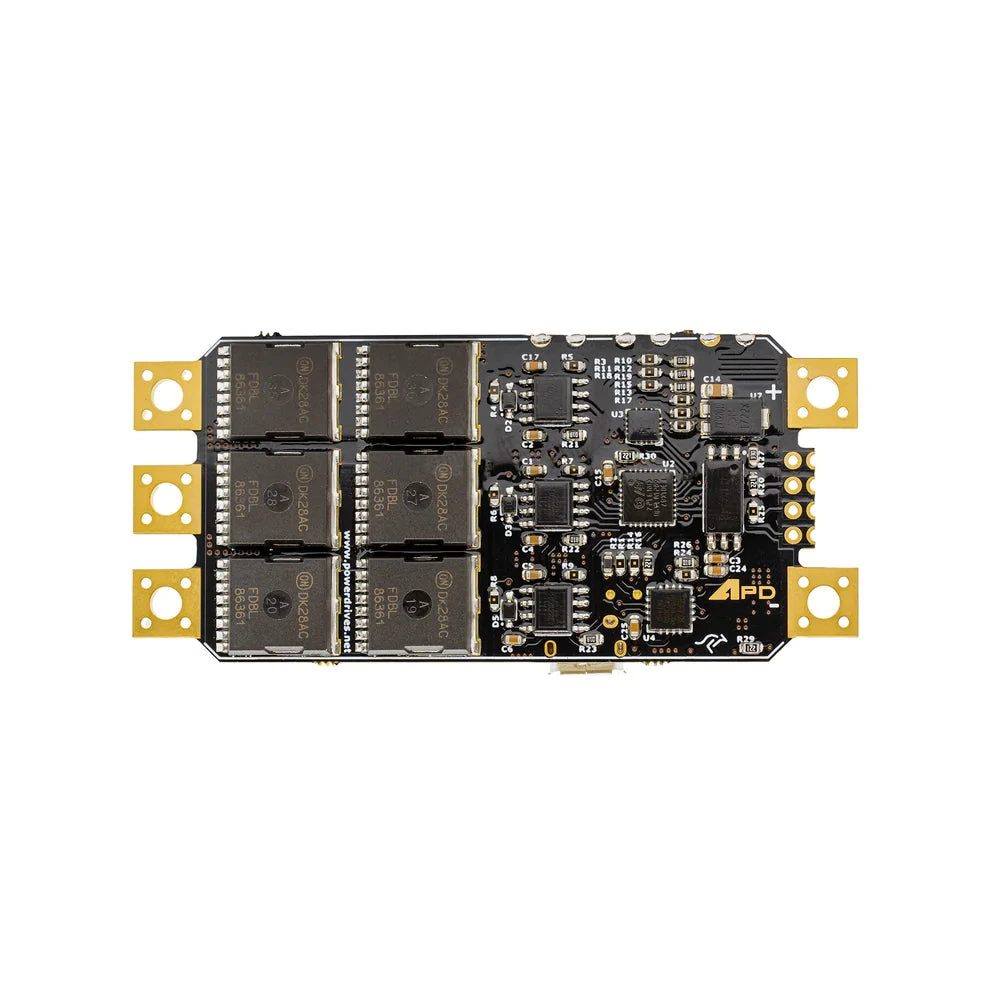

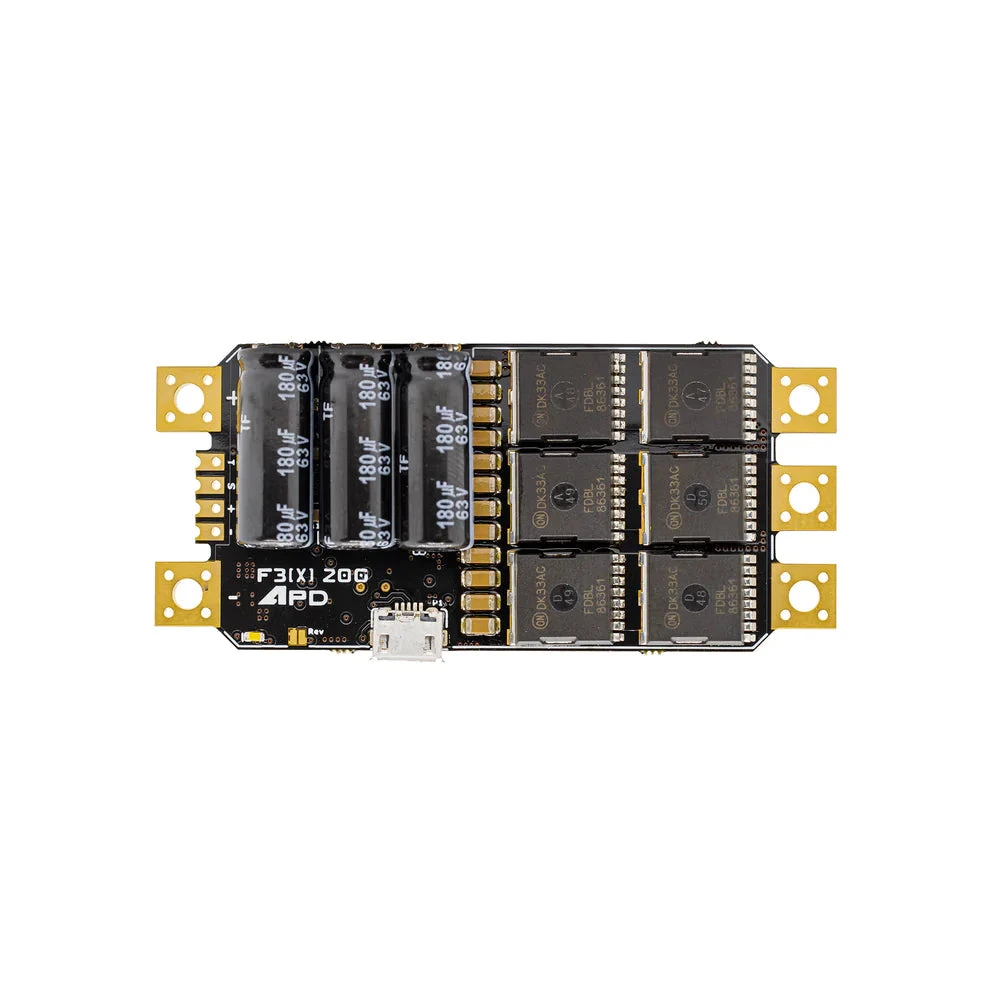

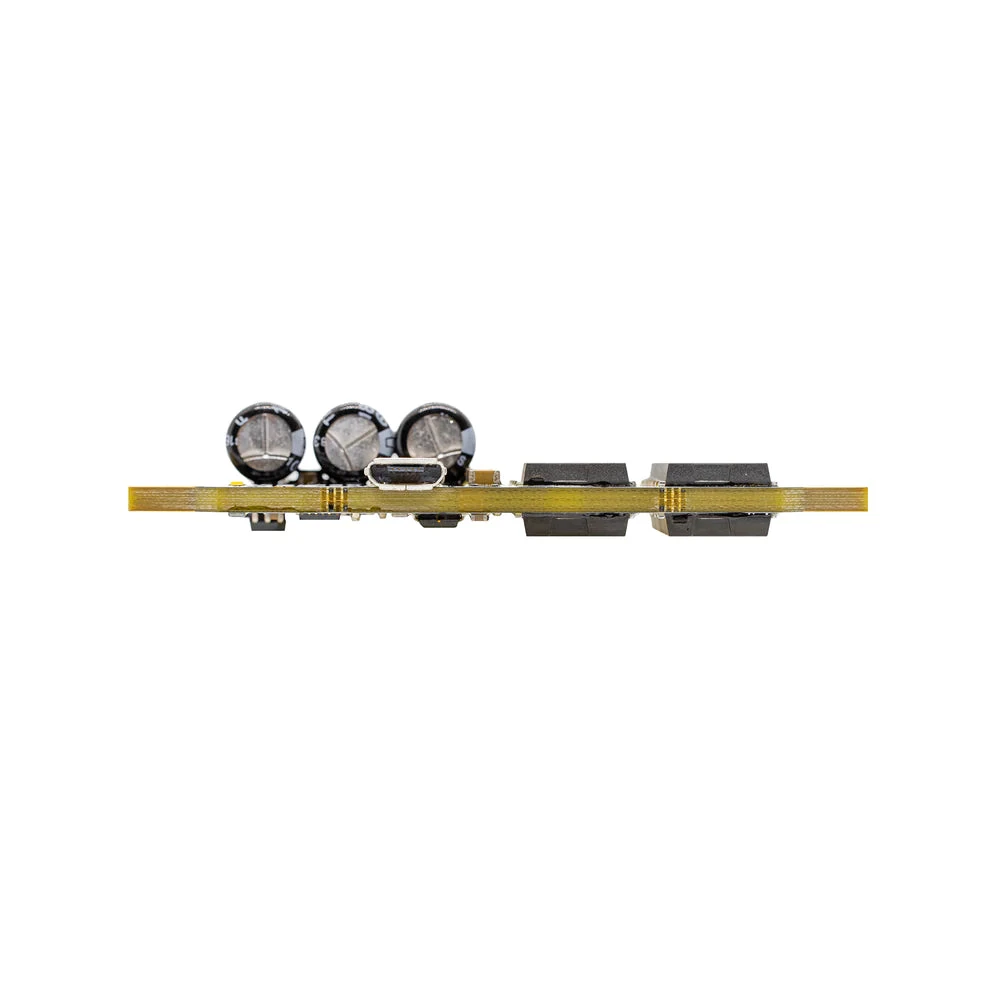

APD 200F3 200A X-Class ESC

The F_Series ESCs are built from the ground up upon trusted 32-bit ARM architecture to ensure performance is maximised for a wide range of operating environments. Features including PWM-frequency dithering and Active Phase-Current Demagnetisation allow for smooth control with virtually all powertrain combinations with peak power outputs of up to 18kW.

Feature Set

• Designed and manufactured in Australia using only the highest quality components, ensuring no sacrifice in reliability
• Proprietary firmware designed in Australia
• Plug and play firmware
• Up to 14S (60 V) capable
• Up to 200 A continuous* output current
• 300 A Burst current
• True 10-bit resolution
• Virtually no setup time, with simple motor reverse solder tab
• Auto-detect PWM or DShot
• DShot300 to DShot1200 capable (0.3-1.2Mbs/s)
• Up to 750,000 eRPM
• Motor agnostic
• Auto PWM output frequency
• Auto timing advance
• Telemetry output
• Automatic current limiting and over-temperature protection
• LED indication
• Digital commands over ProShot (including anti-turtle mode)
• Digital commands over DShot
• Bare-PCB design to allow maximum integration within the end setup
• 8-Layer PCB to ensure minimal track resistance

* Continuous current ratings are at a 100% throttle duty cycle. Continuous rating is defined as max sustained current at 100% throttle for 60 seconds with 33 m/s of airflow.

Documentation and Datasheets can be found at:

docs.powerdrives.net

Additional Information

Weight: 0.036kg

Dimensions: 73x34x20mm

Documentation:

docs.powerdrives.net

CAD Model:

200F3 CAD Model
