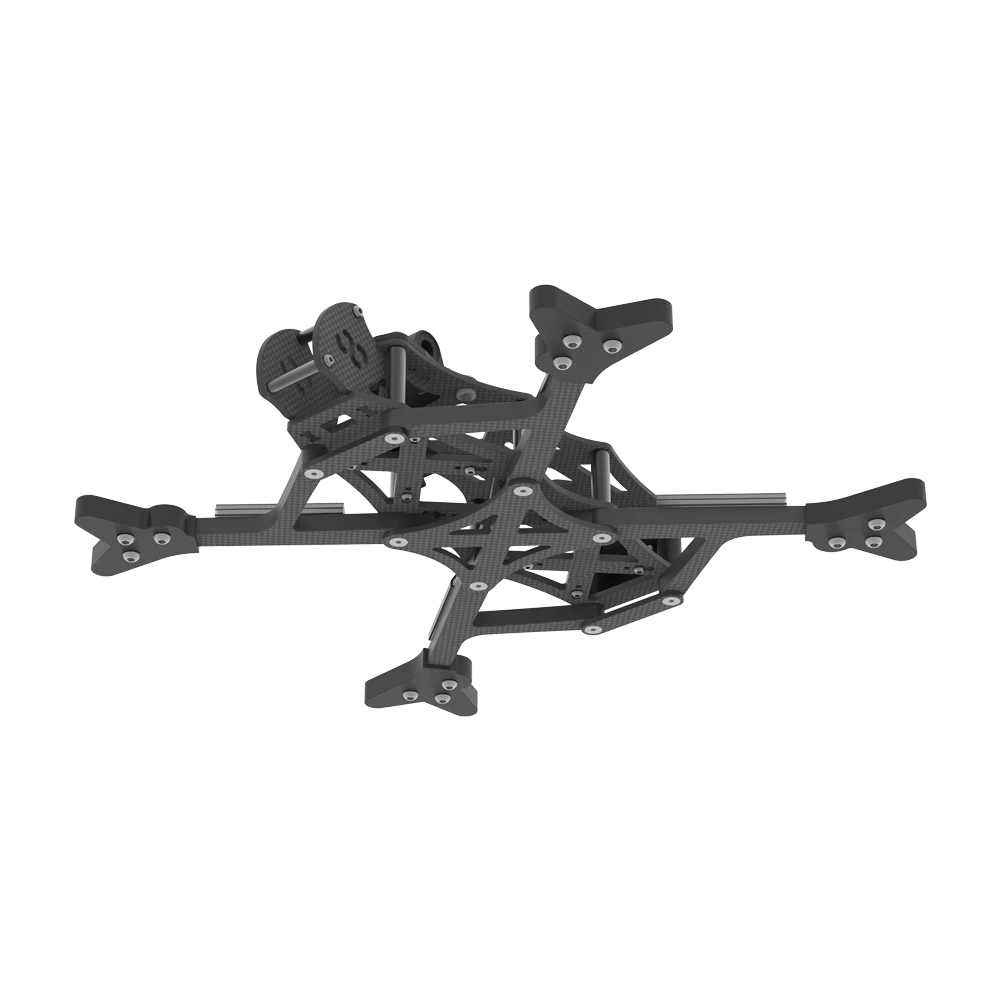

Built to be the ultimate 5″ freestyle platform. The AOS 5 O3 has been updated to be compatible with the new DJI O3 Air Unit as well as existing 30.5×30.5mm, 25.5×25.5mm and 20x20mm electronics. The camera cage and arms have been reinforced to improve durability. As with all AOS frames exceptional vibration and resonance performance is guaranteed, eliminating IMU resonance issues with O3 image stabilization.

Approx. 120g with all hardware

Designed for up to 5.1 inch props

220mm wheelbase

6 mm Arms

30.5×30.5mm, 25.5×25.5 or 20×20 mm stack mountings in the front, centre and rear.

Fits the DJI O3 Air Unit, Caddx Vista or HDZero Freestyle VTX perfectly

Fits both 20mm (DJI and O3 camera) and 19mm (Micro sized) cameras

Motor mounting 16×16 up to 19×19 (2306, 2207 recommended)

Standoffs, frame and screws included

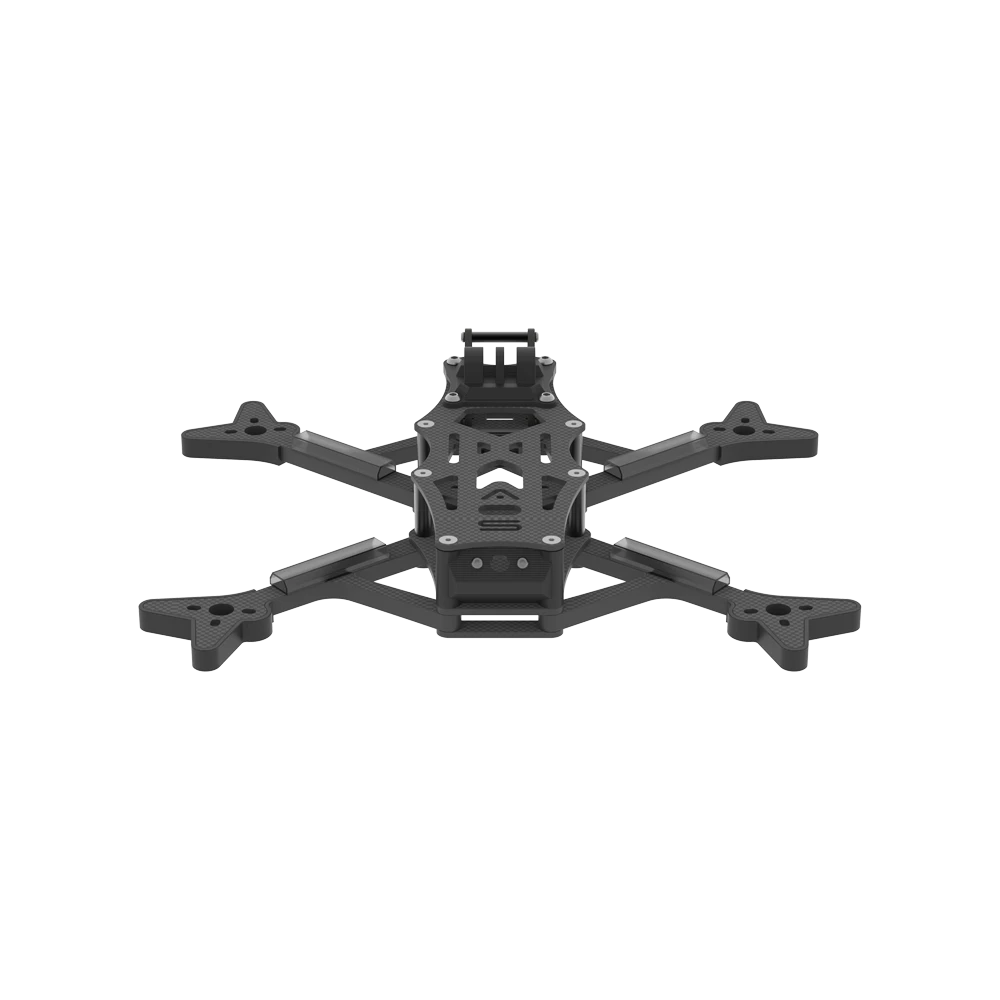

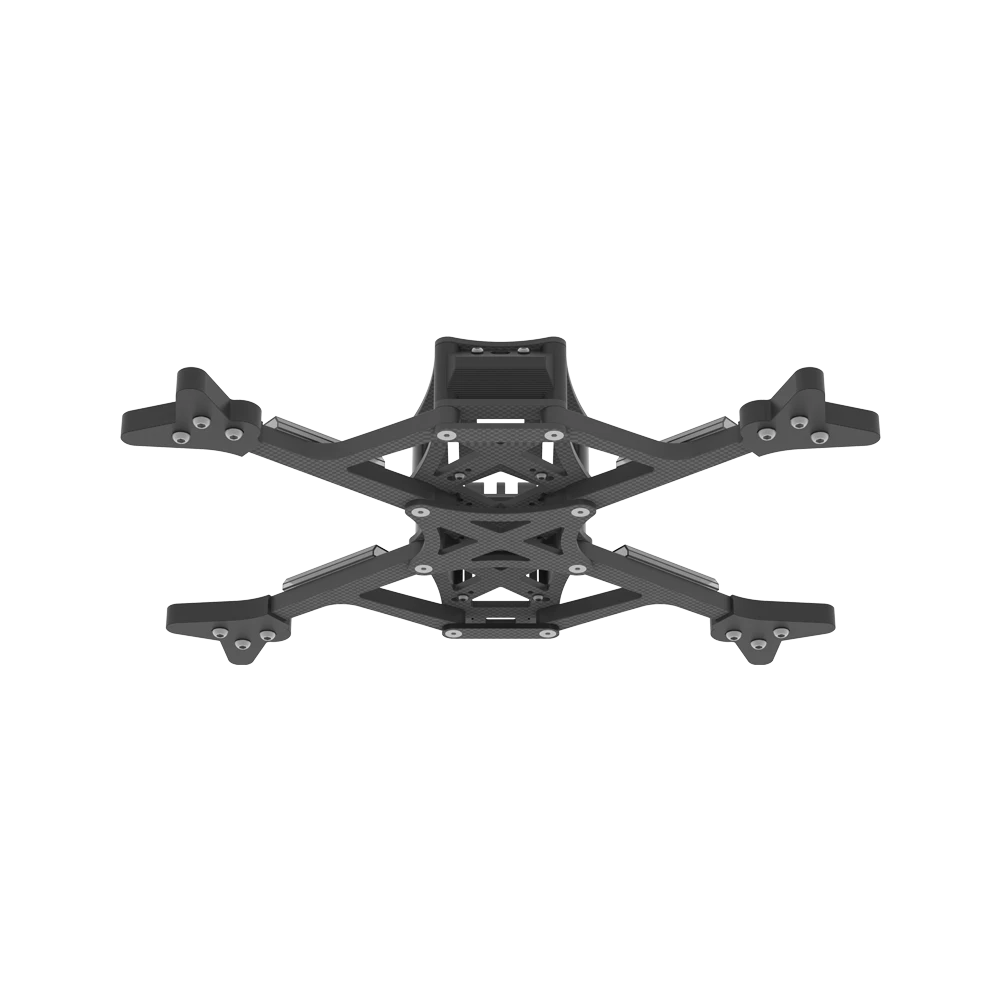

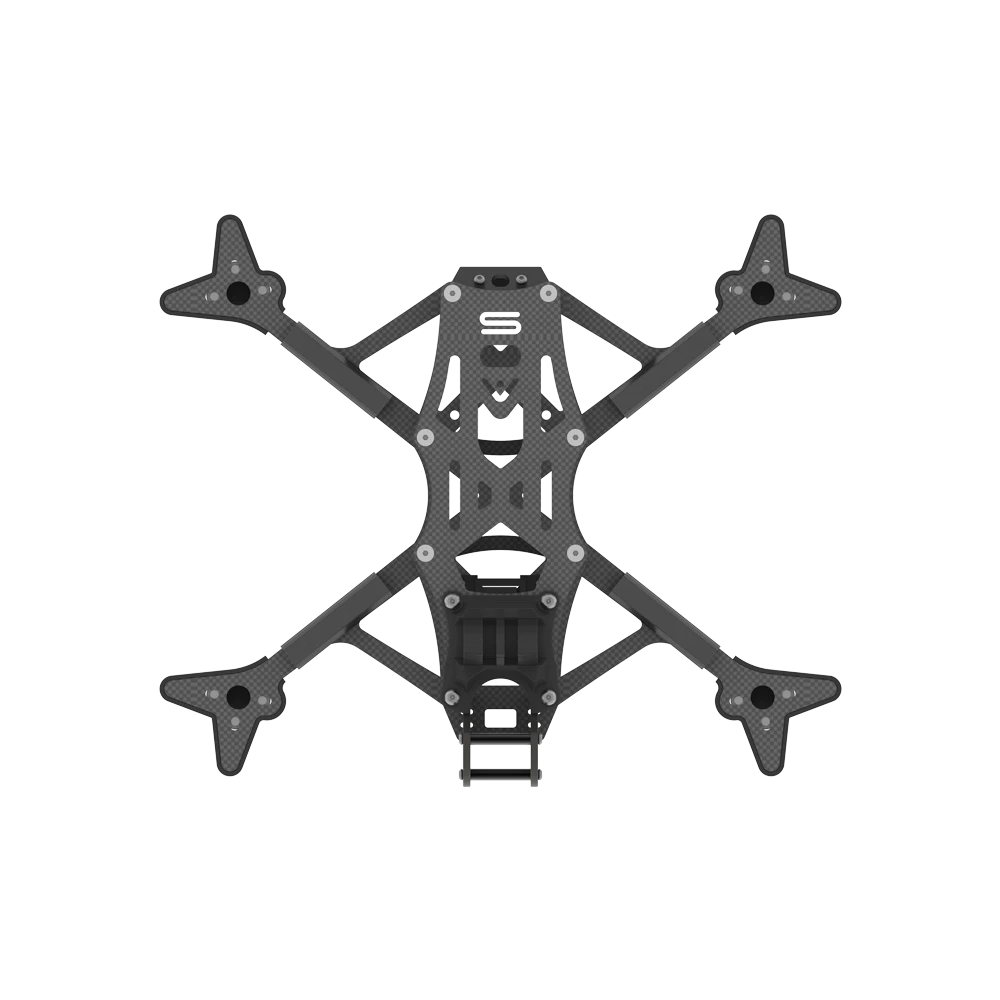

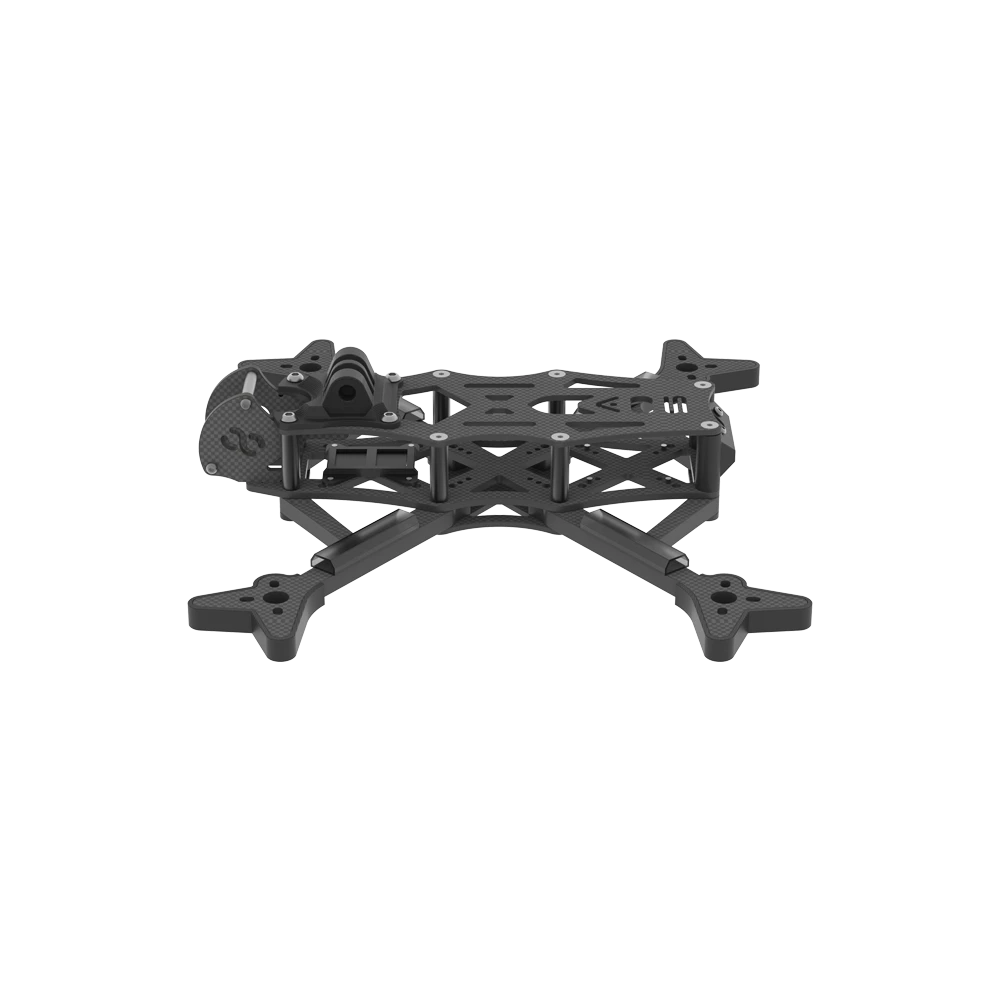

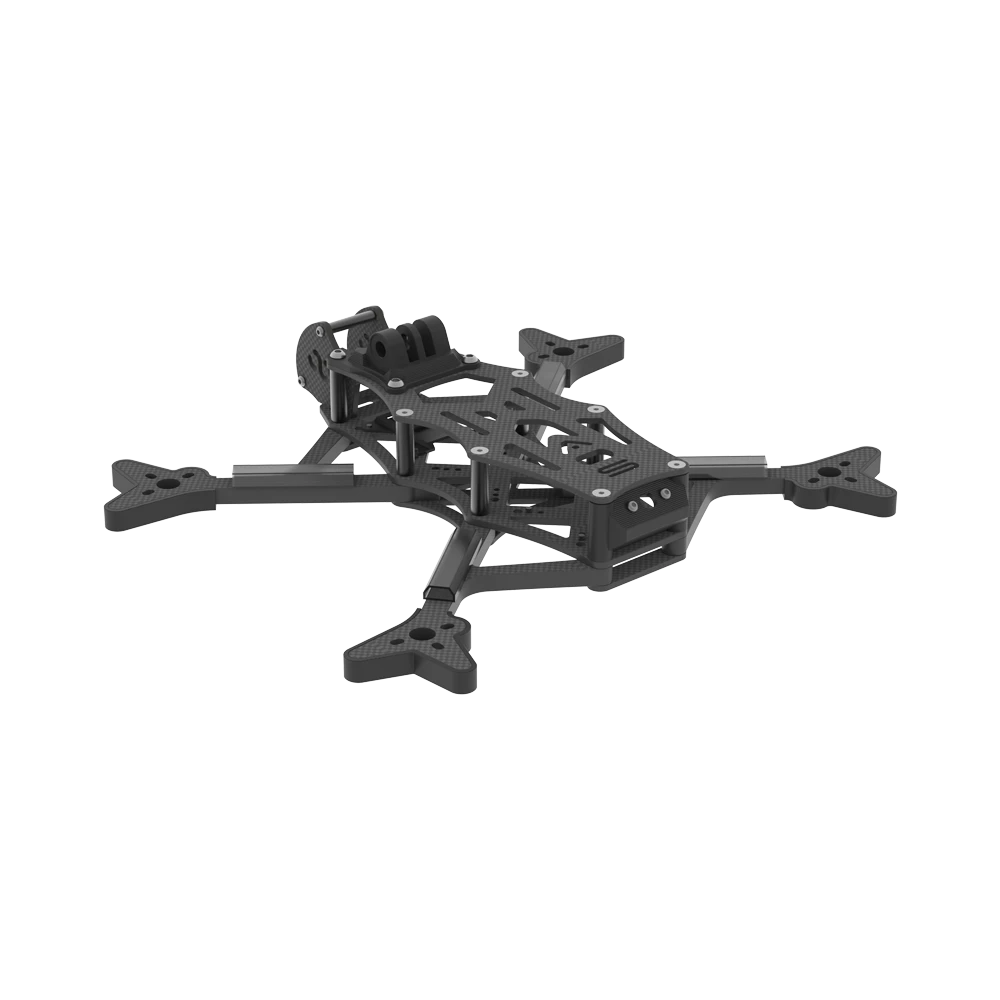

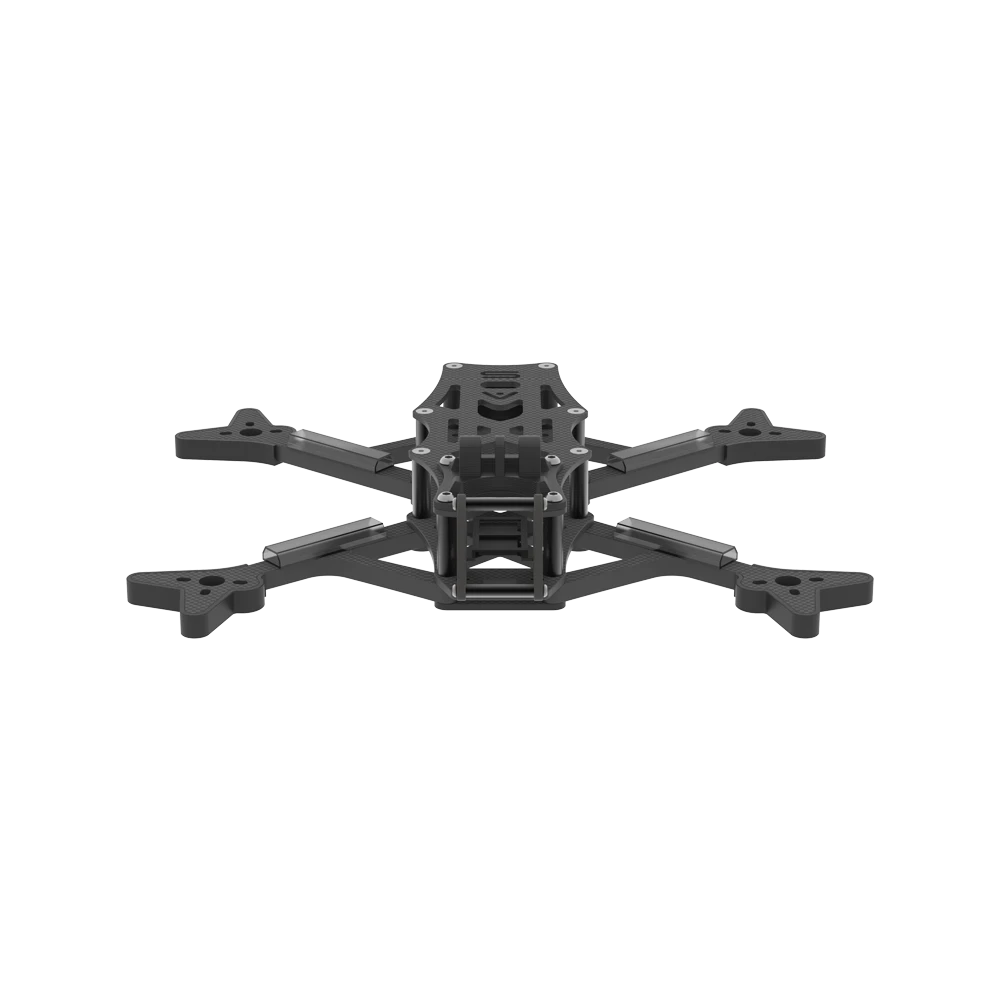

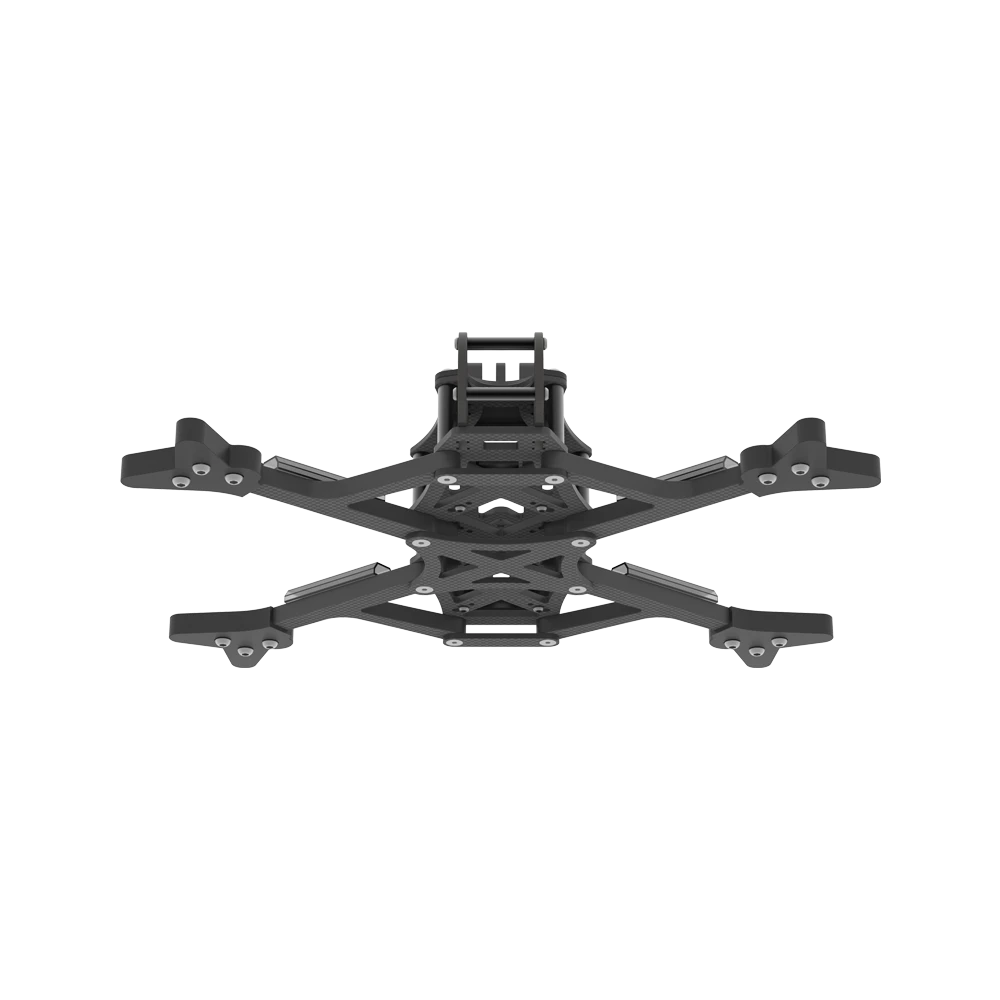

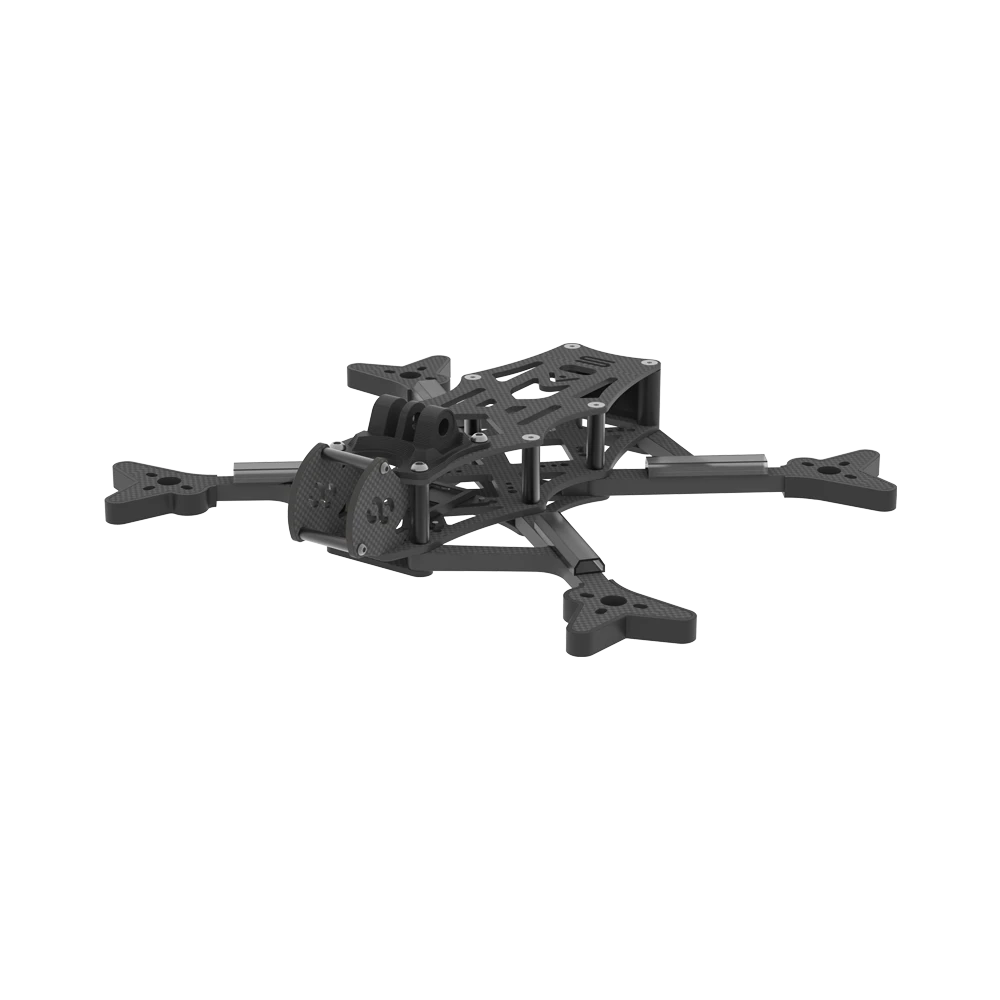

Product Name: AOS 5 O3 Frame Kit

Frame wheelbase: 220mm

Frame Dimension: L175*W135*H32.5 mm

Arm Thickness: 6mm

Top Plate Thickness: 2mm

Bottom Plate Thickness: 2.5mm

Upper Plate Thickness: 2mm

Motor Mounting: 16x16mm

VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm

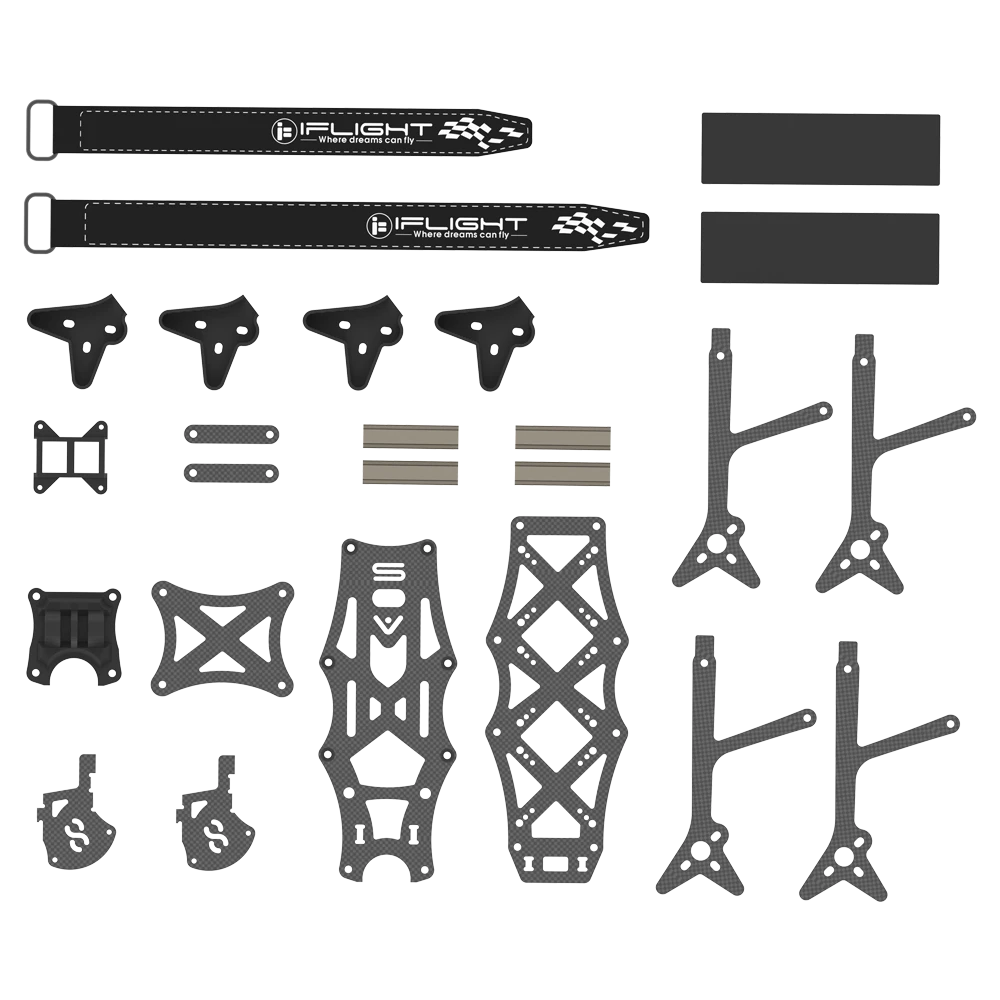

1 x AOS 5 O3 Frame Kit

1 x TPU Parts

4 x Motor Wire Shield Tube

1 x Screw Bag

2 x Battery Strap
