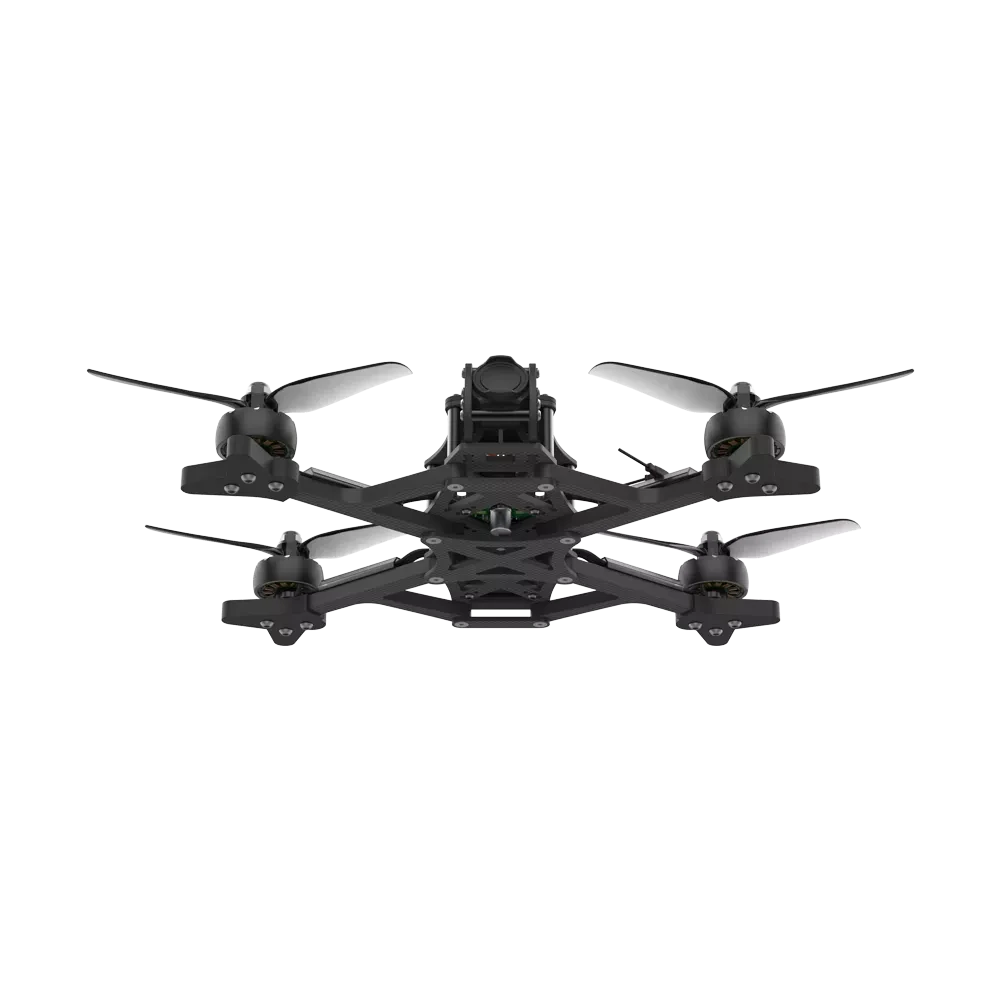

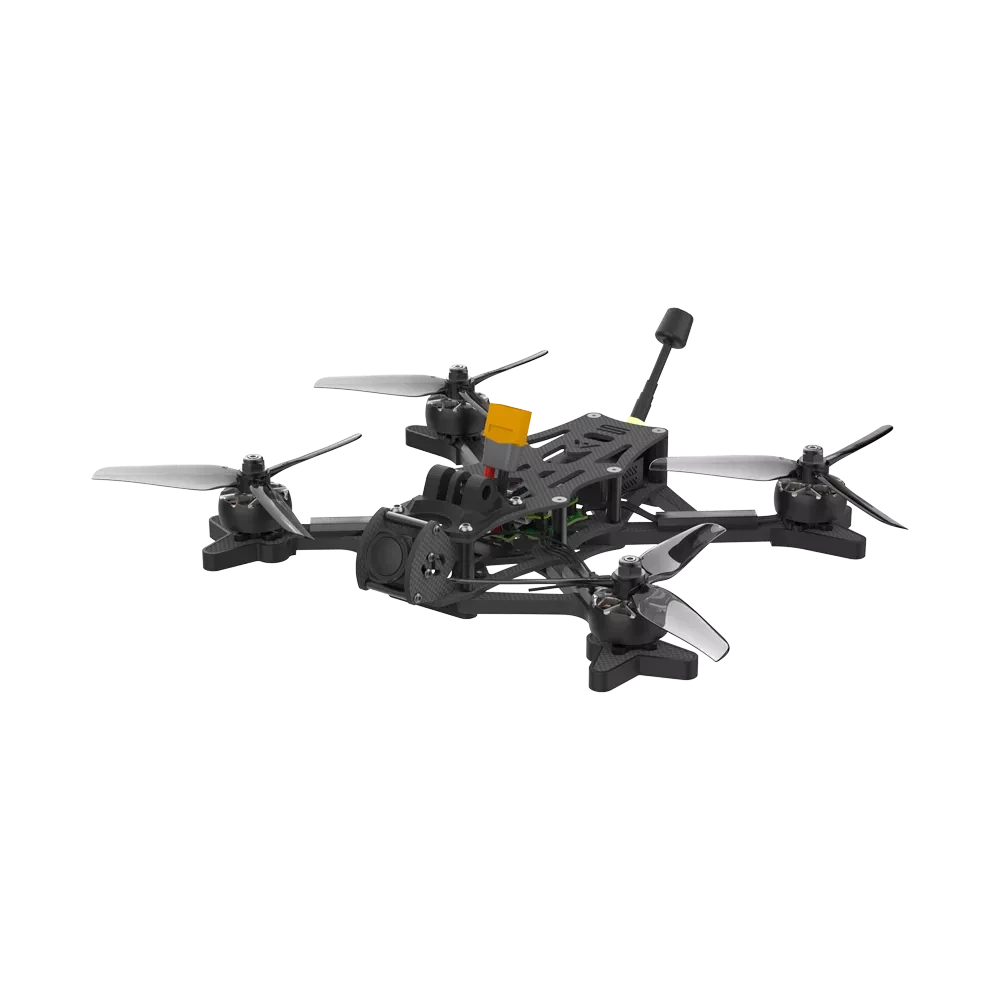

AOS 5 O3 6S HD BNF

The AOS 5 V2 is a lightweight drone designed with low-vibration technology. This drone features state-of-the-art electronics and topology optimization. The AOS 5 V2 allows you to run less filtering, with less associated delay, and increase your PID gains far higher than any other frame in its weight class. Get ready for the most responsive 5″ quad you have ever flown!

DJI O3 HD Air Unit Low-Latency Digital Transmission

Topology-optimized truss design arms

2.5mm Top and Bottom Plates

Optimized Camera Protection

32×32 GoPro Mounting

Built by iFlight

5″ BNF Drone

Low Vibration

Product Name：AOS 5 O3

FC: BLITZ F722

ESC: BLITZ E45 55A 4-IN-1 ESC

Video Transmission: DJI O3 Air Unit

Frame: 255mm wheelbase

Motor: XING2 2207 motors

Prop: Nazgul 5 inch propellers

Takeoff Weight：Approx. 620 g

Dimensions (L×W×H)：180×180×80 mm

Diagonal Distance：245mm

Max Speed：130 Km/h (Manual Mode)

Maximum Takeoff Altitude：5000 m

Max Hover Time：Approx. 8 mins

Max Flight Distance：5 km

Max Wind Speed Resistance：130 Km/H (Level 4)

Operating Temperature Range：-10° to 40° C (14° to 104° F)

Antennas: 1 Antenna

GNSS：N/A

Product Name：DJI O3 Air Unit

Communication Frequency：2.400-2.4835 GHz (RX only)  /  5.725-5.850 GHz (RX and TX)

Communication Bandwidth： Max 40 MHz

Live View Quality and Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.

Max Video Transmission Bitrate：50 Mbps

Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)

Audio Transmission：N/A

1 x AOS 5 6S O3 HD BNF

2 x Antennas

2 x Battery pads

2 x Prop(Pairs)

Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”

Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!

Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”
